Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone

Search your instruction manual in PDF to download

User Manual for Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone

Click to enlarge the picture
Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone Contents of the user manual for the Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone
  • Product category: Microphones for Wireless Electro-Voice
  • Brand: Electro-Voice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Electro-Voice Microphones for Wireless

User manual for the Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Electro-Voice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!



Product description

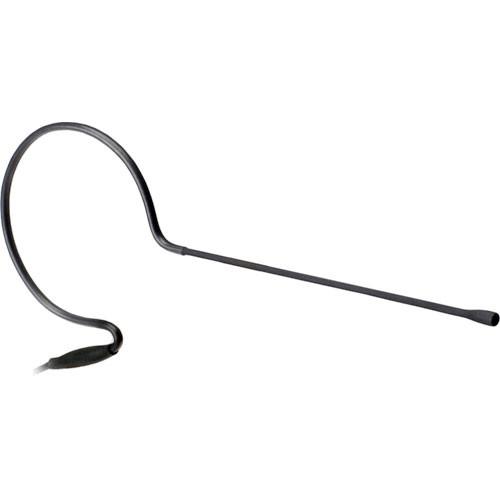

The Electro-Voice RE-97TX is an ultra low profile head worn microphone designed to deliver maximum performance while remaining inconspicuous. The miniature design is ideal for broadcast applications and the TA4-female connection enables direct integration with compatible wireless belt-pack transmitters. The entire head piece is completely form fitting featuring an adjustable boom for maximum comfort and optimum results. The omnidirectional polar pattern delivers a wide, full-range audio quality at the direct and off-axis sections of the capsule.
    Ultra Low Profile
  • The miniature capsule, boom and head piece design is ideal for broadcast and performance applications where the microphone should be heard and not seen.
    Lightweight and Durable
  • The lightweight yet durable construction is ideal for rigorous use in the field or on the road.
    Omnidirectional Polar Pattern
  • The omnidirectional polar pattern results in even, wide frequency pick up at direct and off-axis sections of the capsule.
    Interchangeable Ear Piece
  • The microphone can be configured for use on the Left or Right ear.
    TA4-Female Connection
  • The attached TA4-female connector enables use with compatible Electro-Voice and Telex belt-pack transmitters.
UPC: 701001030576 In the Box Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone (TA4-F) (Black)
  • Windscreen
  • Clothing Clip
  • Gig Bag
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Electro-Voice RE-97TX Miniature Omnidirectional Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Electro-Voice RE97Tx Specs

    Transducer Condenser, Back Electret
    Polar Pattern Omnidirectional
    Frequency Response 50Hz to 15kHz
    Dynamic Range (Typical) 93dB
    Signal-to-Noise Ratio 32dBA
    Maximum Input Sound Level > 125dB
    Power Requirements 5 VDC
    Output Impedance 3k ohms
    Output Connectors TA4-Female
    Pad No
    Low Frequency Roll-Off No
    Dimensions Boom Length: 3.4" (86.4mm)
    Boom Diameter: .080" (2mm)
    Capsule Diameter: .120" (3.05mm)
    Ear hook Diameter: .090" (2.30mm)
    Weight .6 oz (17 g)
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 7.7 x 7.0 x 1.6"
