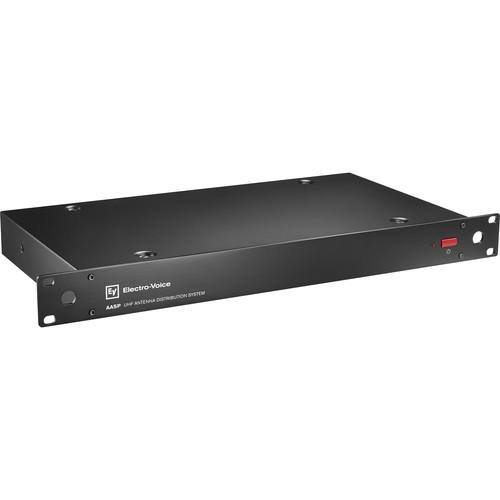

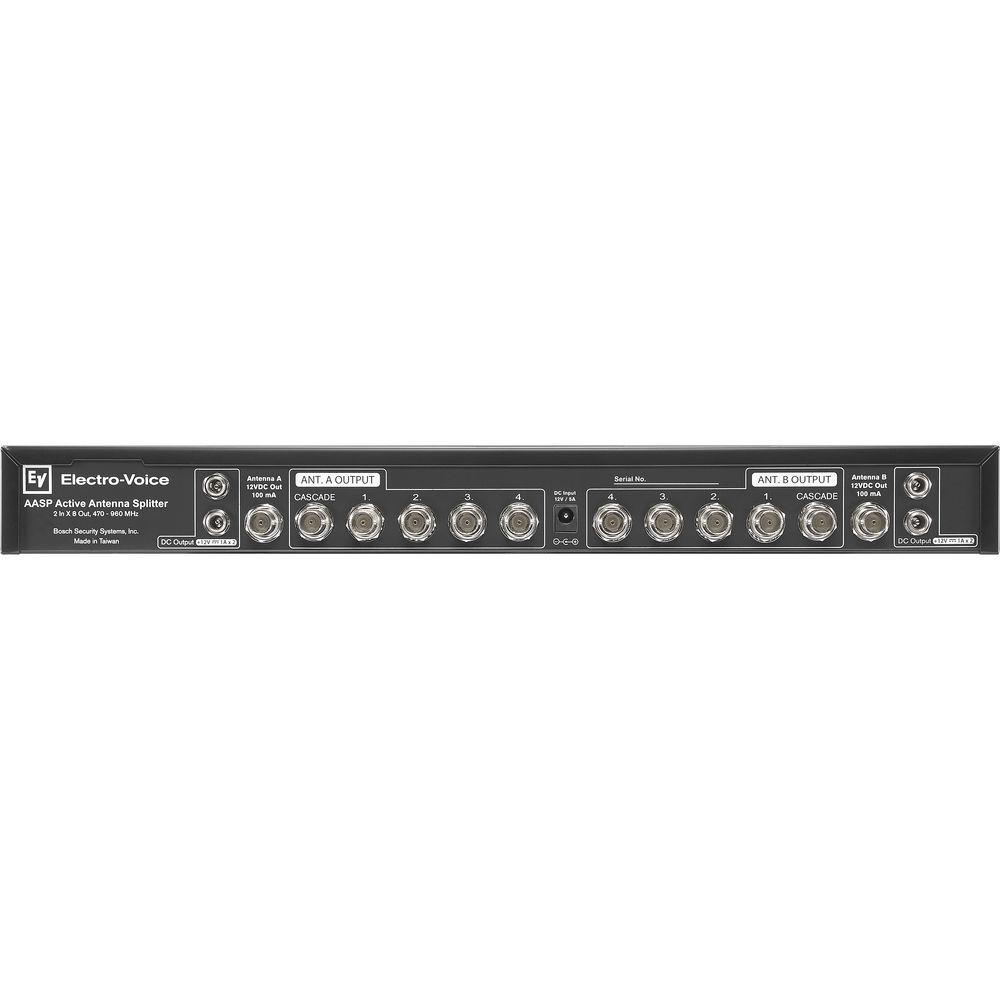

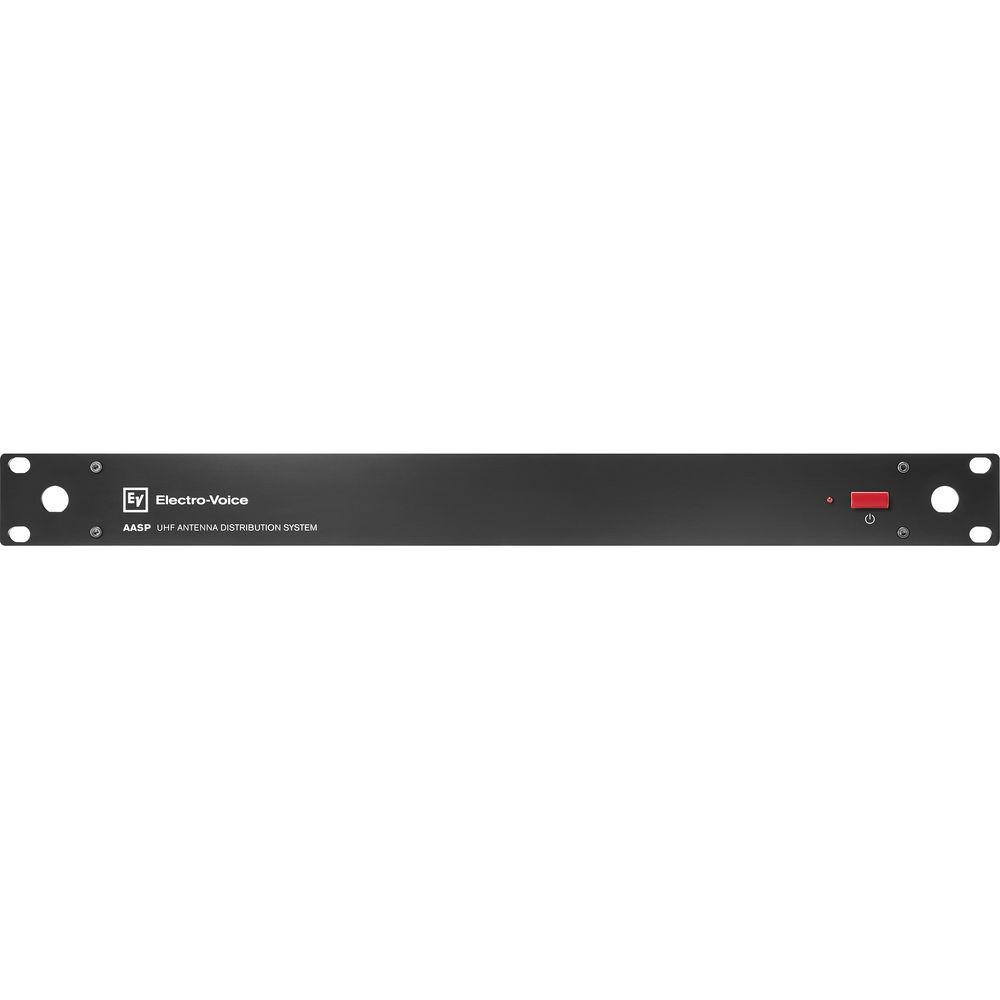

Product description The RE3-ACC-AASP 2-In x 8-Out Antenna Splitter from Electro-Voice is a professional wide bandwidth active antenna splitter designed to function as the distribution hub of RF and DC power in a multichannel wireless microphone system. It can be used to actively split each incoming antenna signal (A and B) into four connected diversity receivers in a system without signal loss as well as distributing DC to power each of the four connected wireless receivers.In addition to the four RF outputs per antenna, the RE3-ACC-AASP also includes a convenient cascade output per antenna allowing incoming signals to be sent directly to another RE3-ACC-AASP unit with zero loss and without sacrificing any of the four RF outputs per side. A total of five RE3-ACC-AASP splitters can be cascaded from one pair of antennas.Furthermore, the antenna splitter's selectable booster feed powers active antennas and/or booster amps with 12 VDC. The factory default setting is on, and should a need arise for the booster feed to be off, an on/off switch can be accessed on the main circuit board inside of the chassis. - Active 2-in x 8-out antenna splitter
- Distributes DC power to four receivers
- Splits two antennas into four diversity receivers
- Selectable booster feed for powering active antennas and boosters
- Additional cascade output per antenna allows stacking splitters without sacrificing 2x8 function
UPC: 800549895323 In the Box Electro-Voice RE3-ACC-AASP 2-In x 8-Out Antenna Splitter (470 to 960 MHz) 4 x DC Power Leads 10 x 2' 50-Ohm BNC Antenna Cables External AC-to-DC Power Supply IEC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-ACC-AASP 2-In x 8-Out Antenna Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.353.087 Specs | Frequency Range | 470 to 960 MHz | | RF Output Gain | 3 dB (±2 dB) | | Cascade Output | Level: 0 dB (±2 dB) | | Output Connection | Isolation: 25 dB | | Third Order Intercept Point | 24 dBm | | Impedance | 50 Ohms | | Output Voltage | 4 x 12 VDC, 1 A | | Antenna Booster DC Voltage | 12 V | | Dimensions (L x W x D) | 18.9 x 8.9 x 1.7" / 48.1 x 22.7 x 4.3 cm | | Weight | 6.8 lb / 3.1 kg |
