Electro-Voice RE3-BPCL Bodypack Wireless System with

User Manual for Electro-Voice RE3-BPCL Bodypack Wireless System with Cardioid Lavalier Mic

• Product category: Wireless Systems Electro-Voice
• Brand: Electro-Voice
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Electro-Voice Wireless Systems

Product description

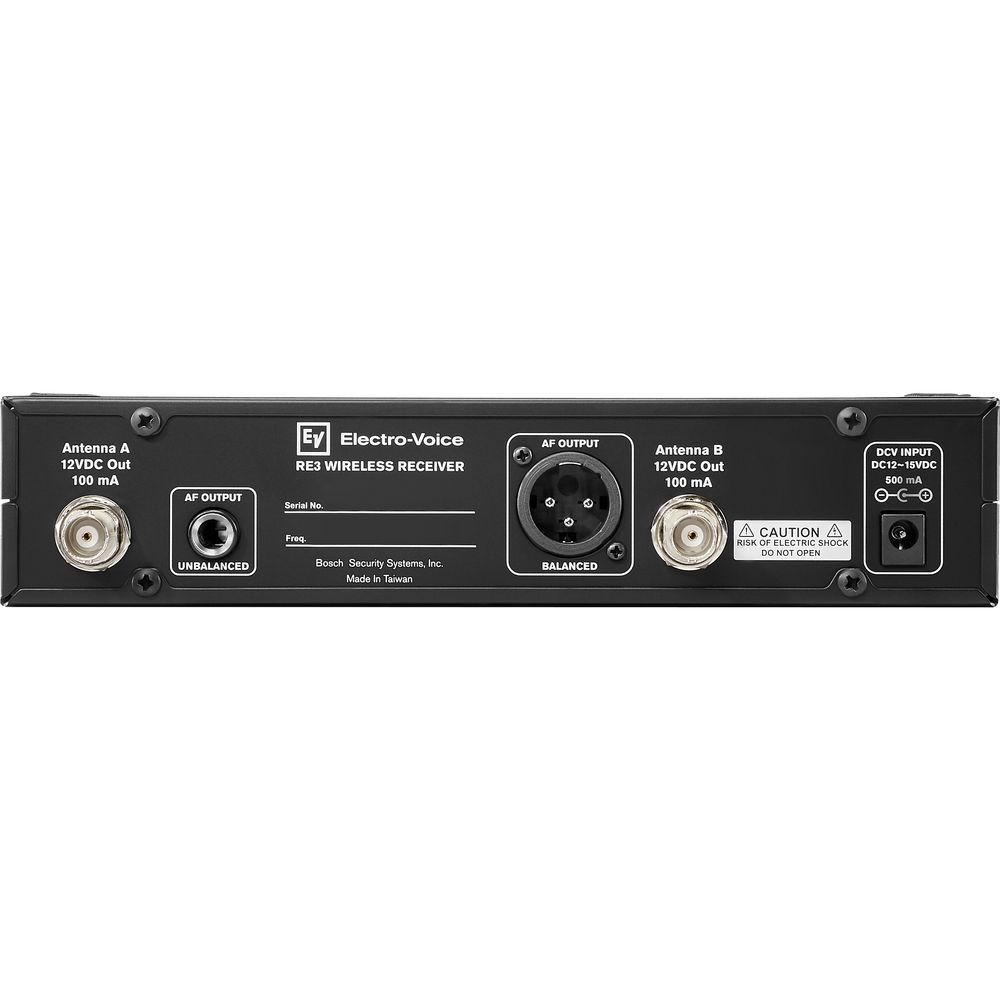

• RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz) The RE3-RX6M Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895262
• RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz) The RE3-BPT-6M Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack. UPC: 800549895217
• RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector The RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector from Electro-Voice is a robust, general-purpose lavalier microphone. It is suitable for presentation and public speaking applications where its sonic characteristics, coupled with its feedback-rejecting polar pattern deliver a clear and intelligible voice.The RE3-ACC-CL3's cardioid polar pattern provides acoustic isolation and gain before feedback in situations where the ambient sound reinforcement system volume might cause other microphones to feedback. The 4-pin mini XLR plug is compatible with all current Electro-Voice bodypack transmitters as well as many other brands who use the 4-pin TA4F connector convention.In addition, the small clothing clip attaches the microphone securely to clothing items or surfaces and the included foam windscreen is effective in reducing wind noise.
  • Ideal for general sound reinforcement and presentations
  • Cardioid polar pattern rejects ambient sounds and increases gain before feedback
  • Delivers full and accurate sound
  • Wide dynamic range and frequency response
  • Clothing clip holds microphone securely and attaches easily to garments
  UPC: 800549895309

• 2 x Receiver Antennas

• Receiver Rack Mounting Hardware

• Universal Power Supply

• Limited 3-Year Warranty

• 2 x AA Batteries

• Belt Clip

• Limited 3-Year Warranty

• Clothing Clip

• Foam Windscreen

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz)

  Wireless Transmission	Digital UHF
  Number of RF Channels	400
  Diversity	Antenna Diversity
  RF Frequency Band	653 to 663 MHz
  RF Bandwidth	Up to 10 MHz
  Modulation	Wideband FM

  Form Factor	Rackmount
  Mounting Options	Rackmount (with Optional Hardware)
  Rackmount Size	1 RU (1/2 Rack)
  Antenna	2 x 1/2 Wave External, Detachable (Rear-Mount)
  Antenna Bias Voltage	12 to 15 VDC
  Number of Audio Channels	400
  Audio I/O	1 x XLR 3-Pin Male Balanced Line Output 1 x 1/4" TS Male Unbalanced Line Output
  Frequency Response	51 Hz to 16 kHz (Dependent on Mic)
  Approximate RF Sensitivity	81 dBm
  RF Output Power	Up to 20 mW (Max)
  Power Requirements	AC/DC Power Adapter
  AC/DC Power Adapter	12 to 15 VDC (Included)
  Display & Indicators	Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
  Housing	Metal
  Dimensions	8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

• RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz)

  Wireless Transmission	Digital UHF
  RF Frequency Band	653 to 663 MHz
  RF Bandwidth	10 MHz
  Modulation	Wideband FM

  Form Factor	Bodypack
  RF Output Power	10 / 20 mW (Switchable)
  Audio I/O	1 x TA4/Mini XLR 4-Pin Input
  Muting	Mute Switch
  Sync Method	IR
  Antenna	1 x Flexible Whip, Fixed (Beltpack)
  Power Requirements	Battery
  Battery Type	2 x AA (Included, Replaceable)
  Display & Indicators	1 x Back-Lit LED (Channel, Group, Mute)
  Housing	Metal
  Dimensions	2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)
  Weight	6.1 oz / 173.0 g (with Antenna)

• RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector

  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	100 Hz to 15 kHz
  Maximum SPL	115 dB SPL Peak
  Impedance	3700 Ohms

  Output Connector	TA4F/Mini XLR
  Cable Length	56.3" / 1.43 m
  Operating Voltage	3 to 9 V
  Length	1.04" / 2.64 cm
  Diameter	0.4" / 10.16 mm
  Weight	0.76 oz / 22 g
