User Manual for Electro-Voice RE3-BPGC Bodypack Instrument Wireless System Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE3-BPGC Bodypack Instrument Wireless System
- Product category: Wireless Systems Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Systems
 |
User manual for the Electro-Voice RE3-BPGC Bodypack Instrument Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

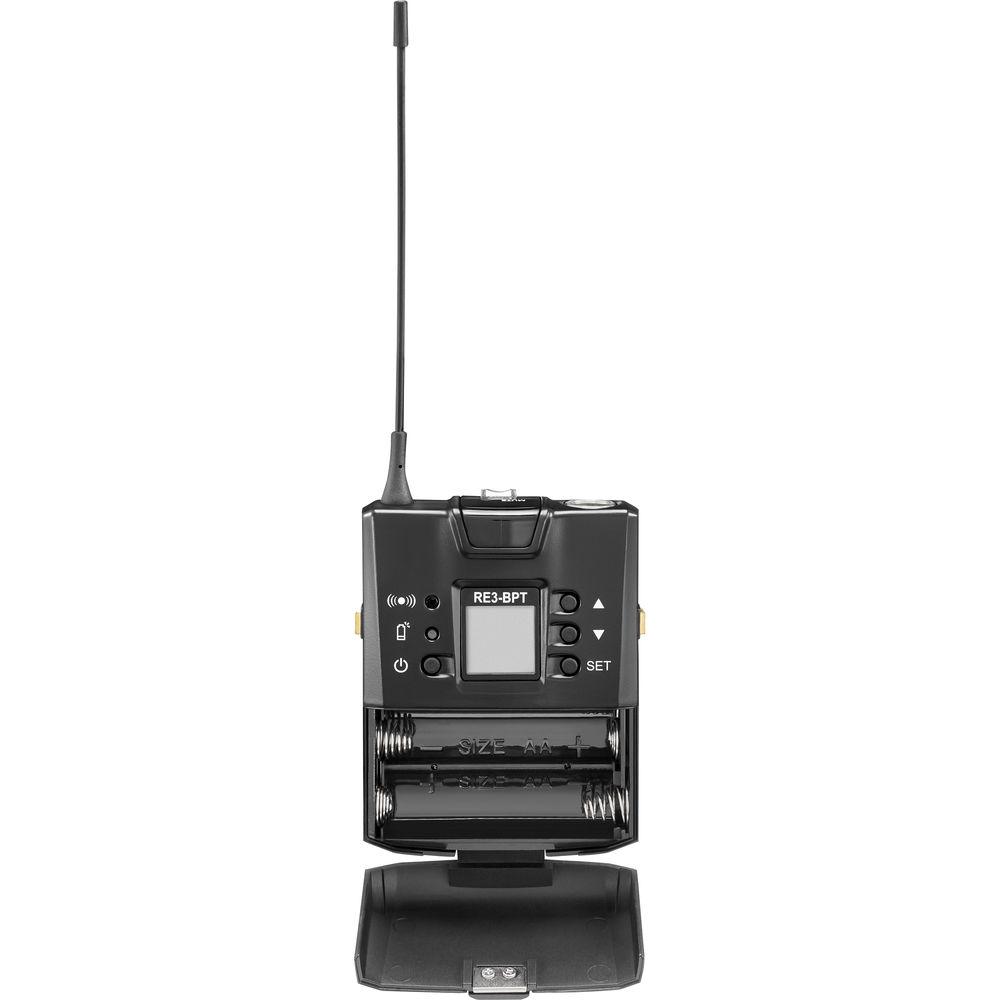

Product description Achieve solid performance and dependability with the Electro-Voice RE3-BPGC (Band 5H: 560 to 596 MHz) UHF bodypack instrument wireless system. Comprised of a rack-mountable diversity receiver, a compact bodypack transmitter, and a 1/4" to TA4F instrument cable, this wireless set is well suited for guitarists, bassists, and keytar players in clubs, concert venues, and houses of worship. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPGC minimizes setup time and maximizes workflow efficiency.

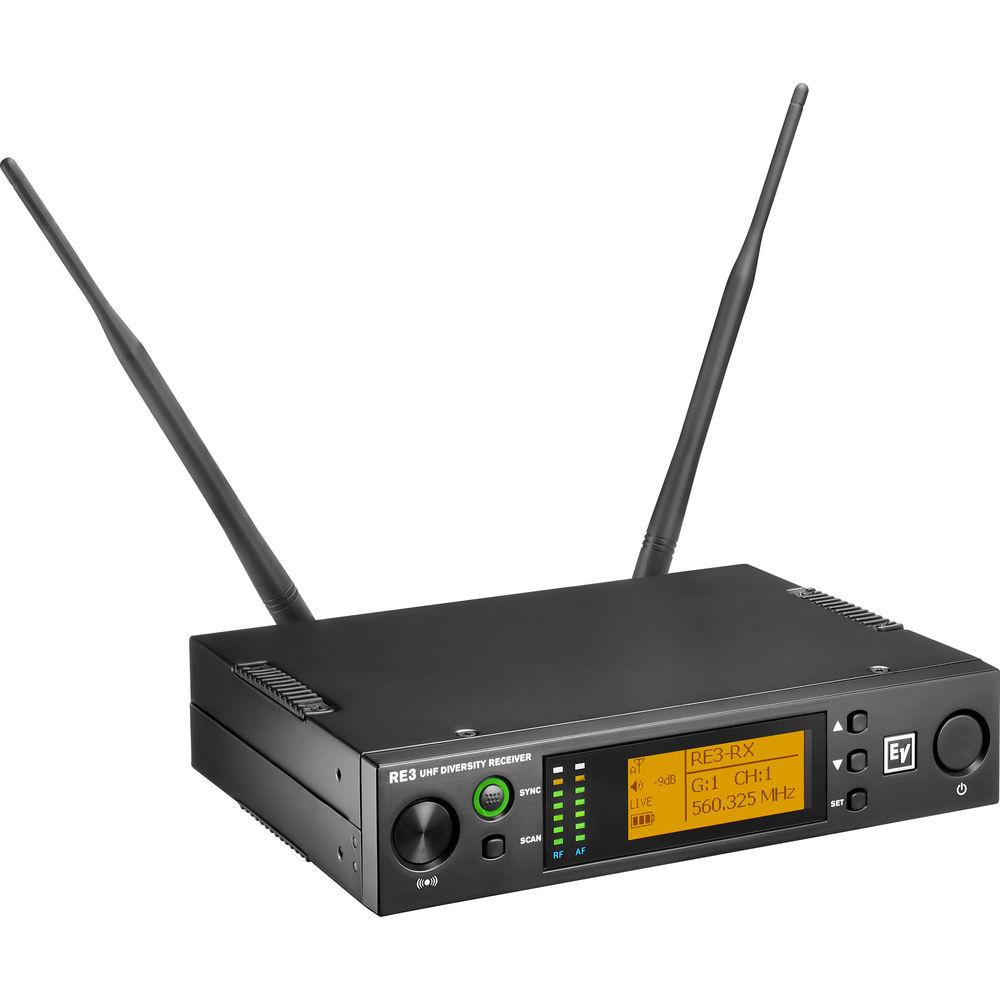

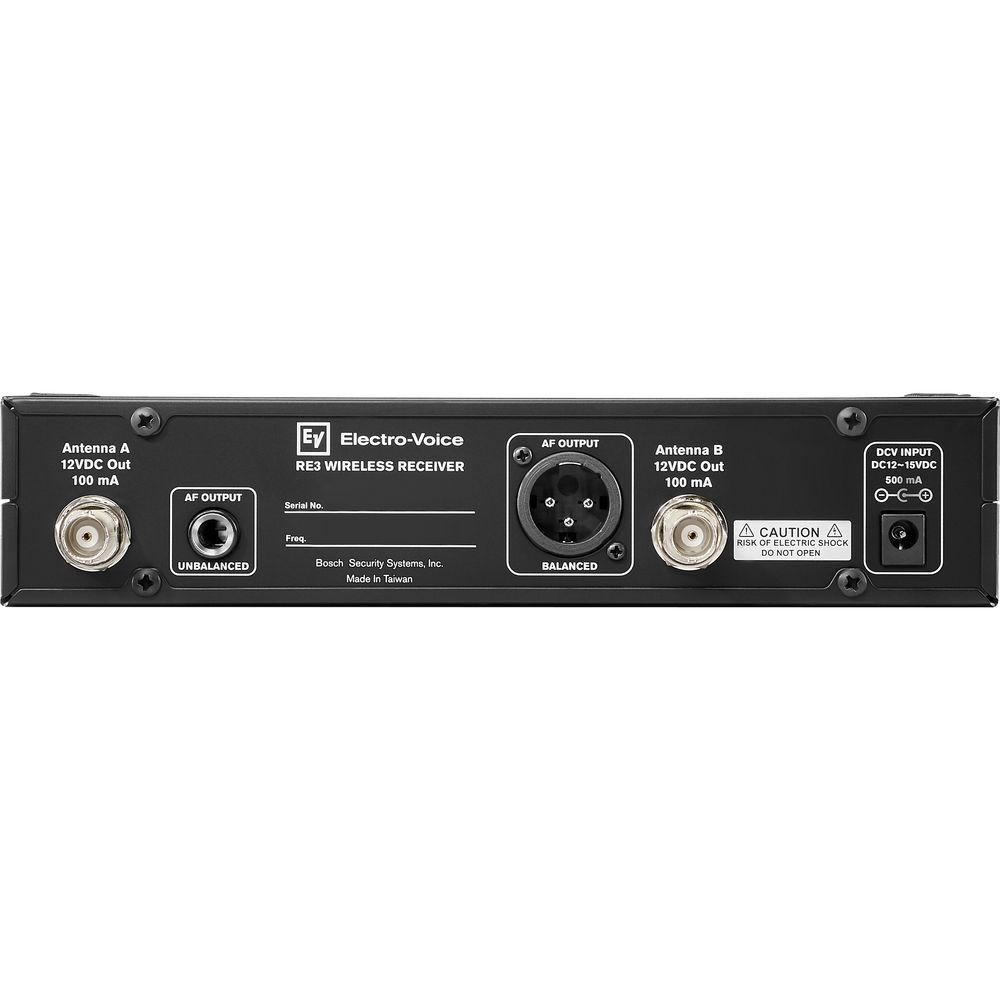

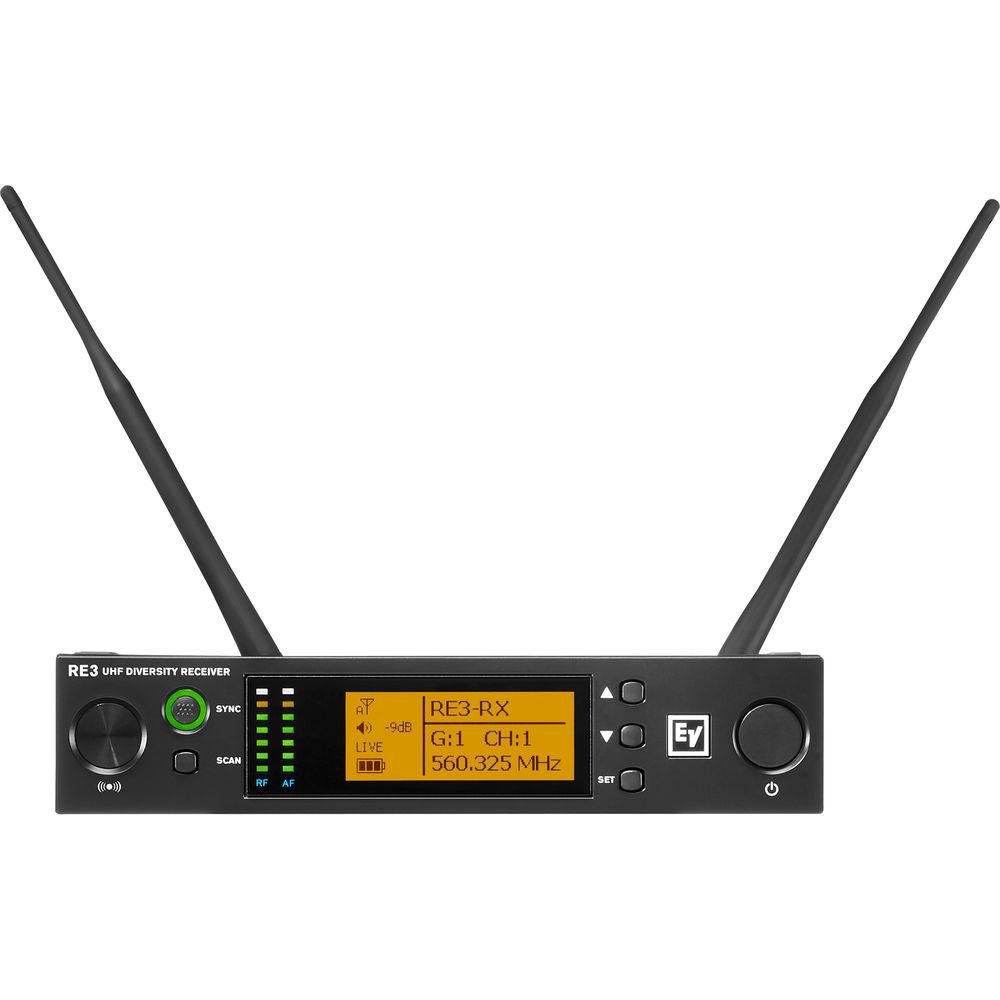

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity, attenuation, and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation. - RE3-RX5H Diversity Wireless Receiver (560 to 596 MHz) The RE3-RX5H Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895255

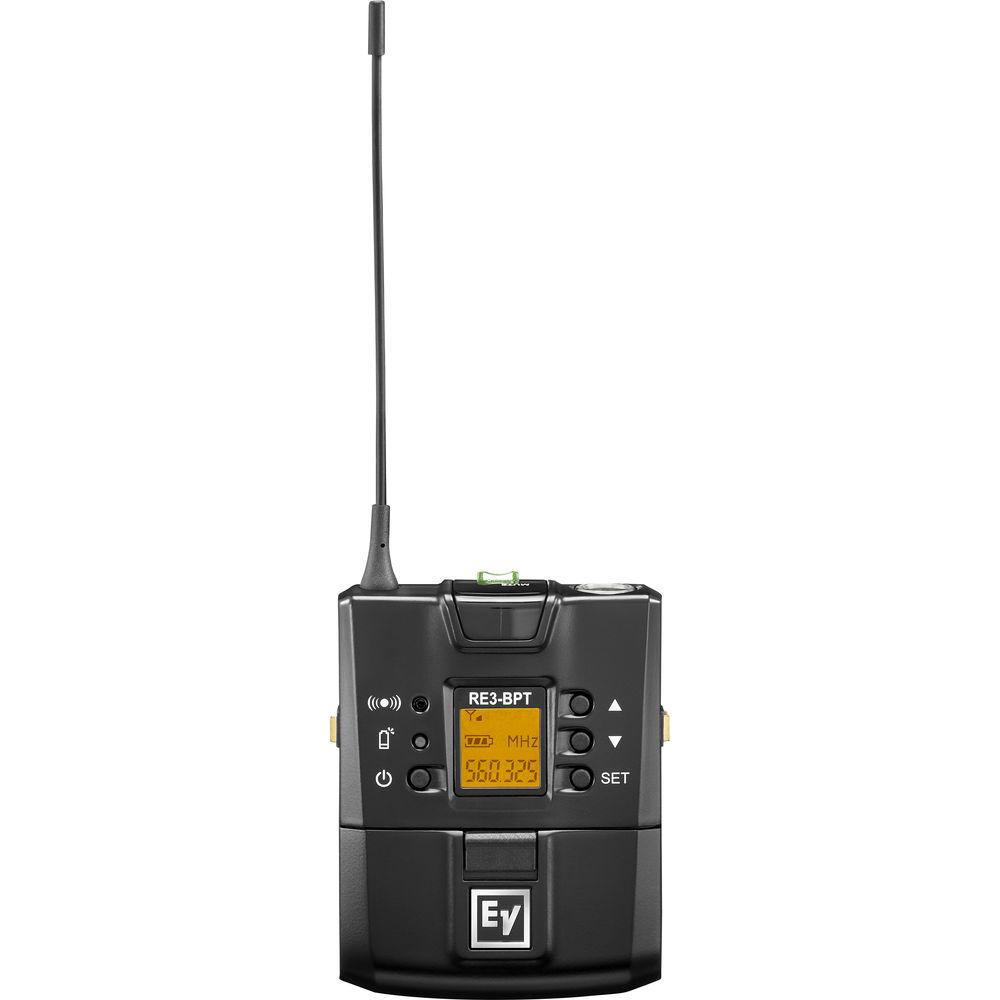

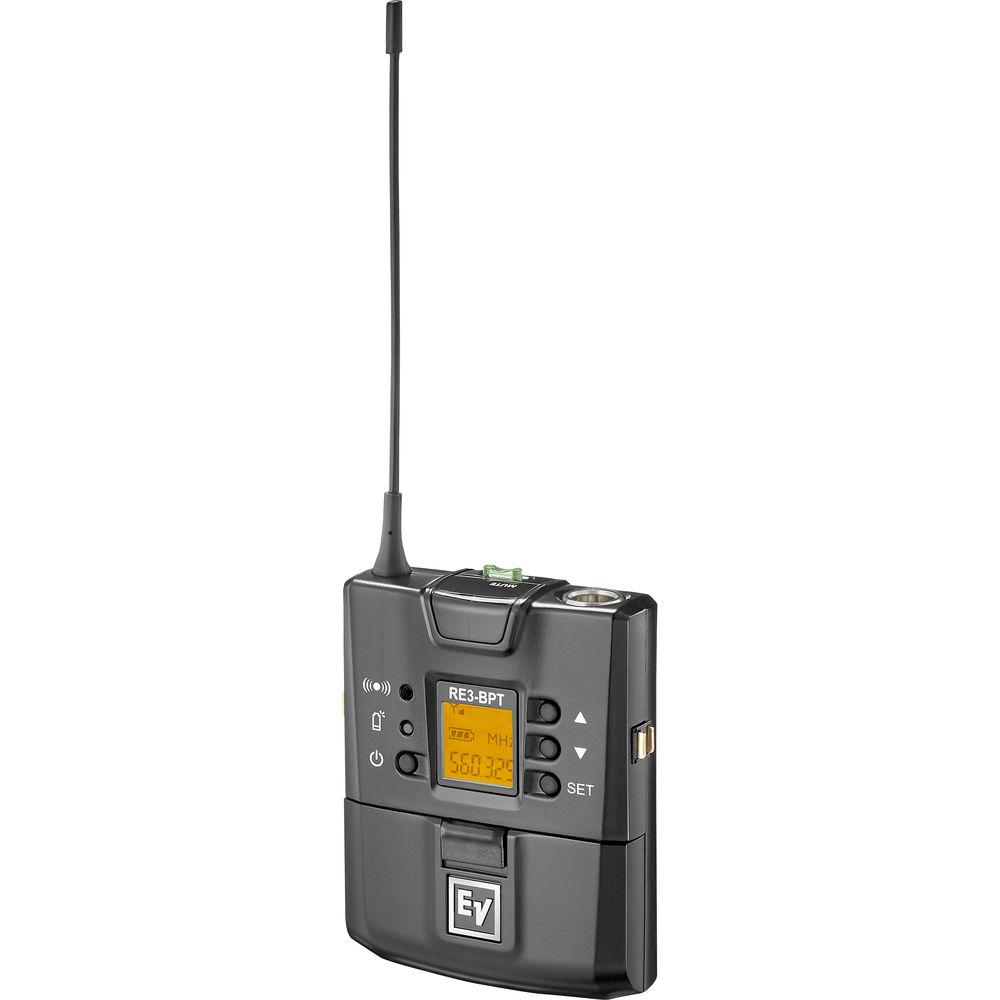

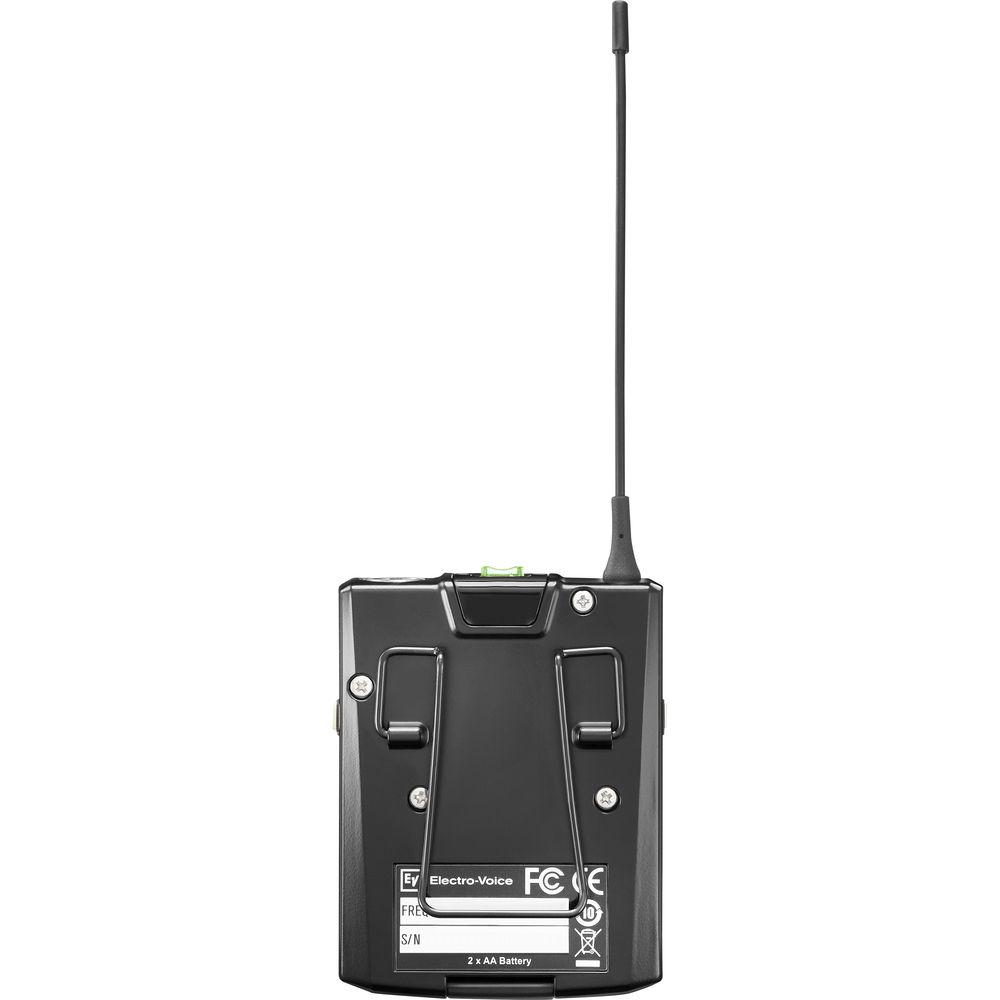

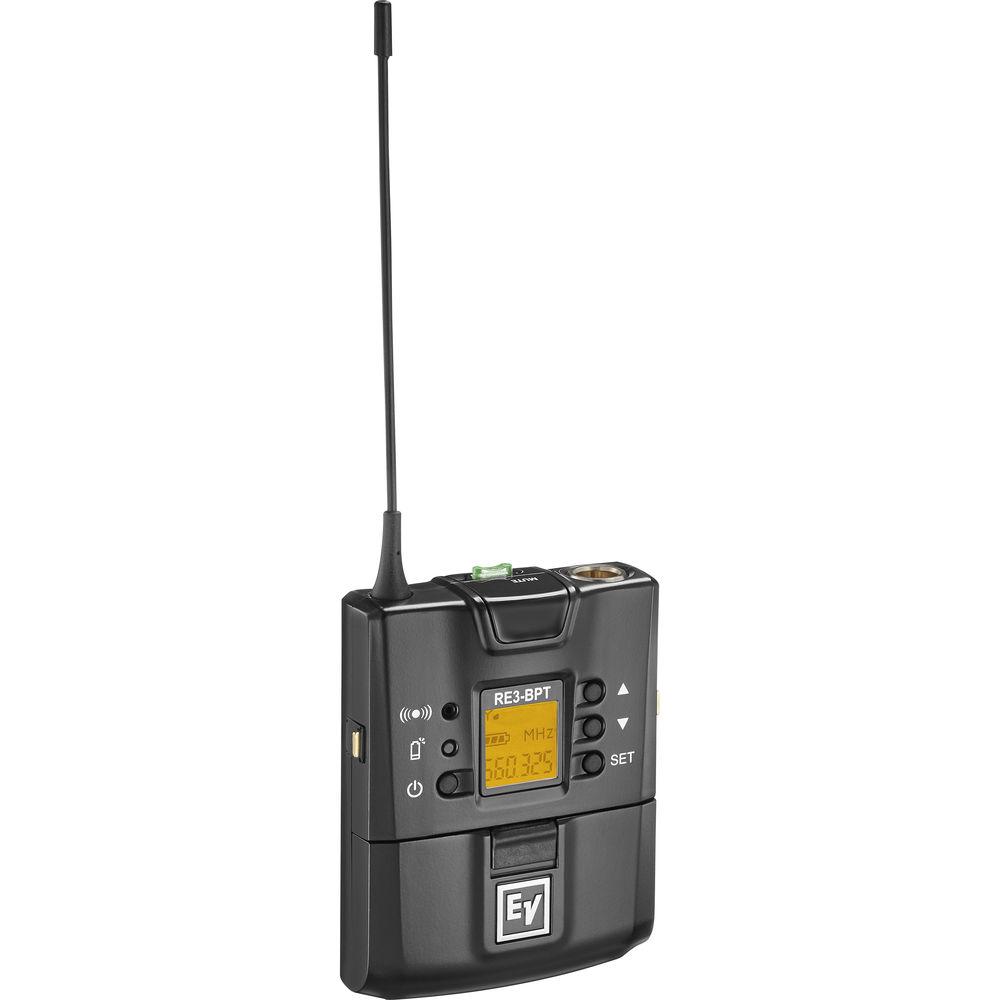

- RE3-BPT-5H Bodypack Transmitter (560 to 596 MHz) The RE3-BPT-5H Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack. UPC: 800549895200

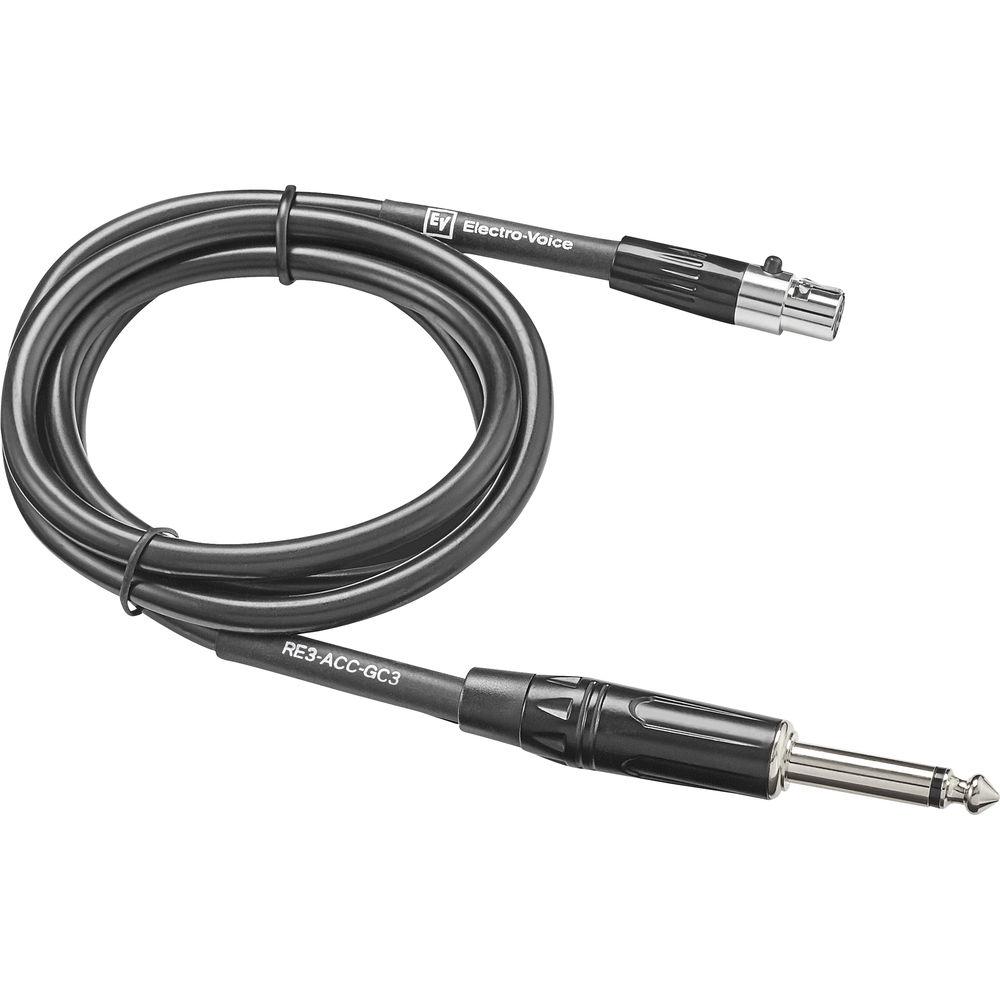

- RE3-ACC-GC3 Instrument Cable 1/4" to TA4F (32.7") The 32.7" RE3-ACC-GC3 Instrument Cable 1/4" to TA4F from Electro-Voice is designed for connecting instruments or line-level signal sources with 1/4" output jacks to the RE5-BPT bodypack transmitter (sold separately). It can be used to connect stringed instruments with passive or active pickups to the transmitter for wireless use.The cable is robust with an easy-to-grip 1/4" plug on one end, and an industry-standard 4-pin TA4F mini-XLR plug on the other. UPC: 800549895453
In the Box Bundle Items RE3-RX5H Diversity Wireless Receiver (560 to 596 MHz) euzwddeacwyrzqxxvr - Receiver Rack Mounting Hardware
RE3-BPT-5H Bodypack Transmitter (560 to 596 MHz) euzwddeacwyrzqxxvr RE3-ACC-GC3 Instrument Cable 1/4" to TA4F (32.7") Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-BPGC Bodypack Instrument Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RE3-RX5H Diversity Wireless Receiver (560 to 596 MHz)
| Wireless Transmission | Digital UHF | | Number of RF Channels | 1440 | | Diversity | Antenna Diversity | | RF Frequency Band | 560 to 596 MHz | | RF Bandwidth | Up to 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 1440 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 50 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) | - RE3-BPT-5H Bodypack Transmitter (560 to 596 MHz)
| Wireless Transmission | Digital UHF | | RF Frequency Band | 560 to 596 MHz | | RF Bandwidth | 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Bodypack | | RF Output Power | 10 / 50 mW (Switchable) | | Audio I/O | 1 x TA4/Mini XLR 4-Pin Input | | Muting | Mute Switch | | Sync Method | IR | | Antenna | 1 x Flexible Whip, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | 1 x Back-Lit LED (Channel, Group, Mute) | | Housing | Metal | | Dimensions | 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas) | | Weight | 6.1 oz / 173.0 g (with Antenna) | - RE3-ACC-GC3 Instrument Cable 1/4" to TA4F (32.7")
| Cable Pinouts Supported | Pin #1: Ground, Shield
Pin #2: Audio
Pin #3: N/C
Pin #4: N/C | | Connector 1 | 1/4" / 6.3 mm Phone Plug | | Connector 2 | TA4F 4-Pin Mini XLR | | Cable Length | 32.7" / 83.1 cm | | Weight | 1.9 oz / 55.0 g |
