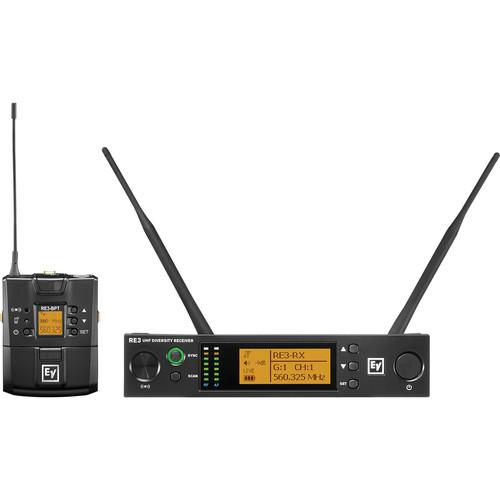

Product description Achieve solid performance and dependability with the Electro-Voice RE3-BPNID (Band 5L: 488 to 524 MHz) UHF bodypack wireless system. Comprised of a rack-mountable diversity receiver and a compact bodypack transmitter, this wireless set is ready for use with your preferred TA4F-equipped lavalier/headworn microphone or instrument cable, making it well suited and adaptable for a variety of applications such as theater, broadcast, film/TV production, concert sound, and more. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPNID minimizes setup time and maximizes workflow efficiency.

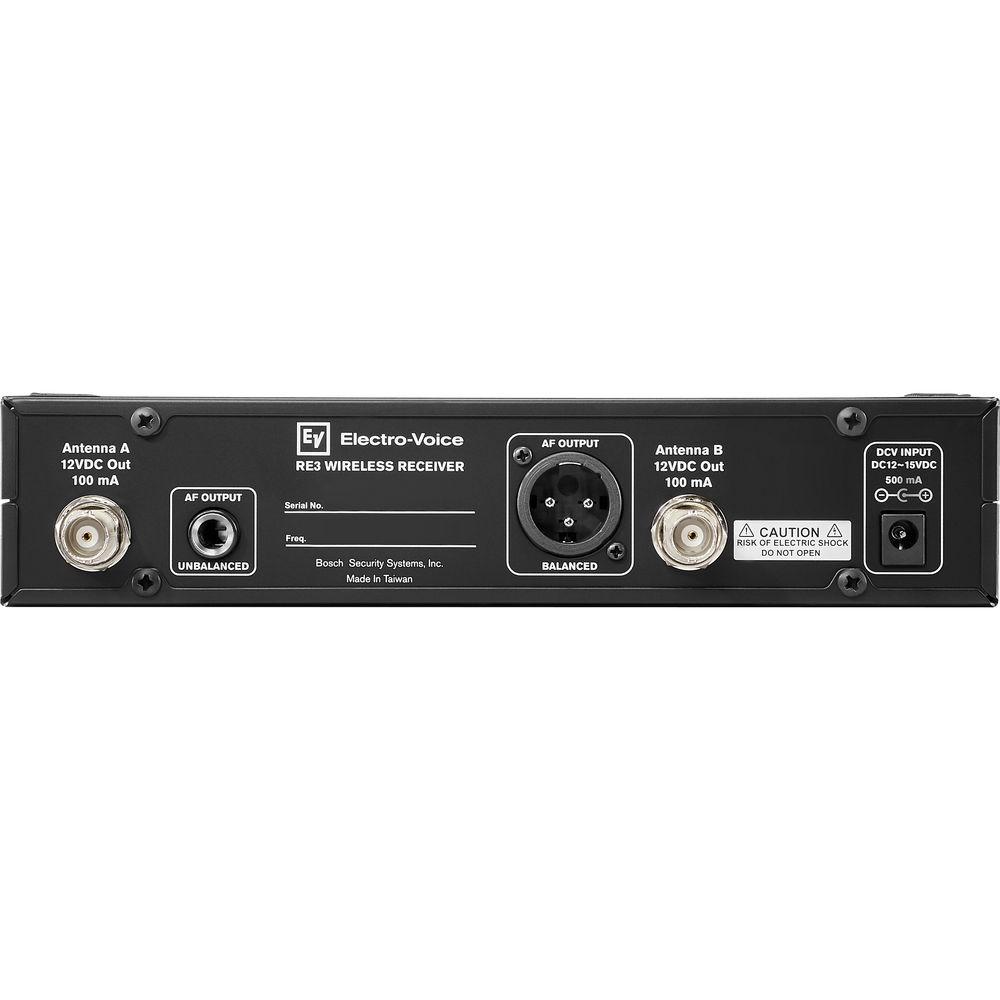

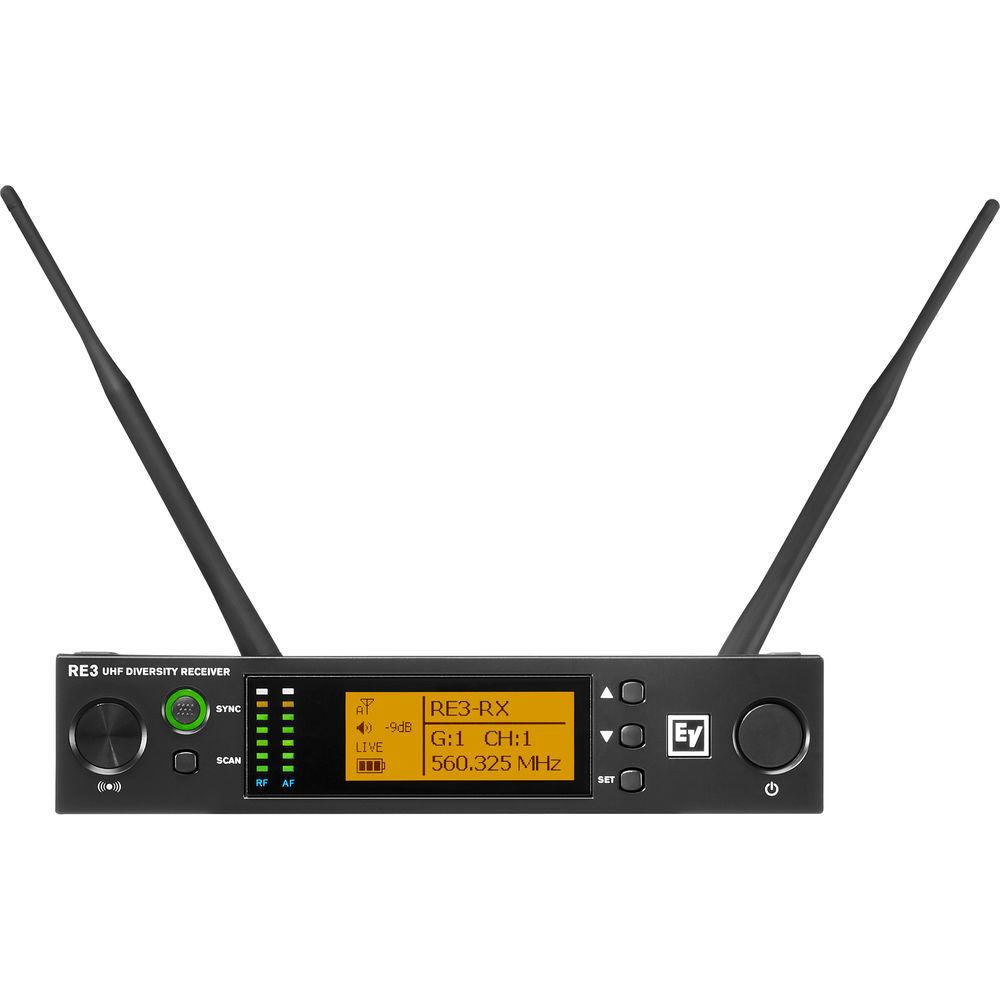

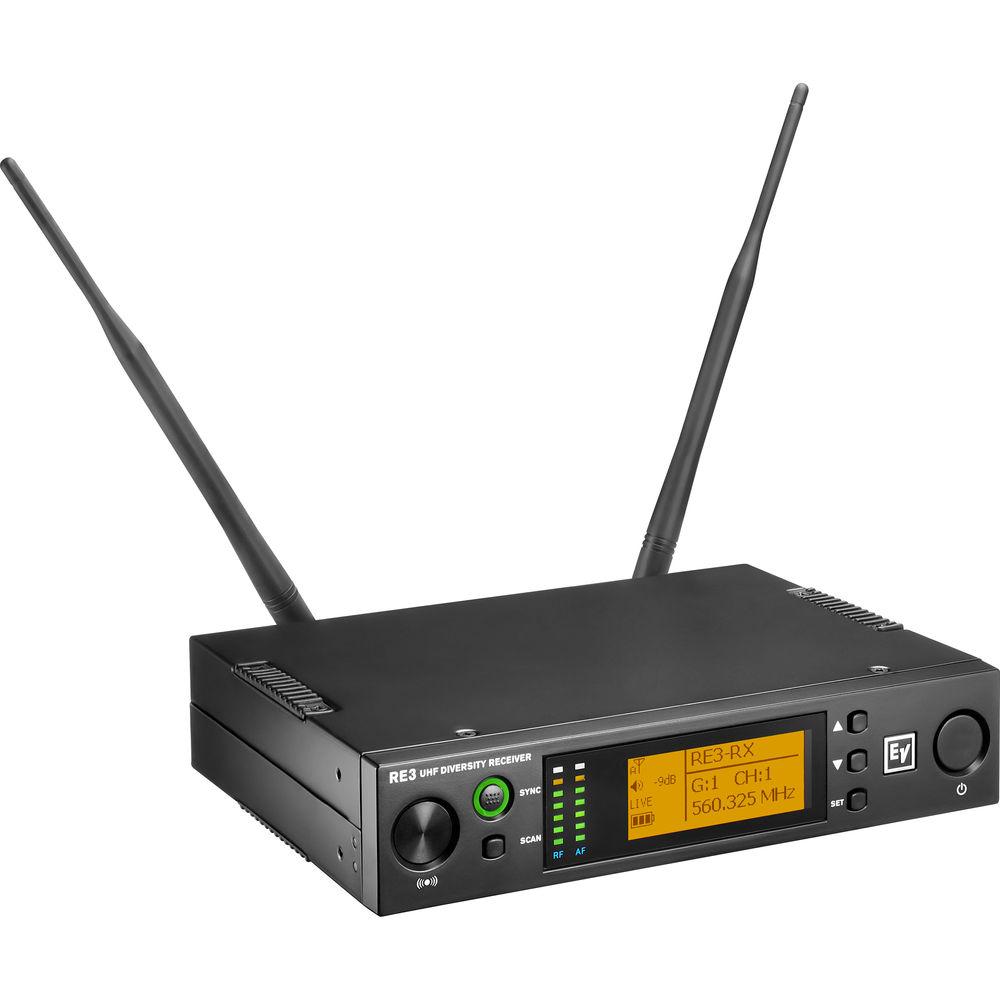

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity, attenuation, and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation. - RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz) The RE3-RX5L Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895248

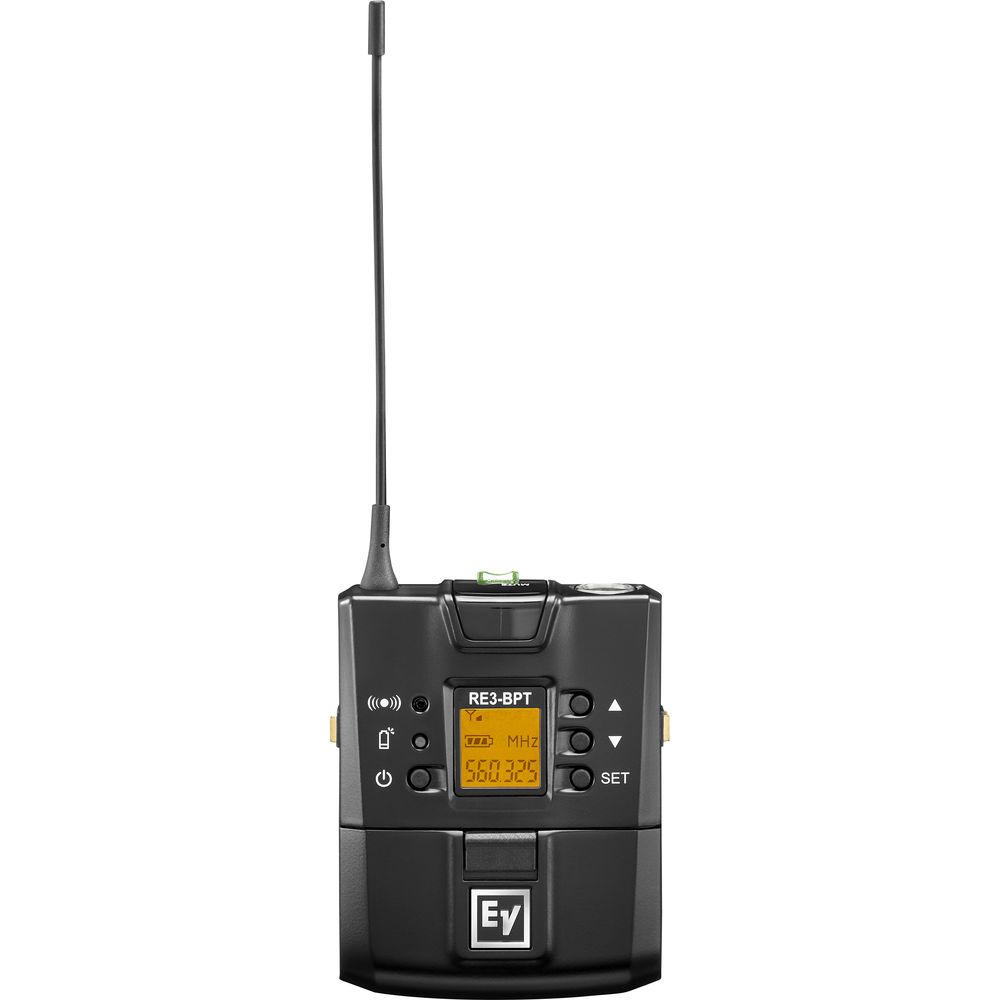

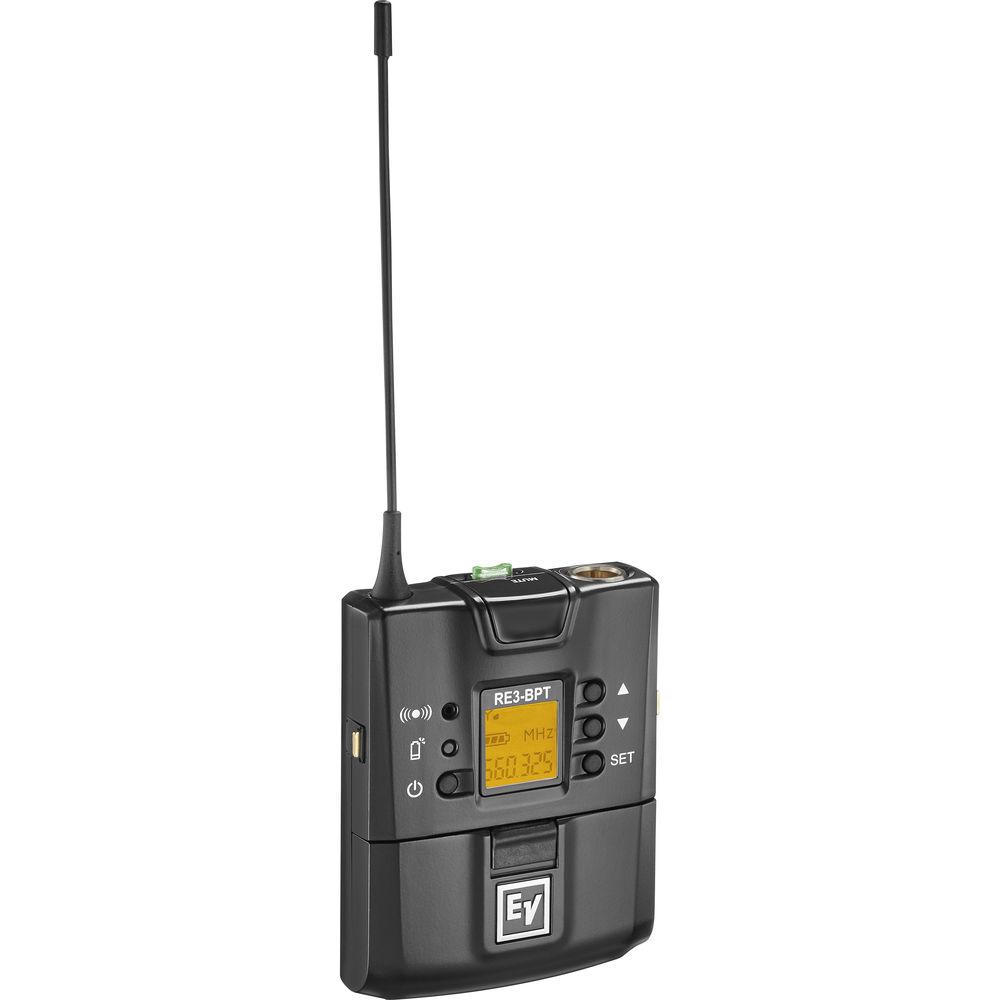

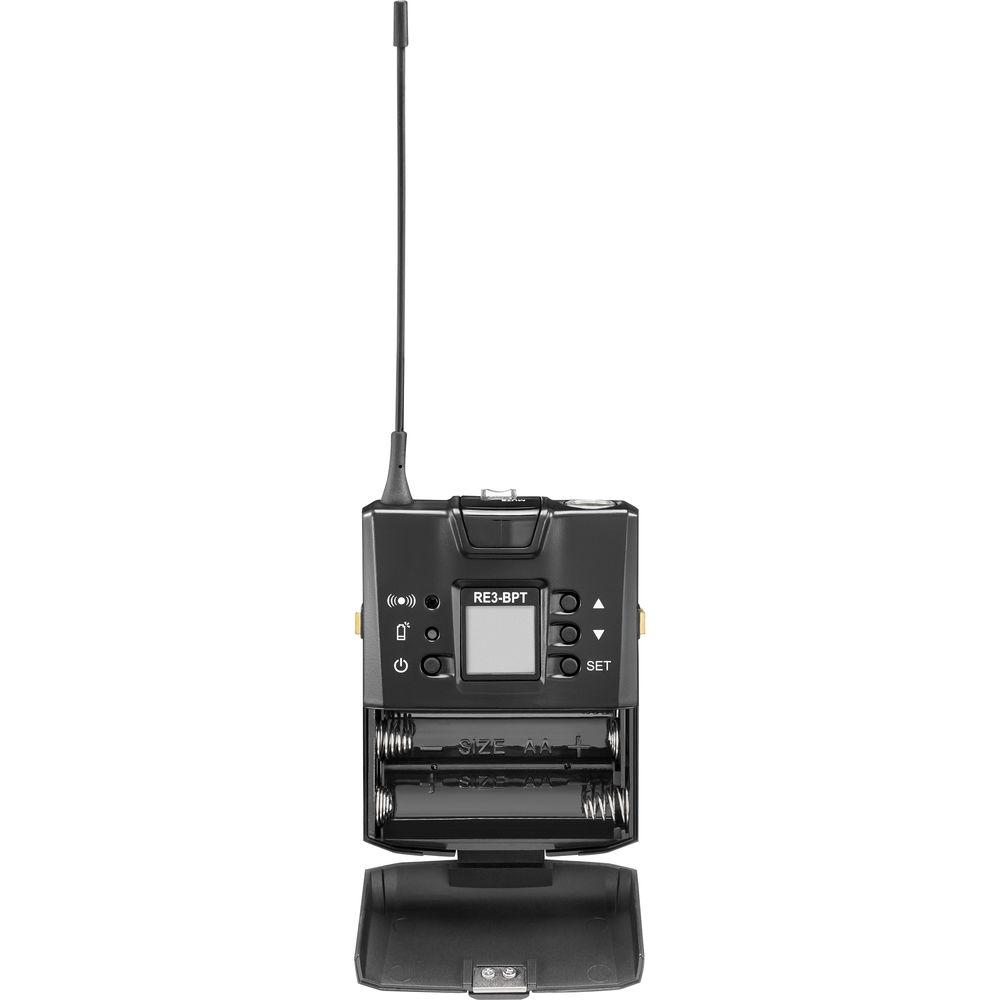

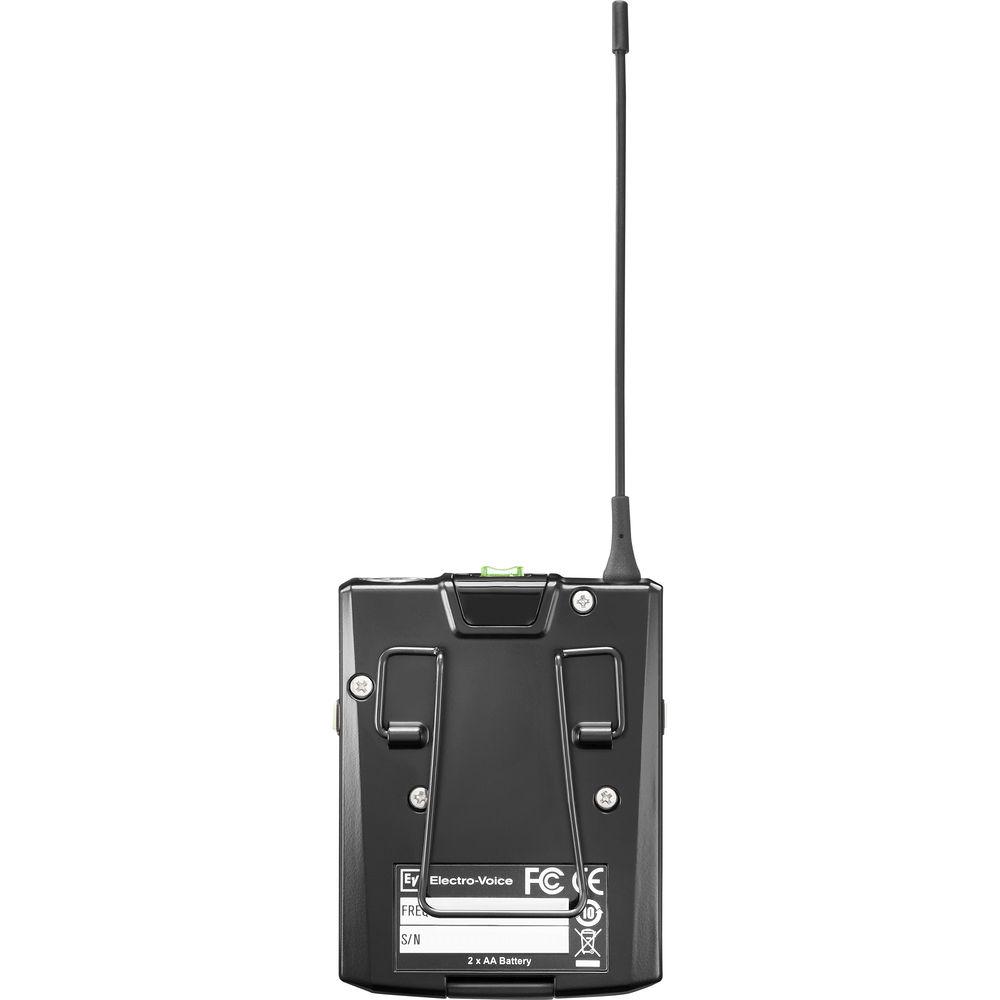

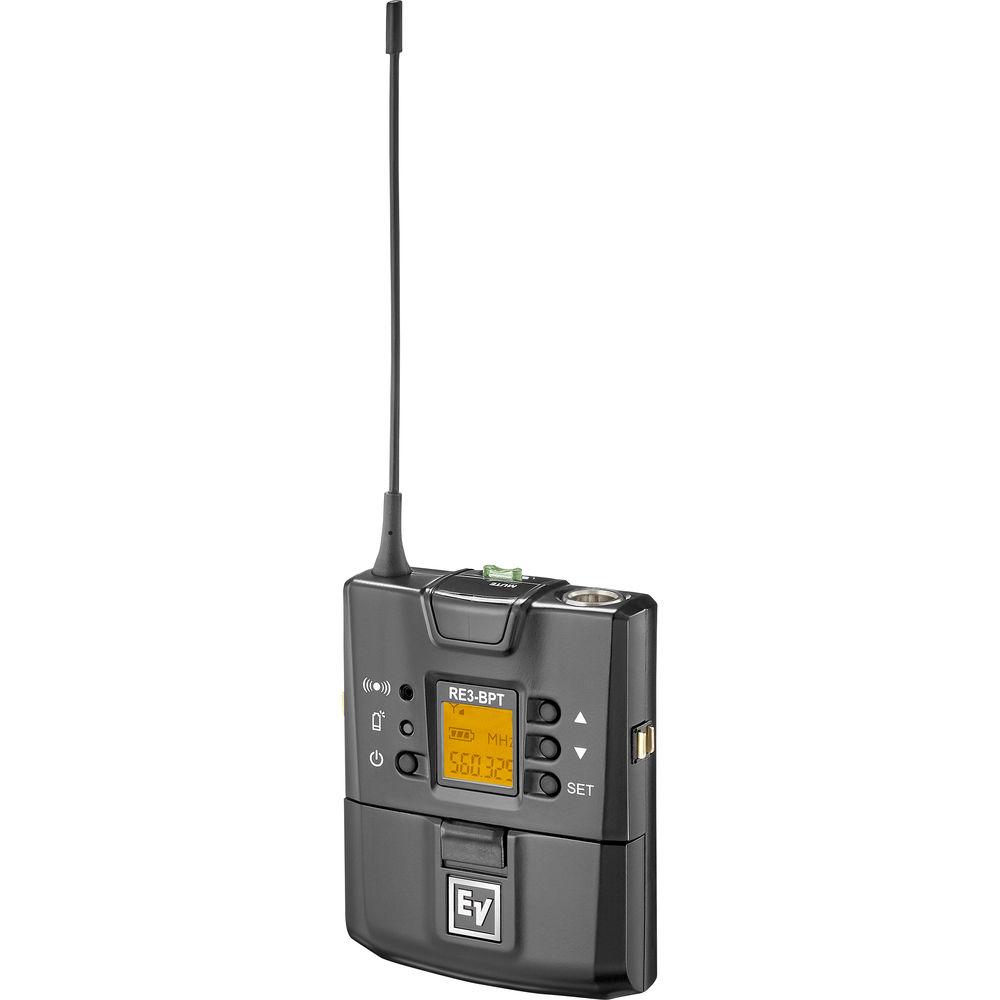

- RE3-BPT-5L Bodypack Transmitter (488 to 524 MHz) The RE3-BPT-5L Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack. UPC: 800549895194
In the Box Bundle Items RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz) etqedfycxastardrfstzbaccxacbyzsra - Receiver Rack Mounting Hardware
RE3-BPT-5L Bodypack Transmitter (488 to 524 MHz) Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-BPNID Bodypack Wireless System with No Input Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz)
| Wireless Transmission | Digital UHF | | Number of RF Channels | 1440 | | Diversity | Antenna Diversity | | RF Frequency Band | 488 to 524 MHz | | RF Bandwidth | Up to 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 1440 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 50 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) | - RE3-BPT-5L Bodypack Transmitter (488 to 524 MHz)
| Wireless Transmission | Digital UHF | | RF Frequency Band | 488 to 524 MHz | | RF Bandwidth | 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Bodypack | | RF Output Power | 10 / 50 mW (Switchable) | | Audio I/O | 1 x TA4/Mini XLR 4-Pin Input | | Muting | Mute Switch | | Sync Method | IR | | Antenna | 1 x Flexible Whip, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | 1 x Back-Lit LED (Channel, Group, Mute) | | Housing | Metal | | Dimensions | 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas) | | Weight | 6.1 oz / 173.0 g (with Antenna) |
