Product description Achieve solid performance, dependability, and clear speech reproduction with the Electro-Voice RE3-BPOL (Band 6M: 653 to 663 MHz) UHF bodypack wireless system. Comprised of a rack-mountable diversity receiver, a compact bodypack transmitter, and an omnidirectional lavalier microphone, this wireless set is well suited for a variety of applications such as theater, broadcast, film/TV production, interviews, presentations, and more. The mic's omnidirectional polar pattern responds to sound from all directions, yielding enhanced signal consistency regardless of the subject's head movements or the mic's orientation. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPOL minimizes setup time and maximizes workflow efficiency.

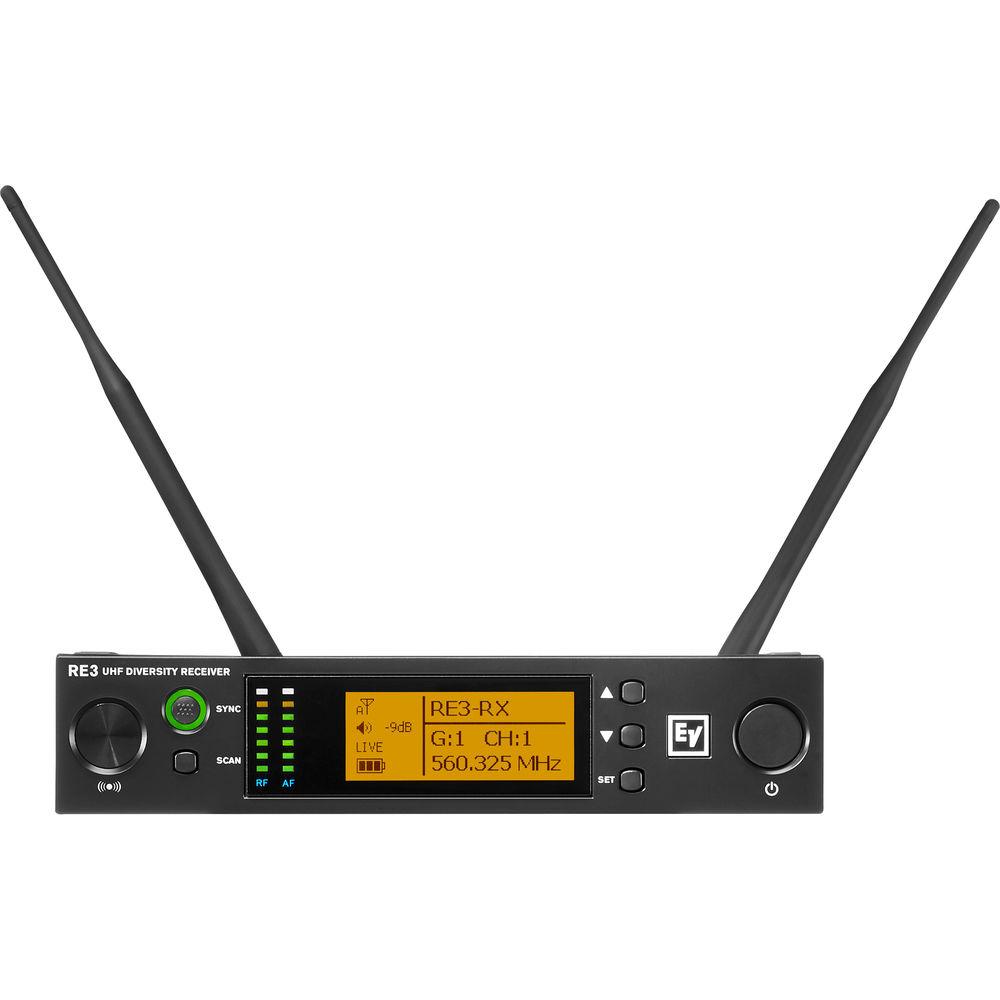

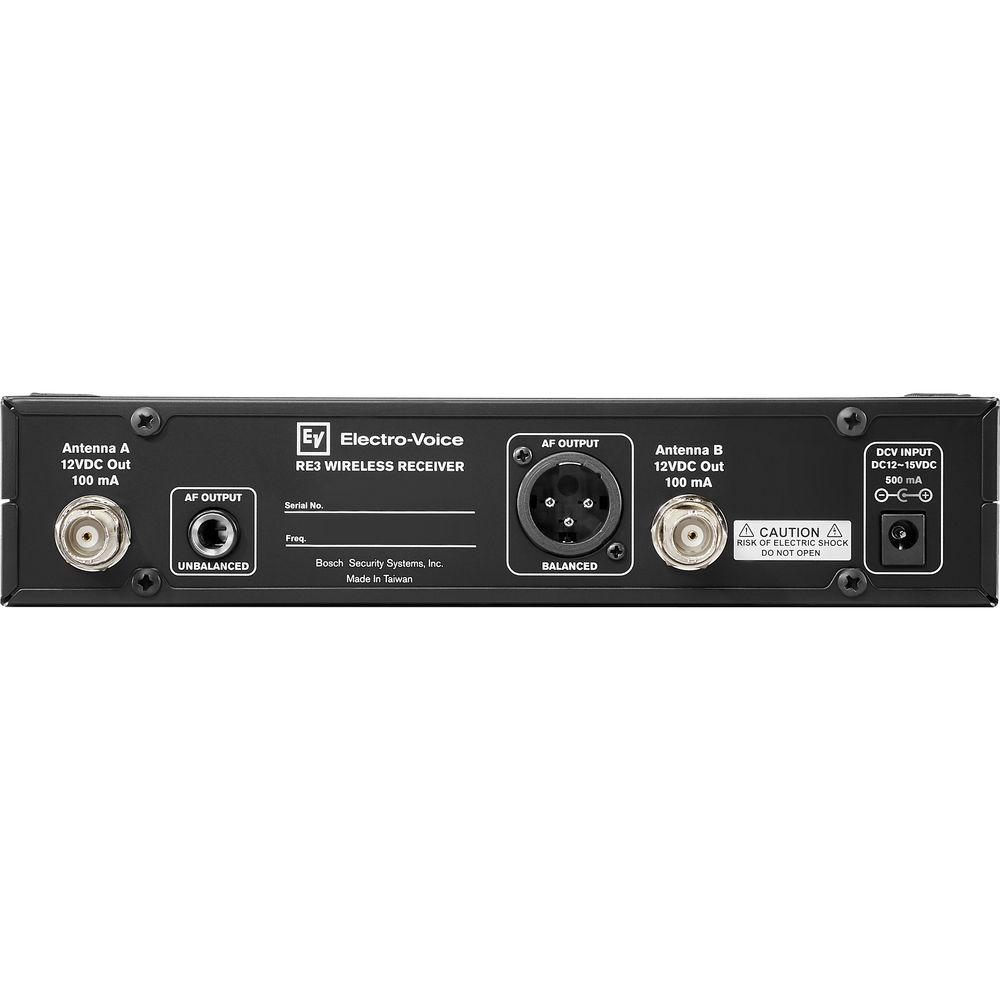

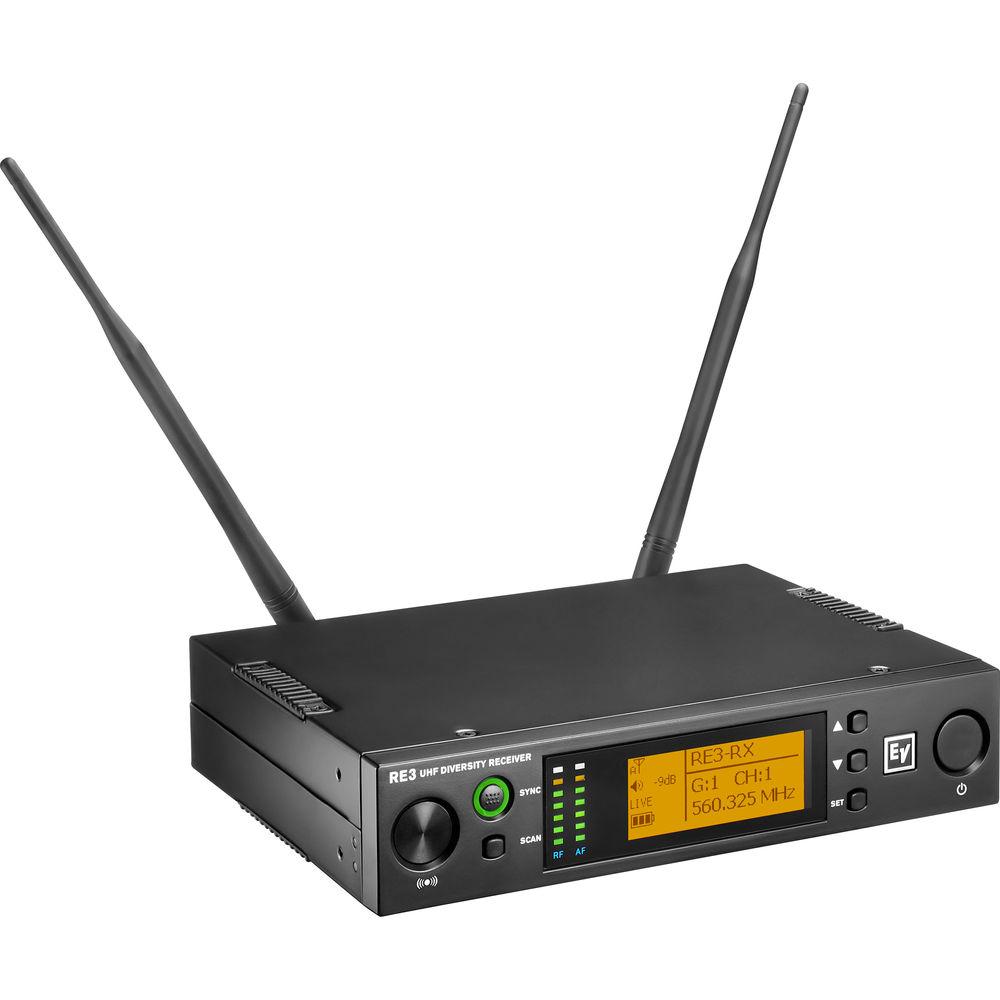

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity, attenuation, and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation. - RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz) The RE3-RX6M Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895262

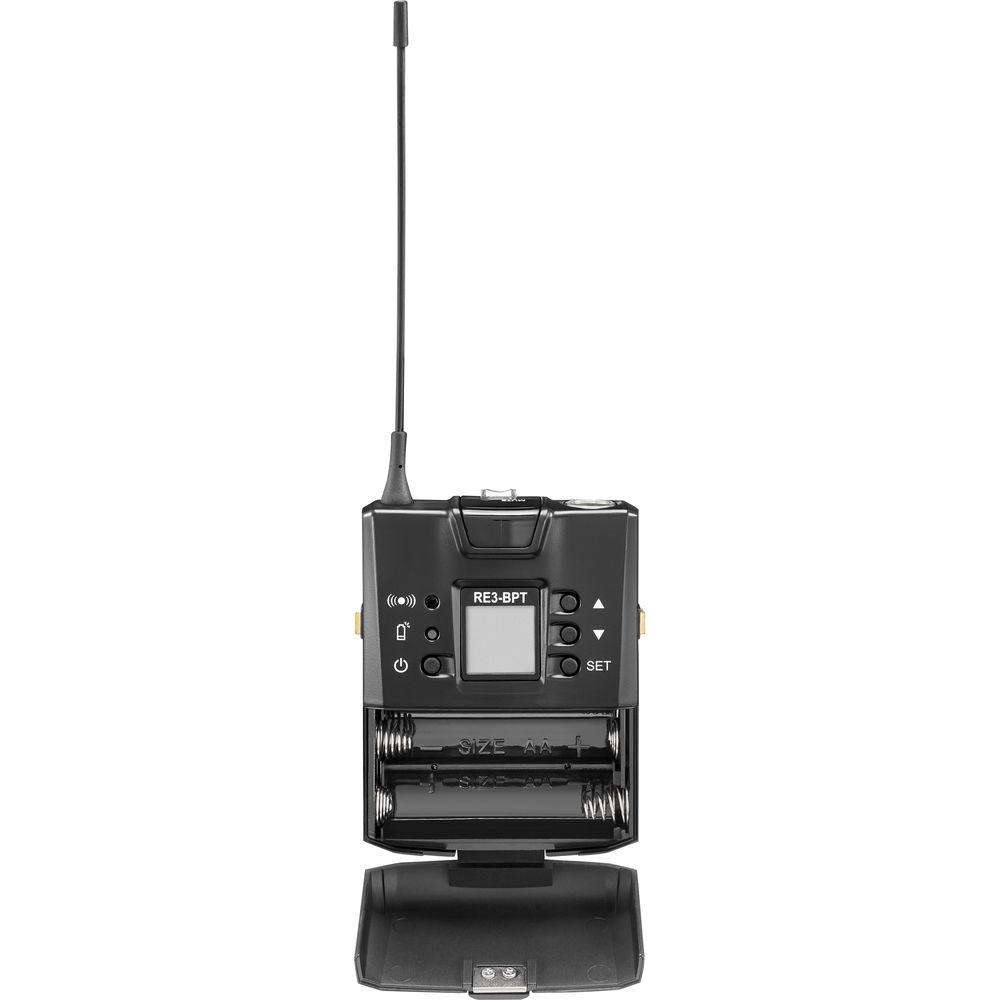

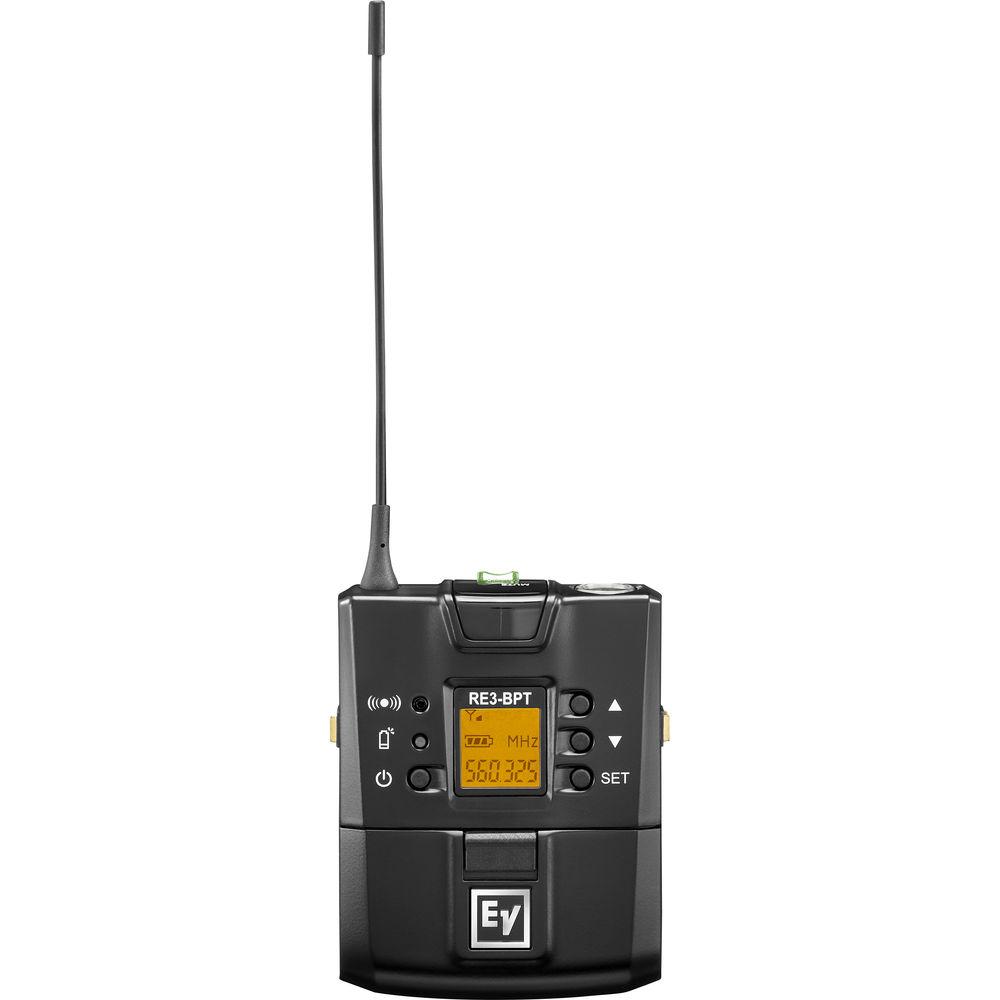

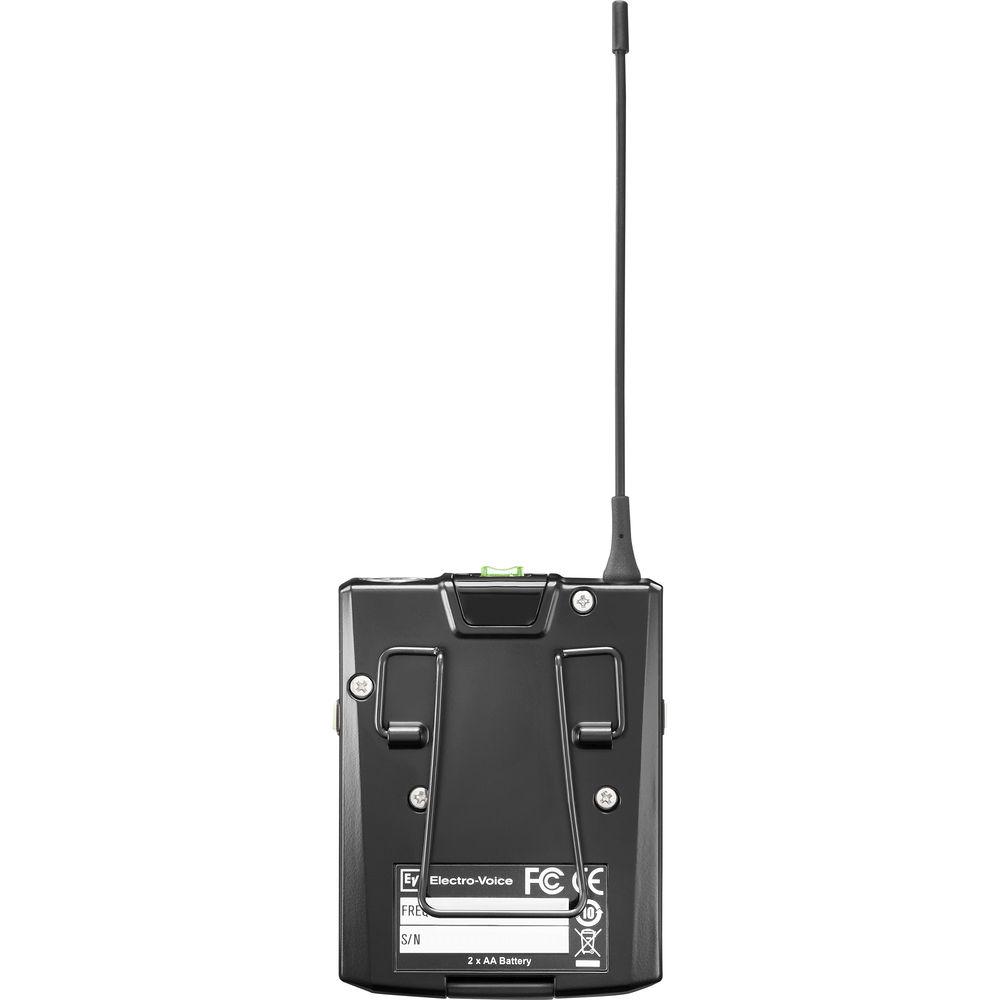

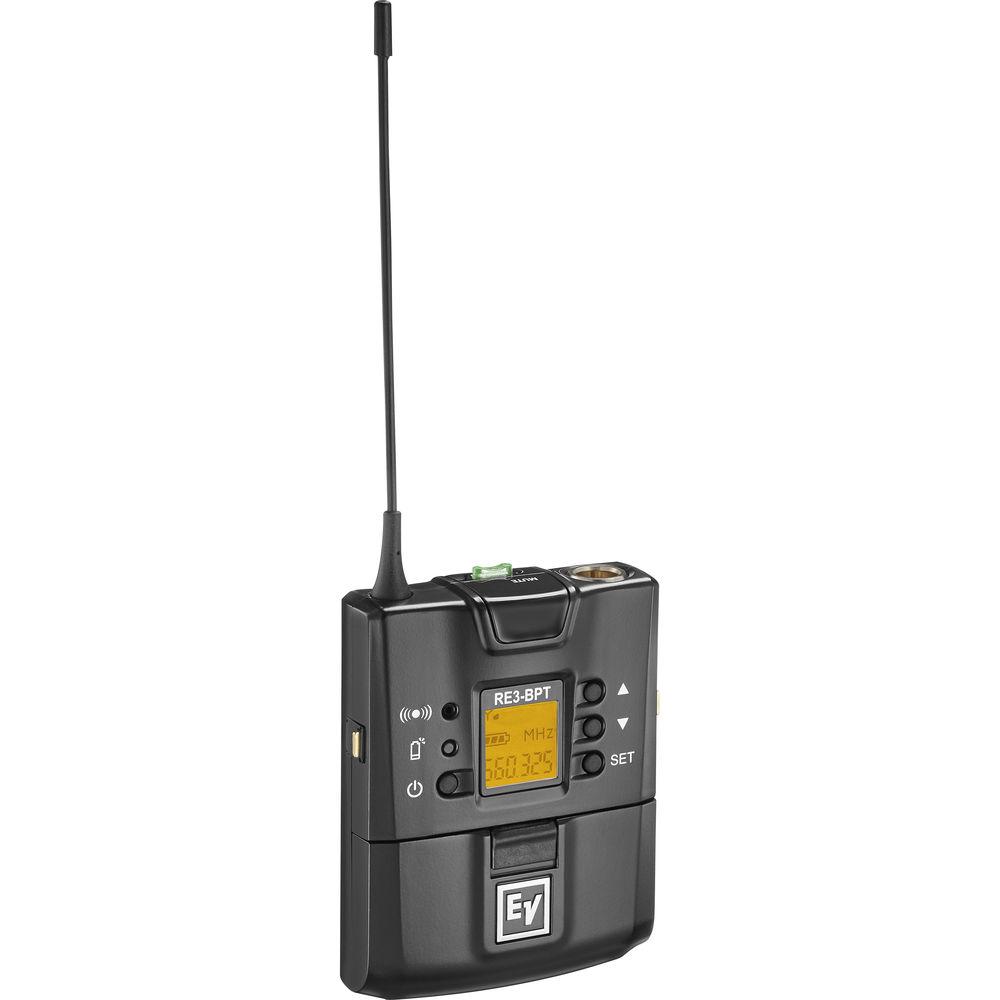

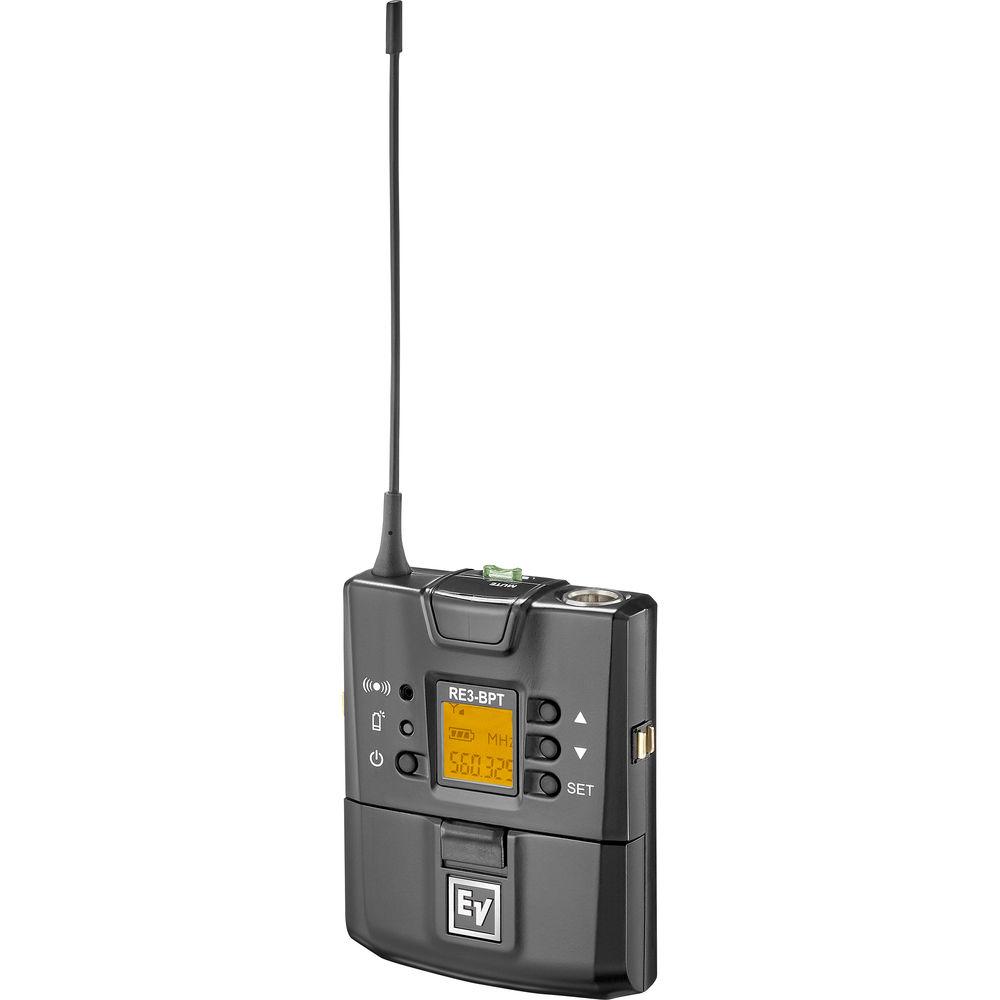

- RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz) The RE3-BPT-6M Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack. UPC: 800549895217

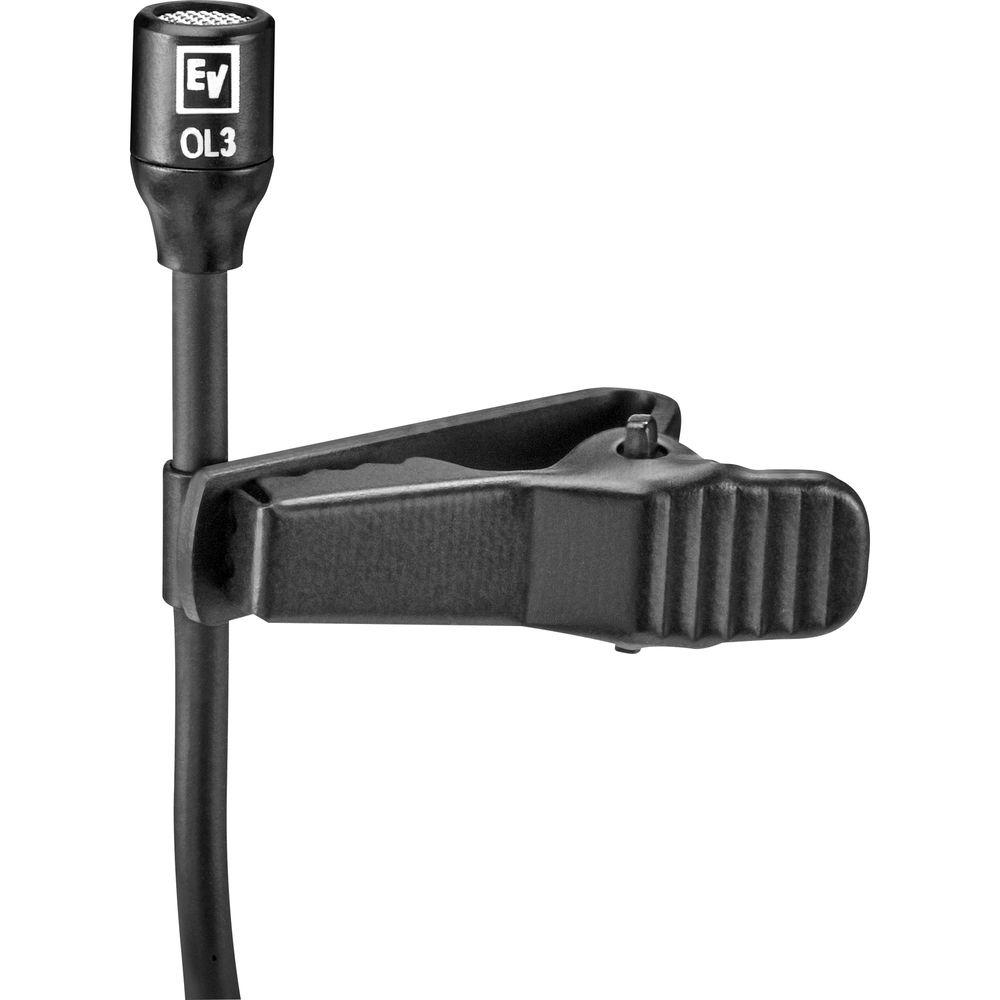

- RE3-ACC-OL3 Omnidirectional Lavalier Mic with TA4F Connector The RE3-ACC-OL3 Omnidirectional Lavalier Mic with TA4F Connector from Electro-Voice is a robust, general-purpose lavalier microphone. It can be used to capture audio suitable for presentation and public speaking applications where its sonic characteristics, coupled with its feedback-rejecting polar pattern, deliver a clear and intelligible voice.The RE3-ACC-OL3's cardioid polar pattern provides acoustic isolation and gain whilst preventing situations where the ambient sound reinforcement system volume might cause other microphones to feedback. The 4- pin mini plug is compatible with all current Electro-Voice bodypack transmitters as well as many other brands that use the 4-pin mini connector convention.In addition, the small clothing clip attaches the microphone securely to clothing items or surfaces, and the included foam windscreen is effective in reducing wind noise.
- Small and unobtrusive low-profile design
- Omnidirectional polar pattern delivers an open and natural sound
- Wide dynamic range and frequency response
- Clothing clip holds microphone securely and attaches easily to garments

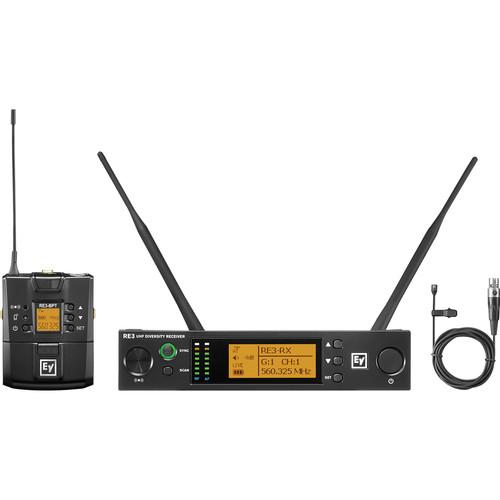

UPC: 800549895293 In the Box Bundle Items RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz) szcwrrsadvrfefbrxbyttddyyywb - Receiver Rack Mounting Hardware
RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz) RE3-ACC-OL3 Omnidirectional Lavalier Mic with TA4F Connector Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-BPOL Bodypack Wireless System with Omnidirectional Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz)
| Wireless Transmission | Digital UHF | | Number of RF Channels | 400 | | Diversity | Antenna Diversity | | RF Frequency Band | 653 to 663 MHz | | RF Bandwidth | Up to 10 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 400 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 20 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) | - RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz)
| Wireless Transmission | Digital UHF | | RF Frequency Band | 653 to 663 MHz | | RF Bandwidth | 10 MHz | | Modulation | Wideband FM | | | | Form Factor | Bodypack | | RF Output Power | 10 / 20 mW (Switchable) | | Audio I/O | 1 x TA4/Mini XLR 4-Pin Input | | Muting | Mute Switch | | Sync Method | IR | | Antenna | 1 x Flexible Whip, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | 1 x Back-Lit LED (Channel, Group, Mute) | | Housing | Metal | | Dimensions | 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas) | | Weight | 6.1 oz / 173.0 g (with Antenna) | - RE3-ACC-OL3 Omnidirectional Lavalier Mic with TA4F Connector
| | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 60 Hz to 15 kHz | | Maximum SPL | 130 dB SPL Peak | | Impedance | 2200 Ohms | | Sensitivity | 17.5 mV/Pa at 1 kHz | | | | Output Connector | TA4F/Mini XLR | | Cable Length | 57.1" / 145.03 cm | | Operating Voltage | 3 to 9 V | | Length | 0.36" / 0.91 cm | | Diameter | 0.2" / 5.08 mm | | Weight | 0.617 oz / 17 g |
