User Manual for Electro-Voice RE3-BPT-6M Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE3-BPT-6M Bodypack Transmitter
- Product category: Wireless Transmitters Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Transmitters
 |
User manual for the Electro-Voice RE3-BPT-6M Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

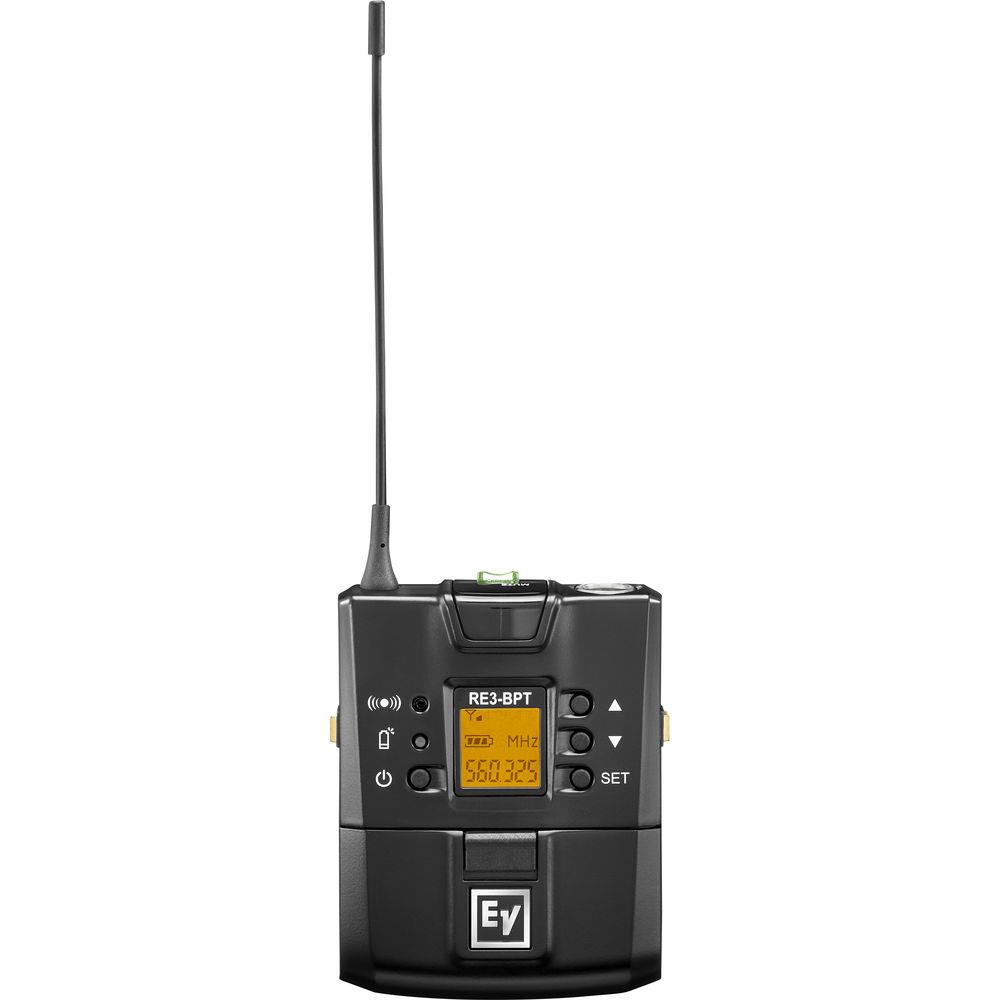

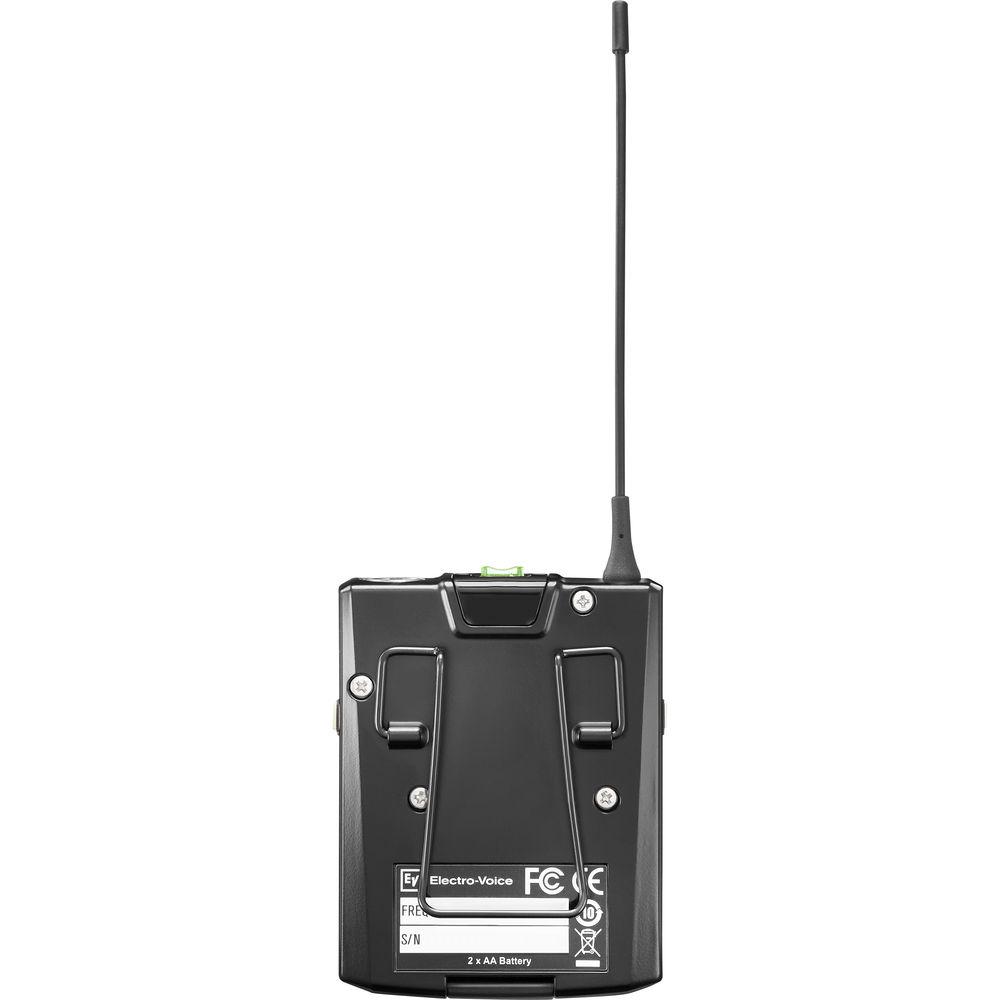

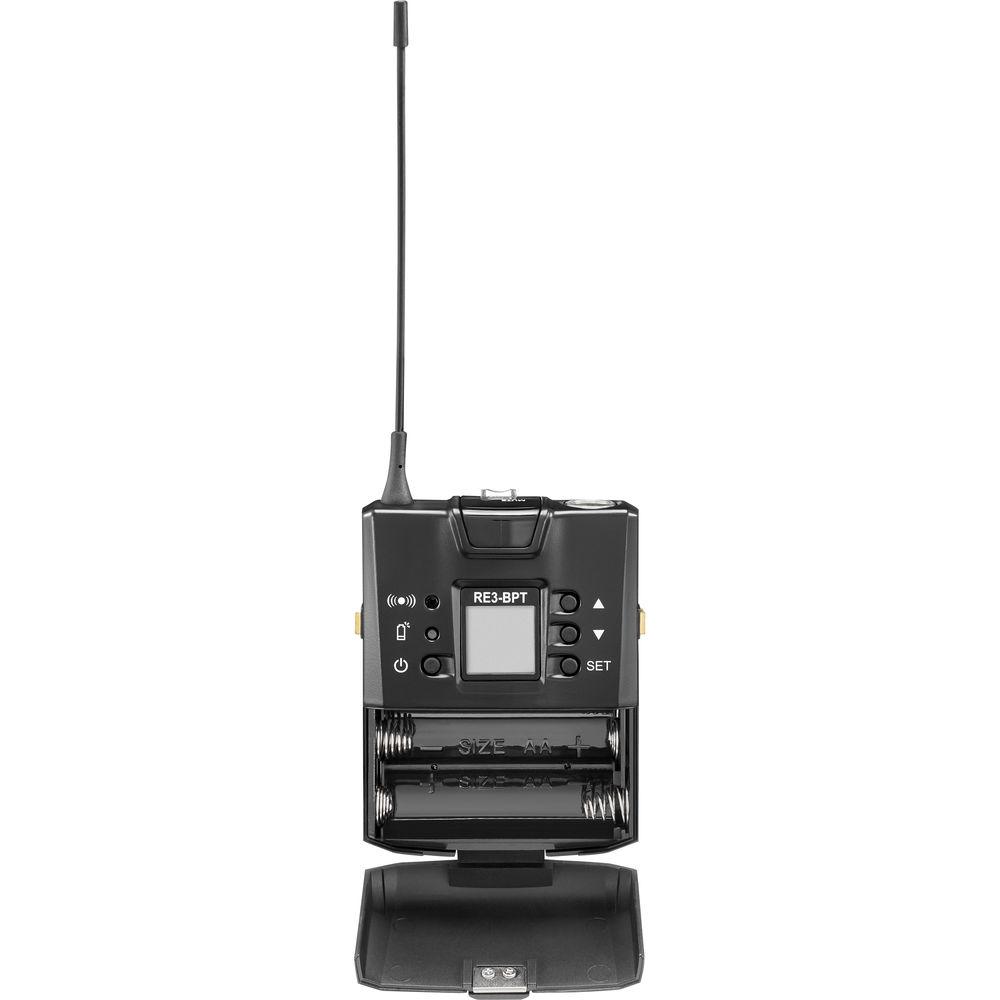

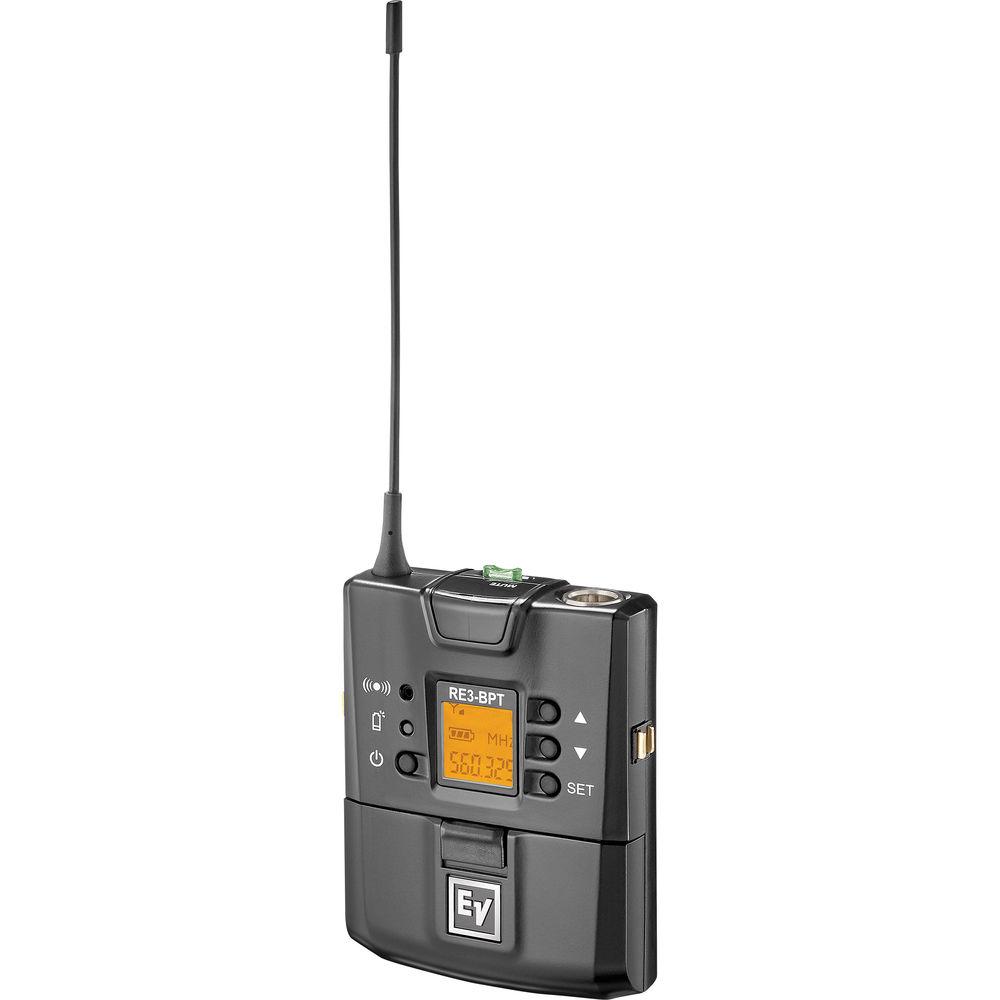

Product description The RE3-BPT-6M Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack. UPC: 800549895217 In the Box Electro-Voice RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz) 2 x AA Batteries Belt Clip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-BPT-6M Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.353.076 Specs | Wireless Transmission | Digital UHF | | RF Frequency Band | 653 to 663 MHz | | RF Bandwidth | 10 MHz | | Modulation | Wideband FM | | | | Form Factor | Bodypack | | RF Output Power | 10 / 20 mW (Switchable) | | Audio I/O | 1 x TA4/Mini XLR 4-Pin Input | | Muting | Mute Switch | | Sync Method | IR | | Antenna | 1 x Flexible Whip, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | 1 x Back-Lit LED (Channel, Group, Mute) | | Housing | Metal | | Dimensions | 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas) | | Weight | 6.1 oz / 173.0 g (with Antenna) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
