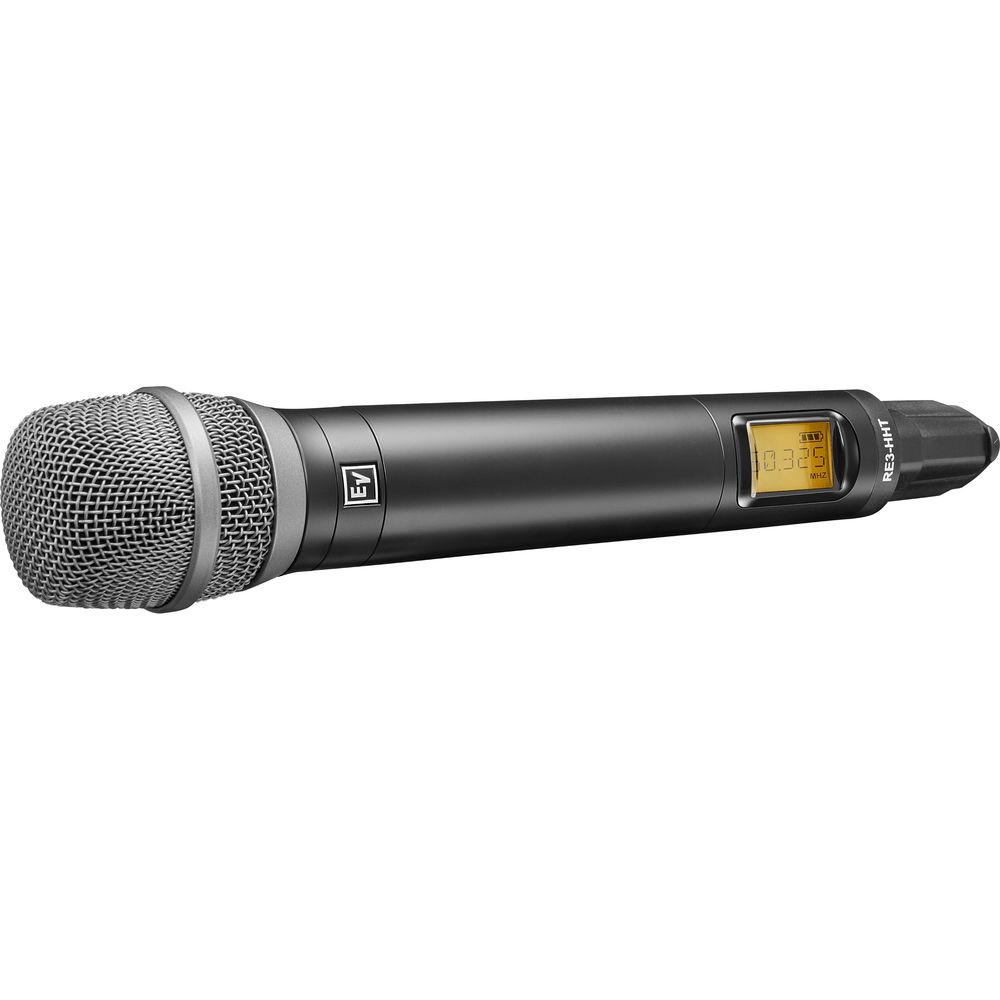

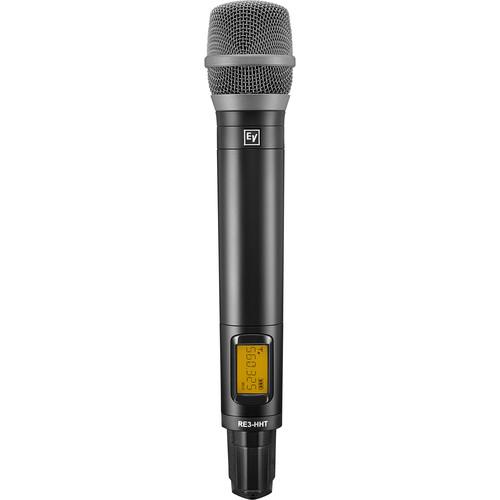

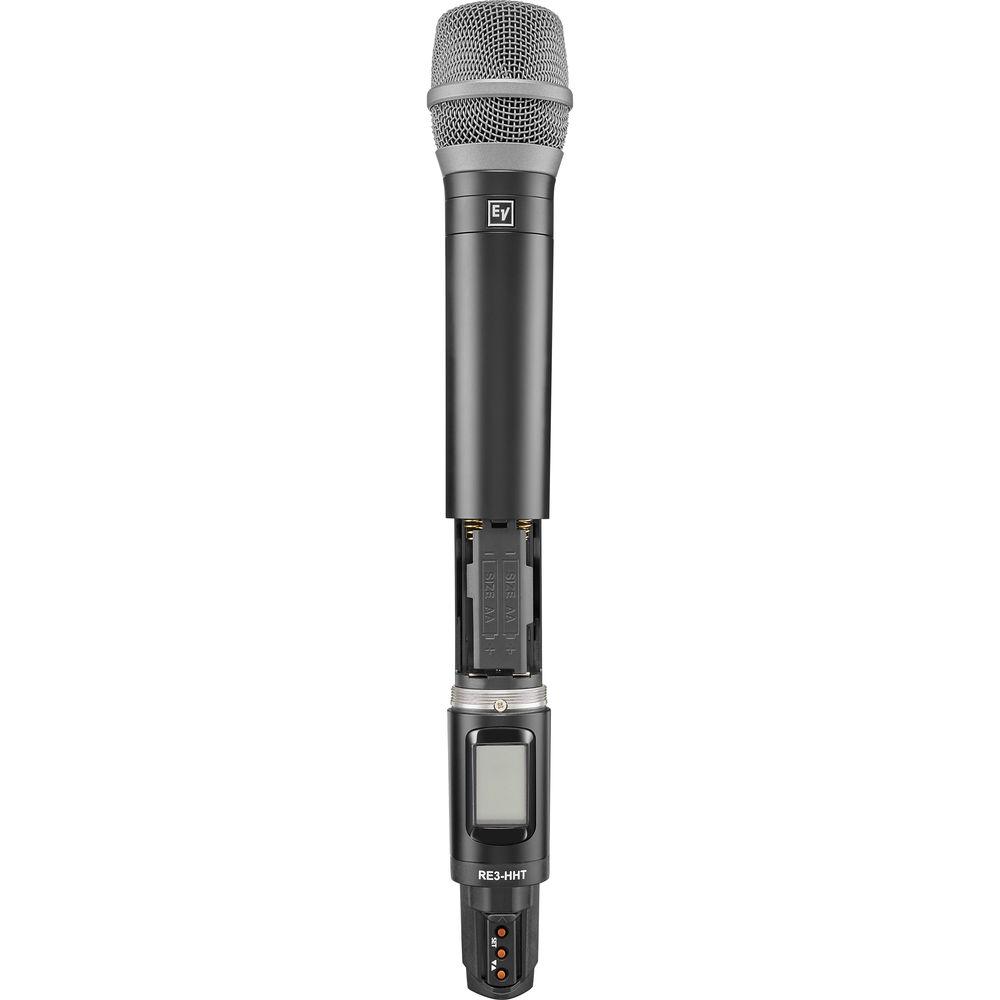

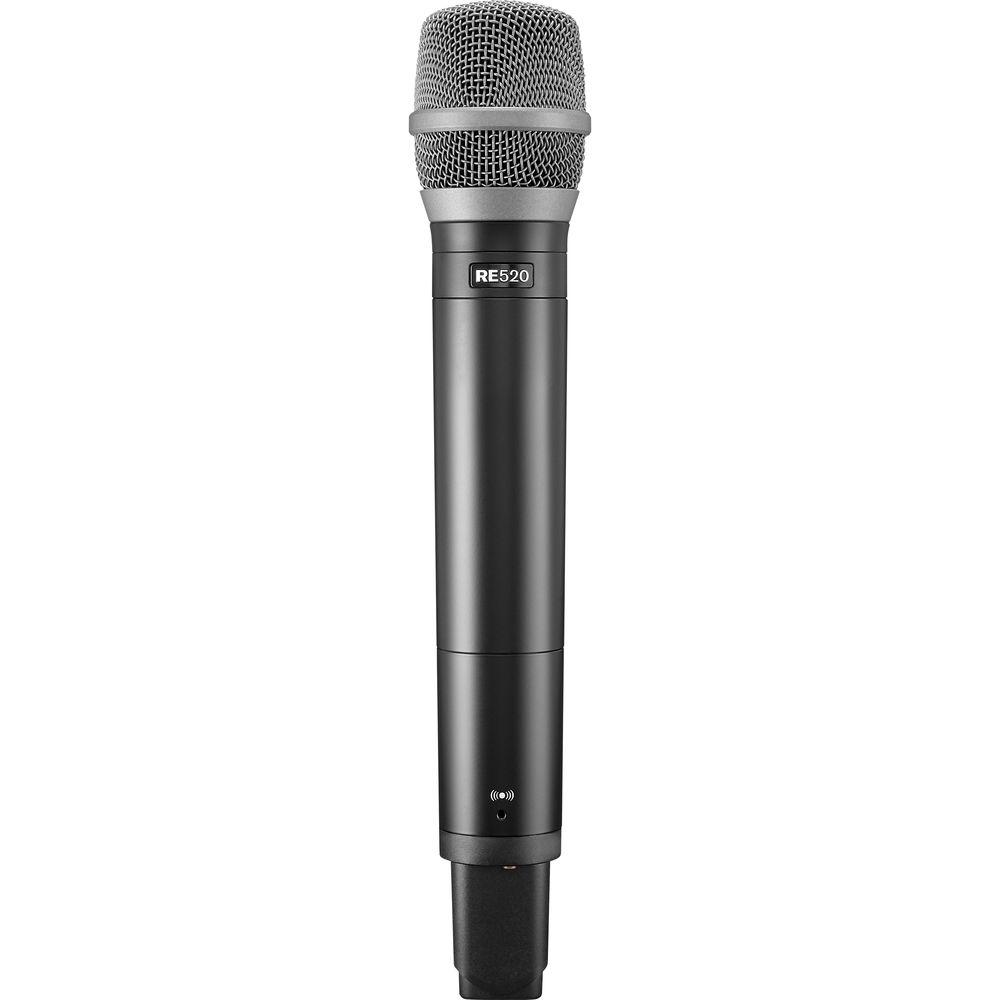

User Manual for Electro-Voice RE3-HHT5206M UHF Wireless Transmitter with RE520 Condenser Supercardioid Capsule Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE3-HHT5206M UHF Wireless Transmitter with
- Product category: Wireless Transmitters Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Transmitters
 |
User manual for the Electro-Voice RE3-HHT5206M UHF Wireless Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The RE3-HHT5206M UHF Wireless Transmitter with RE520 Condenser Supercardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a condenser supercardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 400 selectable frequencies, switchable low- and high-output power, and up to 10 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter. UPC: 800549898942 In the Box Electro-Voice RE3-HHT5206M UHF Wireless Transmitter with RE520 Condenser Supercardioid Capsule (653 to 663 MHz) RE520-RC3 Wireless Head with RE520 Supercardioid Capsule RE3-HHT Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-HHT5206M UHF Wireless Transmitter with RE520 Condenser Supercardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.354.267 Specs | Wireless Transmission | Digital UHF | | RF Bandwidth | Up to 10 MHz | | Encryption | Yes | | Modulation | Wideband FM | | | | Form Factor | Handheld | | RF Output Power | 10 mW (20 mW Peak, Switchable) | | Audio I/O | None | | Muting | Mute Switch | | Frequency Response | 50 Hz to 20 kHz (Dependent on Mic) | | Sync Method | IR | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | LCD (Channel, Group, Mute, Power, RF Output Power) | | Housing | Metal | | Dimensions | 1.4 x 7.5" / 3.6 x 19.1 cm | | Weight | 12.2 oz / 346.0 g (without Capsule) | | Form Factor | Handheld Capsule | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | SNR | Supercardioid: 72 dB | | Equivalent Noise Level | Supercardioid: 22 dB A-Weighted | | Maximum SPL | 139 dB SPL Peak | | Sensitivity | 5.6 mV/Pa at 1 kHz | | Dynamic Range | 117 dB A-Weighted | | Operating Voltage | 4 to 8 V | | Length | 3.3" / 8.38 cm | | Diameter | 2.0" / 50.80 mm | | Weight | 4.6 oz / 130 g |
