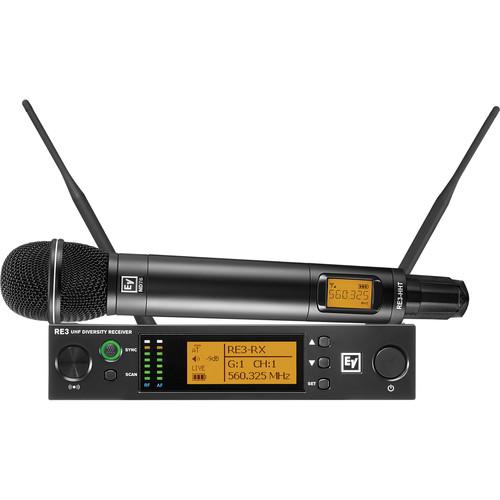

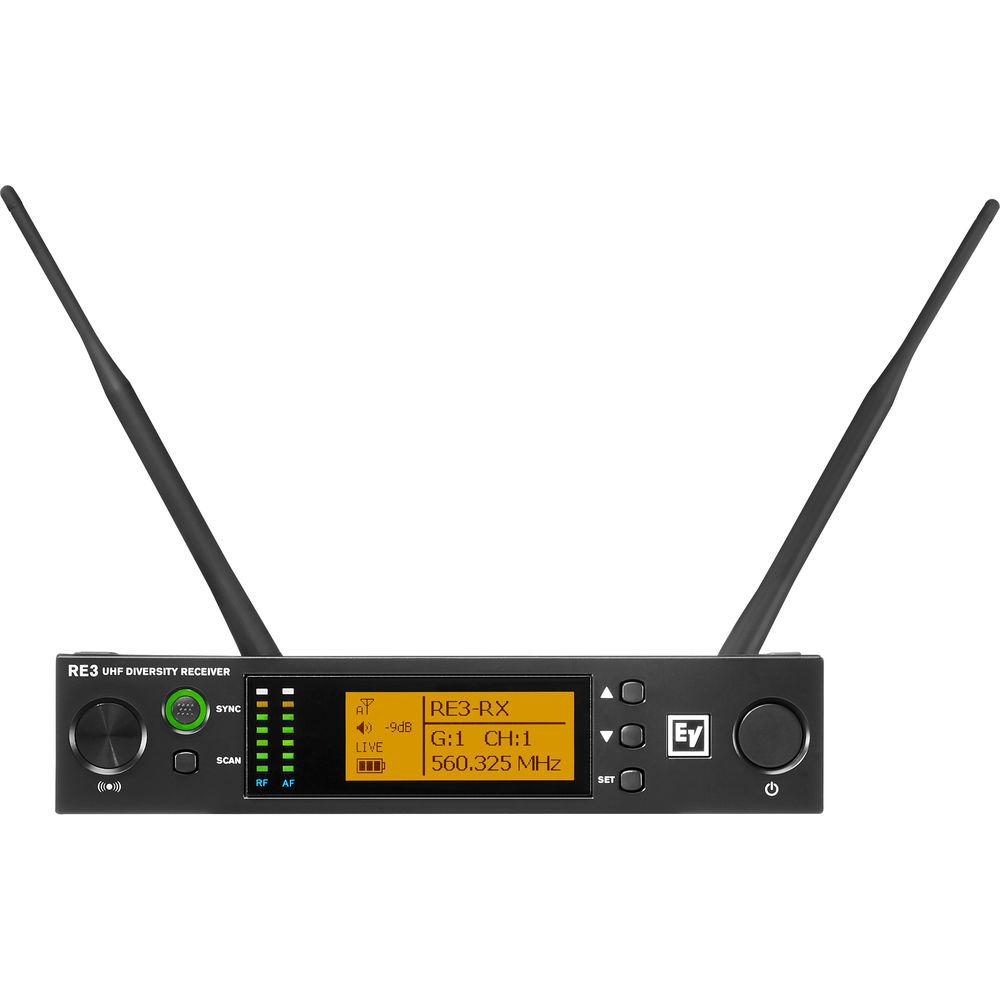

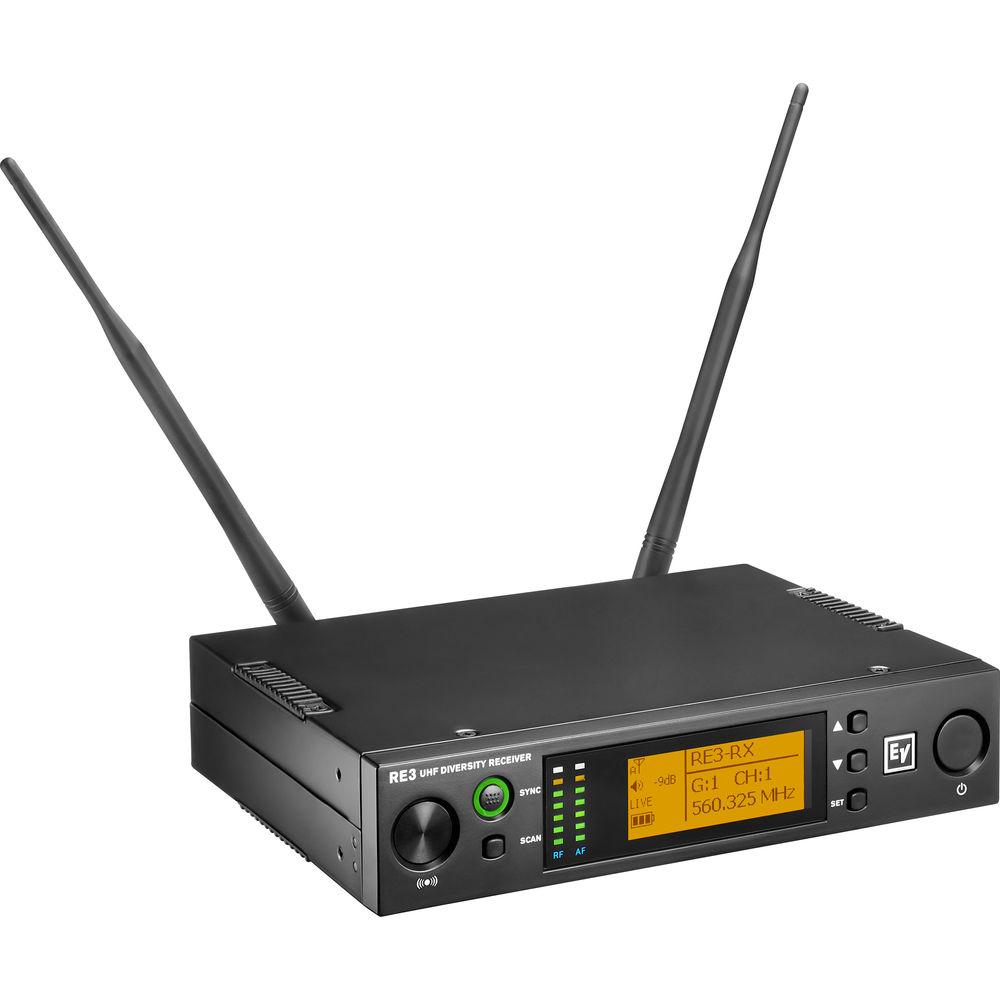

Product description Achieve solid performance, dependability, and clear voice reproduction with the Electro-Voice RE3-ND76 (Band 5L: 488 to 524 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an ND76 cardioid dynamic microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The ND76 delivers balanced vocal tone, reduced ambience, and increased feedback rejection. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-ND76 minimizes setup time and maximizes workflow efficiency.Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation. - RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz) The RE3-RX5L Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895248

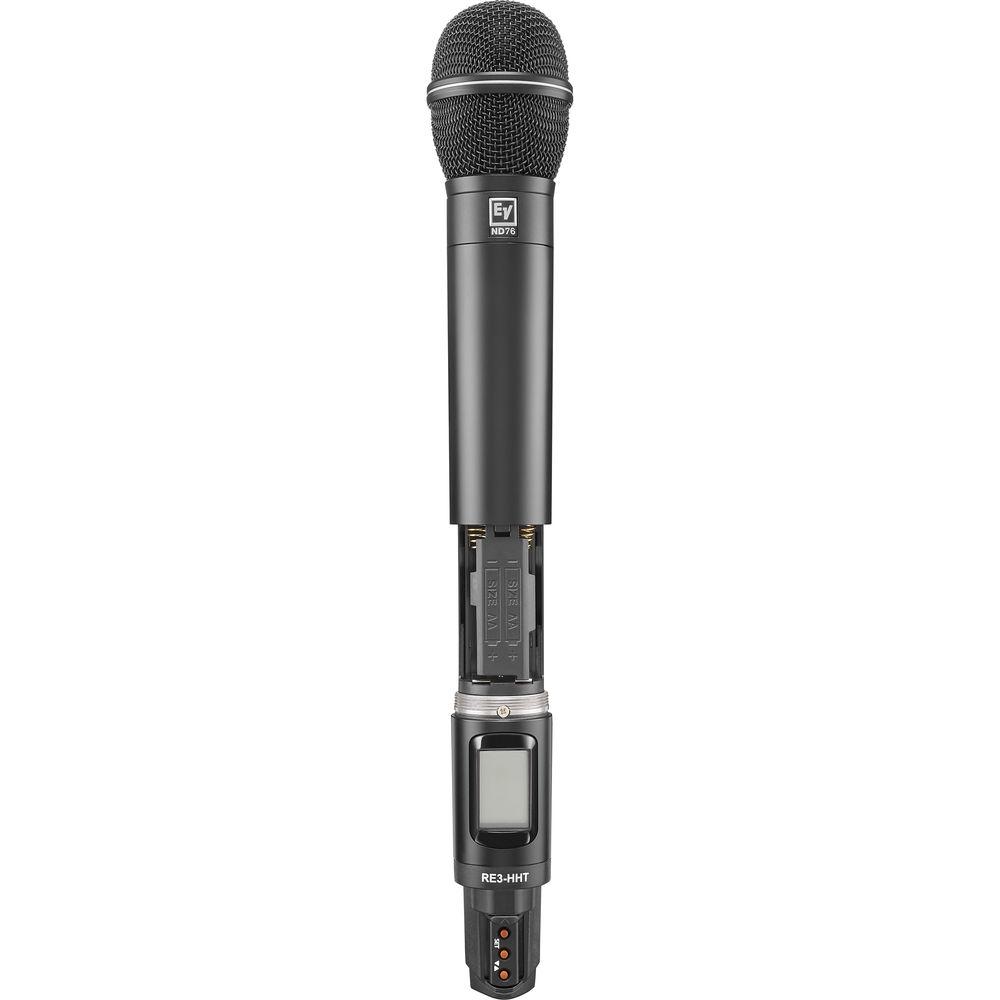

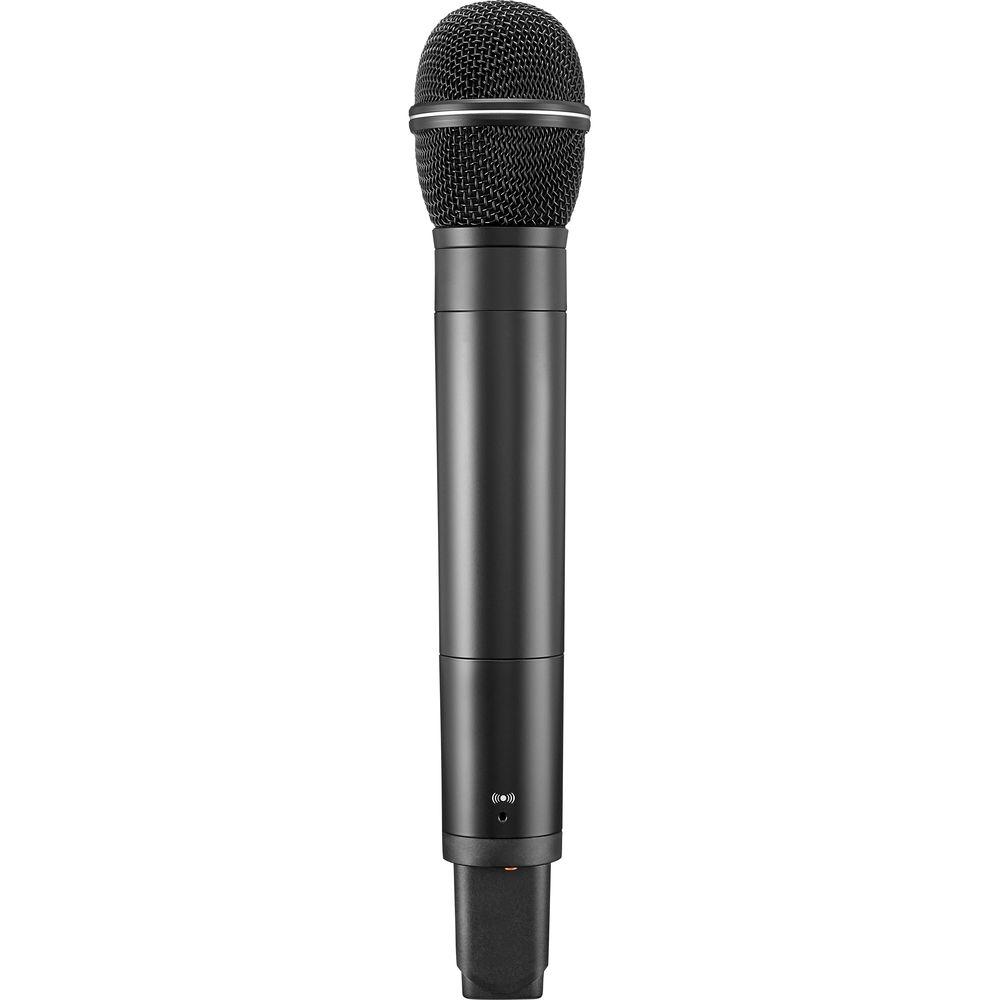

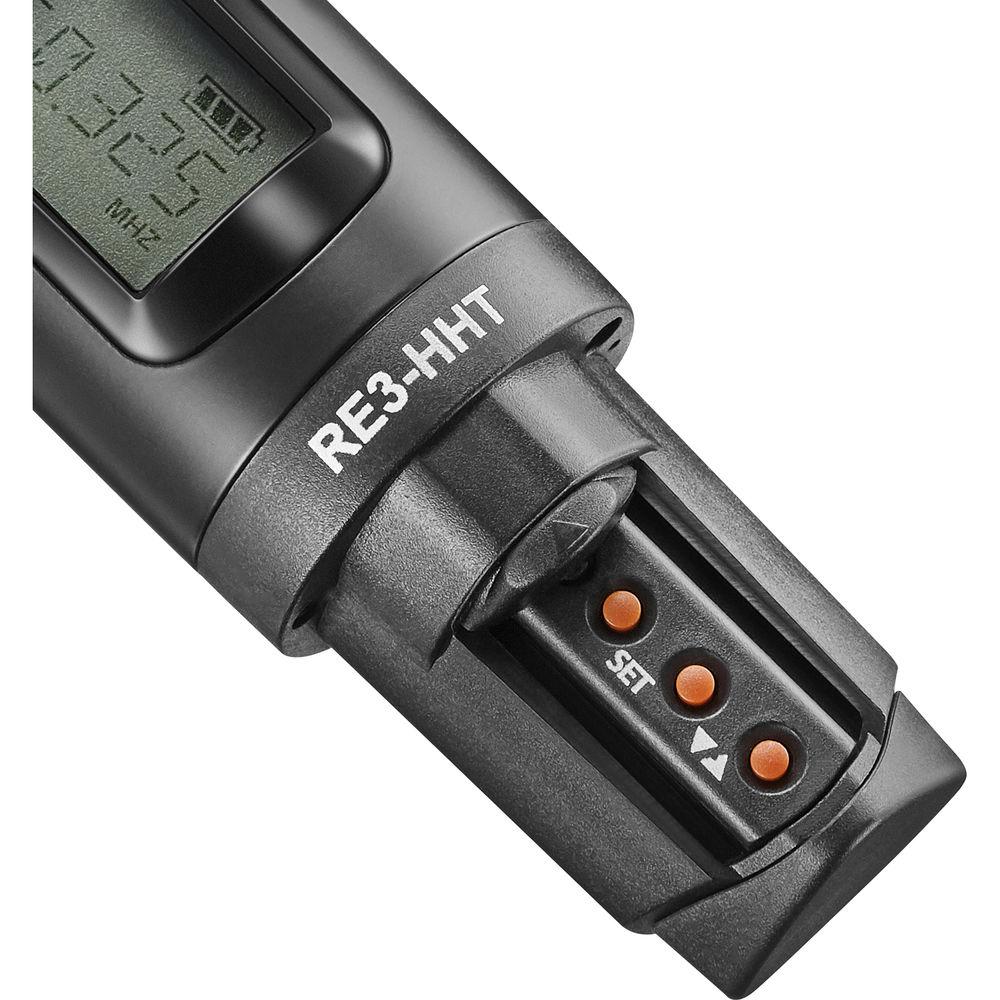

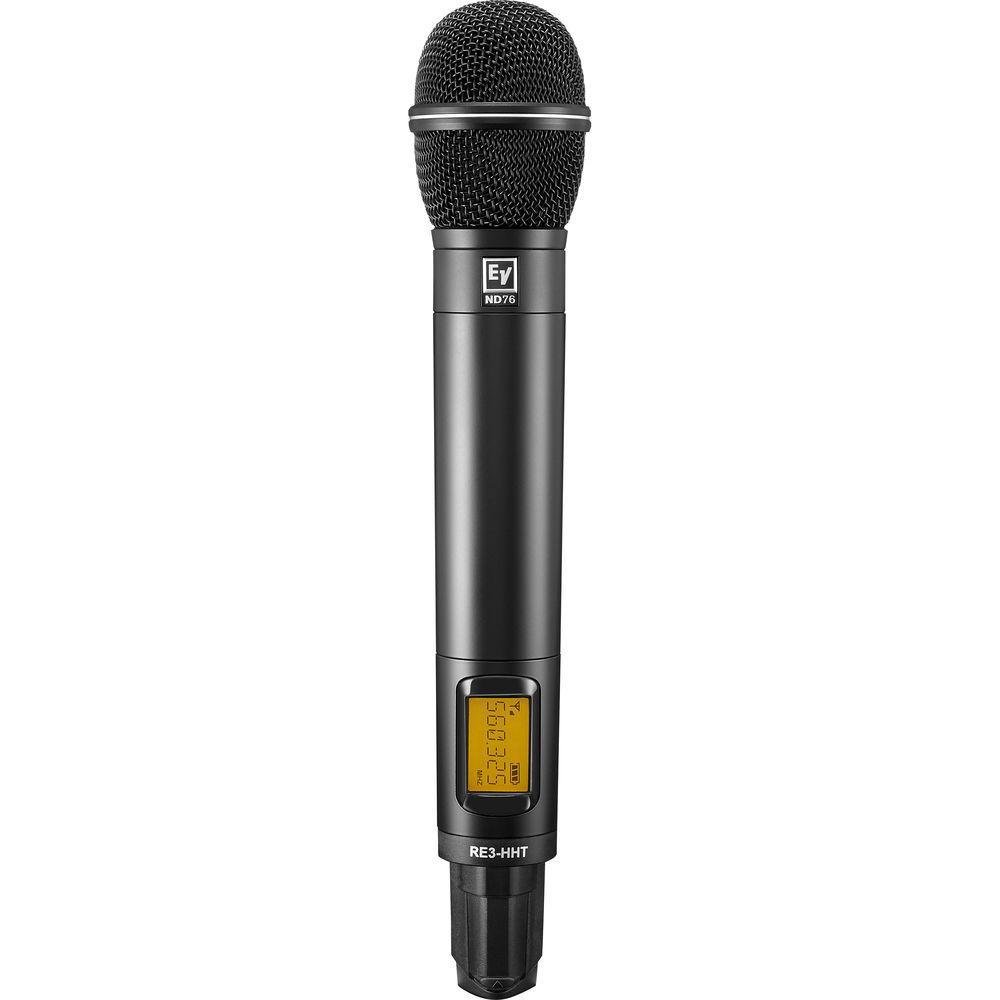

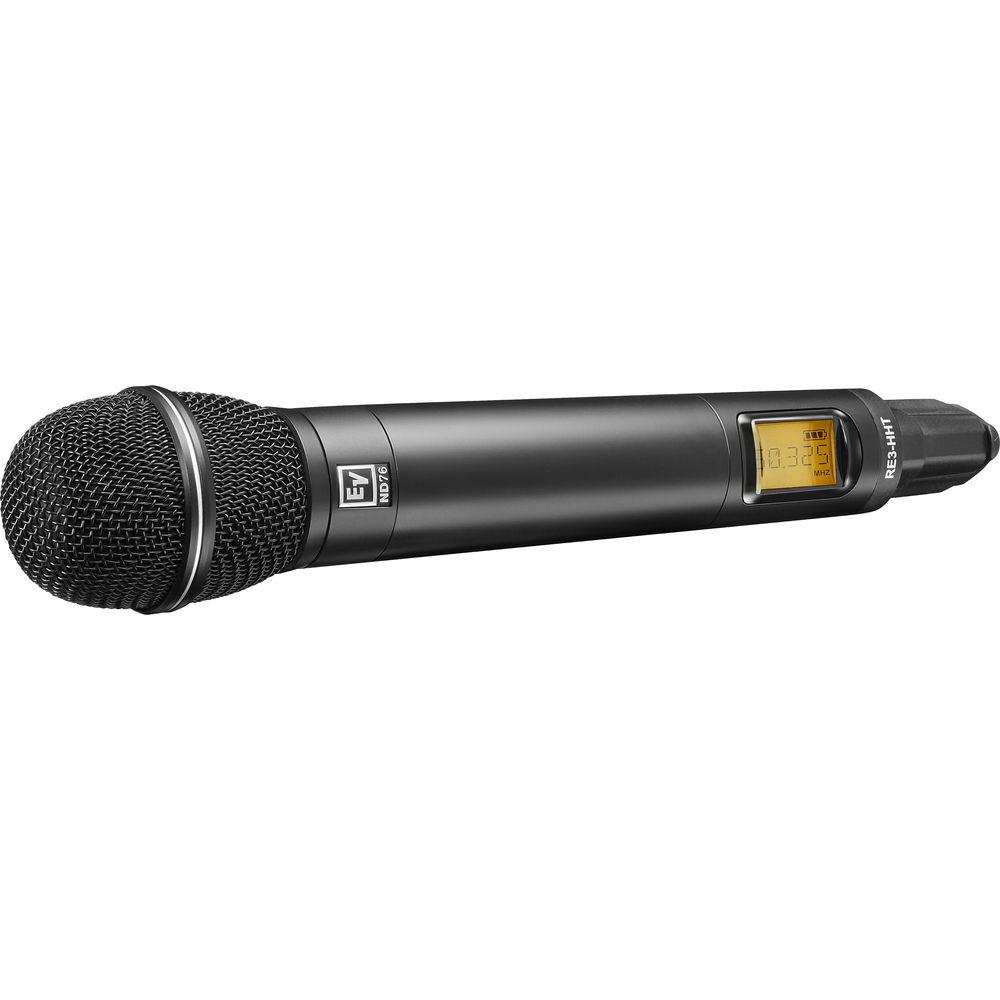

- RE3-HHT765L UHF Wireless Transmitter with ND 76 Cardioid Capsule (488 to 524 MHz) The RE3-HHT765L UHF Wireless Transmitter with ND76 Cardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a dynamic cardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 1440 selectable frequencies, switchable low- and high-output power, and up to 36 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter. UPC: 800549898829
In the Box Bundle Items RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz) xceuuzxzrvfcadefuwsvub - Receiver Rack Mounting Hardware
RE3-HHT765L UHF Wireless Transmitter with ND 76 Cardioid Capsule (488 to 524 MHz) - ND76-RC3 Wireless Head with ND76 Capsule
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-ND76 Wireless Handheld Microphone System with ND76 Wireless Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RE3-RX5L Diversity Wireless Receiver (488 to 524 MHz)

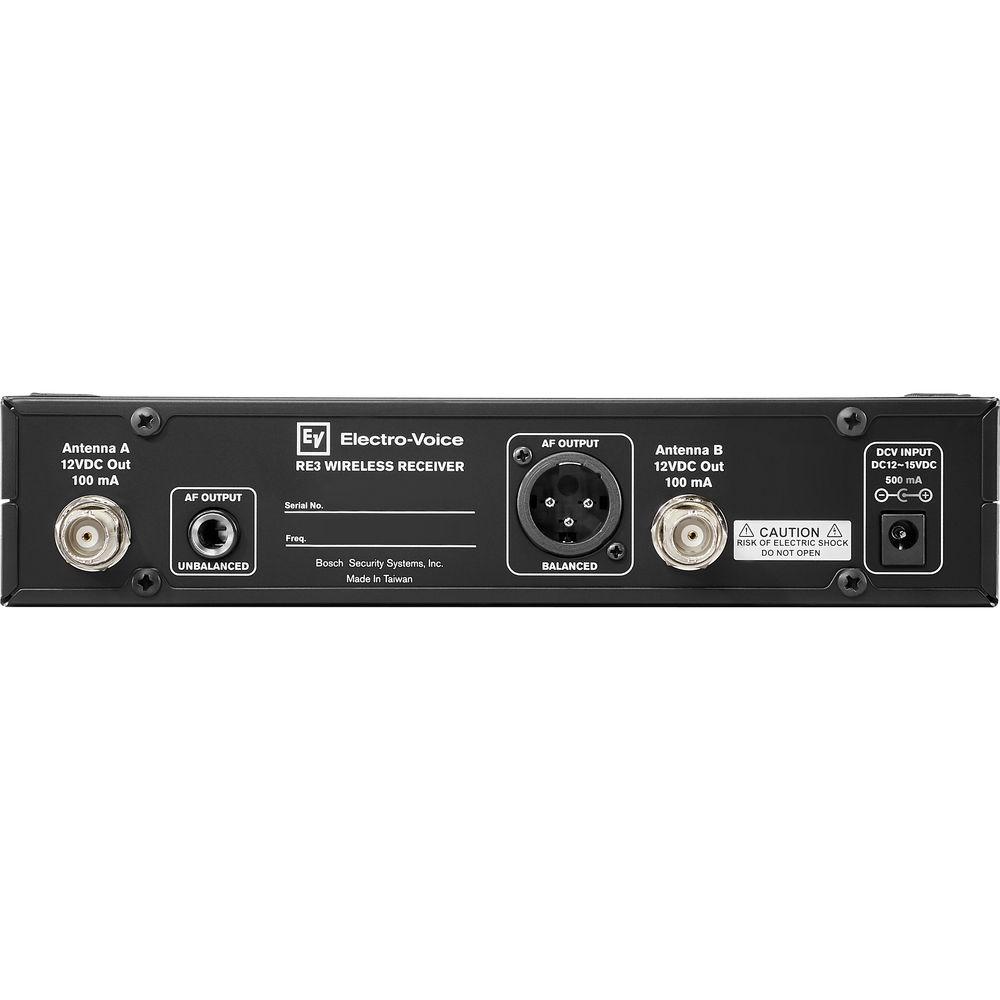

| Wireless Transmission | Digital UHF | | Number of RF Channels | 1440 | | Diversity | Antenna Diversity | | RF Frequency Band | 488 to 524 MHz | | RF Bandwidth | Up to 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 1440 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 50 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) | - RE3-HHT765L UHF Wireless Transmitter with ND 76 Cardioid Capsule (488 to 524 MHz)
| Wireless Transmission | Analog UHF | | RF Bandwidth | Up to 36 MHz | | Encryption | Yes | | Modulation | Wideband FM | | | | Form Factor | Handheld | | RF Output Power | 10 mW (50 mW Peak, Switchable) | | Audio I/O | None | | Muting | Mute Switch | | Frequency Response | 30 Hz to 17 kHz (Dependent on Mic)

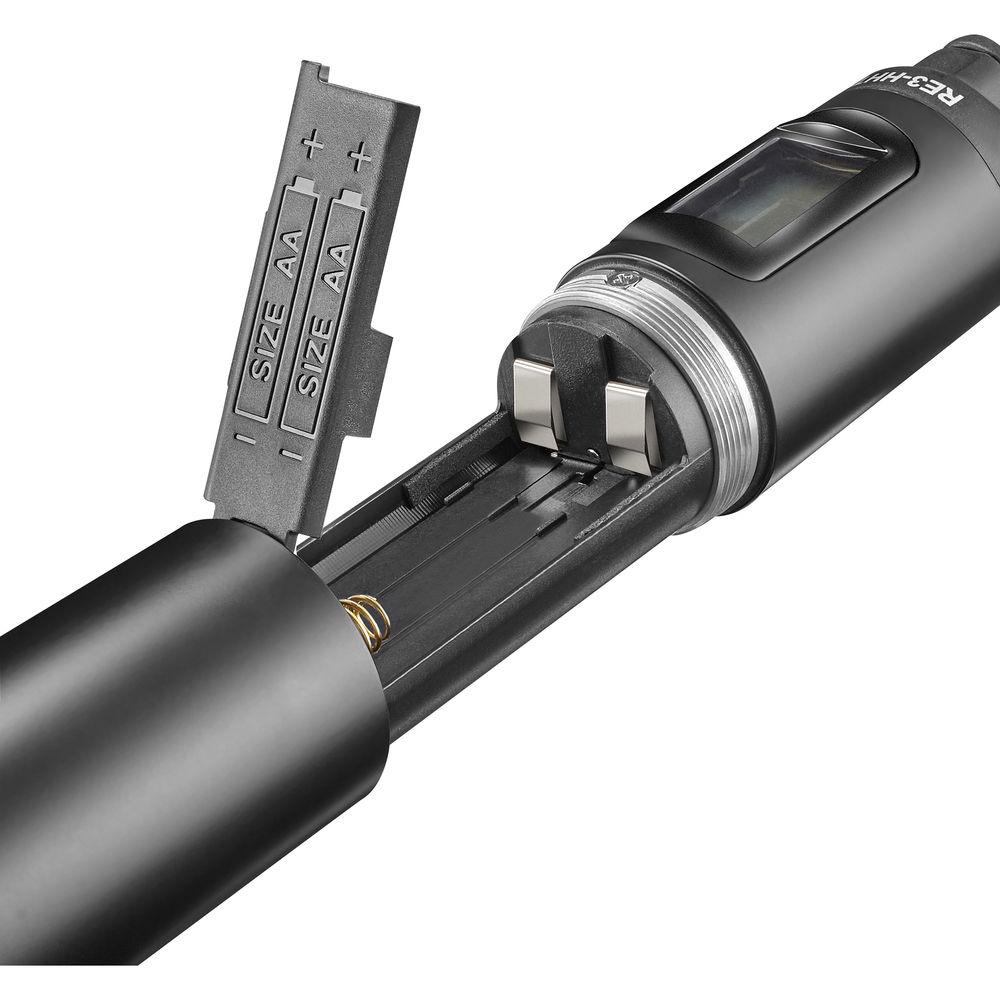

70 Hz to 17 kHz (Dependent on Mic) Close/Far | | Sync Method | IR | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | LCD (Channel, Group, Mute, Power, RF Output Power) | | Housing | Metal | | Dimensions | 1.5 x 7.5" / 3.8 x 19.1 cm | | Form Factor | Handheld Capsule | | Sound Field | Mono | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 17 kHz | | Maximum SPL | 135.5 dB SPL Peak | | Impedance | 1000 Ohms | | Operating Voltage | 4 to 8 V | | Length | 3.6" / 9.14 cm | | Diameter | 2.0" / 50.80 mm | | Weight | 6.5 oz / 0.18 kg |
