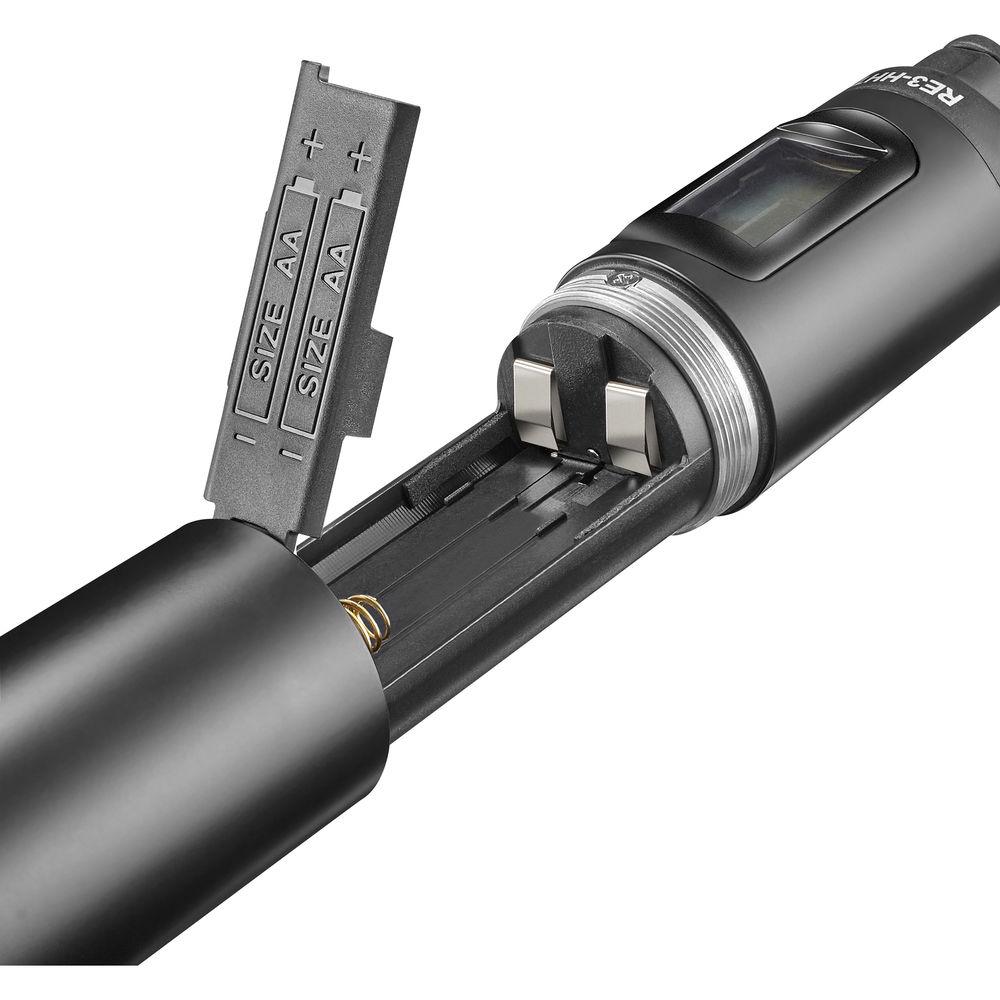

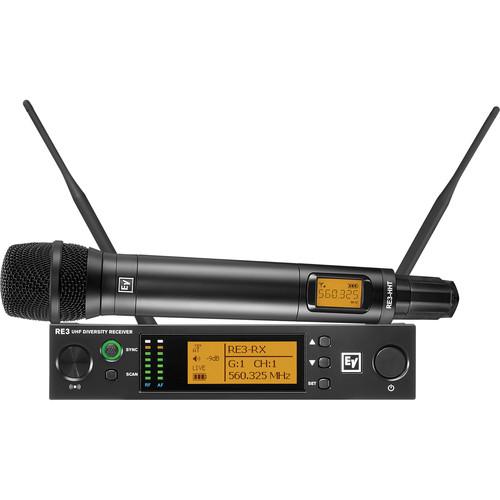

User Manual for Electro-Voice RE3-RE420 Wireless Handheld Microphone System with RE420 Wireless Mic Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE3-RE420 Wireless Handheld Microphone System
- Product category: Wireless Systems Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Systems
 |
User manual for the Electro-Voice RE3-RE420 Wireless Handheld Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

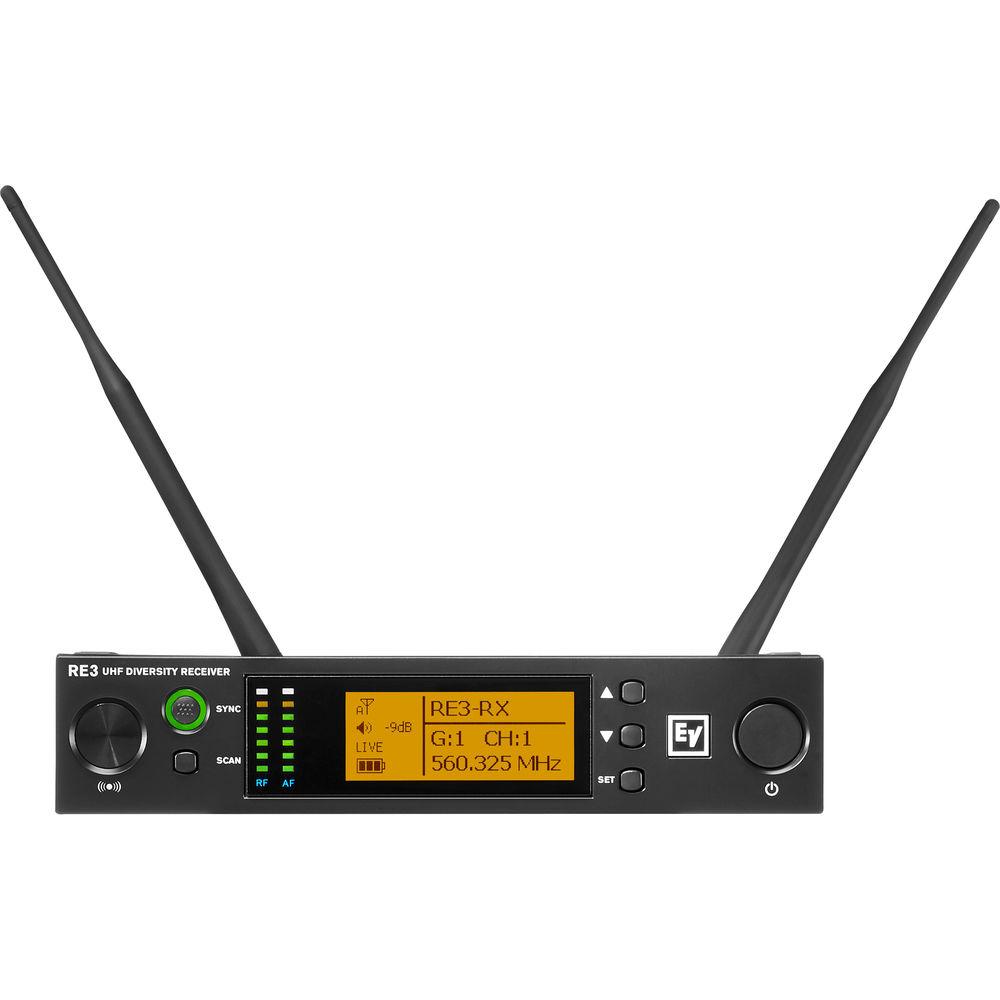

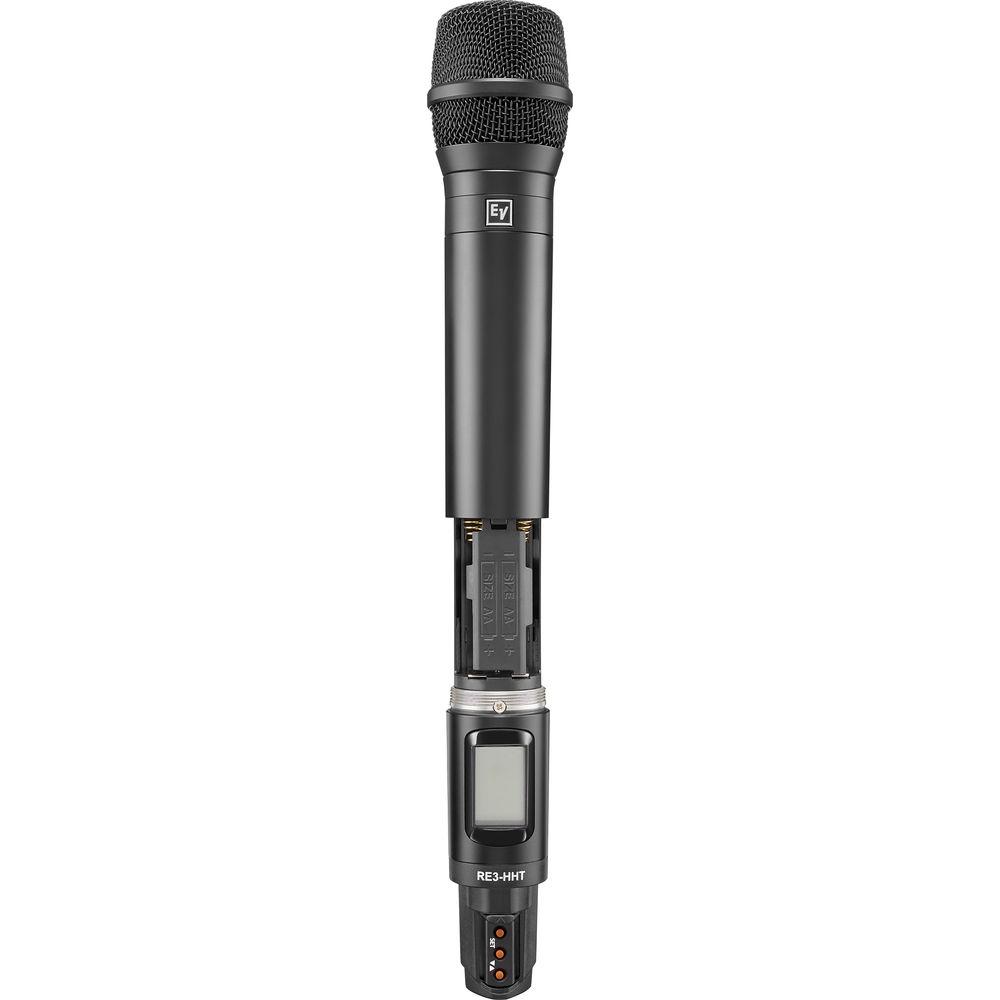

Product description Achieve solid performance, dependability, and clear voice reproduction with the Electro-Voice RE3-RE420 (Band 6M: 653 to 663 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an RE420 cardioid condenser microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The RE420 delivers full-bodied vocal tone, reduced ambience, and increased feedback rejection. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-RE420 minimizes setup time and maximizes workflow efficiency.Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation. - RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz) The RE3-RX6M Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895262

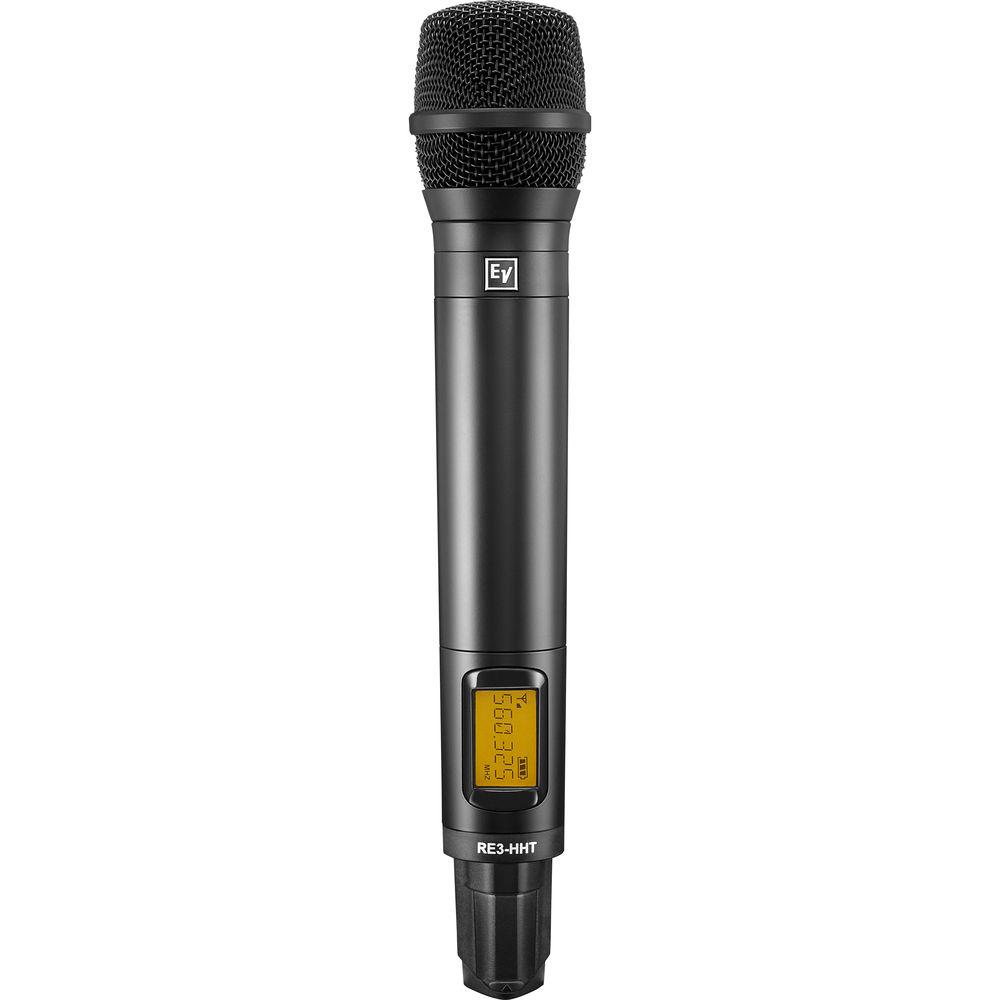

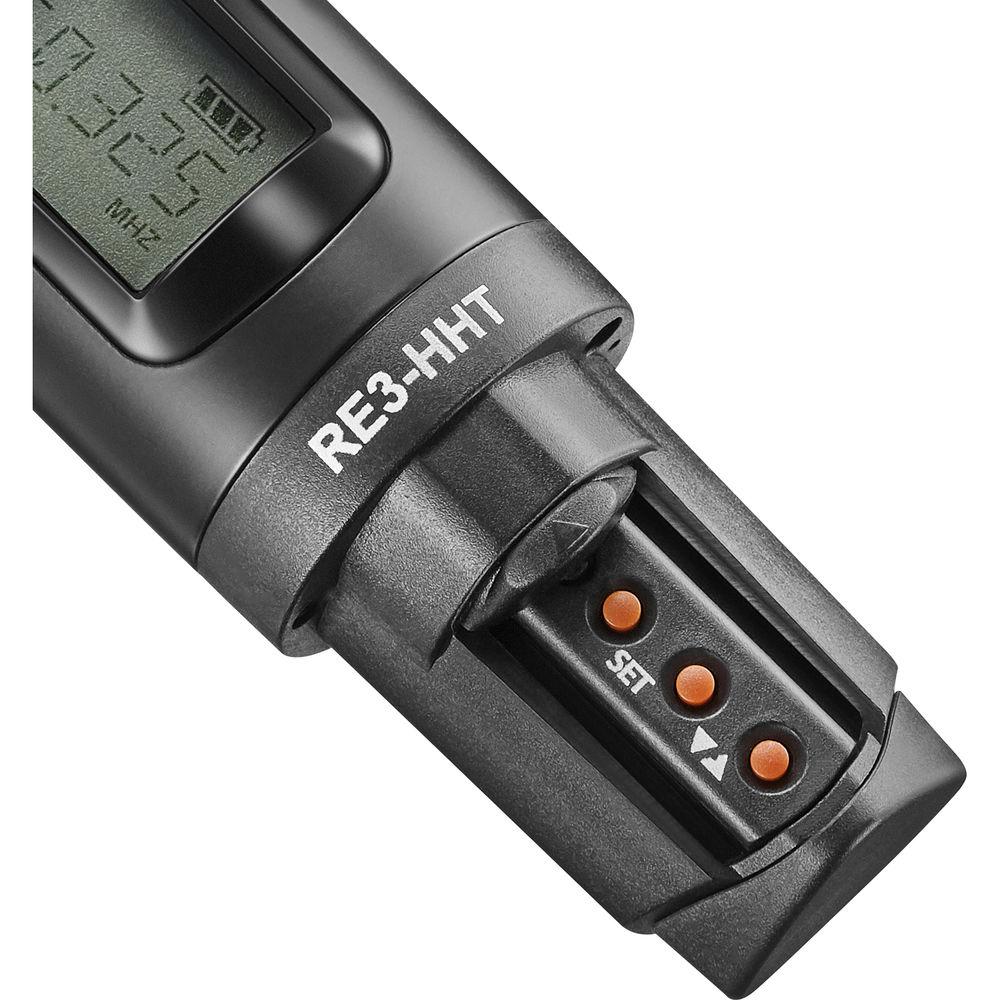

- RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule (653 to 663 Mhz) The RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a condenser cardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 400 selectable frequencies, switchable low- and high-output power, and up to 10 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter. UPC: 800549898898
In the Box Bundle Items RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz) cqfsybxabfewbsrtayasy - Receiver Rack Mounting Hardware
RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule (653 to 663 Mhz) - RE420-RC3 Wireless Head with RE420 Cardioid Capsule
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-RE420 Wireless Handheld Microphone System with RE420 Wireless Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

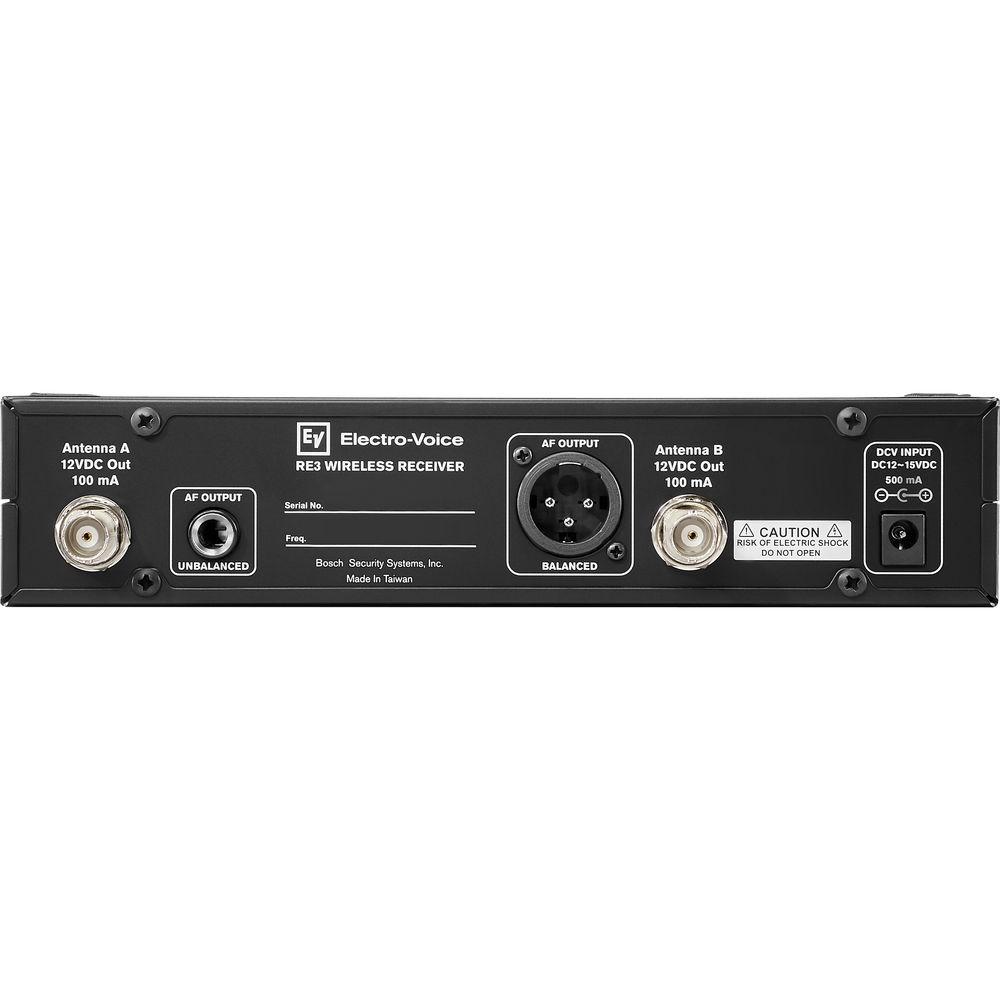

Technical parameters - RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz)
| Wireless Transmission | Digital UHF | | Number of RF Channels | 400 | | Diversity | Antenna Diversity | | RF Frequency Band | 653 to 663 MHz | | RF Bandwidth | Up to 10 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 400 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 20 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) | - RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule (653 to 663 Mhz)
| Wireless Transmission | Analog UHF | | RF Bandwidth | Up to 10 MHz | | Encryption | Yes | | Modulation | Wideband FM | | | | Form Factor | Handheld | | RF Output Power | 10 mW (20 mW Peak, Switchable) | | Audio I/O | None | | Muting | Mute Switch | | Frequency Response | 40 Hz to 20 kHz (Dependent on Mic) | | Sync Method | IR | | Power Requirements | Battery | | Battery Type | 2 x AA (Included, Replaceable) | | Display & Indicators | LCD (Channel, Group, Mute, Power, RF Output Power) | | Housing | Metal | | Dimensions | 1.4 x 7.5" / 3.6 x 19.1 cm | | Weight | 12.2 oz / 346.0 g (without Capsule) | | Form Factor | Handheld Capsule | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 20 kHz | | SNR | Cardioid: 72 dB | | Equivalent Noise Level | Cardioid: 22 dB A-Weighted | | Maximum SPL | 137 dB SPL Peak | | Sensitivity | 5.6 mV/Pa at 1 kHz | | Operating Voltage | 4 to 8 V | | Length | 3.3" / 8.38 cm | | Diameter | 2.0" / 50.80 mm |
