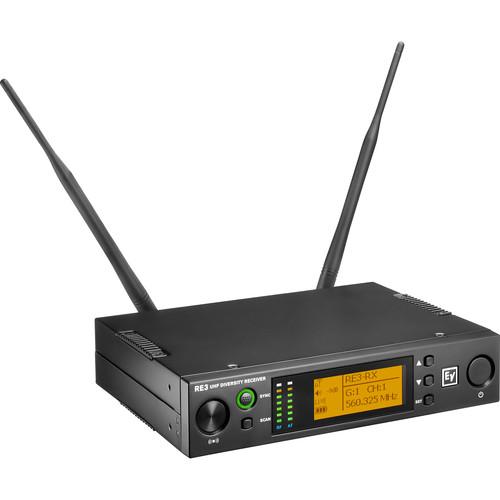

User Manual for Electro-Voice RE3-RX5H Diversity Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE3-RX5H Diversity Wireless Receiver
- Product category: Wireless Receivers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Receivers
 |
User manual for the Electro-Voice RE3-RX5H Diversity Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

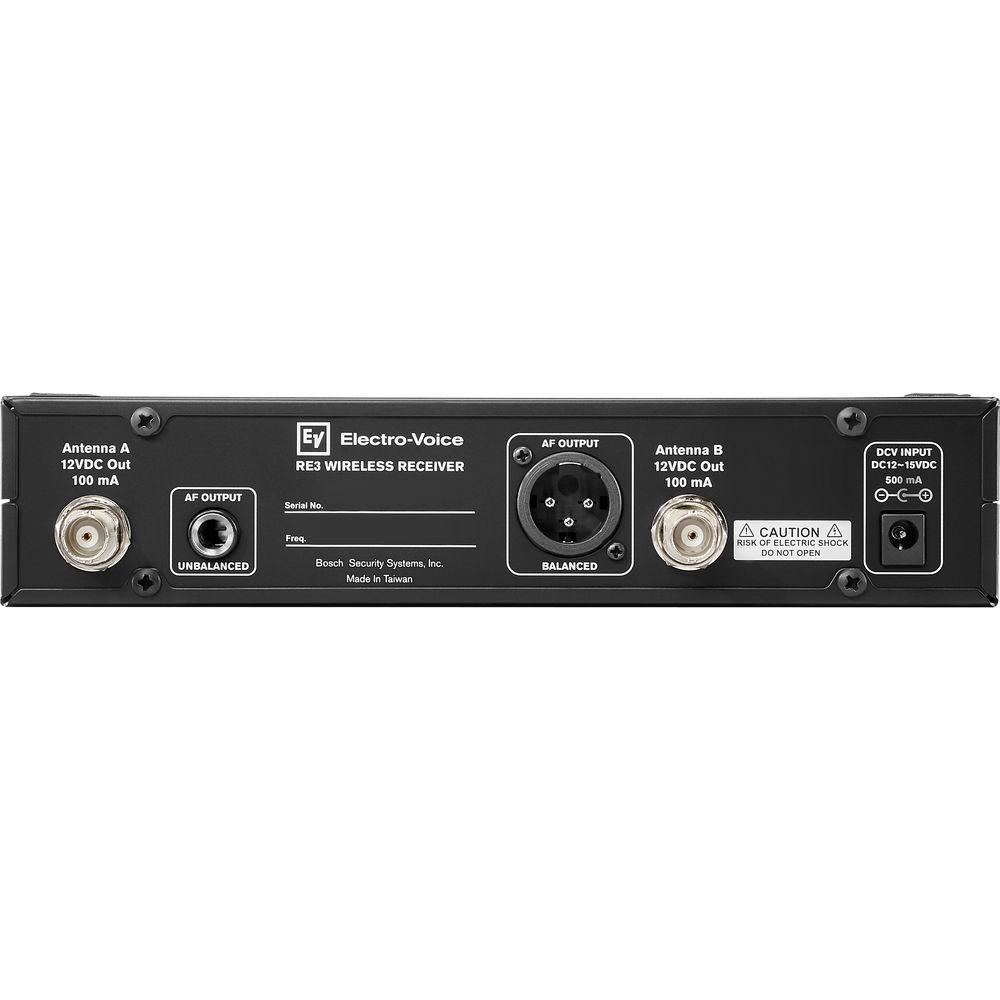

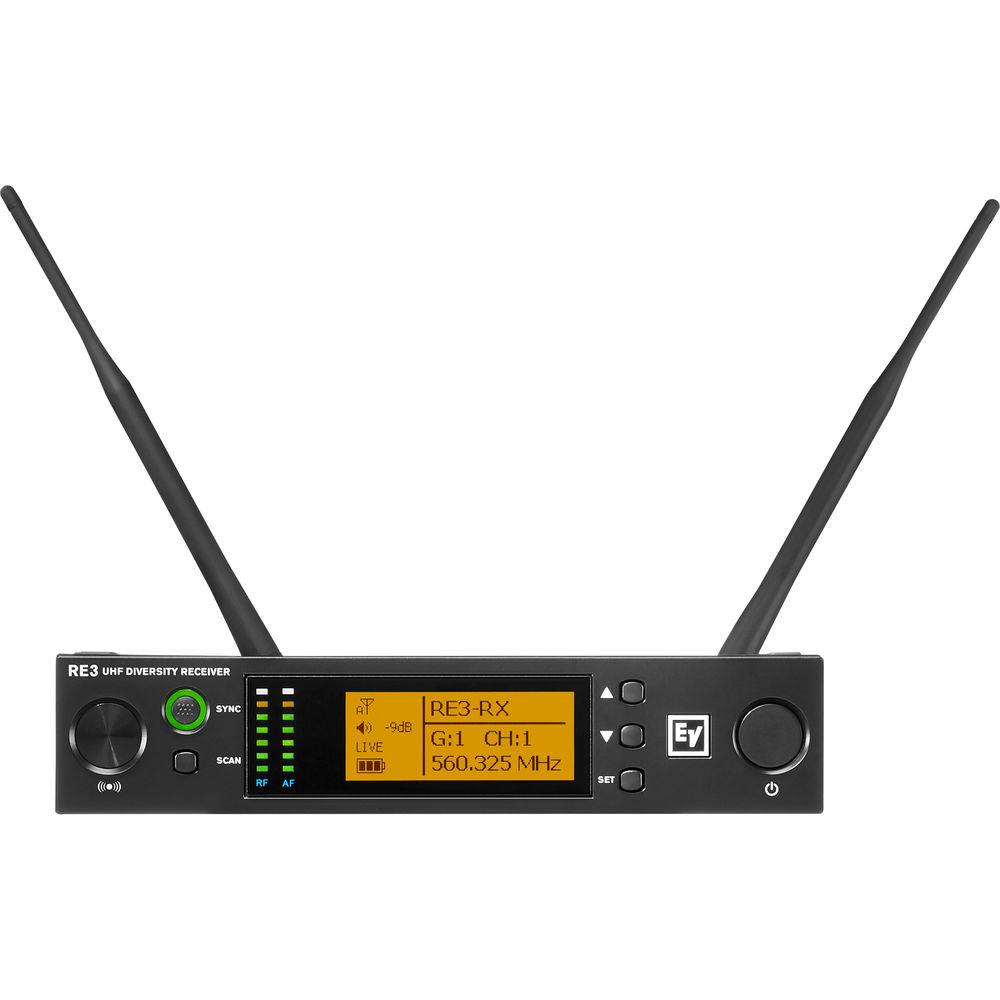

Product description The RE3-RX5H Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters. UPC: 800549895255 In the Box Electro-Voice RE3-RX5H Diversity Wireless Receiver (560 to 596 MHz) 2 x Receiver Antennas Receiver Rack Mounting Hardware Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE3-RX5H Diversity Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.353.080 Specs | Wireless Transmission | Digital UHF | | Number of RF Channels | 1440 | | Diversity | Antenna Diversity | | RF Frequency Band | 560 to 596 MHz | | RF Bandwidth | Up to 36 MHz | | Modulation | Wideband FM | | | | Form Factor | Rackmount | | Mounting Options | Rackmount (with Optional Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) | | Antenna Bias Voltage | 12 to 15 VDC | | Number of Audio Channels | 1440 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output | | Frequency Response | 51 Hz to 16 kHz (Dependent on Mic) | | Approximate RF Sensitivity | 81 dBm | | RF Output Power | Up to 50 mW (Max) | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 12 to 15 VDC (Included) | | Display & Indicators | Back-Lit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power) | | Housing | Metal | | Dimensions | 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
