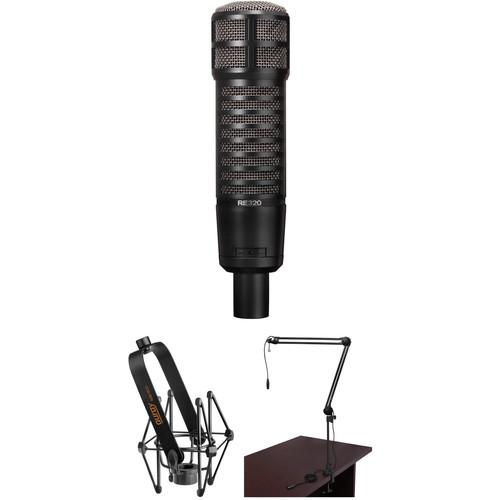

Electro-Voice RE320 Broadcast Announcer Microphone Kit

User Manual for Electro-Voice RE320 Broadcast Announcer Microphone Kit

• Product category: Dynamic Microphones Electro-Voice
• Brand: Electro-Voice
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Electro-Voice Dynamic Microphones

Product description

• Electro-Voice RE320 Variable-D Dynamic Vocal and Instrument Microphone The RE320 Variable-D Dynamic Vocal and Instrument Microphone from Electro-Voice features a neodymium element, sensitivity and frequency response well suited to handle the gamut of recording applications. Electro-Voice's Variable-D tonal response aides in combating the proximity effect, as well as create an even tonal response at 180° of the capsule, making it great for capturing vocals and signals that move around the perimeter of the microphone. Its neodymium capsule handles high SPL levels making it great at capturing transient audio signals from amplifier cabinets, percussion instruments, horns, loud vocals, and more. In addition, the microphone features a kick drum curve switch which automatically adjusts for the frequency response of kick drums. The RE320 ships with a hard case.
  • "Dual Personality" switch creates two microphones in one
  • Neodymium magnet creates higher output with faster transient response and greater high-frequency detail
  • Variable-D proximity control
  • Classic humbucking coil guards against EMF interference and hum
  UPC: 701001084807
• Auray SSM-BC10 Microphone Suspension Shockmount (Black Matte) The black matte SSM-BC10 Microphone Suspension Shockmount from Auray is designed to keep your front-address microphone free from vibrations and noise that can often affect broadcast and voiceover applications. The heavy-duty bands isolate your microphone, eliminating the vibrations that can travel through your mic stand or broadcast arm.

  The shockmount is equipped with a standard 5/8"-27 threaded socket and fits most mic stands and broadcast arms. Its locking knob and protective inner ring secure your mic in place while protecting its finish. The swiveling basket allows for precise microphone placement.
  Eliminates Noise
  • The SSM-BC10 prevents unwanted vibrations that can radiate through a mic stand or broadcast arm from disrupting your broadcast or recording
  Swiveling Basket with Tension Knobs
  • The swiveling basket provides precise microphone positioning. Dual tension knobs maintain the angle of the microphone while still allowing smooth repositioning
  5/8"-27 Thread
  • The SSM-BC10 features a mic stand adapter with a standard 5/8"-27 thread that is compatible with most mic stands and broadcast arms
  Locking Knob with Inner Ring
  • The locking knob holds the microphone firmly in place. The inner ring applies uniform pressure to the outside of the microphone and prevents damage to the microphone finish
  All-Metal Construction
  • The SSM-BC10 is a durable studio accessory that is built to last. The all-metal construction assures security and protection for the microphone
  Heavy-Duty Elastic Bands
  • The heavy-duty elastic bands suspend the microphone in the center of the basket, and prevent shocks and vibrations that can radiate through the mic stand or broadcast arm from reaching the microphone
  Black Matte Finish
  • Using the SSM-BC10 for on-air broadcast, the black matte finish will not reflect lights into the cameras
  UPC: 847628585188
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272

• RE320 Variable-D Dynamic Vocal and Instrument Microphone xtayecccywuq
• 81715 Stand Clamp
• Hard Case
• Limited 1-Year Warranty

• Auray - SSM-BC10 Microphone Suspension Shockmount (Black Matte)

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Electro-Voice RE320 Variable-D Dynamic Vocal and Instrument Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	30 Hz to 18 kHz
  Load Impedance	150 Ohms
  Sensitivity	2.5 mV/Pa

  Output Connectors	1 x 3-Pin XLR
  Length	8.53" / 216.66 mm
  Diameter	2.14" / 54.36 mm
  Weight	1.50 lb / 681 g

  Box Dimensions (LxWxH)	11.85 x 5.55 x 3.5"

• Auray SSM-BC10 Microphone Suspension Shockmount (Black Matte)

  Material	All-metal construction
  Dimensions (H x W x L)	10.0 x 6.5 x 5.0" (25.4 x 16.5 x 12.7 cm)
  Weight	1.1 lb (499 g)

  Box Dimensions (LxWxH)	9.9 x 6.7 x 6.6"

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"
