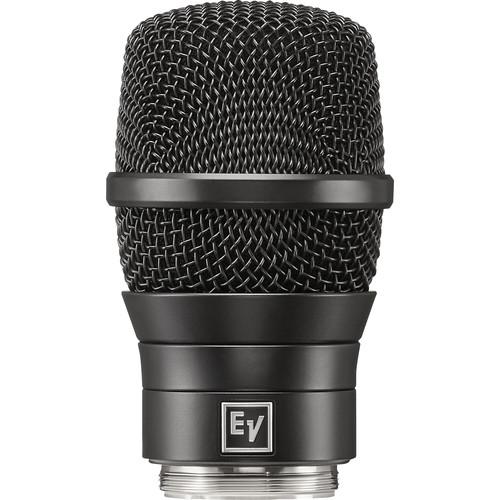

User Manual for Electro-Voice RE420-RC3 Wireless Head with RE420 Cardioid Capsule Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE420-RC3 Wireless Head with RE420
- Product category: Microphone Capsules Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Microphone Capsules
 |
User manual for the Electro-Voice RE420-RC3 Wireless Head with RE420 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

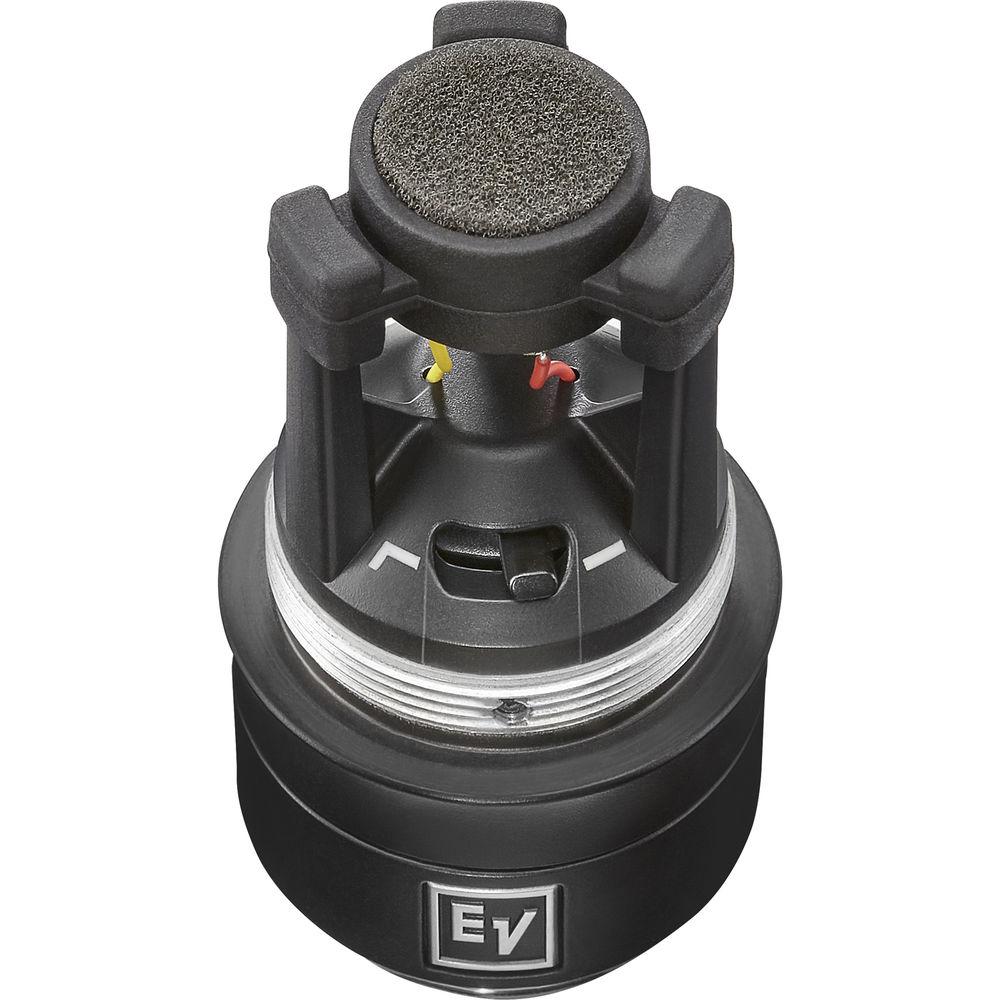

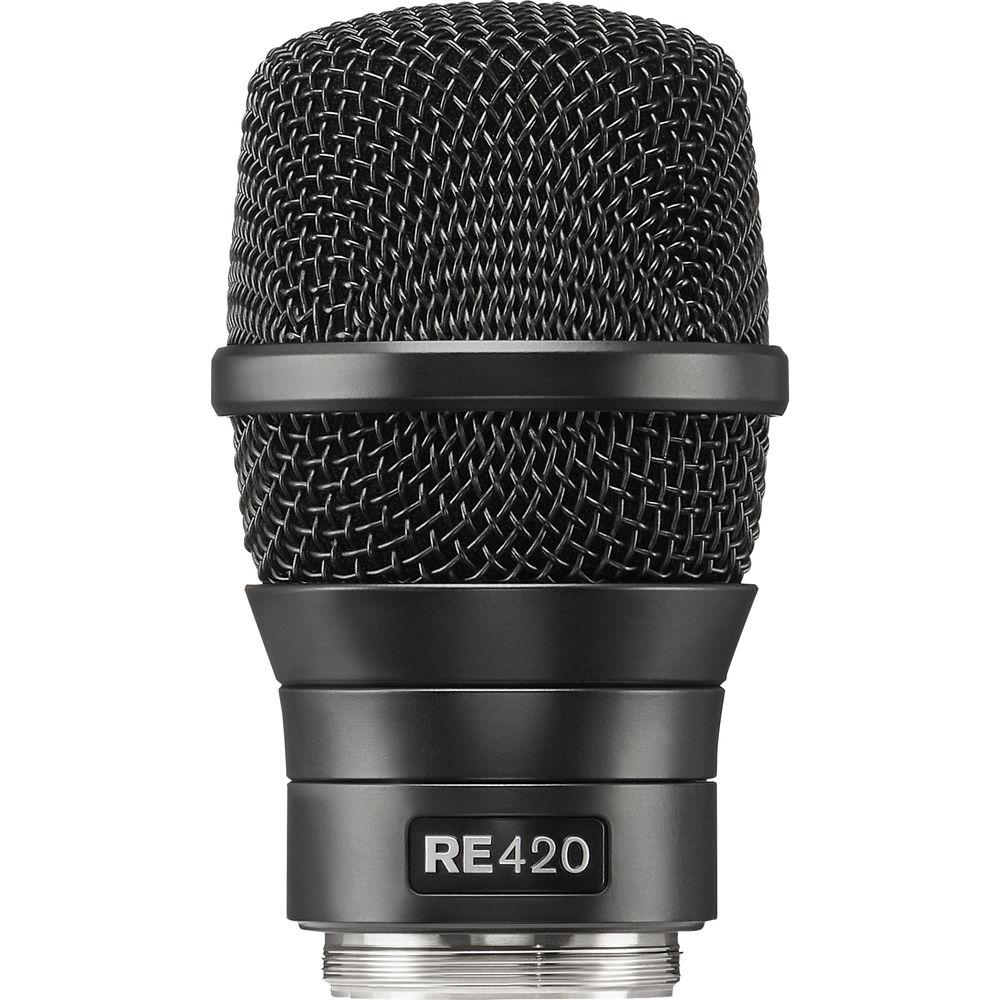

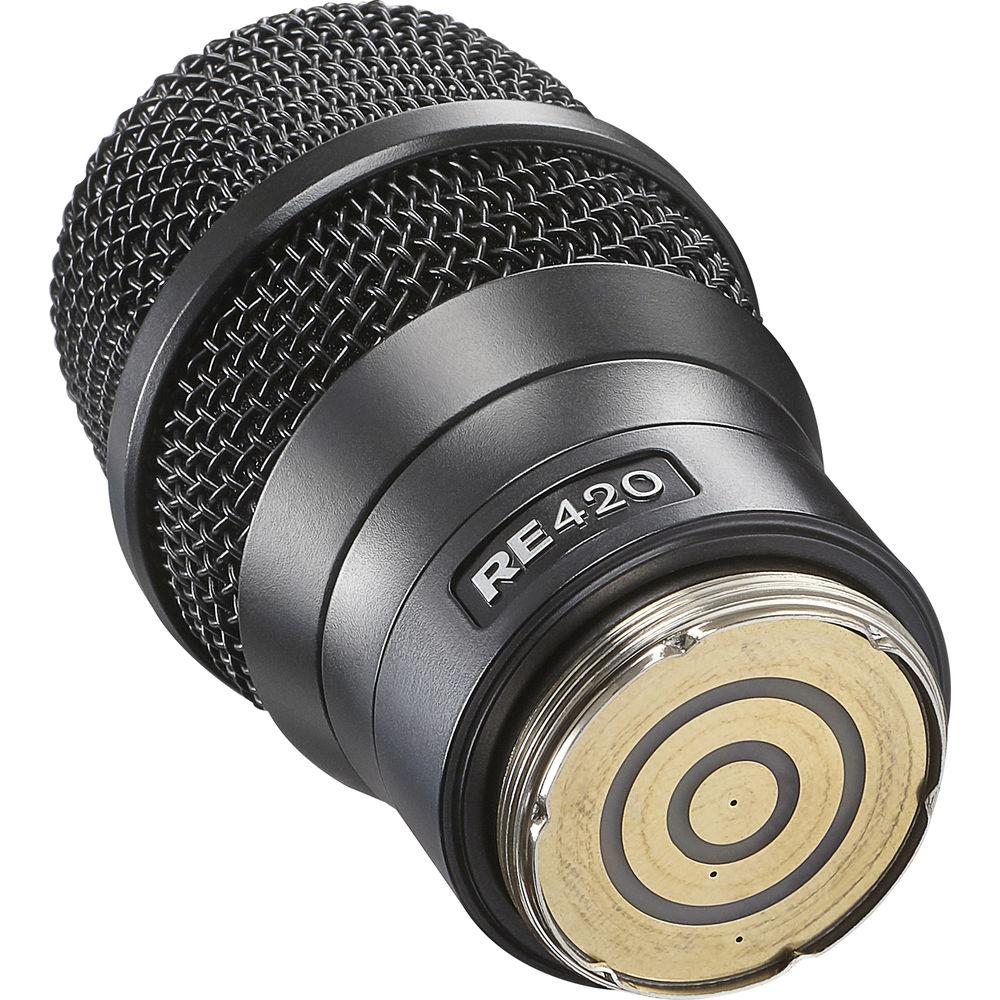

Product description The RE420-RC3 Wireless Head with RE420 Cardioid Capsule from Electro-Voice is a robust, high performance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. It can be used with Electro-Voice and many other brands of wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.Designed for excellent all-around voice applications, the RE420-RC3 capsule delivers warm low-end, open mid-range, and a clear high-end sonic signature, as well as isolation from sound on the stage. A multistage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.In addition, an internal shock mount isolates the microphone element from vibration and guards against handling noise. You can use the RE420-RC3 Wireless Head with an RE420 Cardioid Capsule with confidence near speaker cabinets and EMF-generating equipment racks. - Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
- Premium condenser element delivers a highly detailed, rich, and full bodied sound
- Cardioid polar pattern provides excellent acoustic isolation with a comfortable working range
- Multistage pop filter minimizes breath blasts and plosives
- Selectable high-pass filter reduces undesirable low-frequency content when engaged
UPC: 800549873659 In the Box Electro-Voice RE420-RC3 Wireless Head with RE420 Cardioid Capsule Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE420-RC3 Wireless Head with RE420 Cardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.346.241 Specs | Element Type | Self-Biased Condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Sensitivity | 5.6 mV/Pascal (-45 dBV/Pa) Open Circuit Voltage @ 1 kHz | | Maximum SPL | 137 dB SPL (1% THD) | | Self Noise | 22 dB SPL A-Weighted (0 dB = 20 Micropascals) | | Dynamic Range | 115 dB | | Signal to Noise Ratio | 72 dB | | Output Impedance | 1000 Ohms | | Power Requirements | 4 to 8 VDC | | Polarity | Positive Pressure on Diaphragm Produces Positive Voltage at Center Contact Relative to Ground Contact | | Electrical Connector | 3-Ring / 3-Pin | | Threaded Coupling | 1.25" / 3.18 cm
28 UN-2A Thread Pitch | | Material of Construction | Aluminum, Steel, Steel Wire Grille Screen | | Dimensions (L x Diam) | 3.36 x 1.95" / 8.53 x 4.96 cm | | Weight | 4.6 oz / 130 g |
