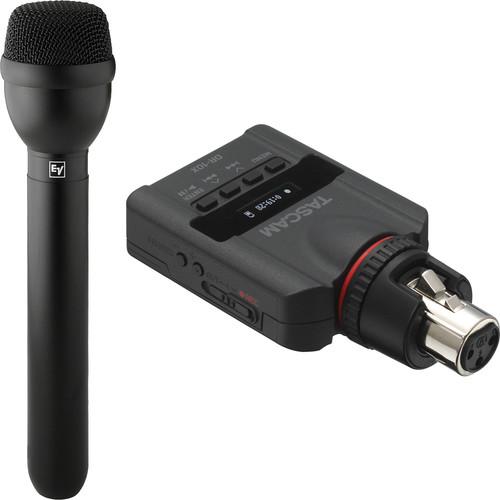

User Manual for Electro-Voice RE50B Omnidirectional Microphone and Tascam DR-10X Recorder Kit Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE50B Omnidirectional Microphone and Tascam
- Product category: Handheld Interview Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Handheld Interview Microphones
|
User manual for the Electro-Voice RE50B Omnidirectional Microphone and Tascam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice RE50B Omnidirectional Microphone and Tascam DR-10X Recorder Kit from B&H features an RE50B handheld dynamic microphone and a Tascam 24-bit/48 kHz recording solution for ENG (Electronic News Gathering) applications. It can be used to capture audio during interviews, press conferences, and meetings with any dynamic or battery-powered condenser microphone with an XLR output.The Tascam DR-10X recorder features both manual and automatic gain settings, and has a low-cut filter and limiter to prevent overloads. The dual recording mode captures a copy of the audio at a lower level, so if there is distortion, you have a backup safety copy. It records to microSD/SDHC cards. Recording can begin instantly by holding the record side switch while turning the unit on.In addition, The Electro-Voice RE50B microphone is considered the industry standard for handheld interview mics in broadcast television production. It is heard and seen in the reporting of news correspondents around the globe. - Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black) Every day, for local, national and international news reports, the Electro-Voice RE50B gathers the audio for news interviews. Designed specifically as an ENG/EFP interview microphone, the RE50B's custom Dyna-Damp "mic-within-a-mic" shockmount provides extremely low handling noise for clear sound. A large, built-in Acoustifoam filter keeps wind and P-pop noise to an absolute minimum, indoors or out. Frequency response is 80 Hz to 13 kHz.
- Industry standard news interview microphone
- Features EV Dyna-Damp shockmount
- Extremely low handling noise for clear sound
- "Mic-within-a-mic" concept reduces wind and vocal plosive sounds
UPC: 701001010905 - Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR) Providing a PCM recording solution that you can connect directly to your handheld dynamic microphone the DR-10X Plug-On Micro Linear PCM Recorder from Tascam is capable of tracking in up to 24-bit, 48 kHz resolution to SD or microSD cards up to 32 GB and can be used for ENG applications. The unit features automatic and manual gain settings as well as a selectable low-cut filter. It is capable of recording a safety track at a lower volume simultaneously to prevent against distortion. While designed for use with dynamic microphones, it can be used with condenser microphones that are connected to an optional power supply. The DR-10X can be powered by a single AAA battery (not included) for up to 10 hours and includes a USB cable.
- XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery)
- 48 kHz/24-bit mono digital recording
- Uses standard microSD/microSDHC card media (up to 32 GB)
- Mic pre gain Low/Mid/High control
- Instant record mode - power on while holding record button side switch
- Limited and low-cut filter
- Manual and automatic gain control
- Dual Recording feature captures a safety track in case of distortion
- Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
- Records BWF file timestamped with time of day clock
- Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
- More than 8 hours recording on a single AAA battery
- Playback function with headphone out
- Settings can be created with text file on PC and transferred to DR-10X via the microUSB connection
- Infrared data communication for transferring setting information among multiple DR-10C
UPC: 043774031283 In the Box - RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black) ucdfwvcfytuxvqez
- Mic Bag
- Stand Clamp
- Euro-Thread Adapter
- Limited 2-Year Warranty
- Tascam - DR-10X Plug-On Micro Linear PCM Recorder (XLR)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE50B Omnidirectional Microphone and Tascam DR-10X Recorder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
| Polar Pattern | Omnidirectional | | Element Type | Dynamic | | Output Connector | 3-Pin XLR Male | | Frequency Response | 80 Hz - 13 kHz | | Output Impedance | 150 Ohms | | Sensitivity | 1.6 mV/Pa | | Power Requirements | None | | Case Material | Aluminum | | Dimensions (L x D) | 7.8 x 1.9" / 198.1 x 48.3 mm | | Weight | 9.5 oz / 269 g | | | | Box Dimensions (LxWxH) | 10.0 x 5.15 x 2.7" | - Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)
| | | Number of Tracks | 2 | | Max Sample Rate/Resolution | 48 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | microSD (64 MB to 2 GB)
microSDHC (4 to 32 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | 48 kHz | | Bit Depth | 24-Bit | | Timecode | No | | | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/8" / 3.5 mm TRS Headphone Output | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Impedance | Inputs:
≥10 kOhms | | | | Power Options | Batteries, USB Bus Power | | Battery Type | 1 x AAA
1 x AAA | | Approximate Battery Life | 10 Hours (Alkaline) | | | | Dimensions | 2.0 x 3.7 x 1.1" / 52.0 x 94.4 x 28.0 mm | | Weight | 2.4 oz / 68.3 g (with Batteries)
2.0 oz / 56.3 g (without Batteries) | | | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2" |
