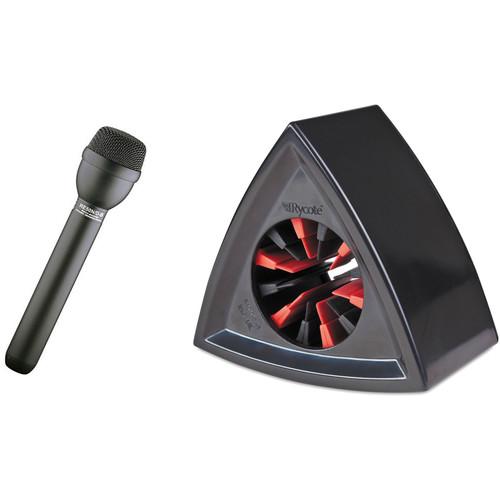

User Manual for Electro-Voice RE50N D-B Handheld Microphone with Microphone Flag ENG Kit Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE50N D-B Handheld Microphone with
- Product category: Handheld Interview Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Handheld Interview Microphones
|
User manual for the Electro-Voice RE50N D-B Handheld Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice RE50N/D-B Handheld Microphone with Microphone Flag ENG Kit from includes an Electro-Voice RE50N/D-B handheld omnidirectional dynamic microphone and a triangle microphone flag. The RE50N/D-B has a neodymium magnet, which allows the RE50N/D-B to have output comparable to a condenser microphone without the need for an external power source. It also features Electro-Voice's Dyna-Damp shockmount system which provides low handling noise, a necessary feature for ENG applications. The mic flag has a 3.52 x 1.88" (89.5 x 48mm) print area, and features rubber vanes to help stay securely attached to the RE50N/D-B. - Electro-Voice RE50N/D-B - Omnidirectional Dynamic Shockmounted ENG Microphone with Neodymium Capsule (Black) Every day, for local, national and international news reports, the Electro-Voice RE50N/D-B with Neodymium Capsule gathers the audio for news interviews. Designed specifically as an ENG/EFP interview microphone, the RE50N/D-B's custom Dyna-Damp "mic-within-a-mic" shockmount provides extremely low handling noise for clear sound. A large, built-in Acoustifoam filter keeps wind and P-pop noise to an absolute minimum, indoors or out. Frequency response is 80 Hz to 13 kHz.
- Neodymium capsule for additional gain, well-suited for particular camera and recording device inputs
- Industry standard news interview microphone
- Features EV Dyna-Damp shockmount
- Extremely low handling noise for clear sound
- "Mic-within-a-mic" concept reduces wind and vocal plosive sounds
UPC: 701001010912 - Rycote Triangle Mic Flag (Black) The Rycote Triangle Mic Flag will accommodate microphone diameters measuring 0.74 to 1.49" (19 to 38mm), and is made of a durable shatterproof plastic with large printable logo areas. The flag features a series of durable red and black rubber "vanes" that align the inner perimeter and keep microphones secure. The system eliminates perishable foam inserts and the vanes are removable in order to accommodate various microphone diameters.
In the Box - RE50N/D-B - Omnidirectional Dynamic Shockmounted ENG Microphone with Neodymium Capsule (Black) aebqwerqstuyafrzfbdfwawyc
- Mic Bag
- Stand Clamp
- Euro-Thread Adapter
- Limited 2-Year Warranty
- Rycote - Triangle Mic Flag (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE50N D-B Handheld Microphone with Microphone Flag ENG Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Electro-Voice RE50N/D-B - Omnidirectional Dynamic Shockmounted ENG Microphone with Neodymium Capsule (Black)
| Polar Pattern | Omnidirectional | | Element Type | Dynamic | | Output Connector | 3-Pin XLR Male | | Frequency Response | 80 Hz - 13 kHz | | Output Impedance | 150 Ohms | | Sensitivity | 2.2 mV/Pa | | Power Requirements | None | | Case Material | Aluminum | | Dimensions (L x D) | 7.8 x 1.9" / 198.1 x 48.3 mm | | Weight | 9.5 oz / 269 g | | | | Box Dimensions (LxWxH) | 10.05 x 5.2 x 2.7" | - Rycote Triangle Mic Flag (Black)
| Printable Area | 3.52 x 1.88" (89.5 x 48 mm) (WxH) | | Dimensions (WxDxH) | 3.74 x 3.74 x 2.16" (95 x 95 x 55 mm) | | Weight | 3 oz (87 g) | | | | Box Dimensions (LxWxH) | 4.4 x 3.9 x 2.3" |
