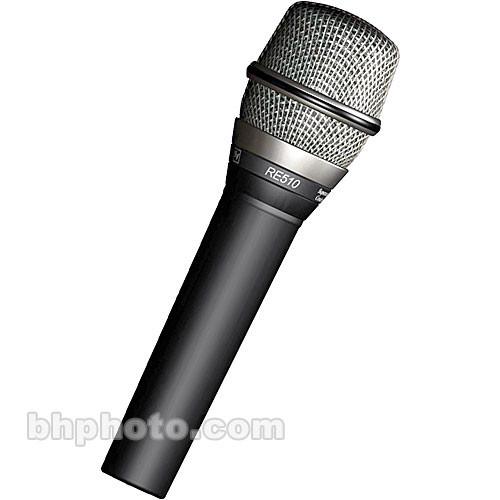

User Manual for Electro-Voice RE510 Supercardioid Condenser Handheld Vocal Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE510 Supercardioid Condenser Handheld Vocal
- Product category: Handheld Performance Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Handheld Performance Microphones
|
User manual for the Electro-Voice RE510 Supercardioid Condenser Handheld Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice RE510 is a professional super-cardioid condenser handheld microphone designed for vocal capturing in performance situations. The large capsule houses a condenser element that is optimized for pristine reproduction of vocals. A low frequency roll-off switch is located within the head grille, providing complete control over proximity effect, low frequency rumble and noise.The super-cardioid polar pattern is the most effective against noise and unwanted audio at the off-axis sections of the microphone capsule. The pattern minimizes feedback and ambiance caused by nearby monitor and reinforcement speakers. High-speed electronics on the output stage provide low-distortion and exceptional transient response. The Electro-Voice RE510 is a rugged, field worthy microphone that will perform to the standards of the most demanding vocalist or live sound engineer. - Condenser Element
- The condenser element is highly sensitive, capturing audio in crisp detail and high gain levels.
- Supercardioid Polar Pattern
- The supercardioid polar pattern effectively rejects noise and ambiance at the off-axis sections of the microphone capsule.
- Low Frequency Roll-Off
- A low frequency roll-off switch is located within the head grille. The switch controls low frequency noise and proximity effect.
- Multistage Pop Filter
- A multistage pop filter minimizes noise caused by plosive and breath noises.
- Hardened Grille Screen
- The hardened head grille provides a dent resistant protective enclosure, made to withstand shock and protect the element from damage.
- Warm Grip Handle
- The warm-grip handle provides a comfortable feel during long term use.
UPC: 701001011124 In the Box Electro-Voice RE510 Supercardioid Condenser Handheld Vocal Microphone Stand Adapter Soft Zippered Gig Bag 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE510 Supercardioid Condenser Handheld Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE510 Specs | Transducer | Self-Biased Condenser | | Polar Pattern | Super-cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | 124dB | | Signal-to-Noise Ratio | 72dB (@ 94dB SPL) | | Maximum Input Sound Level | 146dB SPL | | Power Requirements | 24 to 48 VDC Phantom Power | | Output Impedance | 250 Ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Yes | | Dimensions | 7.15 x 2.0" (182 x 51mm) (Length x Diameter) | | Weight | 9.2 oz (260 grams) | | | | Package Weight | 1.12 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 2.7" |
