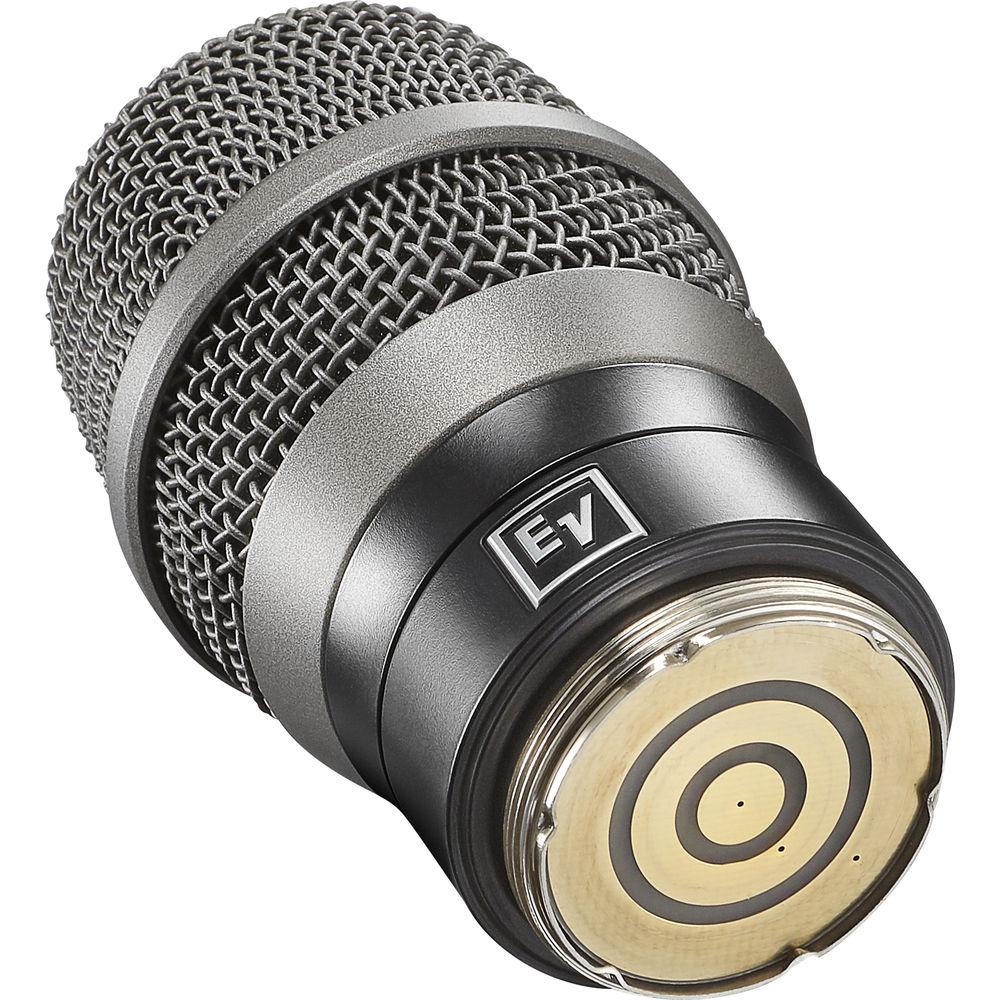

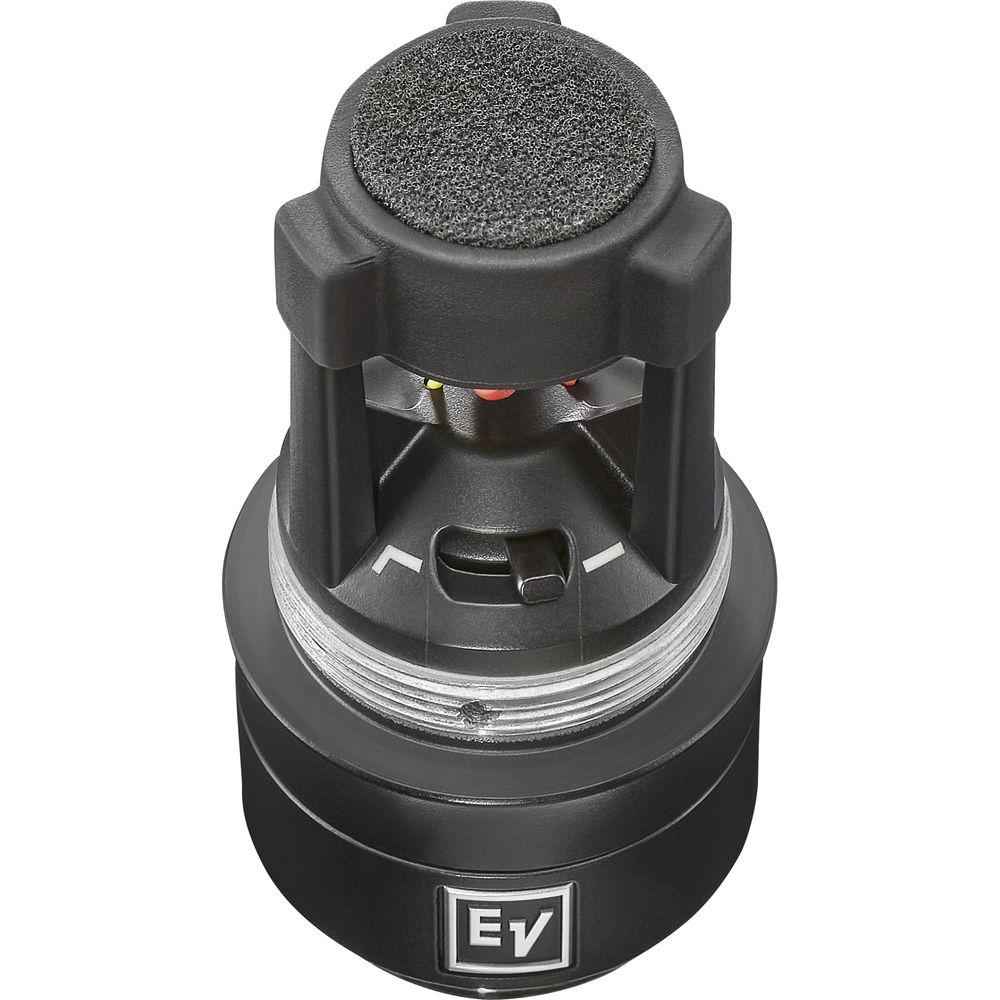

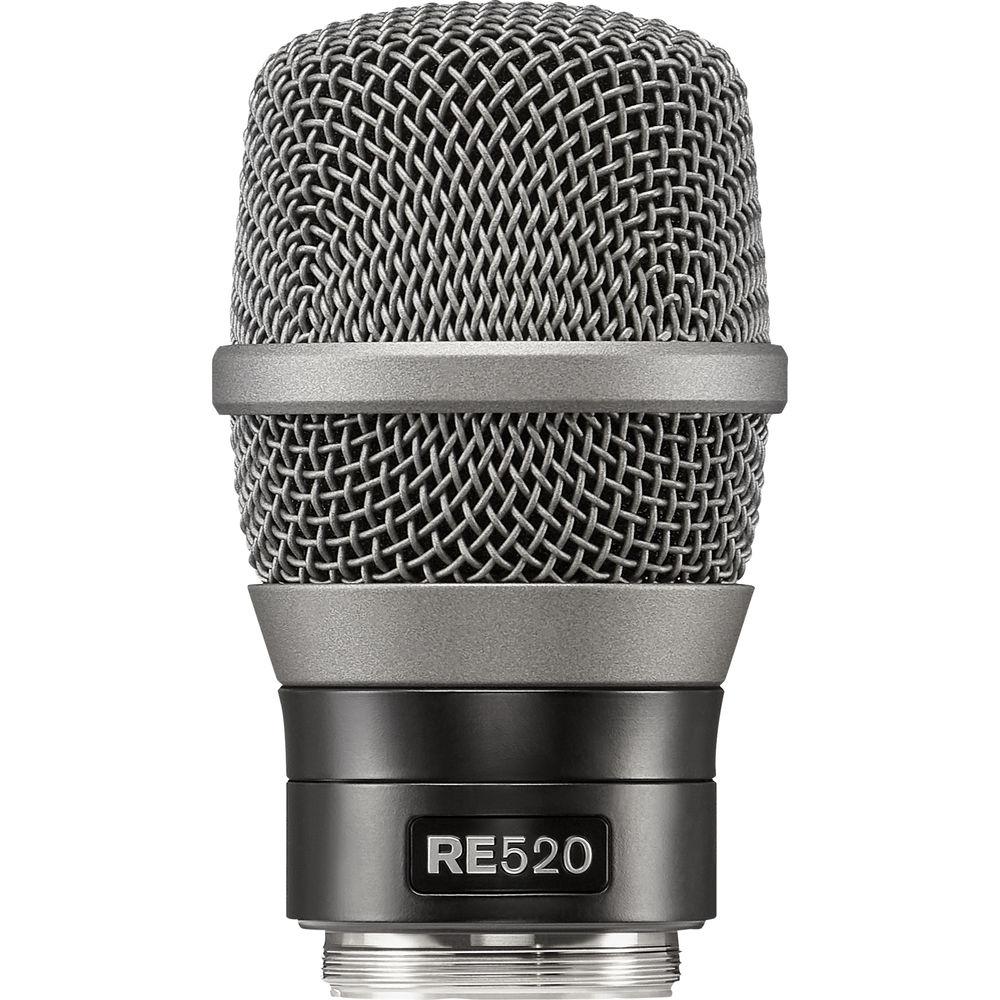

Product description The RE520-RC3 Wireless Head with RE520 Supercardioid Capsule from Electro-Voice is a robust, high performance, dynamic, supercardioid thread-on vocal microphone head for wireless handheld transmitters. It can be used with Electro-Voice and many other brands of wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements, the RE520-RC3 capsule delivers the lyrical finesse required for expressive vocal performances, while controlling off-axis sound from nearby sources. A multistage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.In addition, an internal shock mount for the RE520-RC3 capsule isolates the microphone element from vibration and guards against handling noise. The built-in high-pass filter has two positions, the flat position delivers the full frequency band pass of the capsule and the high-pass position attenuates frequencies below 150 Hz. - Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
- Premium condenser element delivers a highly detailed, rich, and full bodied sound
- Supercardioid polar pattern provides excellent acoustic isolation and feedback control
- Multistage pop filter minimizes breath blasts and plosives
- Selectable high-pass filter reduces undesirable low-frequency content when engaged
UPC: 800549873666 In the Box Electro-Voice RE520-RC3 Wireless Head with RE520 Supercardioid Capsule Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE520-RC3 Wireless Head with RE520 Supercardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.346.242 Specs | Element Type | Self-Biased Condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Sensitivity | 5.6 mV/Pascal (-45 dBV/Pa) Open Circuit Voltage @ 1 kHz | | Maximum SPL | 139 dB SPL (1% THD) | | Self Noise | 22 dB SPL "A" Weighted (0 dB = 20 μPa) | | Dynamic Range | 117 dB | | Signal to Noise Ratio | 72 dB | | Output Impedance | 1000 Ohms | | Power Requirements | 4 to 8 VDC Phantom Power | | Polarity | Positive Pressure on Diaphragm Produces Positive Voltage at Center Contact Relative to Ground Contact | | Electrical Connector | 3-Ring / 3-Pin | | Threaded Coupling | 1.25" / 3.18 cm
28 UN-2A Thread Pitch | | Material of Construction | Aluminum, Steel, Steel Wire Grill Screen | | Dimensions (L x Diam) | 3.36 x 1.95" / 8.53 x 4.96 cm | | Weight | 4.6 oz / 130 g |
