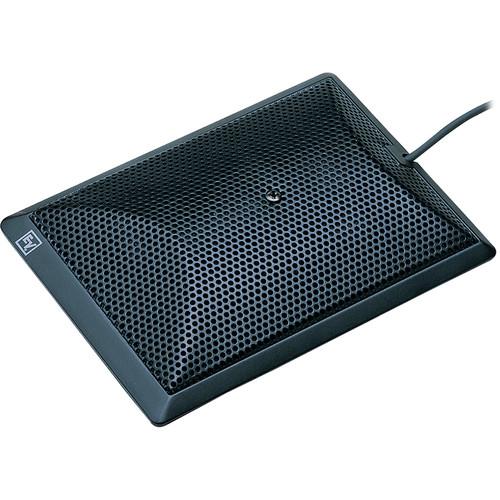

User Manual for Electro-Voice RE90B Boundary Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE90B Boundary Condenser Microphone
- Product category: Boundary Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Boundary Microphones
|
User manual for the Electro-Voice RE90B Boundary Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The black RE90 from Electro-Voice is a low-profile cardioid boundary microphone with a sensitivity and frequency response suitable for distance learning centers, teleconferencing systems, board rooms, court rooms etc. The full range condenser microphone features a frequency response of 80 Hz to 15 kHz, placing emphasis on frequencies that accentuate the human voice while minimizing low frequency noise and rumble.The half-cardioid polar pattern effectively minimizes off-axis audio signal and eliminates audio signal at the rear of the microphone. In addition, the half-cardioid polar pattern provides high gain before feedback and minimizes ambient noise. With an SPL rating of 125 dB, the RE90 is more than capable of reproducing excessively loud signals without distortion. The microphone is powered via 9-52 V phantom power source and features unterminated +/-/Ground screw terminal connections. - Half-Cardioid Pick Up Pattern
- The half-cardioid pick up pattern enhances range while reducing ambient noise and feed-back at off-axis sections of the capsule.
- High SPL and Dynamic Range
- With an SPL rating of 125 dB and Dynamic Range of 102 dB, the RE90B is capable of reproducing transient and distant signals accurately, without distortion.
- Unobtrusive Design
- The low-profile unobtrusive design of the RE90B makes it suitable for use in broadcast situations, court rooms, board rooms, etc.
UPC: 701001013746 In the Box Electro-Voice RE90B Boundary Condenser Microphone (Black) 10' XLR Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE90B Boundary Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE90B Specs | | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 80 Hz to 15 kHz | | Equivalent Noise Level | 25 dB A-Weighted | | Maximum SPL | 125 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | 25 mV/Pa | | Dynamic Range | 100 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 10' / 3.05 m | | Operating Current Consumption | 5 mA | | Operating Voltage | 9 to 52 V | | Operating Temperature | -20 to 165°F / -28.89 to 73.89°C | | Operating Humidity | 0 to 95% | | Length | 5.1" / 12.95 cm | | Weight | 12.6 oz / 0.36 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.8 x 5.1 x 2.7" |
