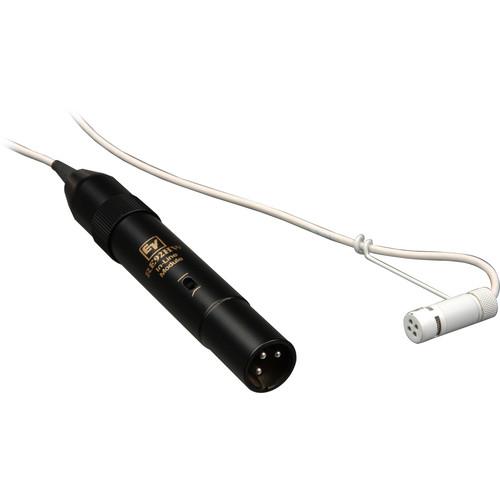

User Manual for Electro-Voice RE92H Unidirectional Condenser Hanging Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE92H Unidirectional Condenser Hanging Microphone
- Product category: Hanging Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Hanging Microphones
|
User manual for the Electro-Voice RE92H Unidirectional Condenser Hanging Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro Voice RE92H is a professional quality miniature overhead microphone designed for sound reinforcement in houses of worship, theaters, school auditoriums, conference centers, board rooms and anywhere an overhead microphone is needed. The RE92 features a cardioid polar pattern that effectively minimizes noise and off-axis audio that can ultimately cause feedback.The miniature profile of the RE92 is ideal for applications where the microphone should be heard but not seen. The RE92H is supplied with 25 feet of cable and an in-line module that serves as the capsule's power supply and preamplifier. A wire hanger (included) supports the capsule and enables easy positioning while suspended. The RE92H is more than well suited for capturing choirs, worship ceremonies, lectures, actors and much more. - Miniature Profile
- The miniature design of the RE92H is ideal in applications where the microphone should be hidden from view.
- Cardioid Polar Pattern
- The cardioid pattern minimizes off-axis ambiance and feedback while capturing at long ranges.
- High Pass Filter
- A 12dB / Octave switchable high pass filter eliminates low frequency rumble and noise.
- Transformerless Output
- The separate in-line output stage will drive long cable runs without loss in gain or signal-to-noise ratio.
UPC: 701001017676 In the Box Electro-Voice RE92H Unidirectional Condenser Hanging Microphone (White) 25 Foot XLR Cable In-Line Power Module 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE92H Unidirectional Condenser Hanging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE92H Specs | Transducer | Self-Biased Condenser | | Polar Pattern | Cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | >105dB | | Signal-to-Noise Ratio | 64dB | | Maximum Input Sound Level | >135dB SPL | | Power Requirements | 24 to 52 Volt Phantom Power | | Output Impedance | 1 kHz, 250 ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Microphone: 1.263 x .412" (32.1 x 10.5mm) (Length x Diameter) | | Weight | 8.5 oz (240 g) | | | | Package Weight | 0.78 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
