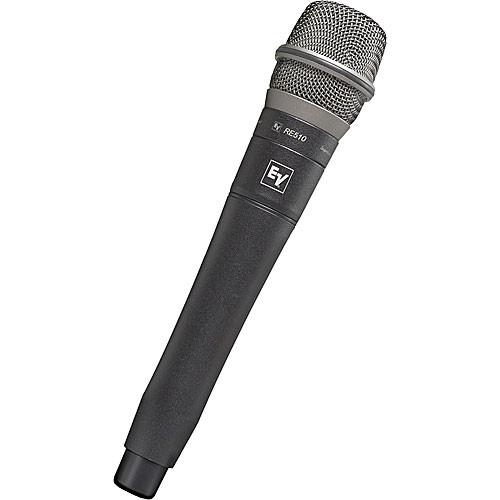

User Manual for Electro-Voice REV Concert Handheld Transmitter Click to enlarge the picture
Contents of the user manual for the Electro-Voice REV Concert Handheld Transmitter
- Product category: Wireless Transmitters Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Transmitters
|
User manual for the Electro-Voice REV Concert Handheld Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice REV Concert Handheld Transmitter is a handheld microphone and wireless transmitter designed for use with Electro-Voice REV series, UHF wireless microphone systems. The transmitter is available with a variety of capsule types and the capsule included with model is the Electro-Voice RE510.The aluminum handheld transmitter features a back-lit LCD display for a comprehensive read on channel, battery status, RF power output and more. The comfortable design is modeled after a standard handheld microphone for optimum performance and proper technique. The capsules are interchangeable and the transmitter operates up to 10 hours on two AA alkaline batteries. - Interchangeable Capsule Design
- The REV Concert Handheld Transmitters feature interchangeable capsules. The capsule included with this model is the Electro-Voice RE510.
- Comprehensive LCD Display
- A back-lit LCD display for a comprehensive read on channel, battery status, RF power output and more.
- Efficient Battery Life
- The transmitter operates up to 10 hours on two AA alkaline batteries.
In the Box Electro-Voice REV Concert Handheld Transmitter with Electro-Voice RE510 (C5 Band 722 - 746MHz / TV Chs 56-59) 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice REV Concert Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice REV Concert Specs | Type of Transmitter | UHF Handheld | | # Of Channels | 950 Possible Frequencies - programmable in 25kHz steps | | Type of Input Connector | Not Applicable | | Type of Microphone | RE510 | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | Yes | | Frequency Response | 50Hz to 15kHz +/- 2dB | | Battery Type/Approx. Life | Two AA alkaline - Ten hours | | Mute Switch | No | | Level Control | Audio Gain Range - 26dB | | Antenna Type | Internal 1/2 wave | | Display | LCD - Channel, Frequency, Battery Level, RF Level | | Dimensions (LxDiameter) | 9.76 x 2.05" (248 x 52mm) | | Weight | Not Specified by Manufacturer |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
