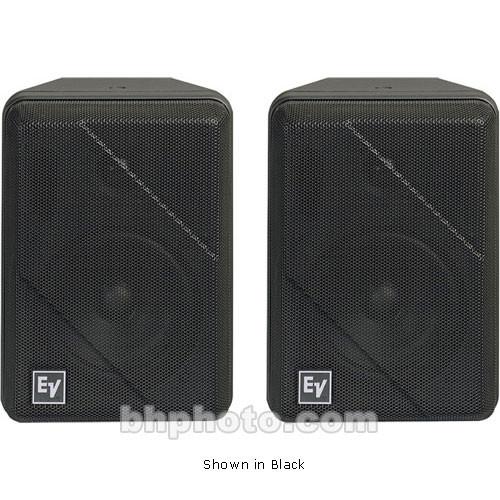

User Manual for Electro-Voice S-40 2-Way 5.25" Short Throw Installation Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice S-40 2-Way 5.25" Short Throw
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice S-40 2-Way 5.25" Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The pair of white S-40 Loudspeakers from Electro-Voice have a 120-watt power handling capacity and are designed for background or foreground music applications, both indoors and out. The S-40 speakers are equipped with a 5.25" propylene woofer and a 1" soft-dome tweeter and their low-flux-leakage design enables use in close proximity to a video monitor. The polystyrene enclosure is ABS paintable to match surrounding décor. The enclosure is equipped with a set of threaded inserts for wall-mount suspension. - Compact full-range 2-way installation loudspeaker for indoor/outdoor use with 120-watt power handling
- 5.25" polypropylene woofer and 1" ferro fluid-cooled soft dome tweeter for full-range frequency reproduction of background/foreground music
- Low-flux-leakage design allows for close proximity to video or computer monitors
- Overload protection circuitry for tweeter
- Threaded insert set for wall-mounting, optional custom U-brackets available
- ABS paintable polystyrene enclosure for matching surrounding décor, weather and temperature-resistant
UPC: 800549413848 In the Box Electro-Voice S-40 2-Way 5.25" Short Throw Installation Loudspeaker (Pair, White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice S-40 2-Way 5.25" Short Throw Installation Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.117.322 Specs | Active or Passive | Passive | | Frequency Response | 85 Hz - 20 kHz, ±3 dB | | Amplification | No | | Woofer | 5.25" (13.3 cm) polypropylene cone | | Tweeter | 1" (2.5 cm) ferro-fluid-cooled soft dome tweeter | | Maximum Sound Pressure Level (SPL) | 85 dB SPL, 1 W/1 m | | Sensitivity (0 VU) | Not Specified by Manufacturer | | Crossover | 3.5 kHz | | Shielding | No | | Ported | No | | Power Capacity | 120 watts continuous | | Impedance | 4 Ohms | | Enclosure | High-impact polystyrene, structural foam | | Dimensions | 9.8 x 7.0 x 5.9" (249 x 178 x 150 mm) | | Weight | 5.7 lb (2.6 kg) | | | | Package Weight | 13.9 lb | | Box Dimensions (LxWxH) | 14.2 x 11.9 x 8.3" |
