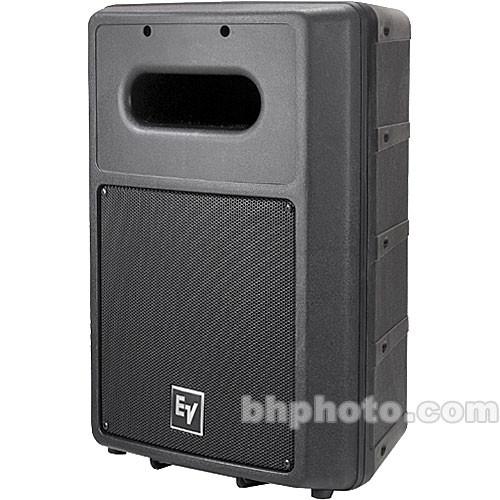

User Manual for Electro-Voice SB122 - 400W 12" Passive Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice SB122 - 400W 12" Passive
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice SB122 - 400W 12" Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The SB122 from Electro-Voice is not only compact and lightweight, but powerful as well. Designed to enhance Sx and Zx series speaker systems, the SB122 has a long-throw 12-inch driver in a composite enclosure with a large vent for less compression and turbulence, resulting in increased low frequency output. The SB122 has 400W of continuous output power for strong, thumping bass.
The SB122 can be connected in parallel with a full-range speaker without the need for an additional amplifier and processor, thanks to a built-in low-pass filter. Below 160Hz the filter is transparent, so the subwoofer may be used in biamp situations without disabling the filter. The rear panel offers parallel Neutrik Speakon input connectors, while the top of the cabinet has a pole mount socket. The SB122 also has a built-in handle for easy positioning. - Powerful 12-inch driver in a compact and lightweight composite cabinet
- Large vent results in increased low frequency output thanks to lowered compression and turbulence
- Transparent low-pass filter allows parallel connection with a full-range speaker, as well as biamp use without disabling filter
- Frequency range of 43 to 200Hz
- Pole cup built into top of cabinet
UPC: 800549418195 In the Box Electro-Voice SB122 - 400W 12" Passive Subwoofer (Black) 5 Year Limited Warranty User Manual PDF 188.9kbrxstyfzbwsvavyvyfwdyrfcvu Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice SB122 - 400W 12" Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Sb122 Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 400 W RMS
1600 W Peak | | System Impedance | 8 Ohms | | | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Range | 43 Hz to 200 Hz -10 dB
52 Hz to 145 Hz -3 dB | | Maximum SPL | 131 dB | | | | Audio I/O | 2 x speakON Input Parallel | | | | Construction Material | Composite | | Dimensions | 23.1 x 16.9 x 12.3" / 586.0 x 429.0 x 312.0 mm | | Weight | 33 lb / 15 kg | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 24.5 x 22.0 x 14.0" |
