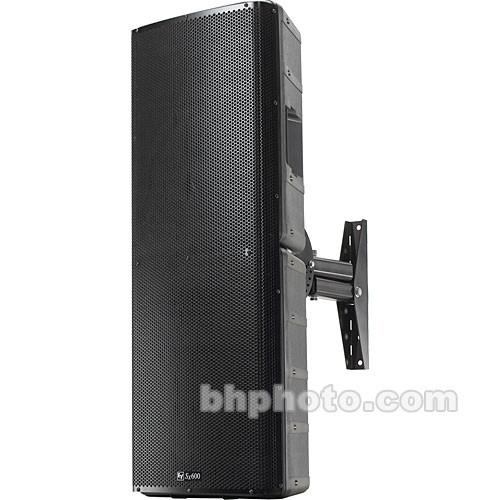

User Manual for Electro-Voice Sx-600PIX - 2-Way Dual 12" Weather-Resistant Indoor Outdoor P.A. Speaker with 600-Watt Internal 70V 100V Transformer - Black Click to enlarge the picture
Contents of the user manual for the Electro-Voice Sx-600PIX - 2-Way Dual 12"
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice Sx-600PIX - 2-Way Dual 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice Sx-600PIX is a 2-way, 2-element vertical line array installation loudspeaker, with a 70V/100V transformer, and a 600-watt power handling capacity, designed for high volume, high-dispersion applications with improved speech intelligibility for racetrack, sports arena and stadium announcement applications. The Sx-600PIX features a ported, paintable, weather-resistant polymer enclosure, housing dual 12" woofers and a 1" compression driver loaded into a constant-directivity horn. The speaker is equipped with the flexible custom SuperSAM variable-position mounting system - 2-way, teo-element vertical line array installation loudspeaker with internal 600-watt 70V/100V transformer in weather resistant cabinet
- Two-element vertical line array design for high intelligibility, very high distortion-free SPL
- Ported enclosure with dual 12" Low Frequency/Mid-Bass Neodymium drivers for improved vertical pattern control
- 1" compression driver loaded into 65° x 65° constant-directivity horn
- SuperSAM mounting system allows 60° of vertical adjustment, 180° of horizontal pan
- HF driver protection circuitry
- Transformer taps include 75/150/300/600W at 70V, 150/300/600W at 100V, 300/600W at 140V, 600W at 200V
- Molded polymer enclosure with aluminum and neodymium components
- Weather-resistant stainless steel grille for protection against salt spray,humidity, temperature extremes and UV
In the Box Electro-Voice Sx-600PIX - 2-Way Dual 12" Weather-Resistant Indoor/Outdoor P.A. Speaker with 600-Watt Internal 70V/100V Transformer - Black SuperSAM Mounting System 5 Year Warranty User Manual PDF 263.8kbfzdcuzqw Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Sx-600PIX - 2-Way Dual 12" Weather-Resistant Indoor Outdoor P.A. Speaker with 600-Watt Internal 70V 100V Transformer - Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Sx600PIX Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 600 W | | System Impedance | 4 Ohms | | | | HF Driver | 1 x 1" / 51 mm Horn-Loaded Compression Driver | | LF Driver | 2 x 12" / 304.8 mm Woofer | | Magnet | LF:
Neodymium | | | | Frequency Response | 100 Hz to 14 kHz -3 dB | | Maximum SPL | 139 dB | | Speaker Sensitivity | 105 dB SPL | | | | Audio I/O | SJO Cable with Gland Nut | | | | Construction Material | Metal Grille, Polymer | | Dimensions | 45.8 x 16.9 x 12.3" / 1163.0 x 429.0 x 312.0 mm | | Weight | 98 lb / 44.5 kg | | | | Box Dimensions (LxWxH) | 47.0 x 21.0 x 18.0" |
