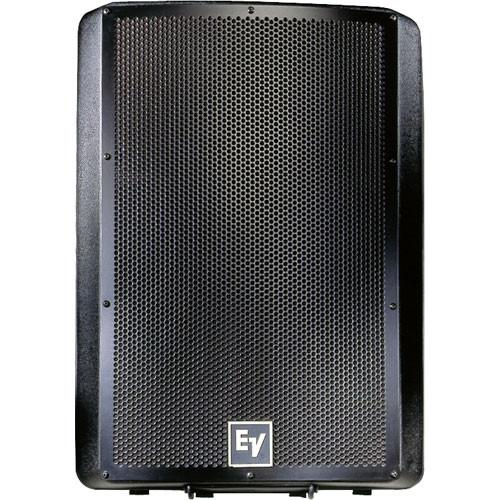

User Manual for Electro-Voice Sx300PI 300-Watt Two-Way Passive Weather-Resistant PA Speaker with 12" Woofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice Sx300PI 300-Watt Two-Way Passive Weather-Resistant
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice Sx300PI 300-Watt Two-Way Passive Weather-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice Sx300PI Speaker System is a weather-resistant version of the Sx300+. Weather resistance is increased through its foam backed, full-face stainless steel grill. Additionally, there are two port-plugs included for user install when increased weather resistance is necessary. The speaker and crossover network are designed to achieve Constant-Directivity. A feature of the Sx Series, Contant-Directivity helps eliminate "hot spots" and gives better, more balanced coverage to areas traditionally weak in coverage. An additional benefit of the Sx300PI coverage pattern is its increased avoidance of early reflections which can degrade overall performance.Acoustical and mechanical ring modes are controlled using RMD (Ring-Mode Decoupling) allowing more intelligibility and less resonance, giving the listener less "muddiness".Circuit protection is provided for the molded-in, pure titanium horn driver reducing the input by 6dB if the nominal rating is passed. With a durable, damage resistant structural foam enclosure, two molded-in handles, and multiple suspension points, the Sx300PI works well as either a portable or suspended system and the enclosure design allows for multiple speakers to be combined to create an array system. - 300 Watts Continuous 1200 Watt Peak Power
- Increased weather resistance
- 80Hz to 25kHz Frequency Range
- Unique 65° x 65° horn pattern allows better coverage to areas that would typically have weaker overall coverage
- Ring-Mode Decoupling (RMD) for increased intelligibility
- (Pro Circuit) Solid-state self-resetting circuit protection
- Four metric inserts for suspending the Sx300
UPC: 800549682329 In the Box Electro-Voice Sx300PI 300-Watt Two-Way Passive Weather-Resistant PA Speaker with 12" Woofer 5 Year Parts and Labor Warranty on Speaker System/ 3 Year on Electronics User Manual PDF 263.8kbrzqtvywuwaetcvacxzwxectutbuc Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Sx300PI 300-Watt Two-Way Passive Weather-Resistant PA Speaker with 12" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Sx300PI Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 300 W RMS | | System Impedance | 8 Ohms | | | | HF Driver | 1 x Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Response | 80 Hz to 25 kHz | | Speaker Sensitivity | 99.5 dB | | | | Audio I/O | 1 x speakON Input | | | | Construction Material | Polypropylene | | Dimensions | 23.0 x 16.9 x 12.3" / 586.0 x 429.0 x 312.0 mm | | Weight | 40 lb / 17.7 kg | | | | Package Weight | 39.2 lb | | Box Dimensions (LxWxH) | 25.0 x 22.0 x 13.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
