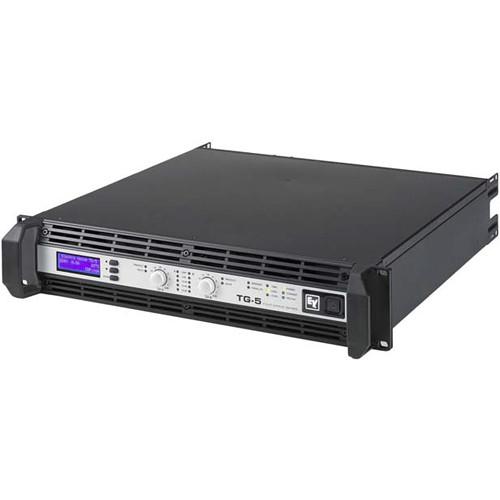

Product description Provided by third party: The TG-5 amplifier has a microprocessor controlled operation management system that provides useful features such as compound thermal management (preventing the unit from switching off in excessive thermal environment), automatic mains voltage detection and a circuit breaker control that allows the TG-5 to operate on a 30 A or 16 A circuit breaker with normal music signals. The TG-5 uses a grounded bridge 3-step class-H topology to ensure high acoustic performance and reliability. The TG Series also offers the power and transient response to drive subwoofers and along with the low distortion for critical HF signals. The high-capacity switch-mode power supply provides the headroom needed to ensure high dynamic outputs and reliable operation on extreme low loads.
- Key Features
-
- Grounded bridge class-H design
- Microprocessor controlled
- Front LCD panel for operation mode set-up and monitoring
UPC: 800549580250 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice TG-5 2-Channel Tour Grade Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice TG-5 Specs | | | Product Type | Power amplifier | | | | Functions | Audio digital to analog converter, amplifier, audio analog to digital converter | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 109 dB | | Output Channel Qty | 2 channels | | Output Power (per channel) | 850 Watt | | Input Impedance | 20 kOhm | | Amplifier Output Details | 2000 Watt - 2 Ohm - at 1 kHz - 2 channels (main)
1450 Watt - 4 Ohm - at 1 kHz - 2 channels (main)
850 Watt - 8 Ohm - at 1 kHz - 2 channels (main)
1200 Watt - 4 Ohm - 20 - 20000 Hz - 2 channels (main)
600 Watt - 8 Ohm - 20 - 20000 Hz - 2 channels (main) | | Features | Rack mountable | | | | Connectors | 2 x audio line-in (XLR) - rear
2 x audio line-out (XLR) - rear
2 x speakers output (Speakon) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 1000 Watt | | | | Width | 19 in | | Depth | 20.2 in | | Height | 3.5 in | | Weight | 31.31 lbs | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 25.5 x 21.0 x 6.4" |
