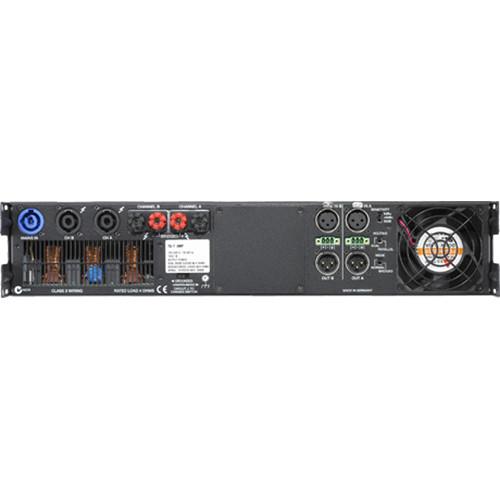

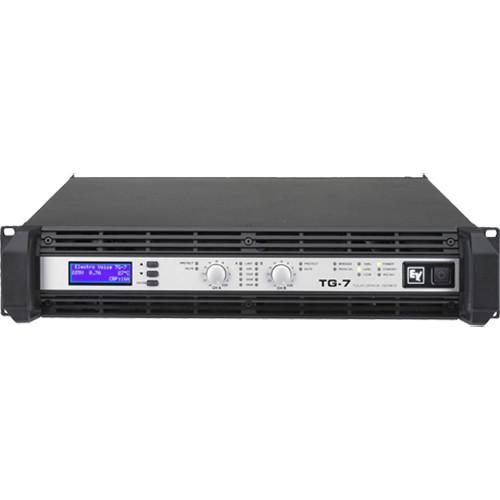

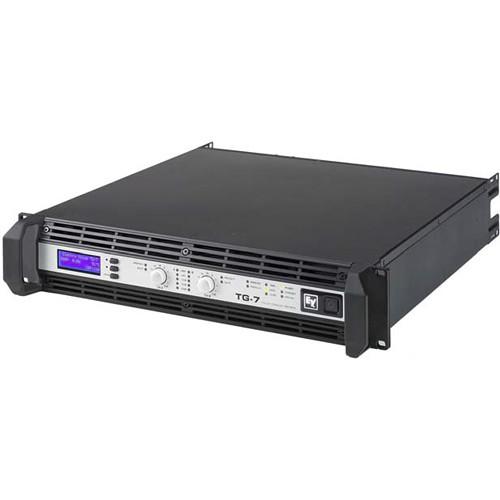

User Manual for Electro-Voice TG-7 2-Channel Tour Grade Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Voice TG-7 2-Channel Tour Grade Amplifier
- Product category: Power Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Power Amplifiers
 |
User manual for the Electro-Voice TG-7 2-Channel Tour Grade Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Provided by third party: The TG-7 amplifier has a microprocessor controlled operation management system that provides useful features such as compound thermal management (preventing the unit from switching off in excessive thermal environment), automatic mains voltage detection and a circuit breaker control. The TG-7 uses a grounded bridge 3-step class-H topology to ensure high acoustic performance and reliability. The TG Series also offers the power and transient response to drive subwoofers and along with the low distortion for critical HF signals. The high-capacity switch-mode power supply provides the headroom needed to ensure high dynamic outputs and reliable operation on extreme low loads.
- Key Features
-
- Grounded bridge class-H design
- Microprocessor controlled
- Front LCD panel for control and monitoring
UPC: 800549593182 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice TG-7 2-Channel Tour Grade Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice TG-7 Specs | | | Product Type | Power amplifier | | | | Functions | Audio digital to analog converter, amplifier, audio analog to digital converter | | Audio Specifications | Amplifier - Response Bandwidth - 10 - 50000 Hz - SNR - 111 dB | | Output Channel Qty | 2 channels | | Output Power (per channel) | 1500 Watt | | Amplifier Output Details | 3500 Watt - 2 Ohm - at 1 kHz - 2 channels (main)
2500 Watt - 4 Ohm - at 1 kHz - 2 channels (main)
1500 Watt - 8 Ohm - at 1 kHz - 2 channels (main)
2100 Watt - 4 Ohm - 20 - 20000 Hz - 2 channels (main)
1050 Watt - 8 Ohm - 20 - 20000 Hz - 2 channels (main) | | Features | Cooling fan, short circuit protection, DC protection, over voltage protection, audio limiters protection, turn-on delay protection, bridged output capability, rack mountable, low voltage protection | | | | Connectors | 2 x audio line-out (XLR) - rear
2 x speakers output (Speakon) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 1450 Watt | | | | Width | 19 in | | Depth | 20.2 in | | Height | 3.5 in | | Weight | 31.97 lbs |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
