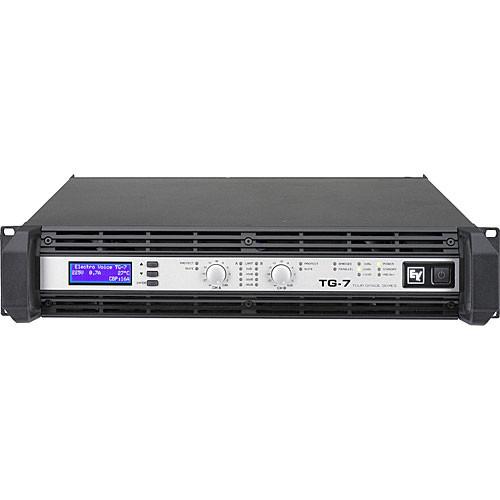

User Manual for Electro-Voice TG-7 - Tour-Grade Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Voice TG-7 - Tour-Grade Stereo Power
- Product category: Power Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Power Amplifiers
|
User manual for the Electro-Voice TG-7 - Tour-Grade Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The TG-7 from Electro Voice is a professional-quality, rack mountable stereo power amplifier designed for applications where rock-solid reliability is of the utmost importance. The amplifier uses three-stage Class-H circuitry for high performance with very low distortion, while the "floating" switching power supply maximizes efficiency.
A multi-stage advanced thermal protection system prevents the unit from shutting down if the temperature reaches a critical level. An LCD display and several status LEDs show the current condition of the amplifier. An expansion slot allows you to install a remote control module (sold separately) for compatibility with IRIS-Net, which allows remote monitoring and control functions, as well as a two-channel digital audio controller and speaker protection algorithms. - Rugged design for professional use
- Can be rack or desk mounted
- Class-H circuitry and "floating" switching power supply for high output and high efficiency
- Terrific audio quality with low distortion
- Operates in stereo or bridged mode
- Multi-stage advanced thermal protection prevents shutoff when critical temperatures are reached
- Mains current supervision prevents breakdown caused by activation of the automatic circuit breaker
- Front-panel LCD and LED indicators keep you well-informed about the amplifier's status
- Expansion slot allows you to install a remote control module (available separately) that is IRIS-Net compatible for remote monitoring and control, and also provides FIR-filtering and digital speaker protection algorithms
- Individual level controls for each channel
- XLR and Phoenix plug inputs
- XLR, Speakon, and binding post output connectors
- Ground-lift switch minimizes hum caused by ground loops
- Cooling fan with front-to-rear airflow
UPC: 800549362818 In the Box Electro-Voice TG-7 - Tour-Grade Stereo Power Amplifier (2 x 2500W @ 4 Ohms) Power Cord Rack Mounting Kit 4 x Feet 2 x Phoenix Plug Connectors Owner's Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice TG-7 - Tour-Grade Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice TG-7 Specs | Output Power | 2 Ohms: 2 x 3500W (1kHz, THD 1%)
4 Ohms: 2 x 2500W (1kHz, THD 1%)
8 Ohms: 2 x 1500W (1kHz, THD 1%)
4 Ohms: 2 x 2100W (20Hz - 20kHz, THD <0.2%)
8 Ohms: 2 x 1050W (20Hz - 20kHz, THD <0.2%)
4 Ohms Bridged: 7000W
8 Ohms Bridged: 5000W | | Slew Rate | <30v> | | Gain | 32/35/39dB (Switchable) | | Total Harmonic Distortion (THD) | <0.05% | | Intermodulation Distortion (SMPTE) | <0.05% | | DIM 30 | <0.02% | | Signal to Noise Ratio | <111dB (A-Weighted) | | Input Impedance | 20 kOhms (Balanced) | | Input Sensitivity | 0/6/7dBu (Switchable) | | Connectors | 1 x Power Input
2 x Speakon Outputs
2 x Pairs of Binding Post Outputs
1 x Expansion Slot
2 x XLR Inputs
2 x 3-Pin Phoenix Inputs
2 x XLR Outputs | | Controls | 1 x Input Sensitivity/Gain Switch
1 x Dual/Parallel Routing Switch
1 x Normal/Bridged Mode Switch
1 x Ground Lift Switch
1 x Power Switch
2 x Input Level Control Knobs | | Indicators | 1 x LCD Display
1 x Mute LED
1 x Protect LED
2 x 5-Segment LED Level Meters
1 x Audio Mode LED
1 x Amplifier Mode LED
1 x 3-Way LED Sensitivity/Gain Meter
1 x Remote Amplifier LED
1 x Standby LED
1 x Power LED | | Dimensions (HxWxD) | 3.5 x 19 x 20.2" (89 x 483 x 512mm) | | Weight | 32 lbs (14.5kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 25.95 x 20.95 x 6.1" |
