User Manual for Electro-Voice Tour X Series 12" Two-Way Full-Range Floor Monitor Click to enlarge the picture
Contents of the user manual for the Electro-Voice Tour X Series 12" Two-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice Tour X Series 12" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

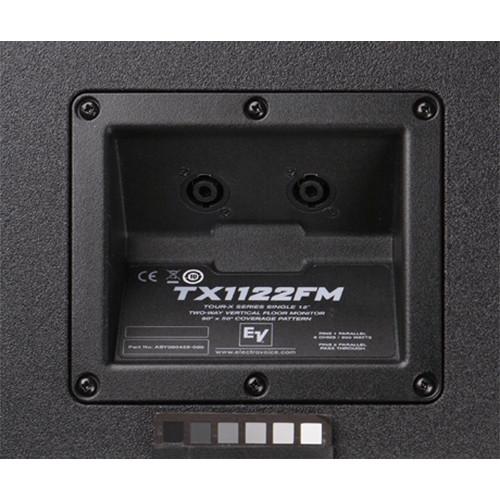

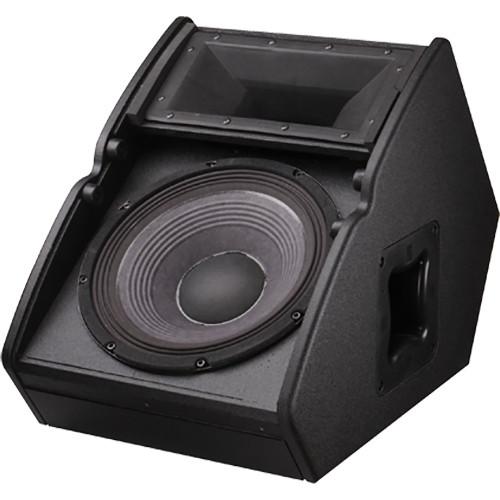

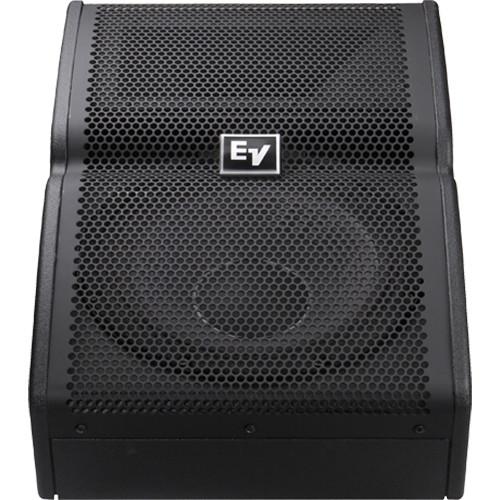

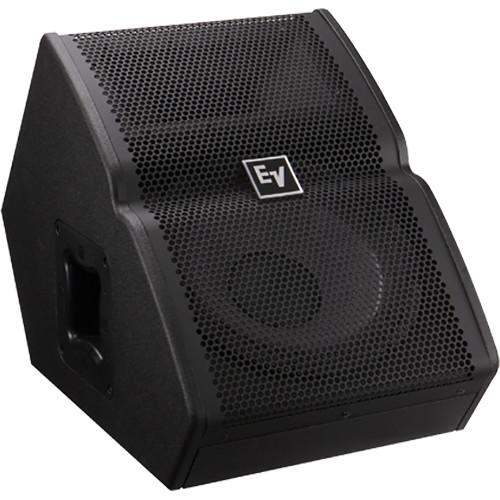

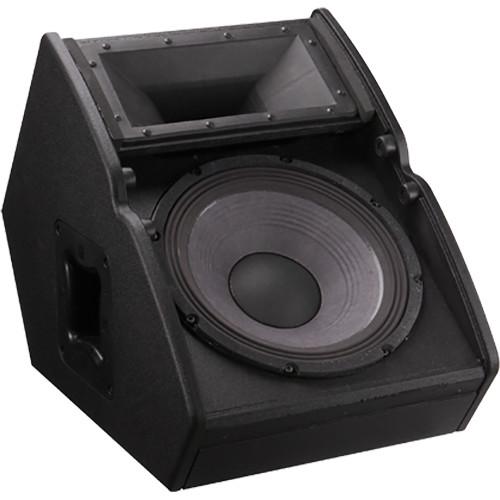

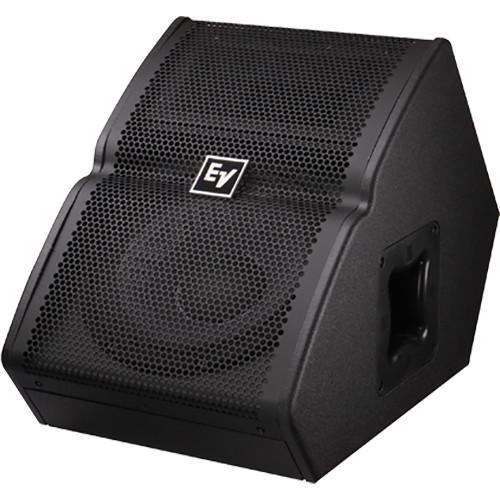

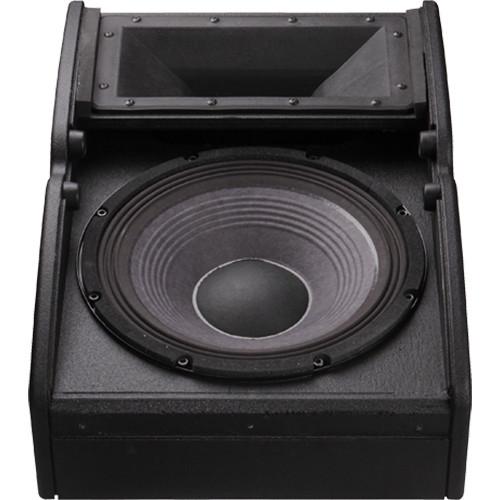

Product description The Tour X Series 12" Two-Way Full-Range Floor Monitor from Electro-Voice is designed for small to medium-sized stages where high-quality vocal and instrument applications are required in a lightweight package. It features a low-distortion 12" SMX2121 woofer and a 1.25" DH3/2010A titanium high-frequency compression driver. The enclosure utilizes Signal Synchronized Transducers, a design that aligns the woofer and compression driver by locating them on separate baffles, and integrates a low distortion port between the baffles. The internally braced enclosure of the speaker is constructed out of a combination of plywood and MDF, and coated with EVCoat for maximum strength and durability. Multi-grip handles allow for easy transportation. The recessed input panel with dual NL4 parallel connectors is located on the rear of the enclosure, which keeps the connectors hidden and away from the performers on stage. - Suitable for small-to-medium stages
- Low-distortion 12" SMX2121 woofer with fully symmetric drive
- Signal Synchronized Transducers for woofer/tweeter alignment
- 1.25" DH3/2010A titanium high-frequency compression driver
- 90° x 50° (H x V) constant-directivity waveguide
- Integrated 24 dB/octave crossover with high-frequency protection
- 500W continuous and 2,000W peak power handling
- Plywood and MDF enclosure with black EVCoat finish
- Dual NL4 input connectors
- 16 gauge steel backbone design grilles with rotatable logos
UPC: 800549769266 In the Box Electro-Voice Tour X Series 12" Two-Way Full-Range Floor Monitor Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Tour X Series 12" Two-Way Full-Range Floor Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.302.277 Specs | Speaker Type | Full-range | | Frequency Response | 70 Hz to 20 kHz at -3 dB
55 Hz to 20 kHz at -10 dB | | Frequency | Recording Hi-Pass: 60 Hz | | Power Capacity | Continuous: 500 W
Peak: 2,000 W | | Maximum Sound Pressure Level (SPL) | 132 dB | | Nominal Sensitivity | 99 dB, 1W/1m | | Impedance | Nominal (Passive): 8 Ohms
Minimum: 6.4 Ohms | | Coverage Angle | 90° x 50° (H x V), nominal -6 dB | | Crossover | 1,600 Hz
Supports internal crossover | | Low Frequency Driver | 12" (30 cm) SMX2121 | | High Frequency Driver | 1.25" (3.18 cm) DH3/2010A | | Input Connections | 2 x parallel Neutrik NL4 | | Enclosure Material | Plywood and MDF with EVCoat | | Grille | 16 ga steel, powder-coated, with rotatable logo | | Mounting Options | 6 x 3/8" threaded inserts for suspension | | Dimensions | 17.3 x 14.3 x 22.6" (440 x 364 x 573 mm) | | Weight | 43.7 lb (19.8 kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 21.5 x 18.0 x 16.0" |
