User Manual for Electro-Voice Tour X Series 15" Two-Way Full-Range Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice Tour X Series 15" Two-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice Tour X Series 15" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

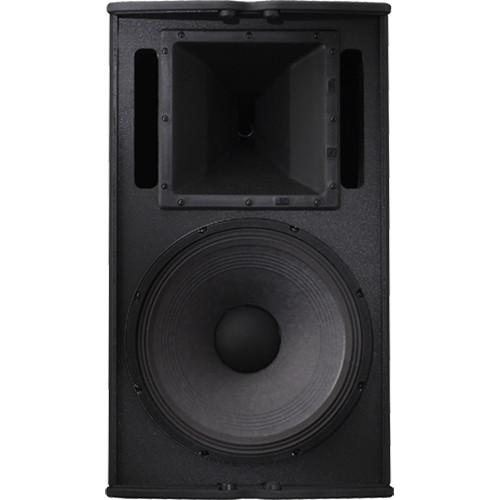

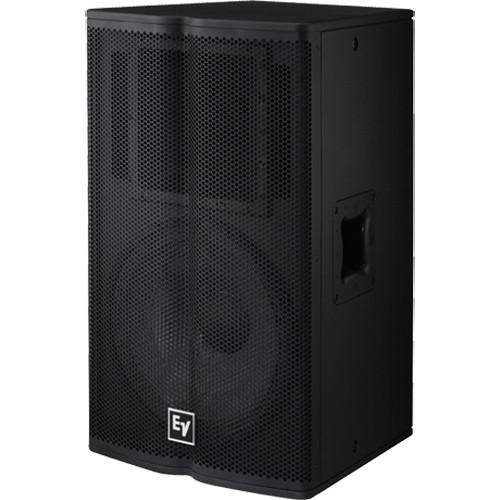

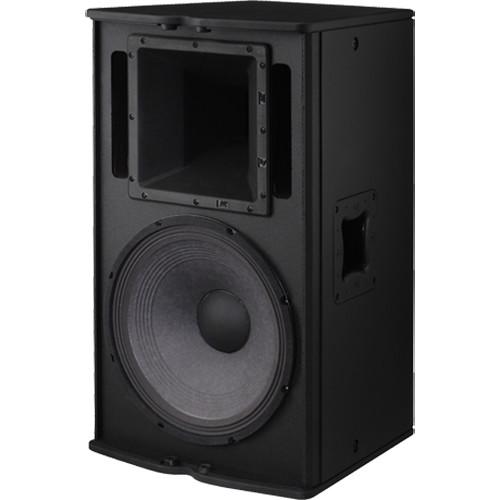

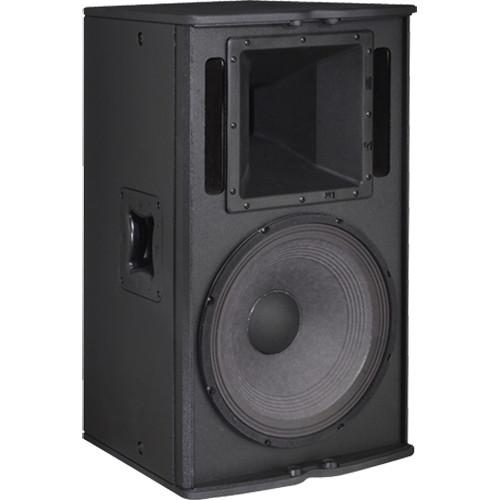

Product description The Tour X Series 15" Two-Way Full-Range Passive Loudspeaker from Electro-Voice is suitable for portable and fixed installation applications such as clubs, professional studios, and concerts. The speaker utilizes a 1.25" DH3/2010A compression driver, which is protected by an advanced fourth-order crossover. It features a high-sensitivity 15" SMX2151 woofer. The speaker has a 500W continuous (2000W peak) power handling capability to provide a strong, distortion-free performance. The rotatable constant-directivity waveguide provides a 60° x 40° coverage pattern. The unit features six 3/8" threaded points for eyebolt suspension. A pole mount socket lets you mount the unit on a standard speaker pole. - Tour-class performance in a portable package
- 500W continuous and 2,000W peak power handling
- High-output, high-quality sound
- Pattern control for medium throw
- Low distortion 15" SMX2151 woofer with fully symmetric drive
- 1.25" DH3/2010A titanium HF compression driver
- 60° x 40° rotatable constant-directivity waveguide
- Advanced fourth-order crossover with equalization and HF protection
- Lightweight and durable trapezoidal plywood and MDF enclosure with black EVCoat finish
- Pole mount allows for use with subwoofer or stand
- Six 3/8" threaded suspension points for eyebolt suspension
- Dual NL4 input connectors
- 16ga steel backbone design grilles with rotatable logos
UPC: 800549769228 In the Box Electro-Voice Tour X Series 15" Two-Way Full-Range Passive Loudspeaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Tour X Series 15" Two-Way Full-Range Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.302.273 Specs | Active or Passive | Passive | | Frequency Response | 55 Hz to 20 kHz at -3 dB
40 Hz to 20 kHz at -10 dB | | Frequency | Recording Hi-Pass: 40 Hz | | Power Capacity | Continuous: 500 W
Peak: 2,000 W | | Maximum Sound Pressure Level (SPL) | 133 dB | | Nominal Sensitivity | 100 dB, 1 W/1 m | | Coverage | 60° x 40° (H x V) rotatable, nominal -6 dB | | Impedance | Nominal (Passive): 8 Ohms
Minimum: 5.6 Ohms | | Crossover | 1,650 Hz | | Low Frequency Driver | 15" (38 cm) SMX2151 | | High Frequency Driver | 1.25" (3.18 cm) DH3/2010A | | Enclosure Material | Plywood and MDF with EVCoat | | Grille | 16 ga steel, powder-coated, with rotatable logo | | Input Connections | 2 x parallel Neutrik NL4 | | Suspension Attachment | Six 3/8" threaded inserts (2 on each side and 2 on the rear side of the enclosure) | | Dimensions | 30.6 x 17.5 x 17.5" (776 x 446 x 446 mm) | | Weight | 61.3 lb (27.8 kg) | | | | Package Weight | 72.65 lb | | Box Dimensions (LxWxH) | 32.0 x 19.75 x 19.75" |
