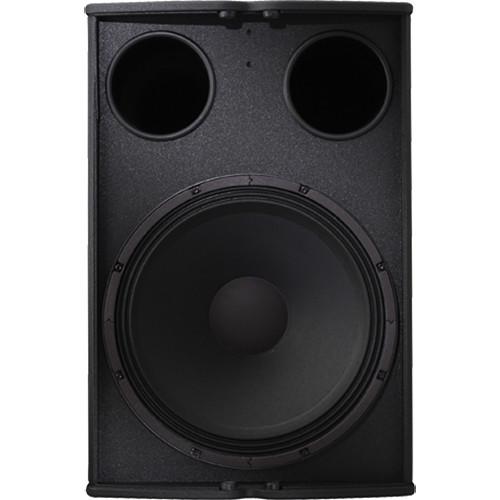

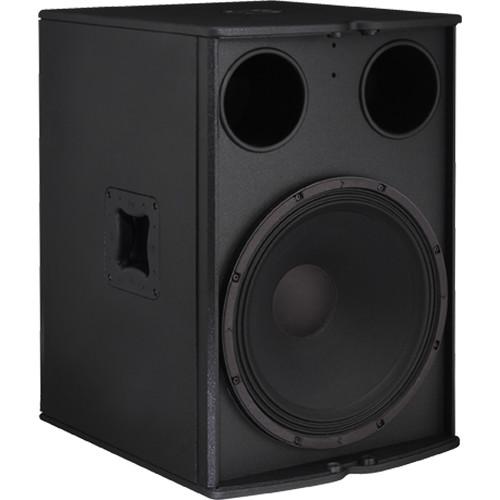

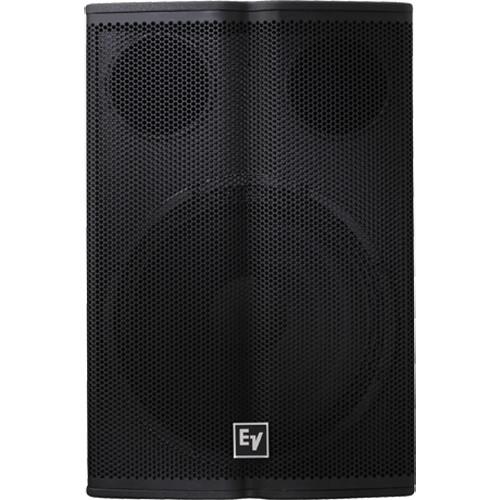

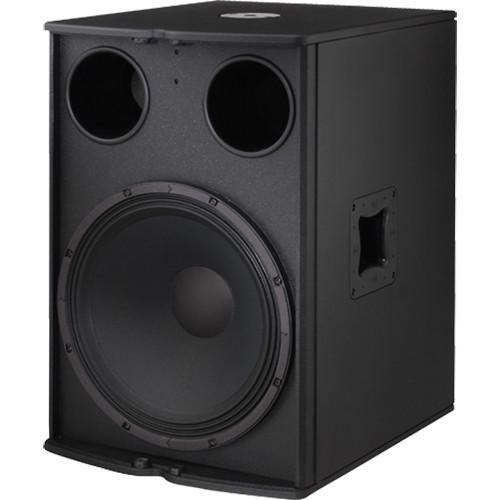

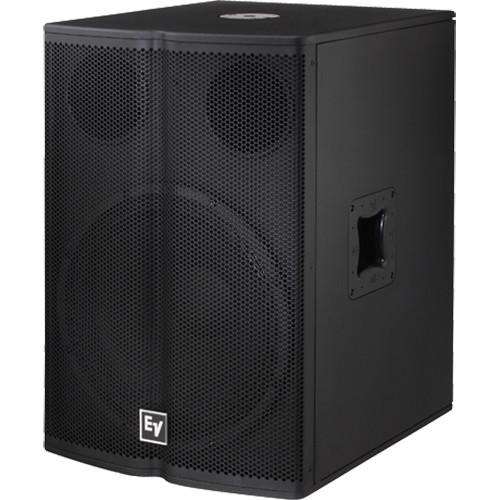

User Manual for Electro-Voice Tour X Series 500W 18" Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice Tour X Series 500W 18"
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice Tour X Series 500W 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Tour X Series 500W 18" Subwoofer from Electro-Voice offers pro-quality bass reinforcement, and is suitable for use with the TX1122 and TX1152 full-range loudspeakers. This subwoofer is optimized for portable and fixed installation applications, such as clubs, professional studios, and concerts. It uses a high-excursion EVS-18S low-frequency transducer to ensure plenty of impact with ultralow distortion. It has 500W of continuous (2,000W peak) output power for strong, thumping bass. The subwoofer can be connected in parallel with a full-range speaker without the need for an additional amplifier and processor, thanks to a built-in low-pass filter. The braced plywood and MDF enclosure is coated with EVCoat for maximum protection from the elements. - Tour-class performance in a portable package
- High-power LF supplement to the TX1122 and TX1152 loudspeakers
- High-excursion 18" EVS-18S woofer
- 6 dB/octave low-pass filter for parallel connection without added amp
- 500W continuous and 2000W peak power handling
- Top-side socket for speaker pole
- Six mount points for optional wheel kit
- Braced plywood and MDF enclosure with black EVCoat finish
- Dual NL4 input connectors
- 16-gauge steel backbone design grilles with rotatable logos
UPC: 800549769242 In the Box Electro-Voice Tour X Series 500W 18" Subwoofer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Tour X Series 500W 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.302.275 Specs | Active or Passive | Passive | | Frequency Response | 50 to 160 Hz at -3 dB
45 to 700 Hz at -10 dB | | Frequency | Recording Hi-Pass: 30 Hz | | Power Capacity | Continuous: 500 W
Peak: 2,000 W | | Maximum Sound Pressure Level (SPL) | 132 dB | | Nominal Sensitivity | 100 dB, 1 W/1 m | | Impedance | Nominal (Passive): 8 Ohms
Minimum: 7.5 Ohms | | Low Frequency Driver | 18" (46 cm) EVS-18S woofer | | Crossover | Internal low-pass filter | | Enclosure Material | Plywood and MDF with EVCoat | | Grille | 16 ga steel, powder-coated, with rotatable logo | | Input Connections | 2 x parallel Neutrik NL4 | | Dimensions | 30.3 x 20 x 23.3" (769 x 508 x 591 mm) | | Weight | 74.5 lb (33.8 kg) |
