User Manual for Electro-Voice Tour X Series Dual 15" Two-Way Full-Range Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice Tour X Series Dual 15"
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice Tour X Series Dual 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

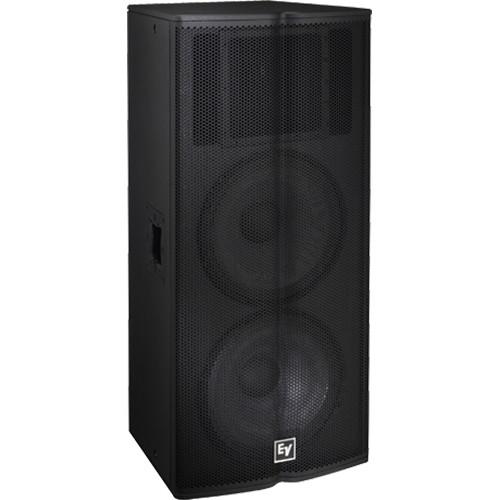

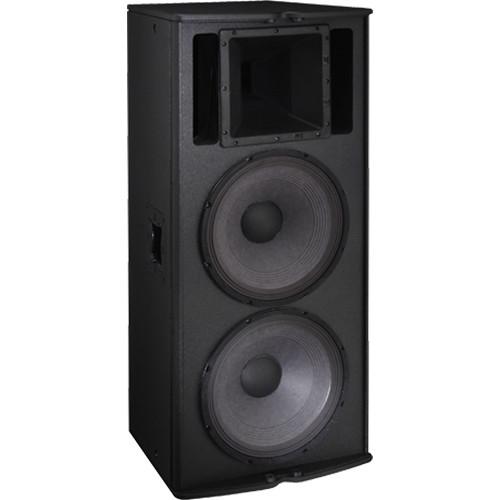

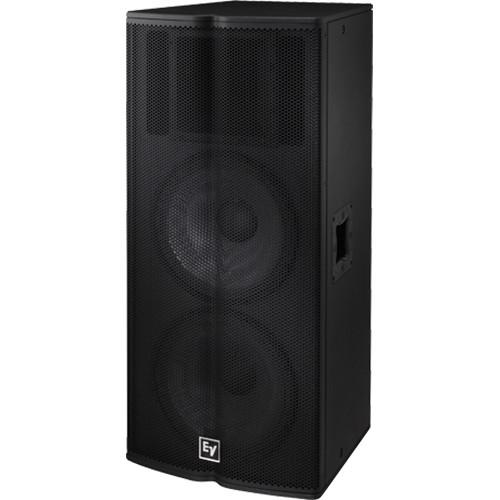

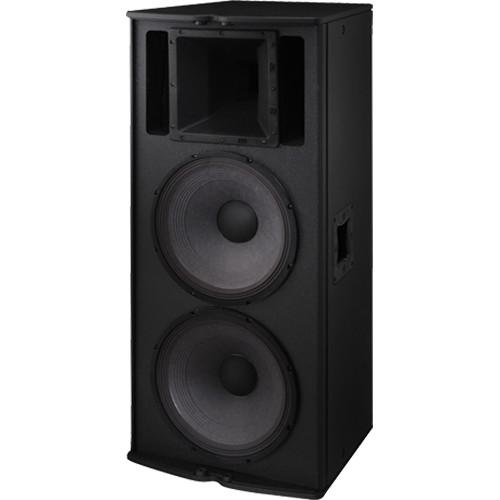

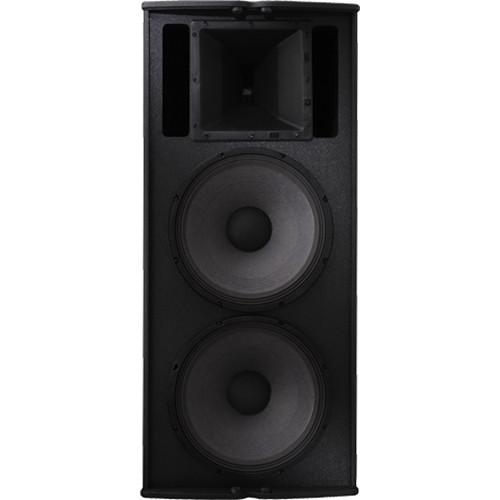

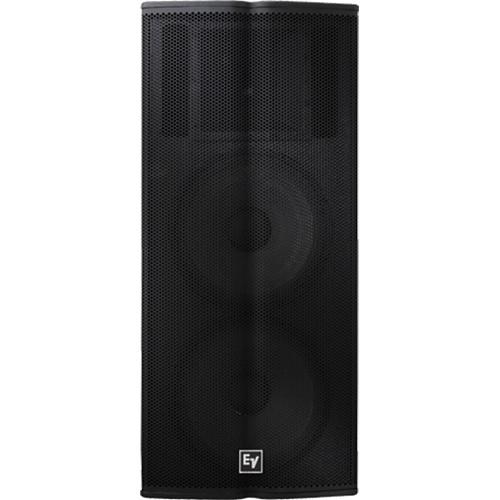

Product description The Tour X Series Dual 15" Two-Way Full-Range Passive Loudspeaker from Electro-Voice is optimized for portable and fixed installation applications such as clubs and concerts. This speaker features a pair of 15" SMX2151 woofers and a 2" ND2 neodymium compression driver to provide crisp, natural audio with a wide frequency response. It is protected by an advanced sixth-order crossover. The speaker has a 1,000W continuous (4,000W peak) power handling capability to provide a strong, distortion-free performance. The rotatable constant-directivity waveguide horn provides a 60° x 40° coverage pattern. The speaker itself features a trapezoidal plywood and MDF enclosure with an internal bracing and is fronted by a 16ga steel grille. It features six 3/8" threaded points for eyebolt suspension (two on each side and two on the rear side of the enclosure). - Tour-class performance in a portable package
- Suitable as mains for small-to-medium clubs
- 1,000W continuous and 4,000W peak power handling
- High SPL of 139 dB with smooth response
- Pattern control for medium throw
- Dual low-distortion 15" SMX2151 woofers with fully symmetric drive
- 2" ND2 neodymium high-frequency compression driver
- 60° x 40° rotatable constant-directivity waveguide
- Advanced sixth-order crossover with HF protection
- Internally braced trapezoidal plywood and MDF enclosure with black EVCoat finish
- Six 3/8" threaded suspension points for eyebolt suspension
- Dual NL4 input connectors
- 16ga steel backbone design grilles with rotatable logos
UPC: 800549682428 In the Box Electro-Voice Tour X Series Dual 15" Two-Way Full-Range Passive Loudspeaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Tour X Series Dual 15" Two-Way Full-Range Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.302.274 Specs | Active or Passive | Passive | | Frequency Response | 55 Hz to 13 kHz at -3 dB
50 Hz to 18 kHz at -10 dB | | Frequency | Recording Hi-Pass: 40 Hz | | Power Capacity | Continuous: 1,000 W
Peak: 4,000 W | | Maximum Sound Pressure Level (SPL) | 139 dB | | Nominal Sensitivity | 103 dB, 1 W/1 m | | Coverage | 60° x 40° (H x V) rotatable, nominal -6 dB | | Impedance | Nominal (Passive): 4 Ohms
Minimum: 3.1 Ohms | | Crossover | 1,750 Hz | | Low Frequency Driver | Two 15" (38 cm) SMX2151 | | High Frequency Driver | 2" (5 cm) ND2 neodymium compression driver | | Enclosure Material | Plywood and MDF with EVCoat | | Grille | 16 ga steel, powder-coated, with rotatable logo | | Input Connections | 2 x parallel Neutrik NL4 | | Suspension Attachment | Six 3/8" threaded inserts (2 on each side and 2 on the rear side of the enclosure) | | Dimensions | 45.4 x 20.0 x 18.5" (115.4 x 50.8 x 47.1 cm) | | Weight | 94.4 lb (42.8 kg) | | | | Package Weight | 115.0 lb | | Box Dimensions (LxWxH) | 46.4 x 21.3 x 20.4" |
