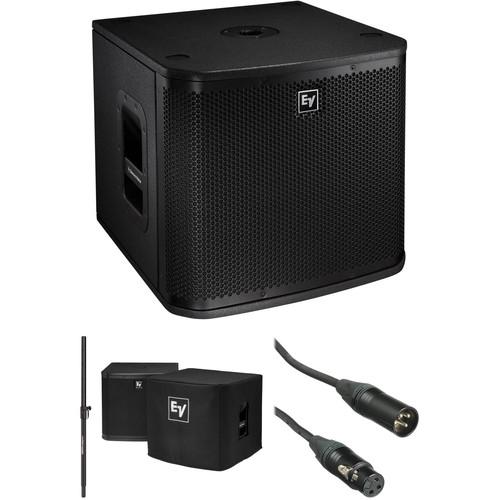

User Manual for Electro-Voice XA1-Sub 12" Subwoofer Kit with Speaker Pole, Cable, and Cover

• Product category: PA Speakers Electro-Voice
• Brand: Electro-Voice
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Electro-Voice PA Speakers

Product description

• Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer The ZXA1-Sub 12" 700W Active Subwoofer from Electro-Voice is a compact and powerful subwoofer that's ideal for use alongside the ZXA1 full-range speaker. The subwoofer has a sturdy 15mm 9-ply wood enclosure that is braced internally for lasting durability. The 12" EVS-12S woofer is powered by a 700W Class-D amplifier for a strong, clear performance with deep bass and minimal distortion.

  The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems. A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems. The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer. An integrated handle lets you carry the sub easily from one venue to another.
  • Ideal for use alongside the ZXA1 and other full-range speakers
  • The sturdy 15mm 9-ply wood enclosure is braced internally for lasting durability. The black textured paint finish ensures that the sub is not visually intrusive
  • The 12" EVS-12S woofer delivers low bass frequencies and SPL levels up to 126dB
  • The 700W Class-D amplifier provides a strong, clear performance with minimal distortion
  • The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems
  • A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems
  • The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer
  • An integrated handle lets you carry the sub easily from one venue to another
  UPC: 800549638449
• Ultimate Support JS-SP50 Subwoofer and Satellite Mounting Pole The JS-SP50 from Ultimate Support is a heavy-duty pole that mounts your satellite loudspeaker on top of your subwoofer. Its height is adjustable from 31.5 to 52.5" and locks in place using a steel friction locking knob and security pin. The JS-SP50 can be mounted to any subwoofer with a 1.375" top mounting hole and any satellite with a 1.375" bottom mounting hole. UPC: 784887175098
• Electro-Voice Cover For ZXA1-Sub Subwoofer The Cover For ZXA1-Sub Subwoofer from Electro-Voice is a custom designed pull-over cover that protects your ZXA1-Sub 12" Powered Subwoofer at all times from dust, dirt, and moisture, both on the road, and when it's in storage. UPC: 800549668873
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• ZXA1-Sub 12" 700W Active Subwoofer uvestvdbfcuwsyverdswbtrturdzfywa
• Power Cord
• 1-Year Limited Warranty

• Ultimate Support - JS-SP50 Subwoofer and Satellite Mounting Pole

• Cover For ZXA1-Sub Subwoofer

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer

  Configuration	Active Subwoofer
  Total Power Capacity	700 W
  Amplifier Class	Class-D

  LF Driver	1 x 12" / 304.8 mm Woofer

  Frequency Response	44 Hz to 116 Hz
  Maximum SPL	126 dB (Peak)

  Audio I/O	2 x XLR Input 2 x XLR Output

  Filters	High-Pass: 100 Hz

  AC Input Power	90 to 132 VAC, 50 / 60 Hz
  AC Power Connector	1 x IEC
  Current Consumption	1 A (1/8 Power)

  Construction Material	Plywood
  Weight	46 lb / 20.9 kg

  Box Dimensions (LxWxH)	22.3 x 19.4 x 17.9"

• Ultimate Support JS-SP50 Subwoofer and Satellite Mounting Pole

  Type	Subwoofer Pole
  Load Capacity	110 lb / 50 kg
  Mount Size	1-3/8" (Top) 1-3/8" (Base)
  Height Adjustment Range	31.5 to 52.5" / 80 to 133.4 cm
  Weight	3 lb / 1.4 kg

  Box Dimensions (LxWxH)	32.8 x 2.8 x 2.4"

• Electro-Voice Cover For ZXA1-Sub Subwoofer

  Box Dimensions (LxWxH)	18.7 x 16.0 x 1.8"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
