Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled

Search your instruction manual in PDF to download

User Manual for Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker

Click to enlarge the picture
Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker Contents of the user manual for the Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled
  • Product category: PA Speakers Electro-Voice
  • Brand: Electro-Voice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Electro-Voice PA Speakers

Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker
User manual for the Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Electro-Voice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!



Product description

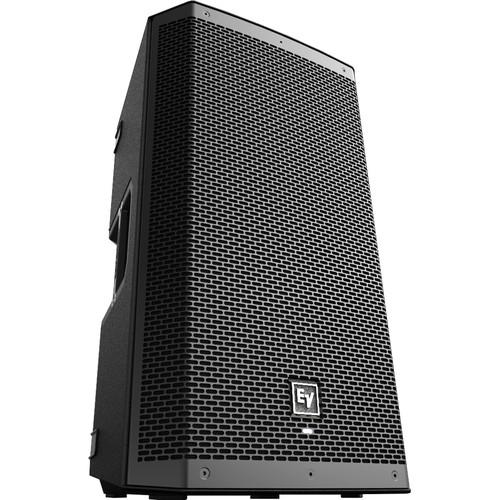

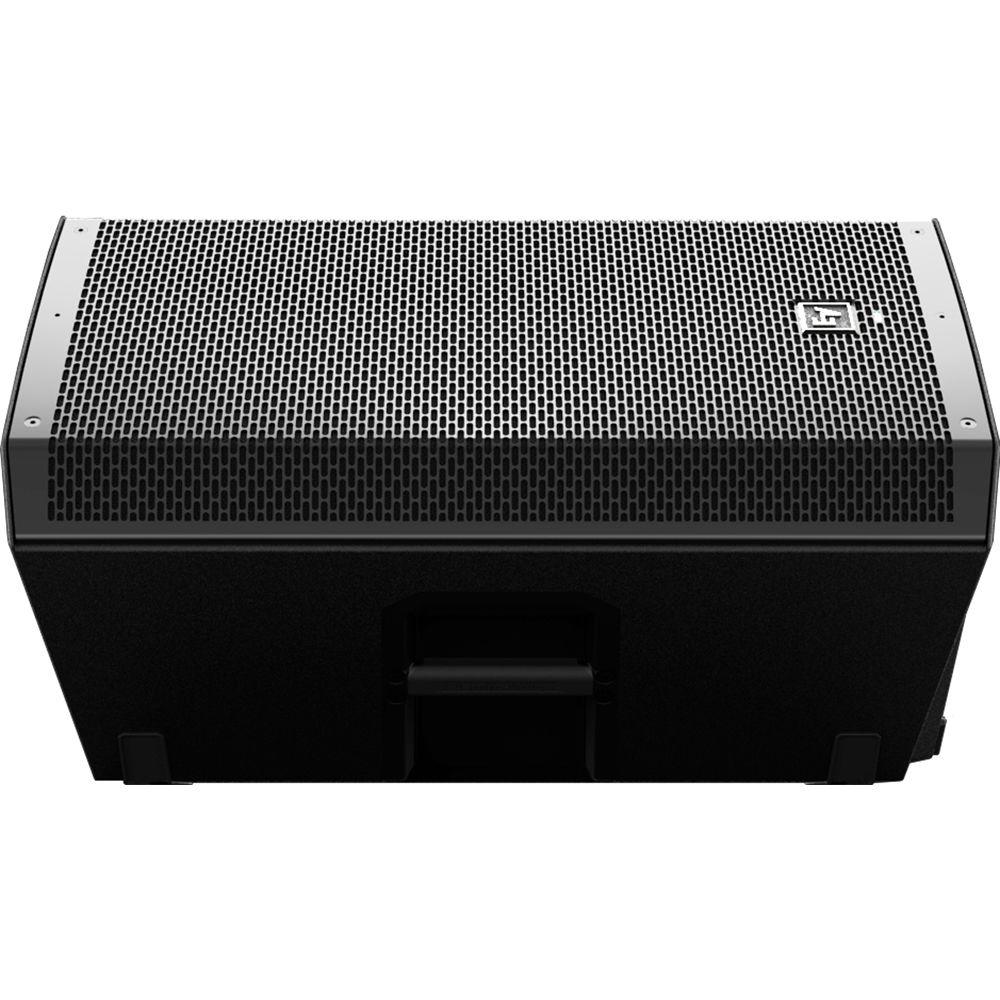

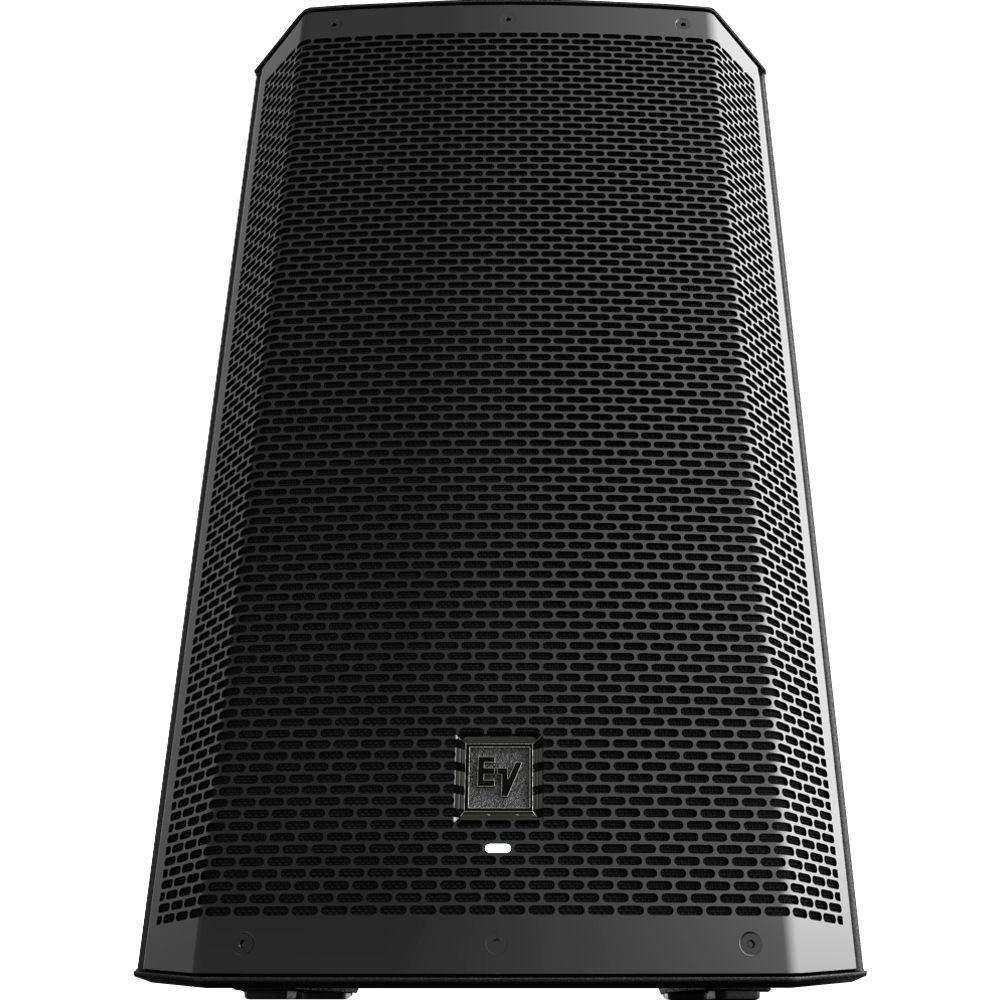

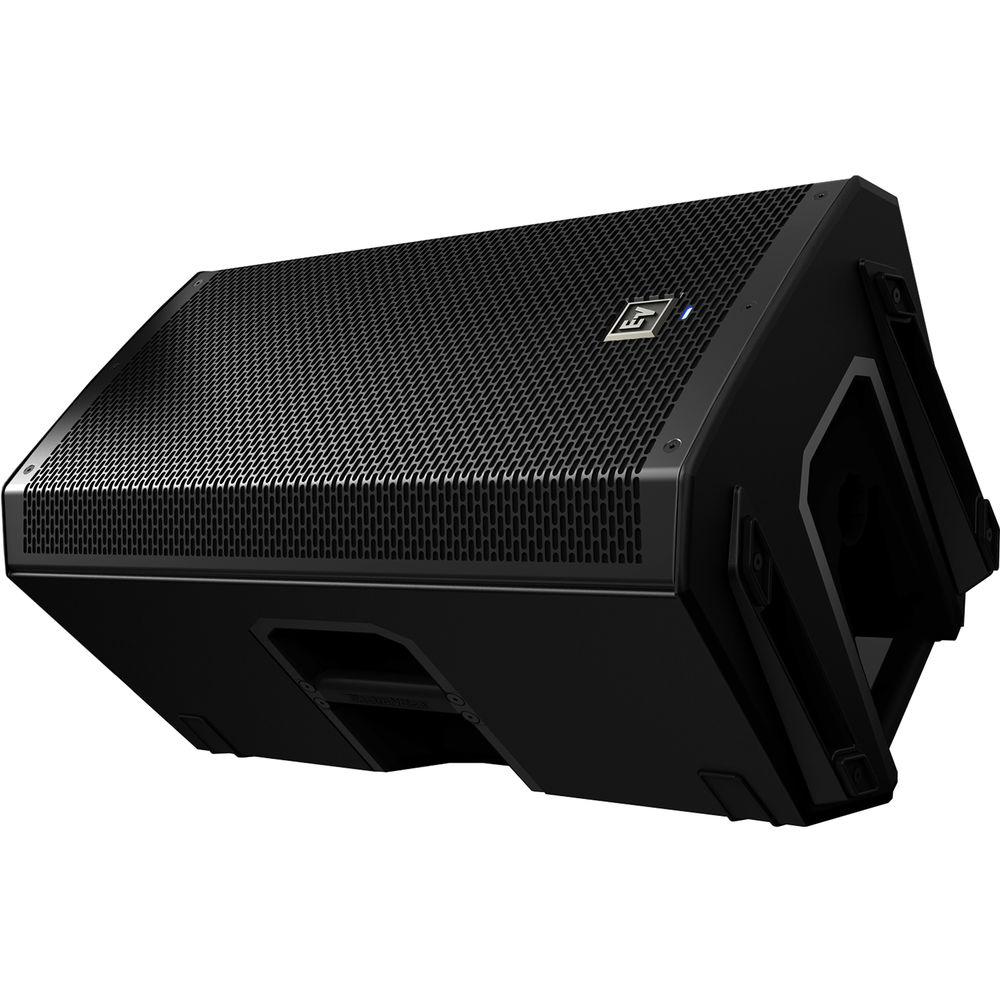

The black Electro-Voice ZLX-12BT is a compact and versatile 12" 2-way 1000W Bluetooth-enabled powered loudspeaker featuring custom engineered drivers in a rugged enclosure, well suited for rental houses, mobile entertainers, stage monitors, and more. A built-in Bluetooth receiver allows wireless music streaming from a mobile device or computer. The internal 1000W Class-D power amplifier drives the 12" woofer and 1.5" high-frequency titanium compression driver, which combine for a frequency response of 65 Hz to 18 kHz, and a maximum SPL of 126 dB. Two XLR-1/4" combo inputs, a 3.5mm aux input, and an XLR output accommodate typical connectivity with mixers, instruments, and more. Independent input/output gain controls and an LCD display with one-knob DSP control ensure efficient setup and signal adjustment. The sturdy polypropylene enclosure utilizes an EV-patented SST waveguide, and is covered by a powder-coated, 18-gauge steel grille. With its integrated pole cup, the ZLX-12BT can be mounted on a speaker stand, placed on a subwoofer pole, or can be used on its side as a floor wedge monitor. It includes an IEC power cable. Note: This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead-suspension ordinances.
  • Bluetooth audio streaming for background music or musical accompaniment
  • High-efficiency 1000W Class-D power amplifier delivers up to 126 dB peak SPL utilizing transducers designed and engineered by Electro-Voice

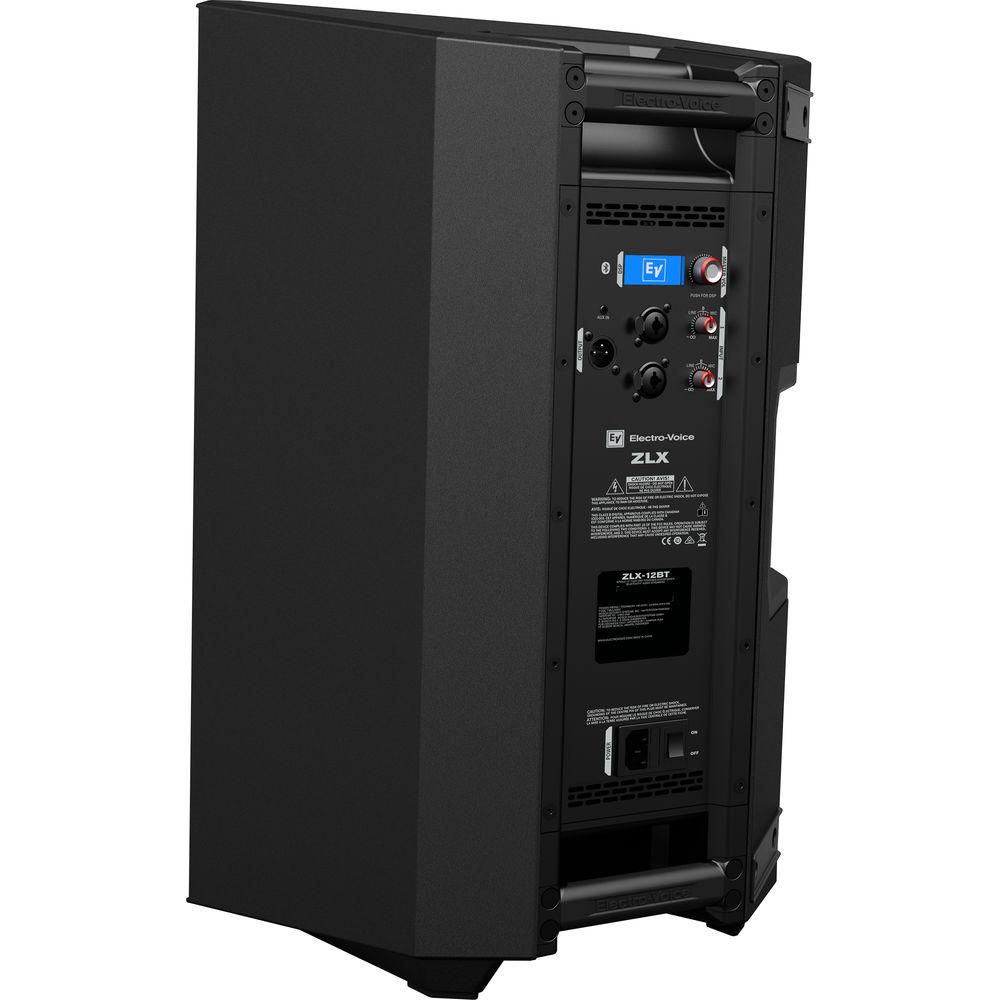

  • QuickSmartDSP features powerful processing and easy setup via four presets, sub/top system-match, two-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via the rear-panel LCD
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
  • Front LED for "power on" and "limit" indication
  • Durable composite construction with high/low grip design for easy transport and mounting
UPC: 800549882040 In the Box Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker (Black)
  • IEC Power Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Electro-Voice 12BT Specs

    Configuration Active 2-Way
    Total Power Capacity 1000 W
    HF Driver 1 x 1.5" / 3.9 cm Titanium Compression Driver
    LF Driver 1 x 12" / 30 cm Woofer
    Frequency Range 50 Hz to 20 kHz -10 dB
    Frequency Response 65 Hz to 18 kHz -3 dB (Full-Space)
    Maximum SPL 126 dB
    Coverage Angle 90° H x 60° V
    Audio I/O 2 x Combo XLR / 1/4" TRS Input
    1 x 1/8" / 3.5 mm TRS Input
    1 x XLR 3-Pin Male Output
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Current Consumption 0.5 to 0.8 A (1/8 Power)
    Construction Material Metal Grille, Polypropylene
    Dimensions 24.0 x 14.0 x 14.0" / 61.0 x 35.6 x 35.6 cm
    Weight 34.3 lb / 15.6 kg
    Package Weight 40.25 lb
    Box Dimensions (LxWxH) 26.0 x 16.0 x 16.0"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 74 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Electro-Voice ZLX-12BT 12" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker

    Subject: Conección Bluetooth
    Date: 01.03.2021 00:55:11Name: John Ferney Zuluaga Daza
    Hola porque se corta la trasmisión de música vía Bluetooth
