User Manual for Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

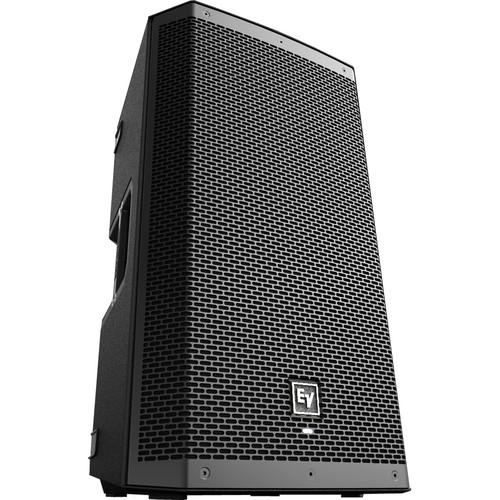

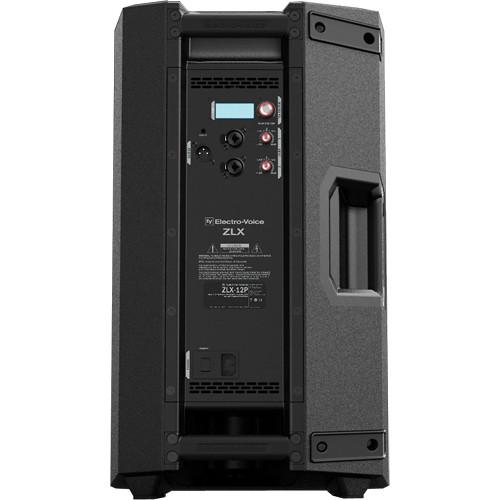

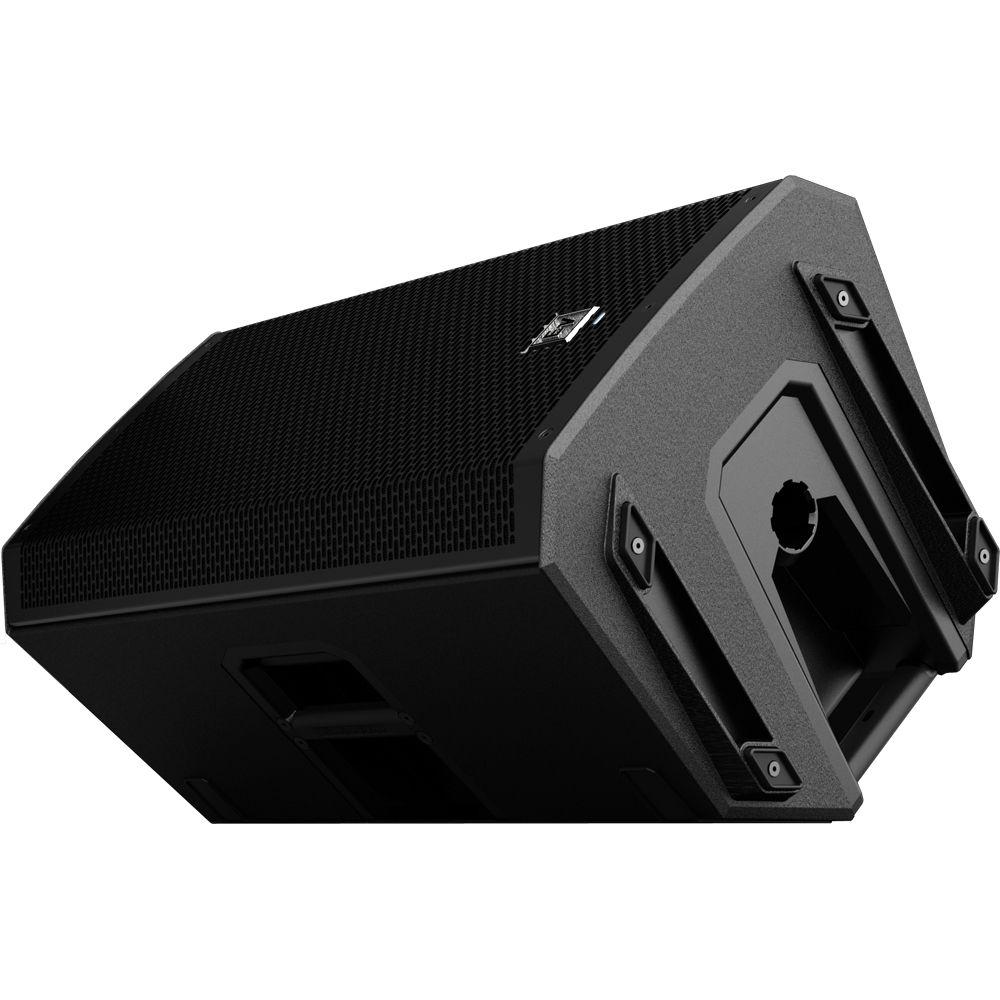

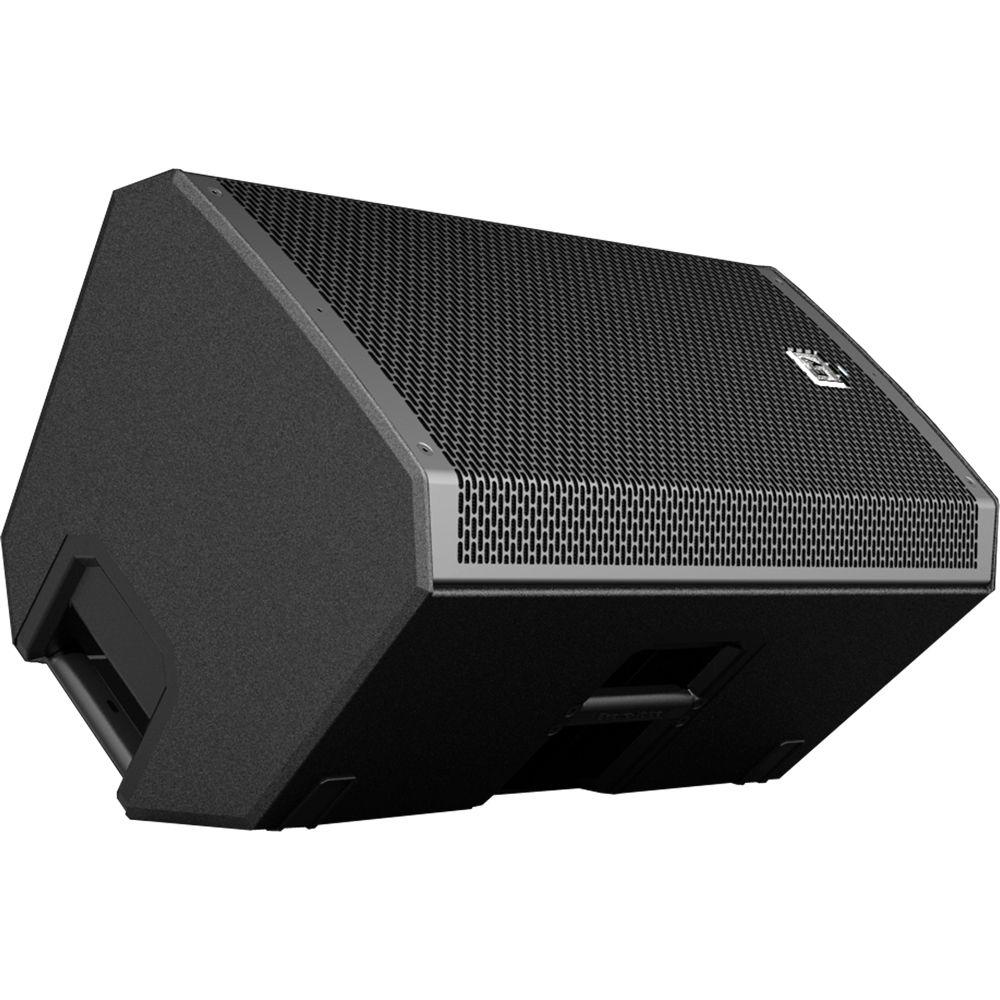

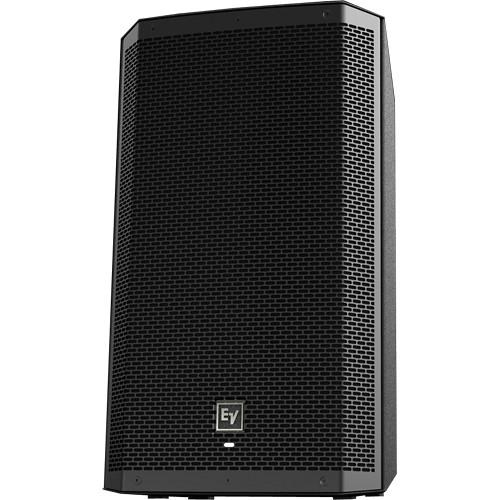

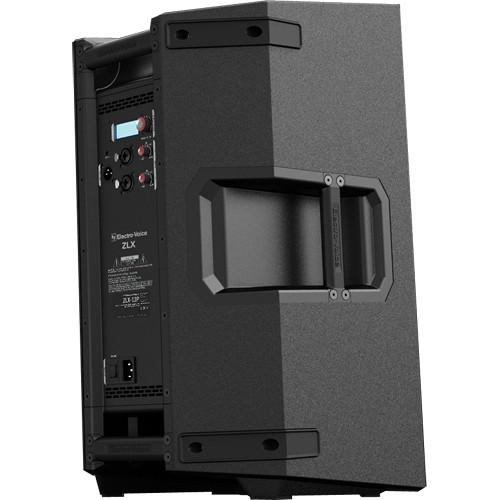

Product description The black Electro Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker is a compact and versatile loudspeaker featuring custom-engineered drivers in a rugged enclosure. The loudspeaker features a grille made of 18-gauge steel with a black powder-coat finish. The loudspeaker matches the specially developed drivers with a custom-built Class-D amplifier module and powerful DSP. Whether pole-mounted or used as a floor monitor, the loudspeaker delivers powerful sonic impact and intelligibility. Note: This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead-suspension ordinances. - LCD display and 1-knob DSP control with presets for precise and speedy setup
- Input-level meters and independent amplifier control to ensure optimal gain structure
- Front LED for "power on" and "limit" indication
- Patented split-baffle design for superior driver-time alignment
- Durable composite construction with innovative high/low-grip design for easy pole-mounting
UPC: 800549697477 In the Box Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker (Black) Includes Power Cord Limited 3-Year Warranty User Manual PDF 4.6mbrawqrccxvdftwavurqxysct Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZLX-12P-US 12" Two-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZLX-12P-US Specs | Frequency Response | 65 Hz to 18 kHz Using MUSIC DSP preset. | | Frequency Range | 50 Hz to 20 kHz Using MUSIC DSP preset. | | Maximum SPL | 126 dB | | Coverage | 90 x 60° (H x V) | | Power Rating | 1000 W | | Transducer Type | LF: EVS-12K, 12" (300 mm)
HF: DH-1K | | Connectors | 2 x XLR/TRS Combo Jack, 1 x 3.5 mm Input, and 1 x XLR link Output | | Enclosure | Polypropylene | | Grille | 18-gauge steel with black powder coat | | Dimensions (H x W x D) | 24.0 x 14.0 x 14.0" (609.6 x 355.6 x 355.6 mm) | | Weight | 34.3 lb (15.5 kg) | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 26.1 x 16.1 x 15.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
