User Manual for Electro-Voice ZLX-15BT 15" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZLX-15BT 15" 2-Way 1000W Bluetooth-Enabled
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZLX-15BT 15" 2-Way 1000W Bluetooth-Enabled contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

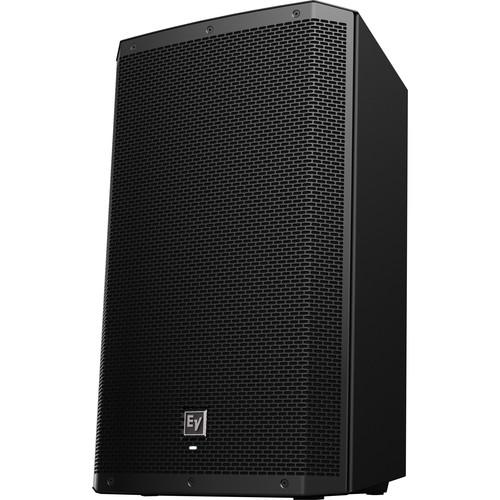

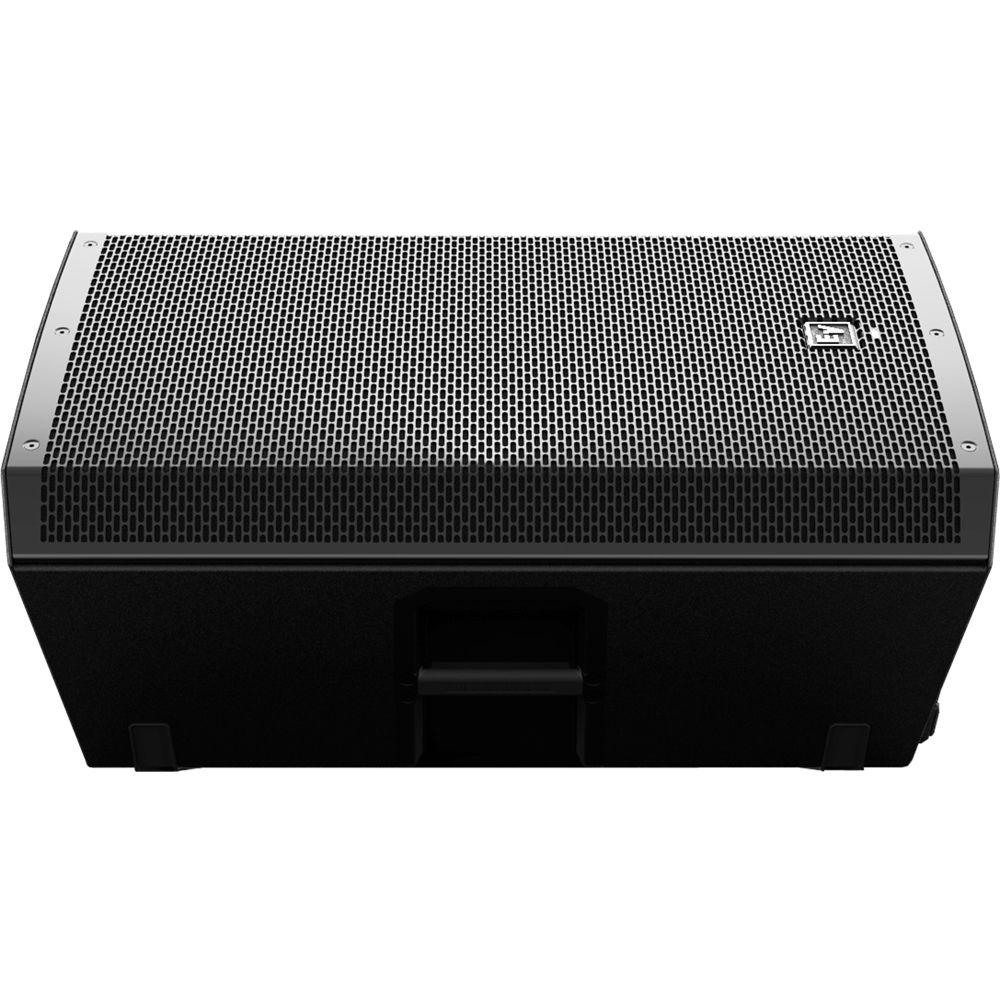

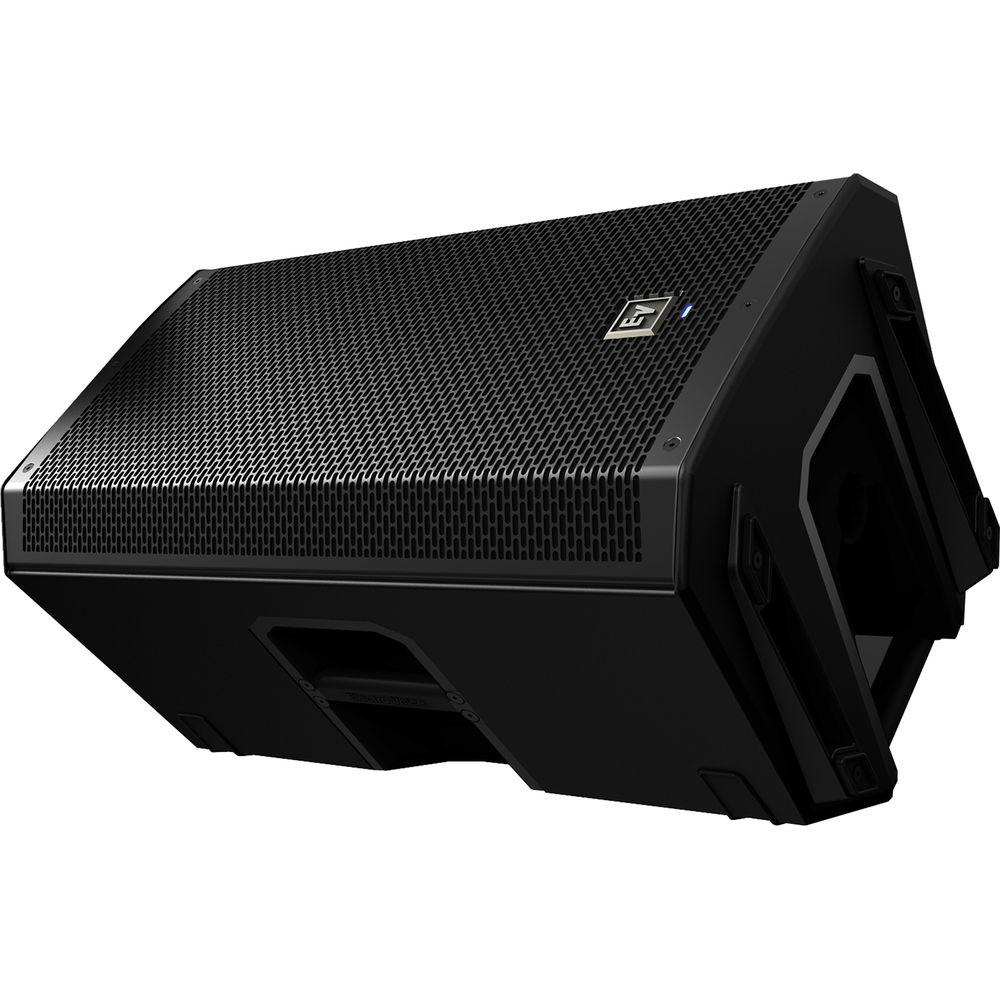

Product description The black Electro-Voice ZLX-15BT is a compact and versatile 15" 2-way 1000W Bluetooth-enabled powered loudspeaker featuring custom engineered drivers in a rugged enclosure, well suited for rental houses, mobile entertainers, stage monitors, and more. A built-in Bluetooth receiver allows wireless music streaming from a mobile device or computer. The internal 1000W Class-D power amplifier drives the 15" woofer and 1.5" high-frequency titanium compression driver, which combine for a frequency response of 55 Hz to 18 kHz, and a maximum SPL of 127 dB. Two XLR-1/4" combo inputs, a 3.5mm aux input, and an XLR output accommodate typical connectivity with mixers, instruments, and more. Independent input/output gain controls and an LCD display with one-knob DSP control ensure efficient setup and signal adjustment. The sturdy polypropylene enclosure utilizes an EV-patented SST waveguide, and is covered by a powder-coated, 18-gauge steel grille. With its integrated pole cup, the ZLX-15BT can be mounted on a speaker stand, placed on a subwoofer pole, or can be used on its side as a floor wedge monitor. It includes an IEC power cable. Note: This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead-suspension ordinances. - Bluetooth audio streaming for background music or musical accompaniment
- High-efficiency 1000W Class-D power amplifier delivers up to 127 dB peak SPL utilizing transducers designed and engineered by Electro-Voice

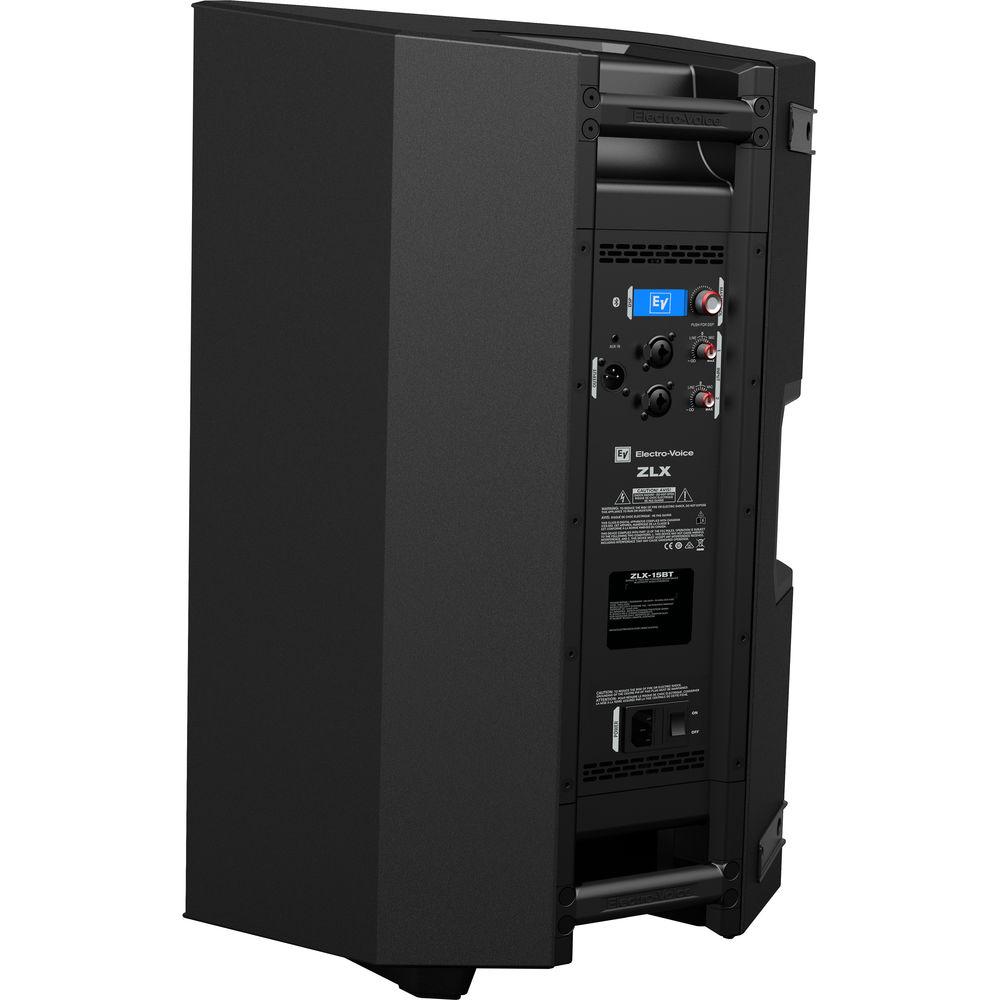

- QuickSmartDSP features powerful processing and easy setup via four presets, sub/top system-match, two-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via the rear-panel LCD
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
- Front LED for "power on" and "limit" indication
- Durable composite construction with high/low grip design for easy transport and mounting
UPC: 800549882057 In the Box Electro-Voice ZLX-15BT 15" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker (Black) IEC Power Cable Limited 3-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZLX-15BT 15" 2-Way 1000W Bluetooth-Enabled Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice 15BT Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | | | HF Driver | 1 x 1.5" / 3.9 cm Titanium Compression Driver | | LF Driver | 1 x 15" / 38 cm Woofer | | | | Frequency Range | 42 Hz to 20 kHz -10 dB | | Frequency Response | 55 Hz to 18 kHz -3 dB (Full-Space) | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
1 x 1/8" / 3.5 mm TRS Input
1 x XLR 3-Pin Male Output | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 0.5 to 0.8 A (1/8 Power) | | | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 27.0 x 16.8 x 15.1" / 68.5 x 42.6 x 38.3 cm | | Weight | 38 lb / 17.3 kg | | | | Package Weight | 46.41 lb | | Box Dimensions (LxWxH) | 29.4 x 19.1 x 18.7" |
