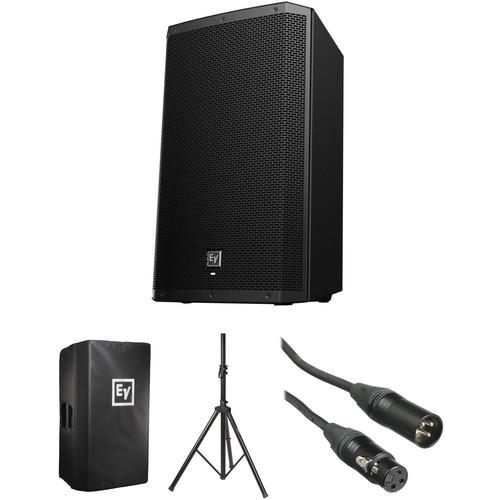

User Manual for Electro-Voice ZLX-15P-US Powered Speaker Kit with Padded Cover, Stand, and Cable Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZLX-15P-US Powered Speaker Kit with
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ZLX-15P-US Powered Speaker Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Electro-Voice ZLX-15P-US 15" Two-Way Powered Loudspeaker with a padded cover, steel speaker stand, and high-quality XLR cable to create a portable PA setup with protection from on-the-road wear and tear. - Electro-Voice ZLX-15P-US 15" Two-Way Powered Loudspeaker (Black) The black Electro Voice ZLX-15P-US 15" Two-Way Powered Loudspeaker is a compact and versatile loudspeaker featuring custom-engineered drivers in a rugged enclosure. The loudspeaker features a grille made of 18-gauge steel with a black powder-coat finish. The loudspeaker matches the specially developed drivers with a custom-built Class-D amplifier module and powerful DSP. Whether pole-mounted or used as a floor monitor, the loudspeaker delivers powerful sonic impact and intelligibility. Note: This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead-suspension ordinances.
- LCD display and 1-knob DSP control with presets for precise and speedy setup
- Input-level meters and independent amplifier control to ensure optimal gain structure
- Front LED for "power on" and "limit" indication
- Patented split-baffle design for superior driver-time alignment
- Durable composite construction with innovative high/low-grip design for easy pole-mounting
UPC: 800549697491 - Electro-Voice ZLX-15-CVR Padded Cover for ZLX-15 Two-Way Passive Loudspeaker (Black) Store, transport, and protect your ZLX-15 Two-Way Passive Loudspeaker from dirt, dust and scratches with the black ZLX-15-CVR Padded Cover from Electro Voice. The cover is made of polypropylene with fleece lining and has a black hook and loop fastener. Users will appreciate the handle access openings, exterior slip-in accessory pocket, and white embroidered EV logo on the front.
- Features an embroidered white logo and a black hook-and-loop fastener
UPC: 800549714471 - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - ZLX-15P-US 15" Two-Way Powered Loudspeaker (Black) ctasytauttavtcwyaqcqxzyyacbtrvbwsye
- Limited 3-Year Warranty
- ZLX-15-CVR Padded Cover for ZLX-15 Two-Way Passive Loudspeaker (Black)
- Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZLX-15P-US Powered Speaker Kit with Padded Cover, Stand, and Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Electro-Voice ZLX-15P-US 15" Two-Way Powered Loudspeaker (Black)
| Frequency Response | 55 Hz to 18 kHz Using MUSIC DSP preset. | | Frequency Range | 42 Hz to 20 kHz Using MUSIC DSP preset. | | Maximum SPL | 127 dB | | Coverage | 90 x 60° (H x V) | | Power Rating | 1000 W | | Transducer Type | LF: EVS-15L, 15" (380 mm)
HF: DH-1K | | Connectors | 2 x XLR/TRS Combo Jack, 1 x 3.5 mm Input, and 1 x XLR link Output | | Enclosure | Polypropylene | | Grille | 18-gauge steel with black powder coat | | Dimensions (H x W x D) | 27.0 x 17.0 x 15.0" (685.8 x 431.8 x 381.0 mm) | | Weight | 38.0 lb (17.2 kg) | | | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 19.0" | - Electro-Voice ZLX-15-CVR Padded Cover for ZLX-15 Two-Way Passive Loudspeaker (Black)
| Type | Cover | | Padding | Foam | | Material of Construction | Fleece, Polypropylene | | Exterior Dimensions (W x H x D) | 14.9 x 27.0" / 37.8 x 68.7 cm | | Weight | 2 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 27.0 x 18.7 x 1.9" | - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
