User Manual for Electro-Voice ZX190 2-Way Speaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZX190 2-Way Speaker
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZX190 2-Way Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

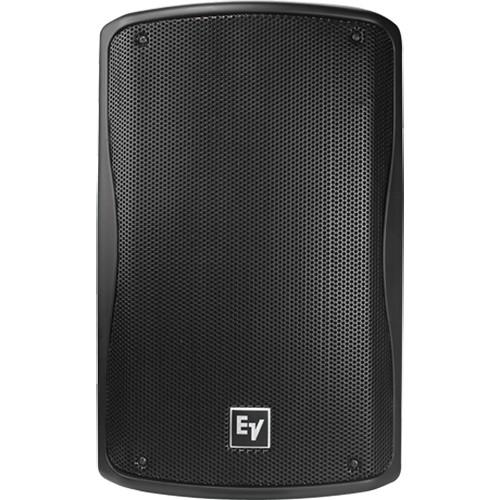

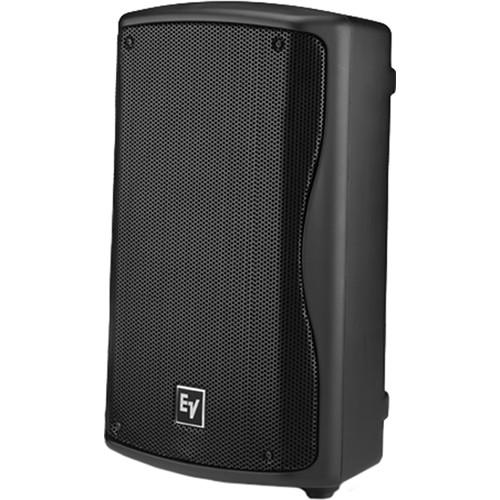

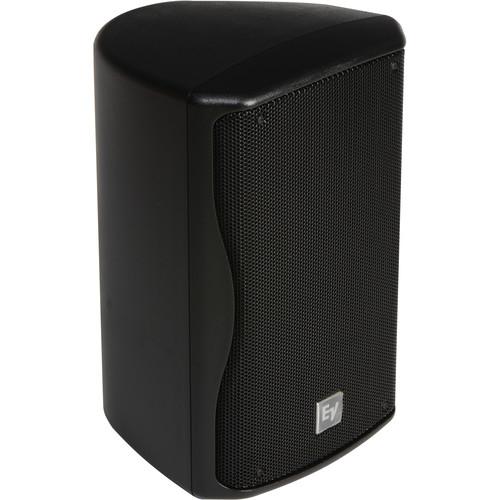

Product description The Electro-Voice ZX190 200W 8" 2-Way Speaker (Black) is a passive, full-range, 2-way PA loudspeaker, with a durable all-weather enclosure, housing an 8" woofer and a 1" compression driver in a rotatable horn. This unit is equipped with full overload protection.The ZX190 features an integrated handle for simplified transportation, a built-in speaker pole mount, and a wedge-angle design. This unit is a perfect choice as a small stage monitor. - Multiple Formats
- Use this loudspeaker in multipe formats. The weatherized cone driver and enclosure make it perfect for outside use while the integrated recessed carrying handle, pole mount and wedge-angle design lend themselves nicely to stage monitor situations.
- Port Design
- The velocity-compensated port design overcomes many of the limitations that other smaller sized loudspeakers encounter, and in turn gives you great low-frequency response and exceptional performance reliability.
- Loaded with Features
- This 2-way, full-range PA loudspeaker is equipped with a 200W continuous, 800W peak power handling, full-bandwidth overload protection and full-range frequency reproduction. Just imagine the high-quality performance you'll receive from your audio presentations.
- Placement Options
- The 90 x 50° rotatable horn gives you top-quality sound while also giving you horizontal and vertical placement options.
UPC: 800549682466 In the Box Electro-Voice ZX190 2-Way Speaker (Black) Limited 5-Year Warranty User Manual PDF 2.1mbyfvzeqqyxqrfrvaxeabzsxwascesxt Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZX190 2-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZX190 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 200 W RMS
400 W Program

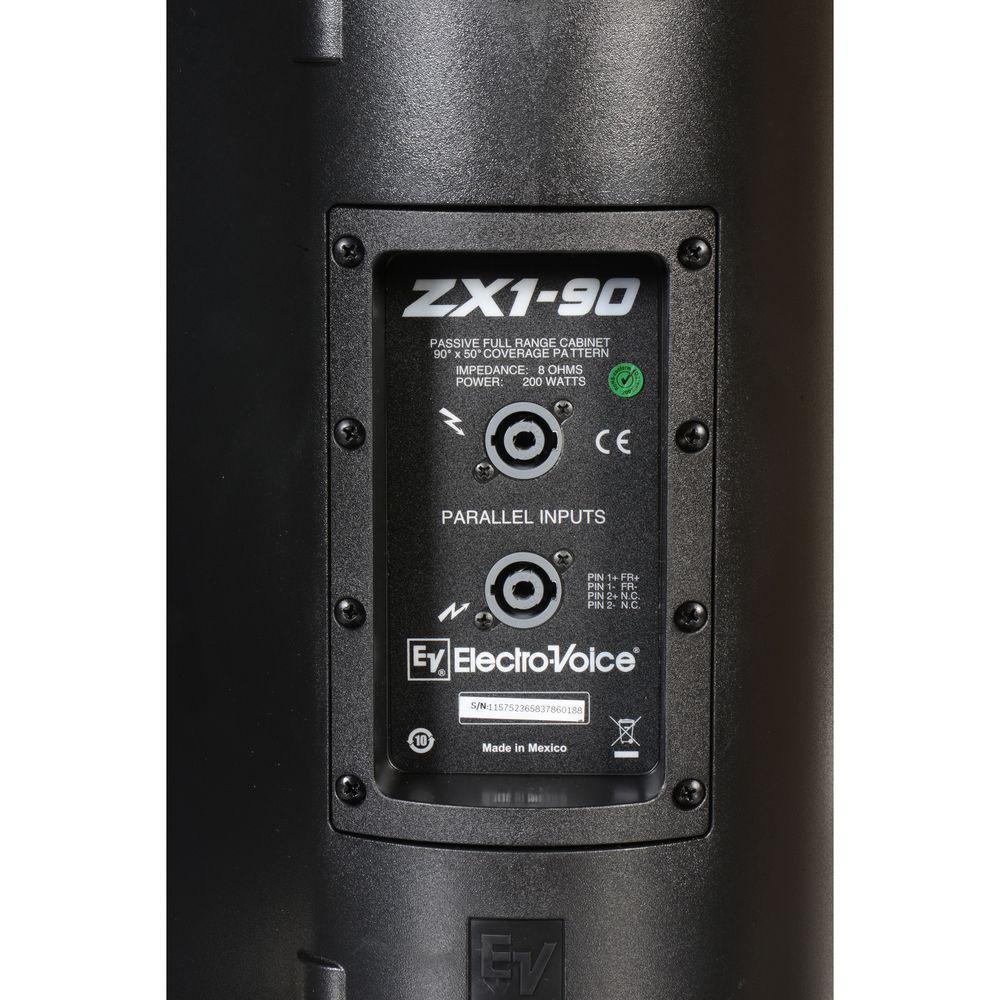

800 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 2.5 cm Tweeter | | LF Driver | 1 x 8" / 20.3 cm Woofer | | | | Frequency Response | 60 Hz to 20 kHz -3 dB | | Maximum SPL | 123 dB | | Speaker Sensitivity | 94 dB (90°) | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Metal Grille, Polymer | | Dimensions | 18.0 x 11.1 x 10.4" / 457.0 x 282.0 x 264.0 mm | | Weight | 18.5 lb / 8.4 kg | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 20.0 x 13.25 x 12.35" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
