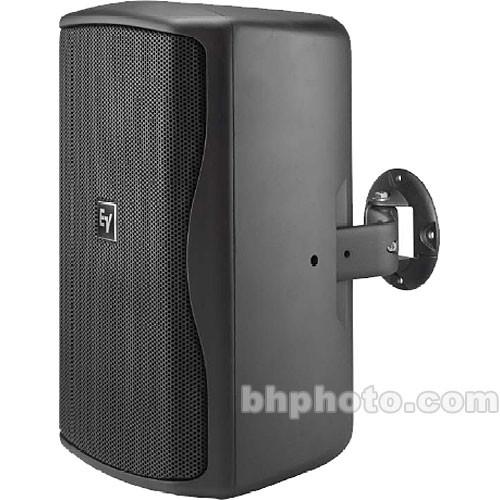

User Manual for Electro-Voice ZX1i-90 - 2-way 8" Indoor Outdoor Installation Speaker - Black Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZX1i-90 - 2-way 8" Indoor
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ZX1i-90 - 2-way 8" Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice ZX1i-90 is a passive, full-range, 2-way indoor/outdoor installation loudspeaker, with a durable all-weather enclosure and water-resistant steel grille, housing an 8" woofer and a 1" compression driver in a rotatable horn. The speaker features a snap-on surface mount and a coverage pattern suitable for long-throw and cluster install applications. - 2-way full-range indoor/outdoor installation loudspeaker with 200-watt continuous power handling
- Optimized for long-throw and cluster applications, extended frequency reproduction
- 1" compression driver in 90° x 50° rotatable horn, horizontal and vertical placement options
- 8" weatherized cone driver
- Integrated QuickSAM snap-in mounting bracket for simplified installation
- Weather-resistant polymer enclosure with multi-layer, water-resistant cloth-covered 18-gauge steel grille
UPC: 800549682480 In the Box Electro-Voice ZX1i-90 - 2-way 8" Indoor/Outdoor Installation Speaker - Black Integrated QuickSAM Mounting Bracket 5 Year Warranty User Manual PDF 2.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZX1i-90 - 2-way 8" Indoor Outdoor Installation Speaker - Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZX1i-90 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 200 W RMS
400 W Program
800 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 2.5 cm Tweeter | | LF Driver | 1 x 8" / 20.3 cm Woofer | | | | Frequency Response | 60 Hz to 20 kHz -3 dB | | Maximum SPL | 123 dB | | Speaker Sensitivity | 94 dB (90°) | | | | Audio I/O | 1 x Euroblock 4-Pin | | | | Construction Material | Metal Grille, Polymer | | Dimensions | 17.8 x 11.1 x 10.3" / 451.0 x 282.0 x 263.0 mm | | Weight | 18.5 lb / 8.4 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 20.0 x 13.0 x 13.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
