User Manual for Electro-Voice ZX4 - 2-Way 15" Passive P.A. Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZX4 - 2-Way 15" Passive
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZX4 - 2-Way 15" Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

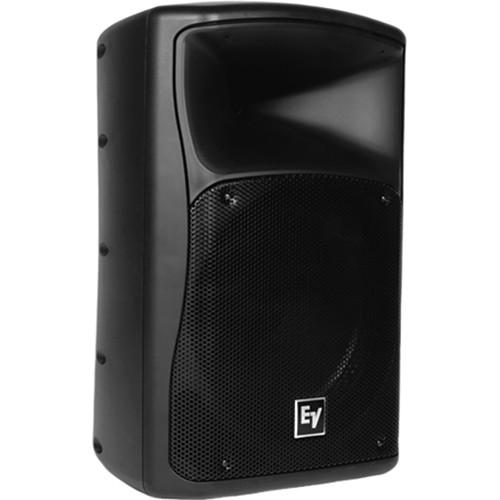

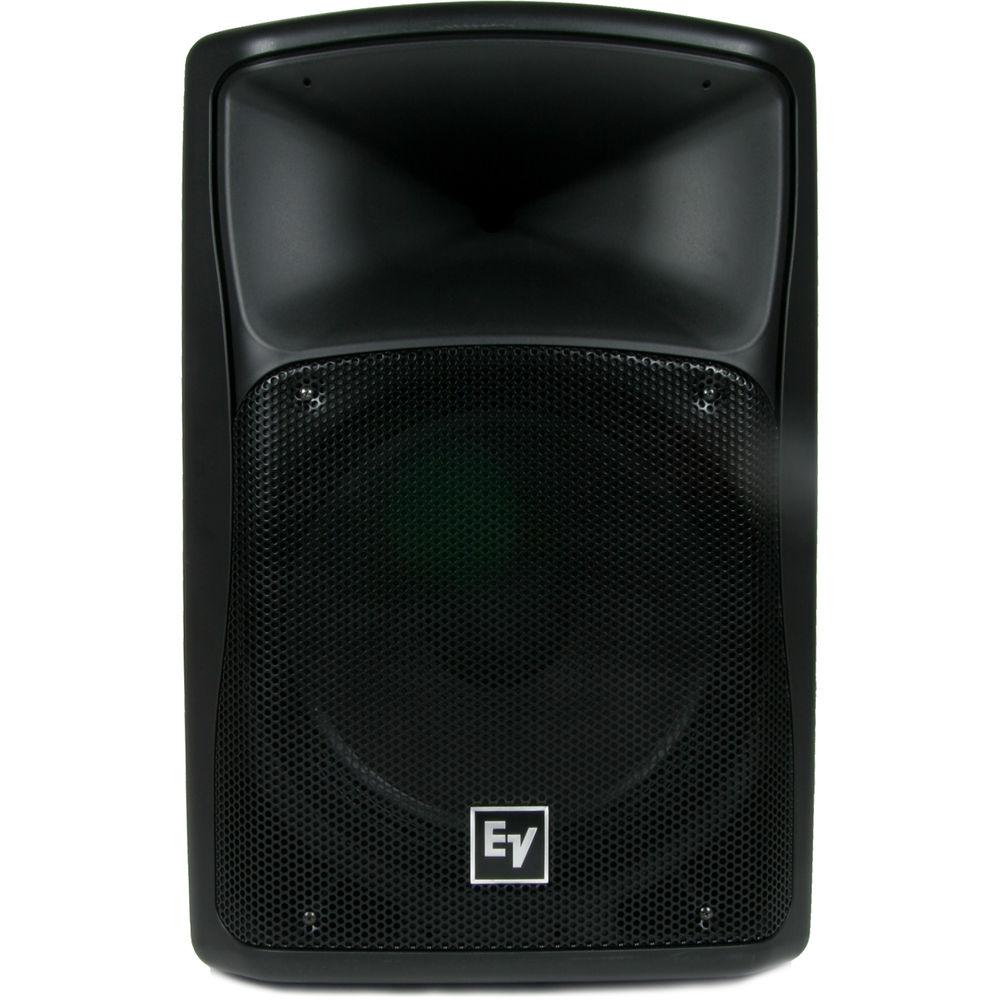

Product description The Electro-Voice ZX4 is a lightweight, 400-watt passive P.A. speaker for DJ, Clubdate and Meeting Room applications. The speaker is equipped with a 15" woofer and a 1" compression driver loaded into a wide-coverage horn. The high-tech, injection-molded polypropylene cabinet contains a set of retractable feet for use as a stage monitor, and a recessed integral speaker pole mount. - 2-way 400-watt full-range passive P.A. speaker for DJ, Clubdate and Meeting Hall applications
- 15" woofer, 1" titanium compression driver loaded into 90° x 50° wide-coverage, high dispersion horn
- Horn optimized for intelligibility and vocal clarity, woofer delivers usable bass with good definition down to 42 Hz

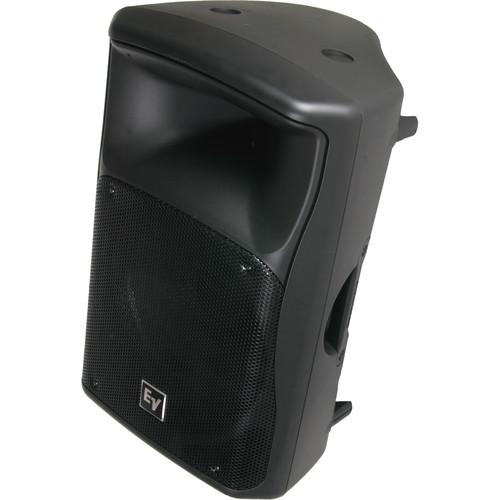

- Retractable monitor feet allow for use as stage monitor with 45° or 55° selectable placement angles

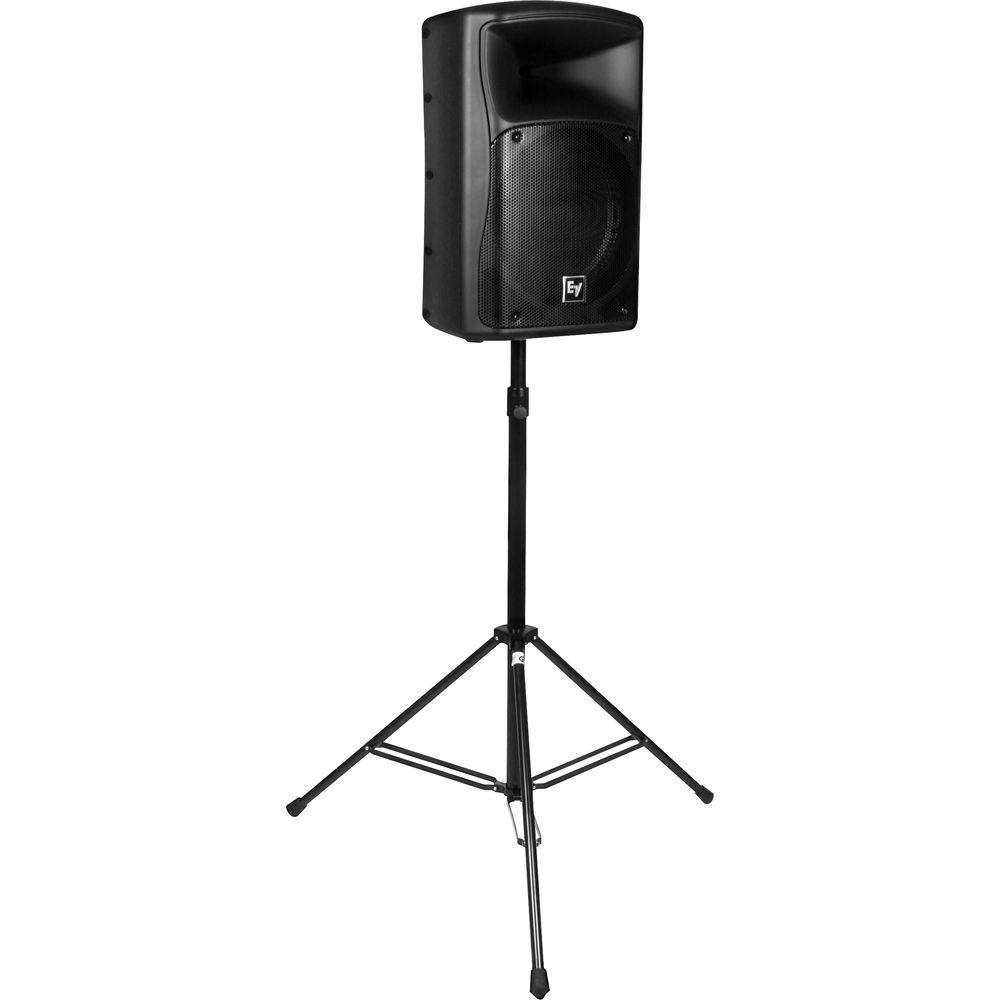

- Durable injection-molded polypropylene enclosure with integral recessed pole mount
UPC: 800549682756 In the Box Electro-Voice ZX4 - 2-Way 15" Passive P.A. Loudspeaker 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZX4 - 2-Way 15" Passive P.A. Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Zx4 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 400 W RMS
1600 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 51 mm Horn-Loaded Titanium Compression Driver | | LF Driver | 1 x 15" / 38 cm Woofer | | | | Frequency Response | 60 Hz to 20 kHz -3 dB | | Maximum SPL | 132 dB | | Speaker Sensitivity | 100 dB | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 27.3 x 17.6 x 16.2" / 692.0 x 446.0 x 411.0 mm | | Weight | 44.5 lb / 20.2 kg | | | | Package Weight | 49.4 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 18.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
