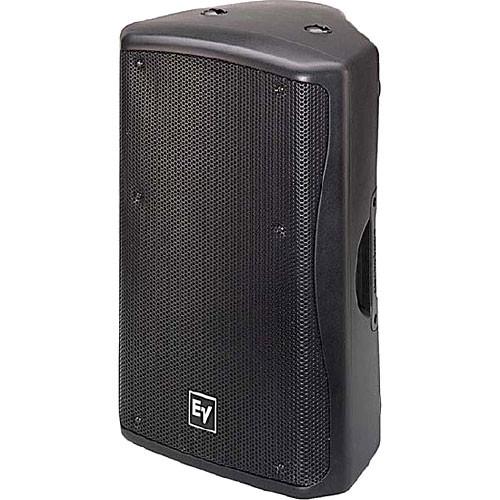

User Manual for Electro-Voice Zx5-60 - 2-Way 15" P.A. Suspension Loudspeaker - Black Click to enlarge the picture
Contents of the user manual for the Electro-Voice Zx5-60 - 2-Way 15" P.A.
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice Zx5-60 - 2-Way 15" P.A. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice Zx5-60 is a 2-way P.A. suspension loudspeaker with a 600-watt continuous power handling capacity and a 60° x 60° coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The Zx5-60 cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Aunchor Plate attachment points on the bottom of the speaker. - 2-way 600-watt suspension P.A. speaker for log-throw and cluster applications
- High output, 132dB SPL capacity
- Adjustable feet allow 45° or 55° speaker placement angle for use as stage monitor
- 15" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
- 60° x 60° coverage angle, for long-throw and cluster applications
- Rugged, high-tech polypropylene enclosure
- 3 suspension Anchor Plates, 10 M8 insert suspension points
UPC: 800549682404 In the Box Electro-Voice Zx5-60 - 2-Way 15" P.A. Suspension Loudspeaker - Black 3 x Anchor Plates 10 x M8 Metric Suspension Insert Points 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Zx5-60 - 2-Way 15" P.A. Suspension Loudspeaker - Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Zx5-60 Specs | Configuration | Passive 2-Way | Total Power Capacity | 600 W RMS 2400 W Peak | System Impedance | 8 Ohms | | HF Driver | 1 x 1" / 51 mm Titanium Compression Driver | HF Voice Coil | 2" / 5 cm | LF Driver | 1 x 15" / 387 mm Woofer | Magnet | HF: Neodymium | | Frequency Response | 58 Hz to 18 kHz | Maximum SPL | 132 dB | Speaker Sensitivity | 98 dB | | Construction Material | Metal Grille, Polypropylene | Dimensions | 27.3 x 17.6 x 16.1" / 692.0 x 446.0 x 411.0 mm | Weight | 49 lb / 22.2 kg | | Package Weight | 56.0 lb | Box Dimensions (LxWxH) | 29.0 x 18.0 x 18.0" |
