User Manual for Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

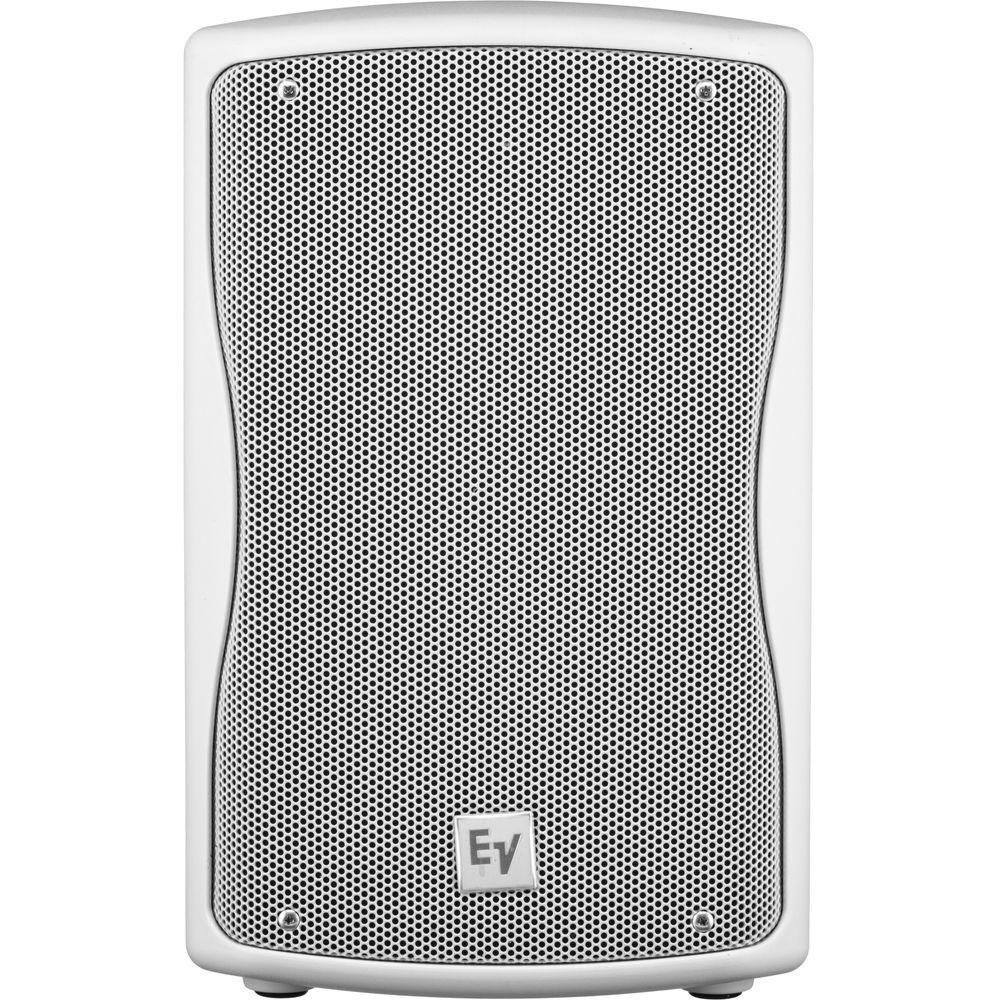

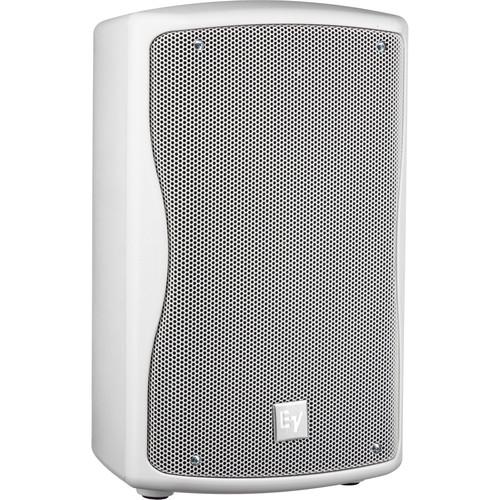

Product description The ZXA1 from Electro Voice is a compact and lightweight powered loudspeaker, ideal for use in clubs, houses of worship, and more. The cabinet houses an 8" high-output woofer and a 1" true compression tweeter to provide a wide frequency response. The internal 800W power amplifier delivers a high-energy performance with low distortion for crisp, clear audio. The speaker provides a 90 x 50° coverage pattern, and has a rotatable horn design for terrific flexibility.

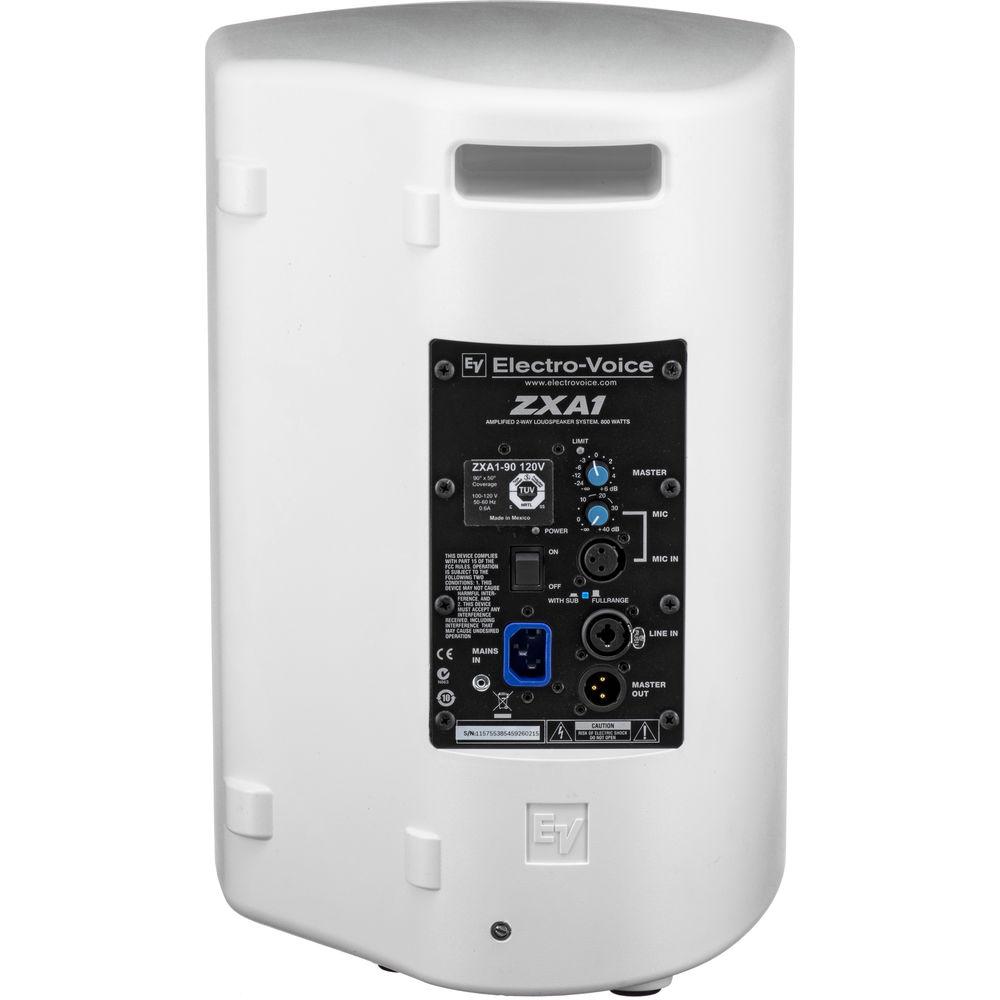

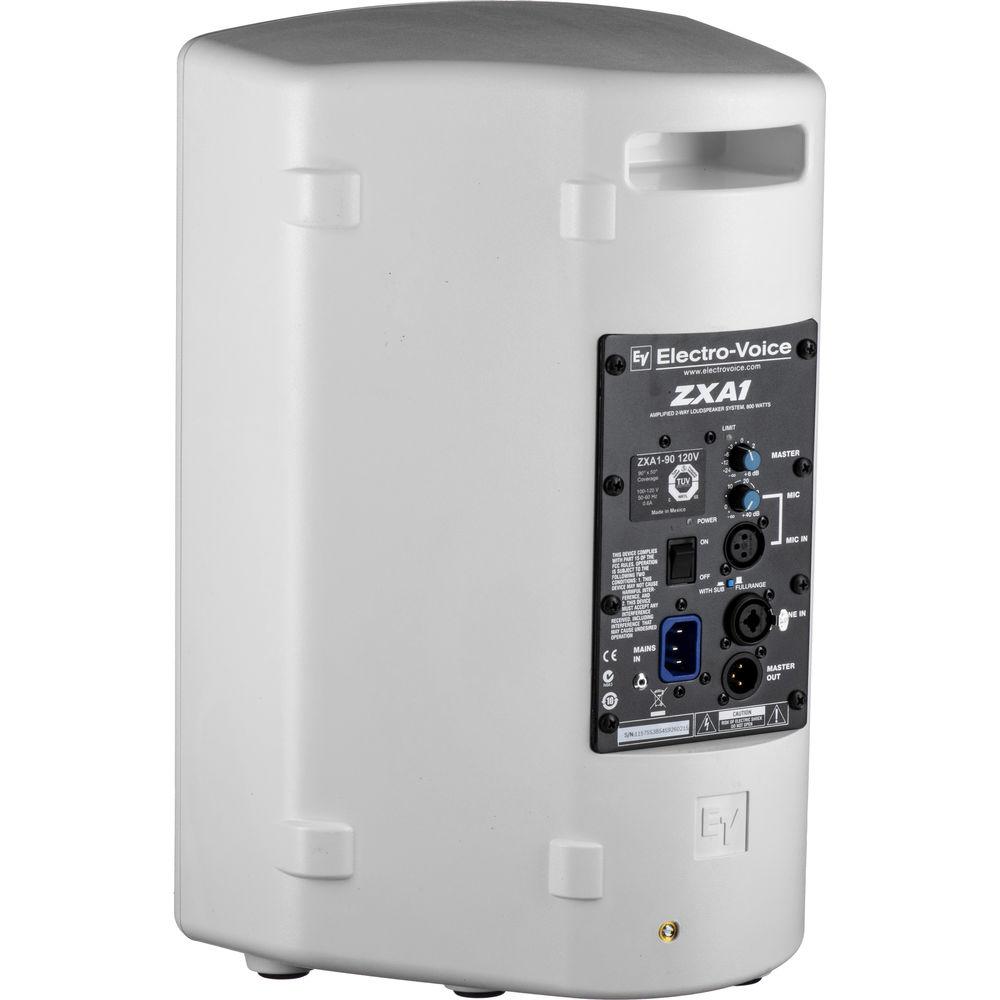

The rear panel has mic and line level inputs, allowing you to connect a wide variety of microphones, instruments, music players, mixers, and more. A selectable high-pass filter allows you to use the loudspeaker with a subwoofer for enhanced bass response. The speaker weighs under 20 pounds and has an integrated handle for easy mobility. A pole mount socket lets you mount the unit on a standard speaker pole. - Compact and lightweight with an integrated carrying handle for easy mobility
- Natural enclosure angle, ideal for stage monitoring
- 8" high-output woofer and 1" true compression tweeter provide a wide frequency response
- Internal 800W power amplifier delivers a high-energy performance with low distortion for crisp, clear audio
- Wide 90 x 50° coverage pattern with a rotatable horn design for terrific flexibility
- Mic and line level inputs allow you to connect a wide variety of microphones, instruments, music players, mixers, and more
- Selectable high-pass filter lets you use the loudspeaker with a subwoofer for enhanced bass response
- Pole mount socket lets you mount the unit on a standard speaker pole
UPC: 800549682794 In the Box Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeaker (White) 3-Year Limited Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZXA1 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 800 W | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | LF Driver | 1 x 8" / 203 mm Woofer | | | | Frequency Response | 48 Hz to 20 kHz -10 dB | | Maximum SPL | 123 dB | | | | Audio I/O | 1 x XLR Mic Input
1 x Combo XLR / 1/4" TRS Line Input
1 x XLR Output | | | | AC Power Connector | 1 x IEC | | | | Construction Material | Metal Grille, Polystyrene | | Dimensions | 18.0 x 11.1 x 10.4" / 457.0 x 282.0 x 264.0 mm | | Weight | 19 lb / 8.6 kg | | | | Package Weight | 23.3 lb | | Box Dimensions (LxWxH) | 18.7 x 12.8 x 12.1" |
