User Manual for Electro-Voice ZXA1 Kit with 2x Speakers, Stands, Covers, Cables, and Bag

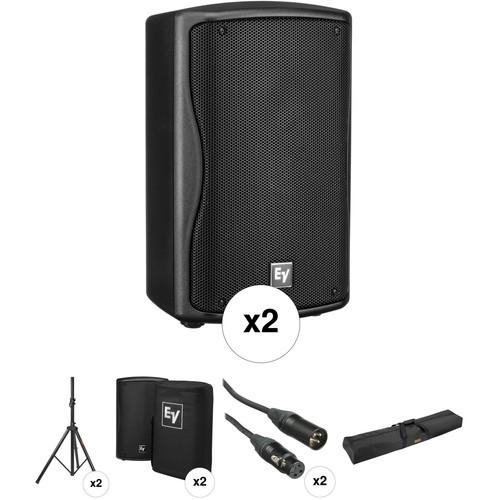

Click to enlarge the picture
Electro-Voice ZXA1 Kit with 2x Speakers, Stands, Covers, Cables, and Bag Contents of the user manual for the Electro-Voice ZXA1 Kit with 2x Speakers,
  • Product category: PA Speakers Electro-Voice
  • Brand: Electro-Voice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Electro-Voice PA Speakers

User manual for the Electro-Voice ZXA1 Kit with 2x Speakers, contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Electro-Voice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!



Product description

This B&H Kit combines two Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeakers with a pair of speaker stands, a pair of speaker covers, two 20' XLR cables, and a speaker stand bag to create the primary components of a stereo PA well suited for mobile DJs, bars, clubs, schools, houses of worship, public speaking events and more. Each ZXA1 provides 800W of amplification, which powers an 8" woofer and 1" titanium compression that combine to deliver 123 dB of SPL with a frequency response of 48 Hz to 20 kHz. The speaker provides a 90 x 50° coverage pattern and has a rotatable horn design, allowing it to be used as a floor wedge monitor.

Each steel speaker stand is built for durability and features a telescoping center column with five height adjustments ranging from 46 to 76". The pair of speaker covers are custom designed to protect each ZXA1 from dust, dirt, and moisture, while two black, 20' XLR cables are designed to be extremely quiet and flexible for the most demanding live sound and performance applications. The speaker stand bag is a heavy-duty 600 denier nylon bag designed to carry two speaker stands.
  • 2 x Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeaker (Black) The ZXA1 from Electro Voice is a compact and lightweight powered loudspeaker, ideal for use in clubs, houses of worship, and more. The cabinet houses an 8" high-output woofer and a 1" true compression tweeter to provide a wide frequency response. The internal 800W power amplifier delivers a high-energy performance with low distortion for crisp, clear audio. The speaker provides a 90 x 50° coverage pattern, and has a rotatable horn design for terrific flexibility.

    The rear panel has mic and line level inputs, allowing you to connect a wide variety of microphones, instruments, music players, mixers, and more. A selectable high-pass filter allows you to use the loudspeaker with a subwoofer for enhanced bass response. The speaker weighs under 20 pounds and has an integrated handle for easy mobility. A pole mount socket lets you mount the unit on a standard speaker pole.
    • Compact and lightweight with an integrated carrying handle for easy mobility
    • Natural enclosure angle, ideal for stage monitoring
    • 8" high-output woofer and 1" true compression tweeter provide a wide frequency response
    • Internal 800W power amplifier delivers a high-energy performance with low distortion for crisp, clear audio
    • Wide 90 x 50° coverage pattern with a rotatable horn design for terrific flexibility
    • Mic and line level inputs allow you to connect a wide variety of microphones, instruments, music players, mixers, and more
    • Selectable high-pass filter lets you use the loudspeaker with a subwoofer for enhanced bass response
    • Pole mount socket lets you mount the unit on a standard speaker pole
    UPC: 800549682787
  • 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
  • 2 x Electro-Voice Cover For ZX1 & ZXA1 Loudspeakers The Cover For ZX1 & ZXA1 Loudspeakers from Electro-Voice is a custom designed pull-over cover that protects your ZX1 & ZXA1 Loudspeakers at all times from dust, dirt, and moisture, both on the road, and when it's in storage. UPC: 800549669566
  • 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

    Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
    • 95% dual-spiral shielding offers protection from EMI and RFI noise
    • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
    • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
    • Cotton yarn reduces electrostatic and microphonic noise
    • All solder points shrink-wrapped for protection
    • Neutrik XX silver connectors offer high conductivity
    • Caged type contact and improved ground contact
    UPC: 847628558304
  • Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
      Durable Protection
    • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
      Reliable and Stylish
    • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
      Easy Transport
    • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
    UPC: 847628002432
In the Box
  • 2 x ZXA1 8" 2-Way 800W Compact Powered Loudspeaker (Black) wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • 3-Year Limited Warranty
  • 2 x Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
  • 2 x Cover For ZX1 & ZXA1 Loudspeakers
  • 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
  • Auray - Speaker Stand Bag 51" Interior (Black)
Table of Contents




Upload User Manual

Have you got an user manual for the Electro-Voice ZXA1 Kit with 2x Speakers, Stands, Covers, Cables, and Bag in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 2 x Electro-Voice ZXA1 8" 2-Way 800W Compact Powered Loudspeaker (Black)
    Configuration Active 2-Way
    Total Power Capacity 800 W
    HF Driver 1 x 1" / 25 mm Compression Driver
    LF Driver 1 x 8" / 203 mm Woofer
    Frequency Response 48 Hz to 20 kHz -10 dB
    Maximum SPL 123 dB
    Audio I/O 1 x XLR Mic Input
    1 x Combo XLR / 1/4" TRS Line Input
    1 x XLR Output
    Crossover 1.8 kHz
    AC Power Connector 1 x IEC
    Construction Material Metal Grille, Polystyrene
    Dimensions 18.0 x 11.1 x 10.4" / 457.0 x 282.0 x 264.0 mm
    Weight 19 lb / 8.6 kg
    Box Dimensions (LxWxH) 19.0 x 13.1 x 12.0"
  • 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
    Type Speaker Stand
    Mount Size 1-3/8"
    Height Adjustment Range 50 to 75" / 1.27 to 1.9 m
    Material of Construction Steel
    Base Spread 54" / 137 cm
    Weight 6.2 lb / 2.8 kg
    Box Dimensions (LxWxH) 40.0 x 5.0 x 5.0"
  • 2 x Electro-Voice Cover For ZX1 & ZXA1 Loudspeakers
    Box Dimensions (LxWxH) 17.5 x 17.0 x 2.0"
  • 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
    Connector 1 3-Pin XLR Male
    Connector 2 3-Pin XLR Female
    Cable Length 20' / 6.1 m
    Shielding 95% Spiral
    Wire Gauge 24 AWG
    Contact Plating Silver
    Box Dimensions (LxWxH) 8.6 x 7.0 x 0.4"
  • Auray Speaker Stand Bag 51" Interior (Black)
    Material Nylon
    Type of Closure Zipper
    Exterior Dimensions (H × W × D) 52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
    Carrying/Transport Options Dual carry handles with padded touch-fastener wrap
    Weight 1.2 lb / 0.5 kg
    Box Dimensions (LxWxH) 16.6 x 10.8 x 2.2"
