User Manual for Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

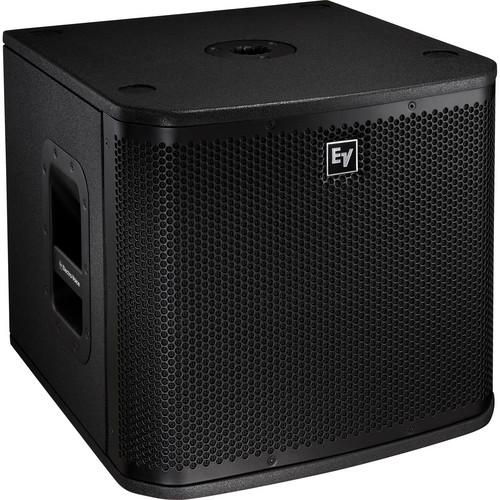

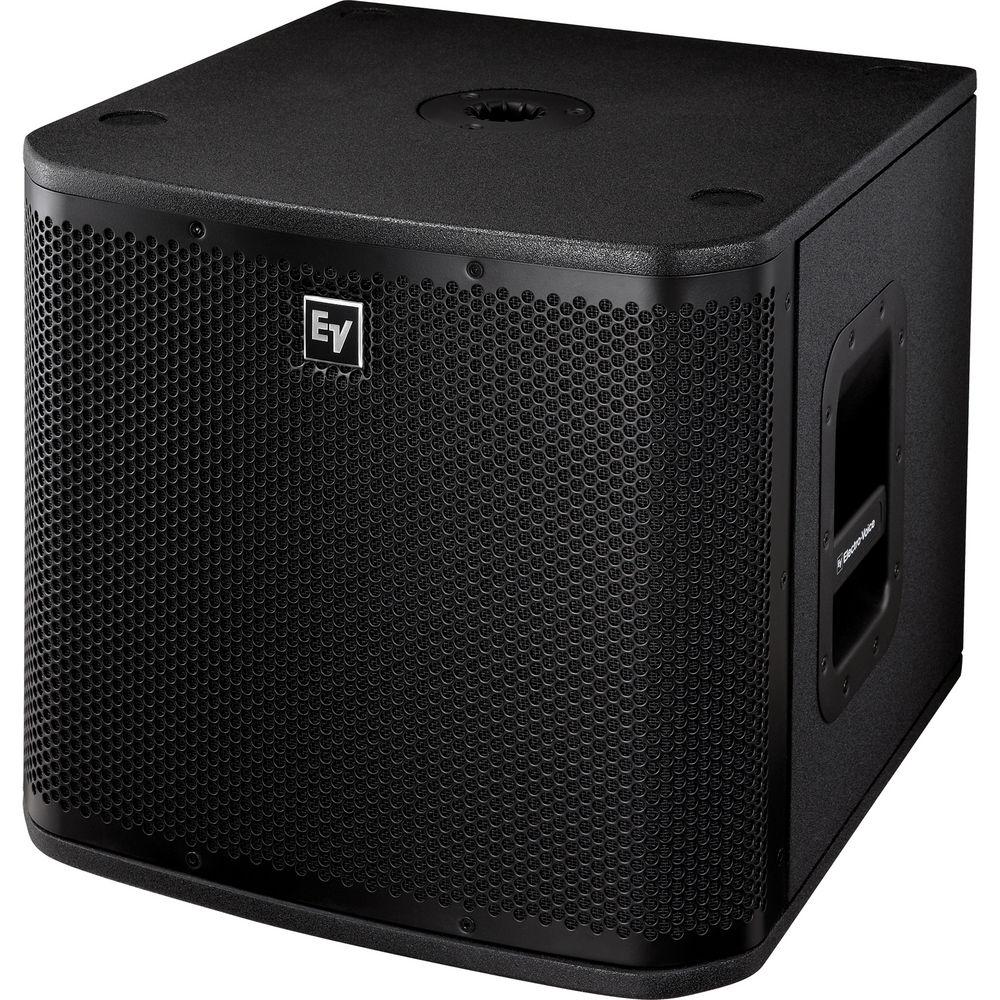

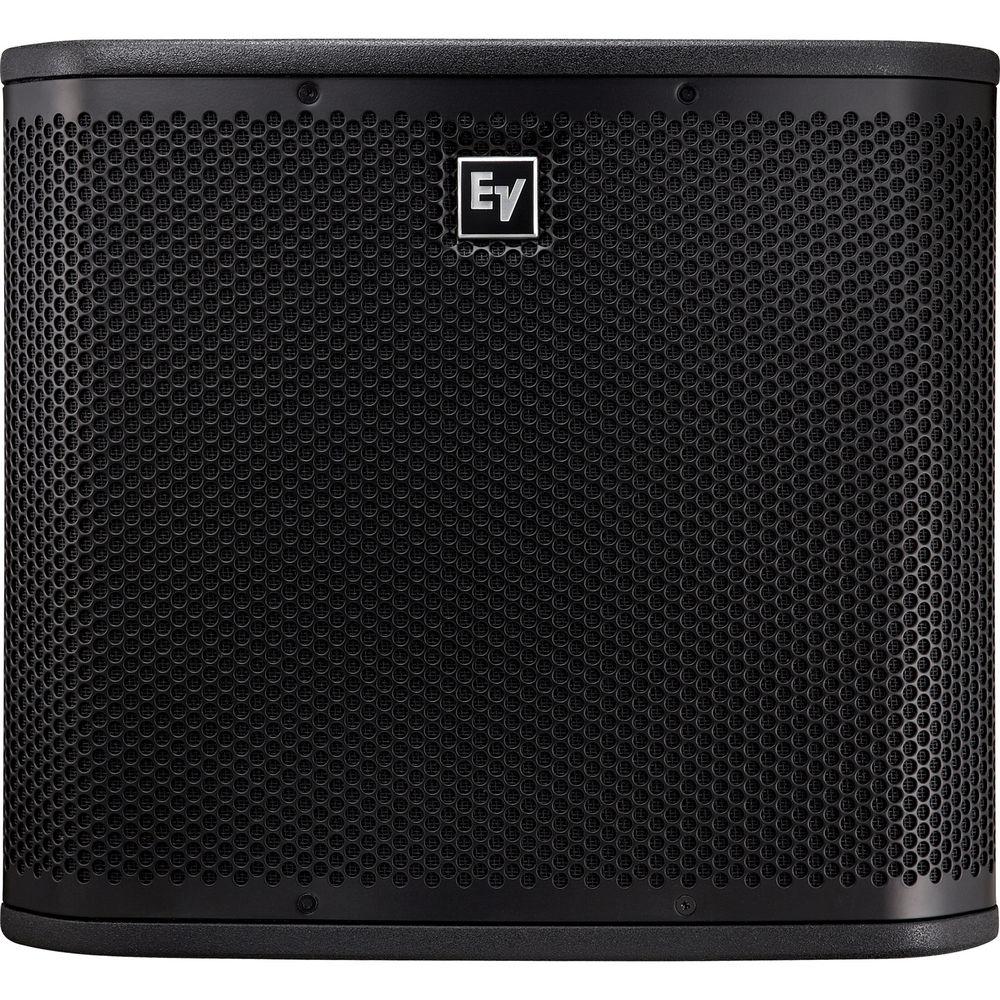

Product description The ZXA1-Sub 12" 700W Active Subwoofer from Electro-Voice is a compact and powerful subwoofer that's ideal for use alongside the ZXA1 full-range speaker. The subwoofer has a sturdy 15mm 9-ply wood enclosure that is braced internally for lasting durability. The 12" EVS-12S woofer is powered by a 700W Class-D amplifier for a strong, clear performance with deep bass and minimal distortion.

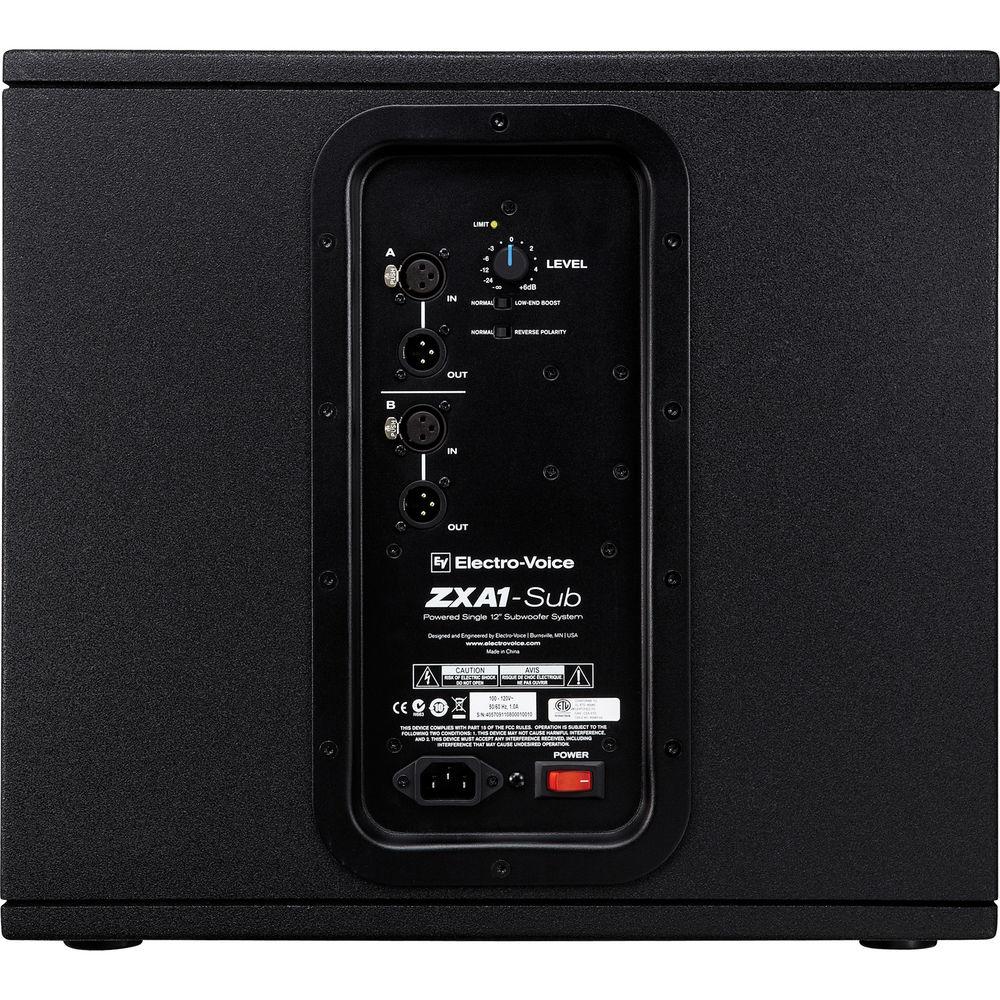

The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems. A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems. The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer. An integrated handle lets you carry the sub easily from one venue to another. - Ideal for use alongside the ZXA1 and other full-range speakers
- The sturdy 15mm 9-ply wood enclosure is braced internally for lasting durability. The black textured paint finish ensures that the sub is not visually intrusive
- The 12" EVS-12S woofer delivers low bass frequencies and SPL levels up to 126dB
- The 700W Class-D amplifier provides a strong, clear performance with minimal distortion
- The rear panel has stereo XLR input and output connectors for wide compatibility with a variety of professional sound systems
- A selectable 100Hz high-pass filter is also provided for additional flexibility with full-range sound systems
- The sub has a standard 35mm pole socket that allows you to mount a speaker on top of the subwoofer
- An integrated handle lets you carry the sub easily from one venue to another
UPC: 800549638449 In the Box Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer Power Cord 1-Year Limited Warranty User Manual PDF 3.4mbfadstdyebtwfuv Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZXA1-Sub 12" 700W Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZxA1-Sub Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 700 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 12" / 304.8 mm Woofer | | | | Frequency Response | 44 Hz to 116 Hz | | Maximum SPL | 126 dB (Peak) | | | | Audio I/O | 2 x XLR Input
2 x XLR Output | | | | AC Input Power | 90 to 132 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Current Consumption | 1 A (1/8 Power) | | | | Construction Material | Plywood | | Weight | 46 lb / 20.9 kg | | | | Package Weight | 59.1 lb | | Box Dimensions (LxWxH) | 22.3 x 19.4 x 17.9" |
