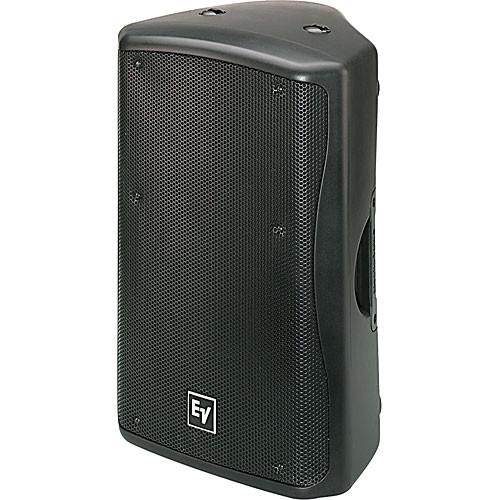

User Manual for Electro-Voice ZXA5-60ZB Powered Loudspeaker 1000W LF, 250W HF , Click to enlarge the picture
Contents of the user manual for the Electro-Voice ZXA5-60ZB Powered Loudspeaker 1000W LF,
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice ZXA5-60ZB Powered Loudspeaker 1000W LF, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The ZXA5-60ZB (Black) from Electro-Voice is a bi-amplified active loudspeaker with 1000W for its 15" LF Transducer and 250W for its ND2 2" Voice Coil. Besides its unparallelled power-to-weight ratio, the ZXA5-60ZB disperses sound at 60x60° coverage for long throw and cluster applications. A selectable 100 Hz high-pass filter is available for using this speaker with subwoofers.
The high-tech, high-impact polypropylene enclosure, featuring an all-weather, water resistant design, houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The black cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker. - Bi-amplified with 1000W for the LF and 250W for the HF
- High output, 133 dB SPL capacity
- Adjustable feet allow 45 or 55° speaker placement angle for use as stage monitor
- 15" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
- 60x60° coverage for long throw and cluster applications
- Rugged, high-tech polypropylene enclosure
- 3 suspension Anchor Plates, 10 M8 insert suspension points
- 100 Hz selectable high-pass filter for use with subwoofers
UPC: 800549682770 In the Box Electro-Voice ZXA5-60ZB Powered Loudspeaker 1000W LF, 250W HF (Black), (60 x 60°) 15' PowerCon AC Cable 1 3/8" Stand Mount Adapter 3 x Anchor Plates 10 x M8 Metric Suspension Insert Points Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZXA5-60ZB Powered Loudspeaker 1000W LF, 250W HF , in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZxA5-60 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1250 W | | Amplifier Power Rating | LF:
1000 W
HF:
250 W | | | | HF Driver | 1 x Compression Driver with 1" / 25.4 mm Throat | | LF Driver | 1 x 12" / 305 mm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Response | 58 Hz to 18 kHz -3 dB
50 Hz to 20 kHz -10 dB | | Maximum SPL | 133 dB | | | | Audio I/O | Combo XLR / 1/4" TRS Input | | | | Construction Material | Polypropylene | | Dimensions | 27.3 x 17.6 x 16.2" / 692.0 x 446.0 x 411.0 mm | | Weight | 50.5 lb / 22.9 kg | | | | Package Weight | 61.8 lb | | Box Dimensions (LxWxH) | 28.5 x 18.5 x 18.0" |
