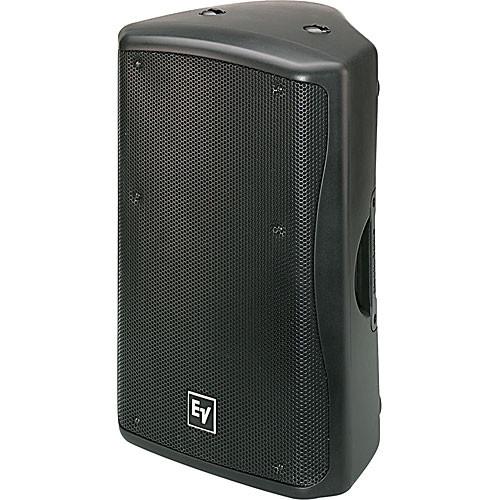

Product description The ZXA5-90ZB (Black) from Electro-Voice is a bi-amplified active loudspeaker with 1000W for its 15" LF Transducer and 250W for its ND2 2" Voice Coil. Besides its unparallelled power-to-weight ratio, the ZXA5-90ZB disperses sound at 90x50° for wider coverage or short distances. A selectable 100 Hz high-pass filter is available for using this speaker with subwoofers.
The high-tech, high-impact polypropylene enclosure, featuring an all-weather, water resistant design, houses a 15" woofer and a 1" Neodymium compression driver with a large 2" voice-coil. The black cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker. - Bi-amplified with 1000W for the LF and 250W for the HF
- High output, 133 dB SPL capacity
- Adjustable feet allow 45 or 55° speaker placement angle for use as stage monitor
- 15" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
- 90x50° for wider coverage or short distances
- Rugged, high-tech polypropylene enclosure
- 3 suspension Anchor Plates, 10 M8 insert suspension points
- 100 Hz selectable high-pass filter for use with subwoofers
UPC: 800549682763 In the Box Electro-Voice ZXA5-90ZB Powered Loudspeaker 1000W LF, 250W HF (Black), (90 x 50°) 15' PowerCon AC Cable 1 3/8" Stand Mount Adapter 3 x Anchor Plates 10 x M8 Metric Suspension Insert Points Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ZXA5-90ZB Powered Loudspeaker 1000W LF, 250W HF , in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ZxA5-90 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1250 W | | Amplifier Power Rating | LF:
1000 W
HF:
250 W | | | | HF Driver | 1 x Compression Driver with 1" / 25.4 mm Throat | | LF Driver | 1 x 12" / 305 mm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Response | 58 Hz to 18 kHz -3 dB
50 Hz to 20 kHz -10 dB | | Maximum SPL | 133 dB | | | | Audio I/O | Combo XLR / 1/4" TRS Input | | | | Construction Material | Polypropylene | | Dimensions | 27.3 x 17.6 x 16.2" / 692.0 x 446.0 x 411.0 mm | | Weight | 50.5 lb / 22.9 kg | | | | Package Weight | 59.0 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 18.0" |
