Product description

New Products from Elektron for Rhythm and Synth Wizards! Read More

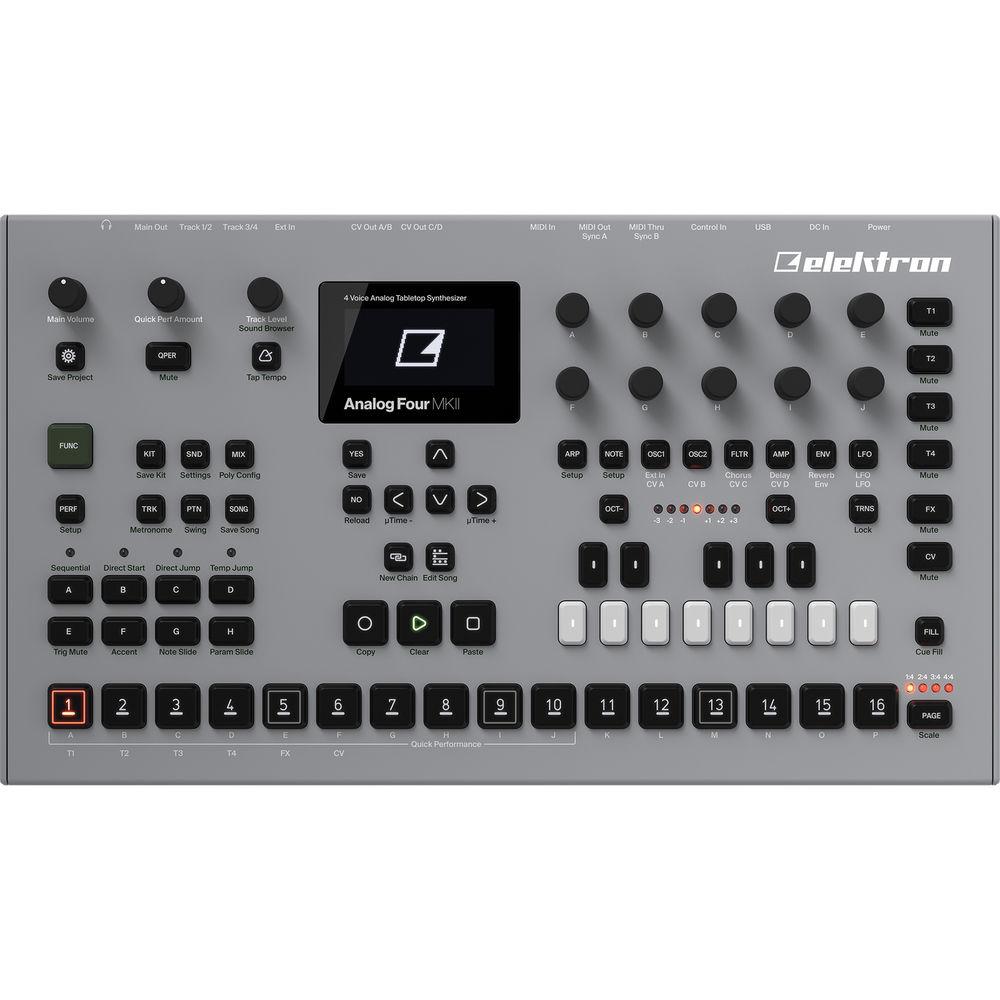

  • Quick Listen: Elektron Analog Four MKII
Building upon the success of the original, the Elektron Analog Four MKII features several enhancements including reworked analog circuitry, enhanced analog overdrive, an OLED screen, durable backlit buttons (rated for 50 million presses), precision encoders, quick performance controls, increased dedicated buttons, stereo audio output for each voice, expression/CV inputs, Overbridge software suite with higher bandwidth, and a premium cast-aluminum enclosure. The updated analog circuitry delivers very deep and defined bass, while the analog overdrive circuit offers greater bite and growl. The large OLED screen is crisp and clear, even in dimly lit conditions. Several buttons have been added to the interface to enable a faster workflow.

The Analog Four MKII is a four-voice, true analog synthesizer with digital control and effects. Other major features include full MIDI capability, an on-board step sequencer, six arpeggiators, and a performance mode that gives direct access to user-defined parameters. The Analog Four MKII features four separate synth tracks with two analog oscillators and two analog filters each. The filters include a 4-pole, low-pass ladder filter and a 2-pole, multi-mode filter that are designed for intuitively shaping sounds. To add more sonic crunch, the filter section also contains an analog overdrive circuit. The saturation can range from gentle warming to total destruction.

The built-in step sequencer includes four dedicated synth tracks, one FX track, and one CV/Gate track with up to 64 steps per pattern, as well as 6 arpeggiators. Other step-sequencer features include track transpose, swing, slide and accent functions. Overbridge is a software extension that allows for the use of Elektron's analog hardware as a plug-in within a DAW. Design sounds on-screen using an intuitive and dedicated plug-in, use the knobs and keys on the Analog instrument, or do both at the same time. Enjoy precise synchronization and automation. Use the strengths of the Elektron sequencer and the software sequencer to get the best of both worlds.
    What's New
    • Reworked analog circuitry delivering very deep and defined bass
    • Enhanced analog overdrive for more bite and growl
    • Crisp, large OLED screen providing optimal feedback in dimly lit environments
    • Durable backlit buttons. Rated for 50 million presses
    • Precise, hi-res encoders
    • Quick performance controls
    • Increased number of dedicated buttons enabling quicker workflow
    • Stereo audio outputs for each voice
    • Expression/CV inputs for external control of Analog Four MKII parameters
    • Overbridge with higher bandwidth
    • Premium cast-aluminum enclosure
    Highlights
    • 4 synth voices, each with:
      • Fully analog signal path
      • 2 × analog oscillator
      • 2 × sub-oscillator
      • 1 × noise generator
      • 1 × 4-pole analog low-pass ladder filter
      • 1 × 2-pole analog multi-mode filter
      • 1 × analog overdrive circuit
      • 2 × assignable LFO
      • 1 × amp envelope
      • 2 × assignable envelope
    • Up to 4 notes of polyphony
    • Up to 4-part multitimbrality
    • Up to 4-note unison playback
    • Chorus, Delay, and Reverb send FX
    • Quick Performance controls
    • Live-friendly Elektron sequencer
    • CV/Gate sequencing

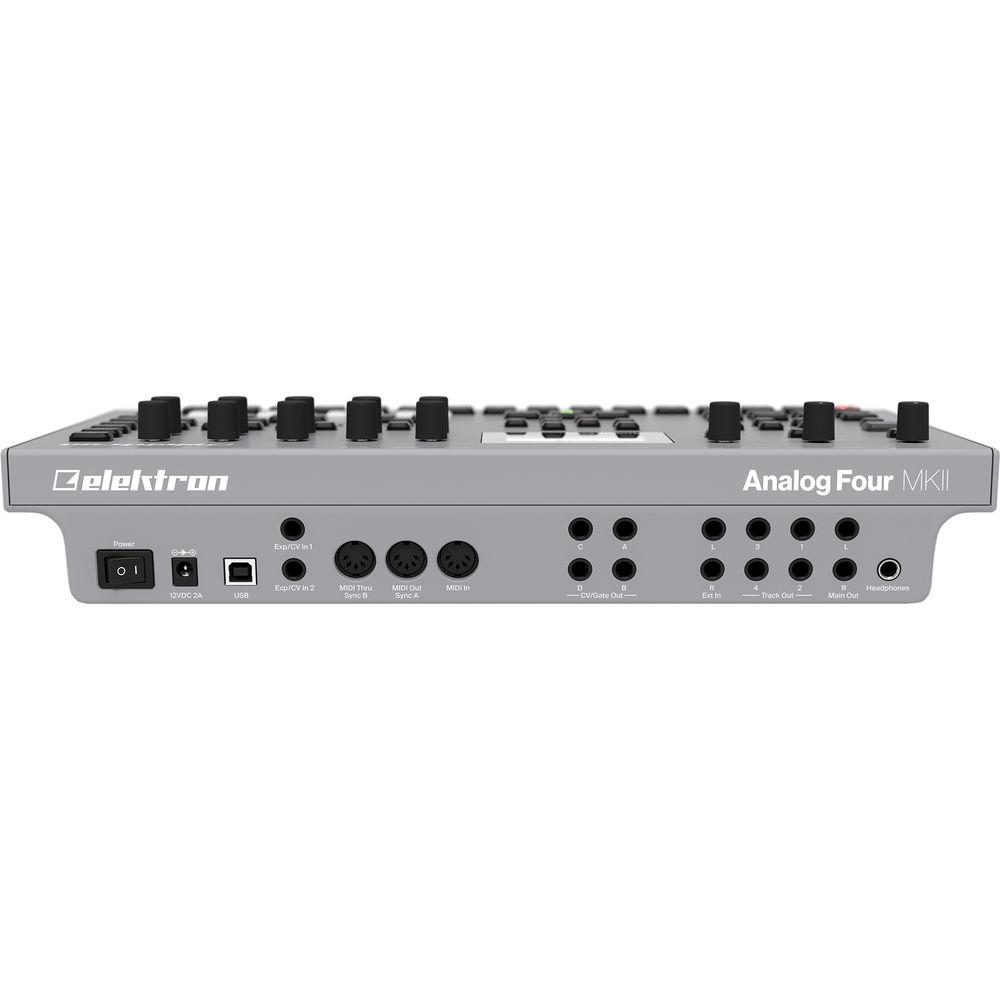

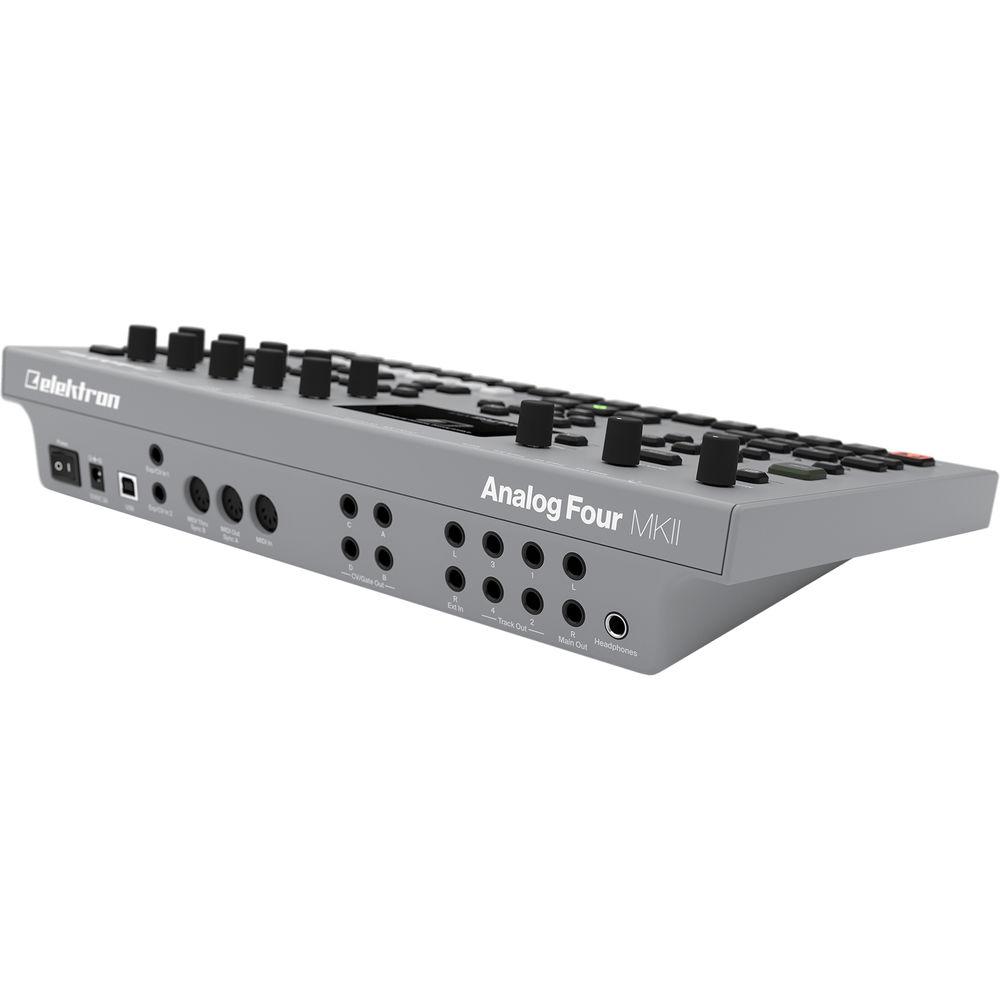

    • Connectors
      • 1 × 1/4″ headphone output
      • 2 × 1/4″ impedance balanced main outputs
      • 4 × 1/4″ separate stereo voice outputs
      • 4 × 1/4” CV/Gate outputs
      • 2 × 1/4″ unbalanced external inputs
      • 2 × 1/4″ expression/CV inputs
      • 1 × USB 2.0 high-speed port
      • MIDI In/Out/Thru ports with DIN Sync out
    • Crisp 128 × 64 OLED screen
    • Precise hi-res encoders
    • Durable backlit buttons
    • Fully compatible with Analog Four MKI projects/data
    Overbridge
  • Overbridge is a software suite from Elektron, offering powerful tools when using Analog Four MKII with computers
    • MIDI over USB
    • Analog Four MKII sequencer/DAW sync
    • Computer screen visualization of Analog Four MKII parameters
    • Audio streaming of main bus over USB (time limited sessions)
    • Fully integrate Analog Four MKII with DAW environments
    • Use Analog Four MKII as a 2-in/2-out sound card (CoreAudio/ASIO/WDM)
    • Control Analog Four MKII with a dedicated VST/AU plugin interface
    • Stream all 4 internal voices, external inputs, and main bus to separate DAW tracks (24-bit/48 kHz)
    • Recall all Analog Four MKII settings when loading a DAW project
In the Box Elektron Analog Four MKII Tabletop Analog Synthesizer
  • Power Adapter
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elektron Analog Four MKII Tabletop Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elektron Analog Four MKII Specs

    Sequencer 4 synth tracks
    1 FX track
    1 CV/Gate track
    128 patterns
    Up to 64 steps per pattern
    128 Sounds
    128 Kits
    16 Songs
    6× arpeggiators
    Individual track lengths
    Swing, slide, and accent functions
    Track transpose
    Micro timing
    Parameter locks
    Live friendly Performance mode
    Sound-per-step change
    Instant Pattern, Kit, and Sound reload
    Full real-time control
    Full MIDI support
    Effect Types Wideshift Chorus
    Saturator Delay
    Supervoid Reverb
    Synthesizer Fully analog signal path
    2 x analog oscillators
    Variable waveshape on all waveforms
    Oscillator AM and Sync modes
    2 x sub-oscillators
    1 x noise generator
    1 x 4-pole analog low-pass ladder filter
    1 x 2-pole analog multi-mode filter
    1 x analog overdrive circuit
    Filter feedback
    2 x assignable LFOs
    1 x dedicated vibrato LFO
    2 x dedicated waveshape LFOs
    1 x amp envelope
    2 x assignable envelopes
    2 x dedicated LFO fade envelopes
    1 x dedicated noise fade envelope
    1 x dedicated vibrato envelope
    1 x dedicated autobend envelope
    Outputs Headphone Output: 1 x 1/4" / 6.35 mm
    Impedance Balanced Main Output: 2 x 1/4" / 6.35 mm
    Separate Stereo Voice Output: 4 x 1/4" / 6.35 mm
    CV/Gate Output: 4 x 1/4" / 6.35 mm
    Inputs Unbalanced External Input: 2 x 1/4" / 6.35 mm
    Expression/CV Input: 2 x 1/4" / 6.35 mm
    Display 128 x 64-pixel OLED screen
    MIDI Connectors MIDI In/Out/Thru with DIN Sync out
    Levels Headphones Out Level: 19 dBu (55 Ohms)
    Main Outputs Level: 19 dBu
    Input Level: 19 dBu maximum
    Impedance Output Impedance: 440 Ohms unbalanced Audio Input Impedance: 9 kOhms
    Control Voltage Input Voltage on Tip: -5 to +5 V, supplies +5 V on ring (accepts CV, expression pedals)
    CV Outputs Voltage Range: -10 to +10 V
    Signal-to-Noise Ratio (SNR) Digital S/N Ratio: 102 dBFS (20 Hz to 20 kHz)
    A/D and D/A Conversion 48 kHz, 24-bit D/A and A/D converters
    USB Electrically isolated USB 2.0 port
    Upgradability Flash-EEPROM upgradable OS
    Enclosure Aluminum
    Power Supply Power Supply: 12 VDC, >2 A
    Unit Power Consumption: 15 W typical, 20 W maximum
    Dimensions (W x D x H) 15.2 x 8.9 x 3.3" / 386.1 x 224.8 x 83.8 mm (with knobs, jacks, and feet)
    Weight 5.3 lb / 2.4 kg
    Package Weight 7.55 lb
    Box Dimensions (LxWxH) 18.5 x 12.1 x 5.6"
