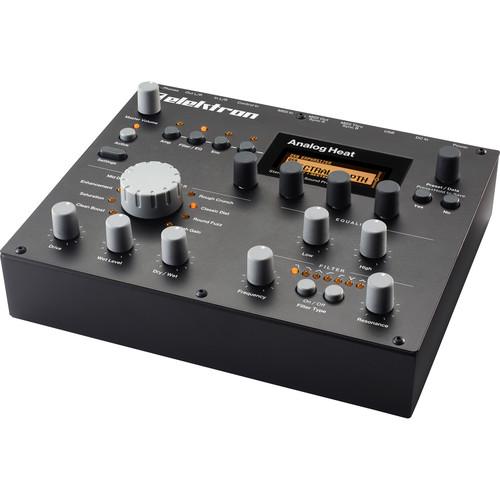

User Manual for Elektron Analog Heat - Tabletop Stereo Analog Sound Processor with DAW Integration Click to enlarge the picture
Contents of the user manual for the Elektron Analog Heat - Tabletop Stereo
- Product category: Synthesizer Modules Elektron
- Brand: Elektron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elektron Synthesizer Modules
 |
User manual for the Elektron Analog Heat - Tabletop Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elektron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elektron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elektron product will considerably shorten its lifespan!
|
Product description - Quick Listen: Elektron Analog Heat

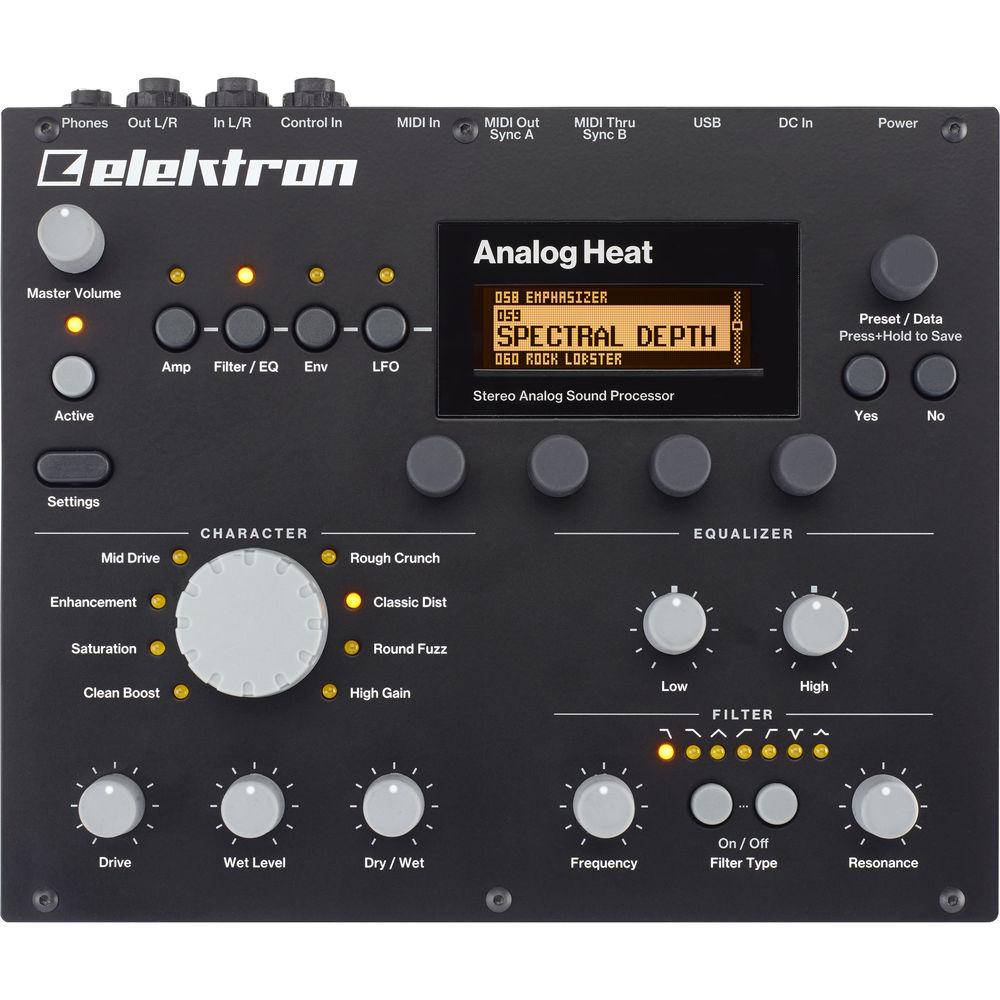

Analog Heat from elektron is a stereo analog sound processor with eight different stereo analog distortion circuits, seven analog multimode filters, and a 2-band adaptable stereo analog EQ with full DAW integration via Overbridge. The unit is well suited for producers, musicians, or anyone wishing to add sparkly brilliance or grimy roughness to any sound source including samplers, synths, or your stereo bus.
Analog Heat also includes an assignable envelope generator/follower and an assignable LFO, which further expands the sonic possibilities. The unit can also function as a 2-in/2-out sound card for producing on the go. Overbridge allows the Analog Heat to be used as a VST/AU effect plug-in. The unit features MIDI In, Out, and Thru with DIN sync and connects to your computer via high-speed USB 2.0. - Sound Better
- Take a sound, any sound. Send it through the Analog Heat, try out the eight different stereo analog distortion circuits, add stereo analog filtering and EQ, and hear inspirational things unfold. New life for your existing gear
- Plug-In Control
- Overbridge essentially allows your Analog Heat to be used as a VST/AU effect plugin. Connect the Analog Heat to your computer and conveniently smooth out the edges of all digital sounds. Incredibly useful for bringing your mixes to life
- Sound Card Operation
- One of the most prominent Analog Heat features: it can function as a 2-in/2-out sound card, even while processing DAW audio. Perfect for the traveling musician. Create as you go and make stellar, high-quality recordings wherever you may roam
In the Box Elektron Analog Heat - Tabletop Stereo Analog Sound Processor with DAW Integration Power Adapter Ableton Live 9 Lite License Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elektron Analog Heat - Tabletop Stereo Analog Sound Processor with DAW Integration in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElektron HFX1 Specs | Processing Types | Sound Processing
8 x Stereo analog distortion circuits
1 x Stereo analog multimode filter (7 filter types)
1 x 2-band adaptable stereo analog EQ
1 x Assignable envelope generator/envelope follower
1 x Assignable LFO | | Storage | 128 User presets | | Hardware | 122 x 32-pixel backlit LCD

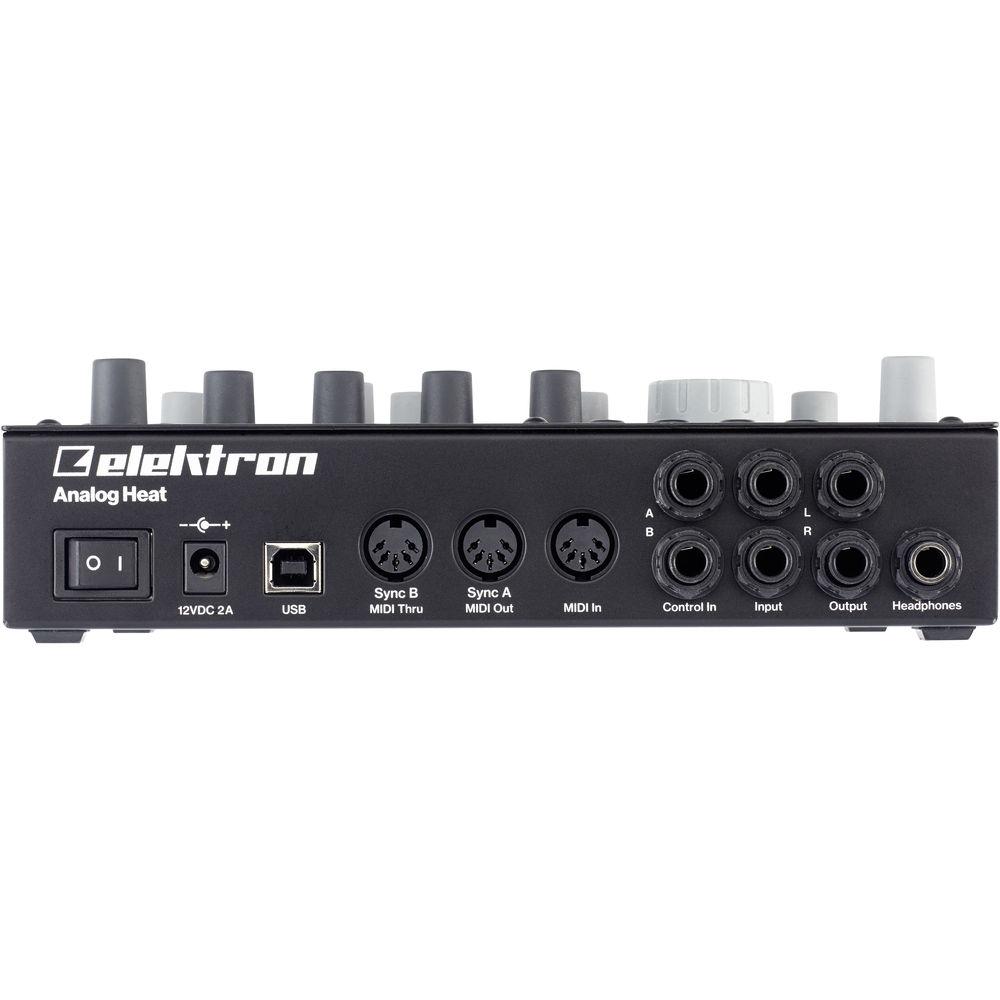

MIDI In/Out/Thru with DIN Sync out
2 x 1/4" / 6.35 mm balanced audio-out jacks
2 x 1/4" / 6.35 mm balanced audio-in jacks
1 x 1/4" / 6.35 mm stereo headphones jack
2 x 1/4" / 6.35 mm CV/Expression-pedal input jacks
48 kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
Hi-speed USB 2.0 port | | Audio Outputs | Headphones Out Level: +22 dBu peak
Headphones Output Impedance: 55 Ohms
Impedance Balanced Main Outputs Level: +22 dBu peak
Main Outputs Impedance: 440 Ohms unbalanced
Sound Card S/N Ratio: 111 dBFS (20 Hz - 20 kHz)
| | Audio Inputs | Balanced Audio Input Level: +22 dBu peak Audio Input Impedance: 39 kOhms Sound Card S/N Ratio: 112 dBFS (20 Hz - 20 kHz) | | Control Input | Input Level: -5 to +5 V (accepts CV, expression pedals, footswitches) | | Miscellaneous | Overbridge enabled | | Dimensions (W x D x H) | 8.5 x 7.2 x 2.5" / 215.9 x 182.9 x 63.5 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 11.6 x 11.4 x 4.9" |
