User Manual for Elektron Analog Rytm MKII 8-Voice Drum Machine and Sampler Click to enlarge the picture
Contents of the user manual for the Elektron Analog Rytm MKII 8-Voice Drum
- Product category: Drum Machines Elektron
- Brand: Elektron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elektron Drum Machines
 |
User manual for the Elektron Analog Rytm MKII 8-Voice Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elektron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elektron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elektron product will considerably shorten its lifespan!
|

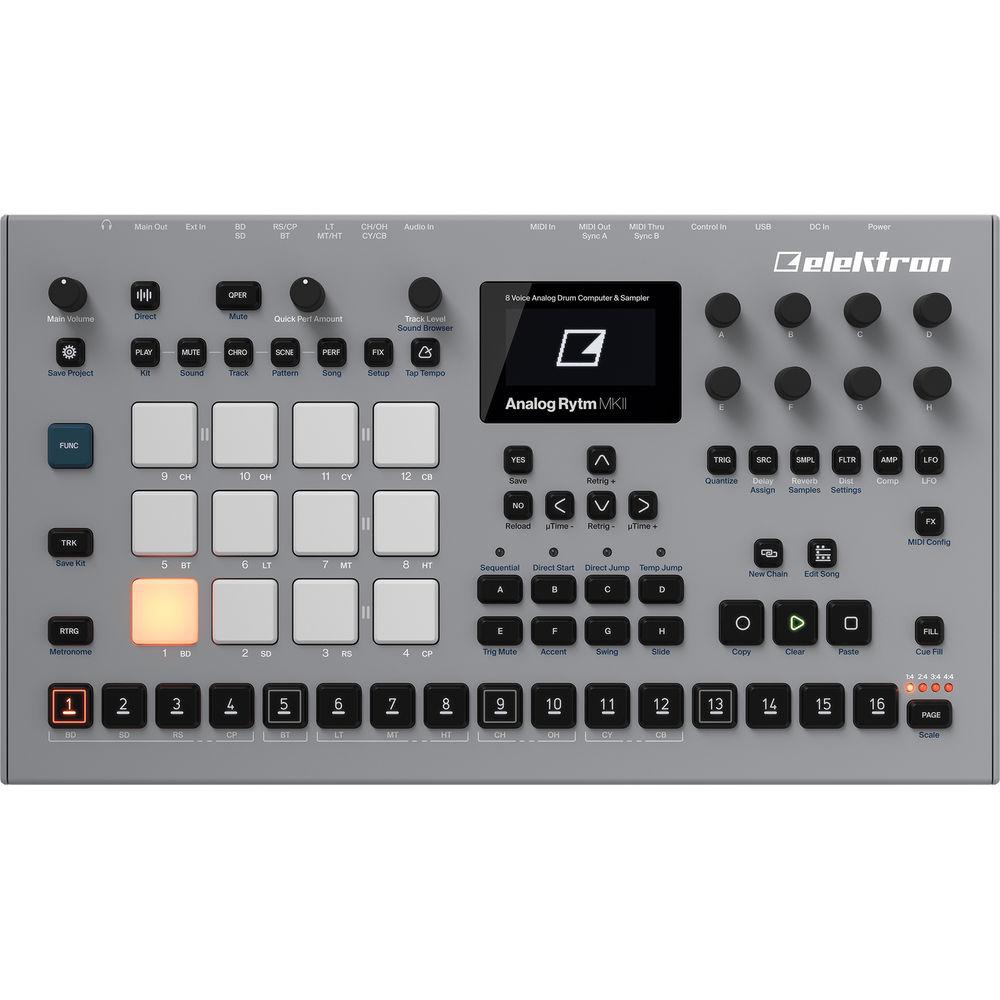

Product description New Products from Elektron for Rhythm and Synth Wizards! Read More Building upon the success of the original, the Elektron Analog Rytm MKII offers several enhancements including sampling capabilities, an OLED screen, durable backlit buttons (rated for 50 million presses), precision encoders, quick performance controls, larger pads, increased number of dedicated buttons, expression/CV inputs, balanced sampling inputs, Overbridge with higher bandwidth, and a premium cast-aluminum enclosure. With the balanced inputs, you can now sample directly into the instrument, while the OLED display offers crisp, clear viewing in low-light conditions. Additional buttons have been added to the interface to enable a faster workflow.
The Analog Rytm MKII is an eight-voice drum machine that marries the sounds and sensibilities of analog-generated sounds with digital samples. Each voice accesses dedicated analog circuits, fine-tuned for generating specific analog drum sounds. For additional flexibility, each voice can also be combined with customizable samples.
There are twelve analog percussion synthesis models that enable full compatibility with Overbridge. Multiple tools are available for shaping the sound, with every voice having its own analog multi-mode filter and analog distortion circuit. Reverb and delay send effects add additional shaping possibilities, and an analog compressor and analog distortion on the master channel apply the requisite vibe to the final output.
The twelve backlit velocity- and pressure-sensitive drum pads provide a quick way of creating rhythms without stifling spontaneity. The built-in step sequencer allows for manipulating sounds on a per-step basis. The combination of drum pads and step sequencing gives both instant results and the opportunity for detailed editing.
Overbridge is a software extension that allows for the use of Elektron's analog hardware as a plug-in within a DAW. Design sounds on-screen using an intuitive and dedicated plug-in, or use the knobs and keys on the Analog instrument, or do both at the same time. Enjoy precise synchronization and automation. Use the strengths of the Elektron sequencer and the software sequencer to get the best of both worlds. - What's New
-
- Sampling capability
- Crisp, large OLED screen providing optimal feedback in dimly lit environments
- Durable backlit buttons. Rated for 50 million presses
- Precise, hi-res encoders
- Quick performance controls
- Large pads for maximum playability
- Increased number of dedicated buttons enabling quicker workflow
- Expression/CV inputs for external control of Analog Rytm MKII parameters
- Balanced sampling inputs
- Overbridge with higher bandwidth
- Premium cast aluminum enclosure
- Highlights
-
- 8 drum voices, each with:
- 1 × selectable analog percussion sound generator
- 1 × sample playback engine
- 1 × analog multi-mode filter
- 1 × analog overdrive circuit
- 1 × filter envelope
- 1 × amp envelope
- 1 × assignable LFO
- Analog distortion and compressor master FX
- Delay and reverb send FX
- Sampling capability
- 1GB internal sample storage on +Drive
- Quick Performance controls
- Live-friendly Elektron sequencer

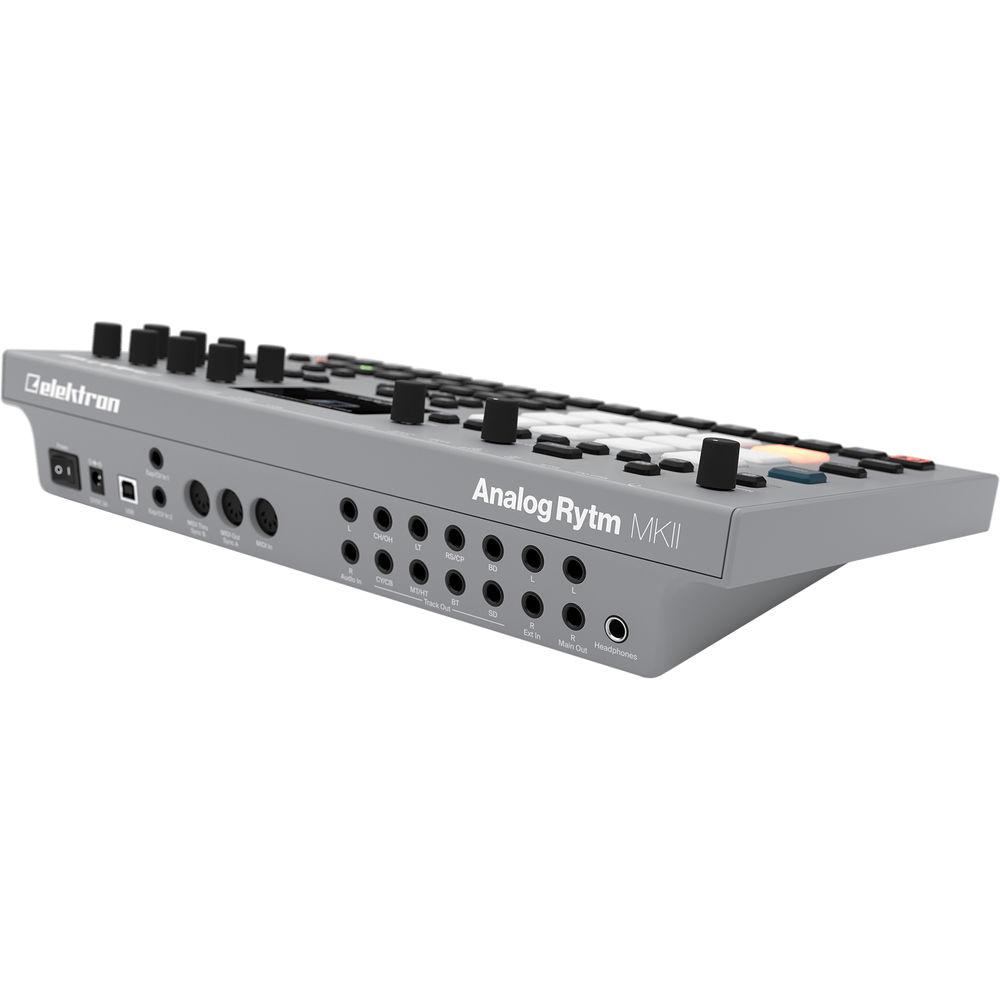

- Connectors
- 1 × ¼″ headphones output
- 2 × ¼″ impedance-balanced main output
- 8 × ¼″ impedance-balanced mono voice output
- 2 × ¼″ balanced sampling input
- 2 × ¼″ external inputs
- 2 × ¼″ expression/CV inputs
- 1 × USB 2.0 high-speed port
- MIDI In/Out/Thru ports with DIN sync out
- Crisp 128 x 64 OLED screen
- Precise hi-res encoders
- Durable backlit buttons
- Fully compatible with Analog Rytm MKI projects/data
- Overbridge
- Overbridge is a software suite from Elektron, offering powerful tools when using Analog Rytm MKII together with computers
- Overbridge Basic (Free)
- MIDI over USB
- Analog Rytm MKII sequencer/DAW sync
- Computer screen visualization of Analog Rytm MKII parameters
- Audio streaming of main bus over USB (time limited sessions)
- Overbridge Premium (Paid Upgrade)
- Fully integrate Analog RytmMKII with DAW environments
- Use Analog Rytm MKII as a 2 in/2 out sound card (CoreAudio/ASIO/WDM)
- Control Analog Rytm MKII with a dedicated VST/AU plug-in interface
- Stream all 4 internal voices, external inputs, and main bus to separate DAW tracks (24-bit/48 kHz)
- Recall all Analog Rytm MKII settings when loading a DAW project
In the Box Elektron Analog Rytm MKII 8-Voice Drum Machine and Sampler External Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elektron Analog Rytm MKII 8-Voice Drum Machine and Sampler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElektron ADS8MKII Specs | Sequencer | 12 drum tracks
1 FX track
Up to 64 steps per pattern
Individual track lengths
Trig mute, accent, swing, slide functions
Micro timing
Parameter locks
Chromatic mode
Scene mode
Performance mode
Sound-per-step change
Assignable Retrig
Instant Pattern, Kit, and Sound reload
Full real-time control | | Storage | 128 projects (+Drive)
128 kits per project
128 patterns per project
16 songs per project
4096 sounds (+Drive Sound Library)
128 sounds per project
127 samples per project
1 GB +Drive sample storage
127 factory samples | | Effects | Send Effects
Delay
Reverb
Master Effects
Analog stereo distortion
Analog stereo compressor | | Drum Voice Features | Per Voice
Fully analog signal path
1 × specialized analog percussion sound generator
1 × sample playback engine
1 × analog overdrive circuit
1 × 2-pole analog multi-mode filter
1 × panning VCA pair
1 × filter envelope
1 × amp envelope
2 × individual effect sends
1 × assignable LFO
1 × dedicated LFO fade envelope | | Hardware | 12 velocity- and pressure-sensitive backlit pads
128 × 64 OLED screen
MIDI In/Out/Thru with DIN Sync Out
48 kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
USB 2.0 port | | Outputs | Headphone Output: 1 x 1/4" / 6.35 mm
Impedance-Balanced Main Output: 2 x 1/4" / 6.35 mm
Impedance-Balanced Mono Voice Output: 8 x 1/4" / 6.35 mm
| | Inputs | Balanced Sampling Input: 2 x 1/4" / 6.35 mm
External Input: 2 x 1/4" / 6.35 mm
Expression/CV Input: 2 x 1/4" / 6.35 mm | | Power Requirements | Power Supply: 12 VDC, >2 A | | Dimensions (WxDxH) | 15.2 x 8.9 x 3.3" / 386.1 x 224.8 x 83.8 mm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 18.5 x 11.9 x 5.6" |
