Product description - Quick Listen: Elektron Digitone

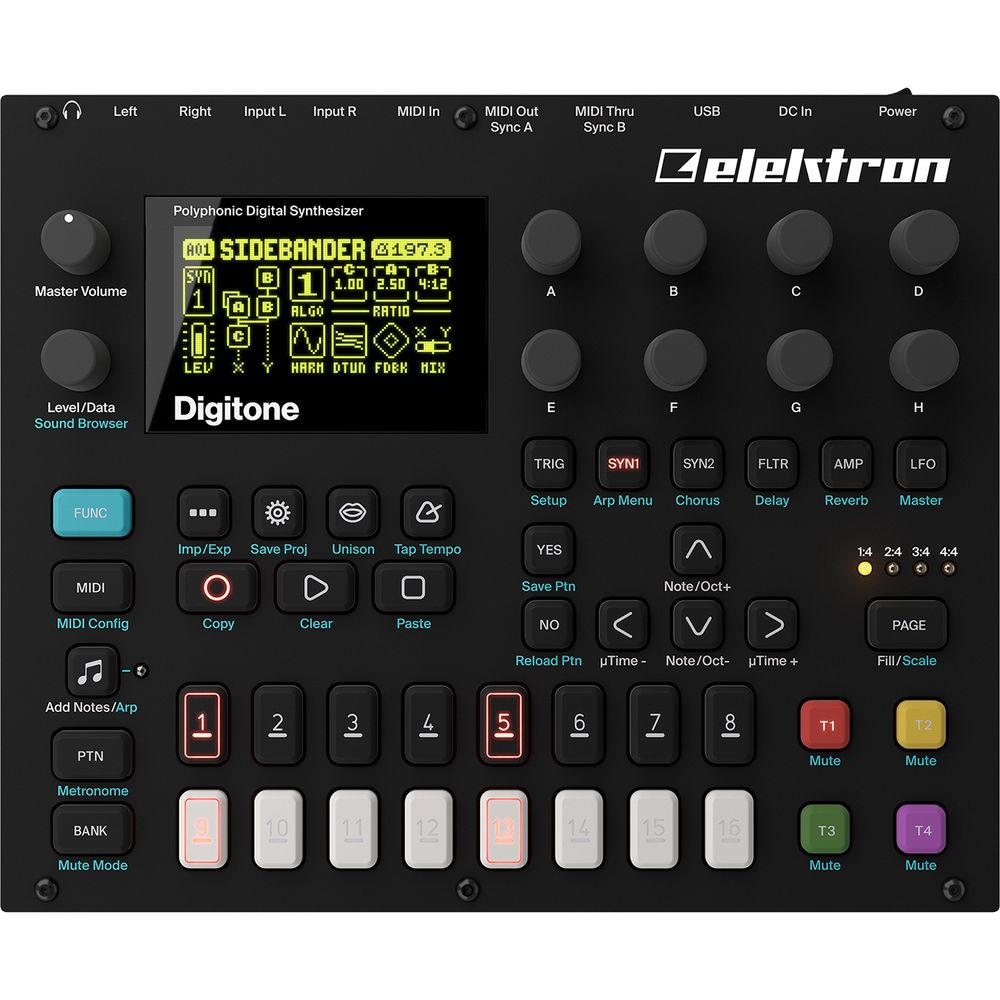

The Elektron Digitone is a compact FM synthesizer with an integrated 8-voice sound engine, a live-performance-friendly sequencer, the means to control outboard MIDI equipment, and full Overbridge support, which allows for full integration with DAW environments, including a dedicated VST/AU plug-in interface. The unit is designed for heavy use and features high-resolution encoders, durable backlit buttons (rated for 50 million presses), and a crisp OLED screen for a clear and streamlined user interface.
The Digitone leverages the powerful sound design capabilities of FM synthesis and combines it with traditional subtractive methods to create a powerful and easy-to-use FM synthesizer with modulation options such as pitch bend, breath control, velocity, and aftertouch. Each synth track offers four operators per track with eight different algorithms, followed by an overdrive effect, a base-width filter, multimode filter, and amp, along with two assignable LFOs
Each track also features an arpeggiator, while the sequencer provides advanced features, such as polyphonic sequencing, individual track lengths, micro-timing, trig conditions, and "sound per step" change. Additionally, there are dedicated Panoramic Chorus, Saturator Delay, and Supervoid Reverb send effects, as well as an overdrive master effect.
The Digitone features a pair of 1/4" outputs and a pair of 1/4" inputs, which allow you to route external sounds through the machine and apply send effects. Like all other performance machines by Elektron, the Digitone offers parameter locks, which allow any sound-shaping function to be sequenced to any point on the sequencer; this results in powerful effects that are accurately timed. What's more, any parameters that have been adjusted can be undone at the press of a button.
Overbridge is a software extension that allows for the use of Elektron's analog hardware as a plug-in within a DAW. You can design sounds on-screen using an intuitive and dedicated plug-in, use the knobs and keys on the Digitone instrument, or do both at the same time. Overbridge lets you enjoy precise synchronization and automation while using the strengths of the Elektron sequencer and your software sequencer to get the best of both worlds. - Key Features
-
- Synth voice features
- 8 voice polyphony (multitimbral)
- Multiple FM algorithms
- 1 × multimode filter per voice
- 1 × base-width filter per voice
- 1 × overdrive per voice
- 2 × assignable LFO per voice
- Sequencer
- 4 synth tracks
- 4 MIDI tracks
- 1 arpeggiator per track
- Polyphonic sequencing
- Individual track lengths
- Parameter locks
- Micro timing
- Trig conditions
- Sound per step change
- Send & master effects
- Panoramic Chorus send effect
- Saturator Delay send effect
- Supervoid Reverb send effect
- Overdrive master effect
- Hardware
- 128 × 64 pixel OLED screen

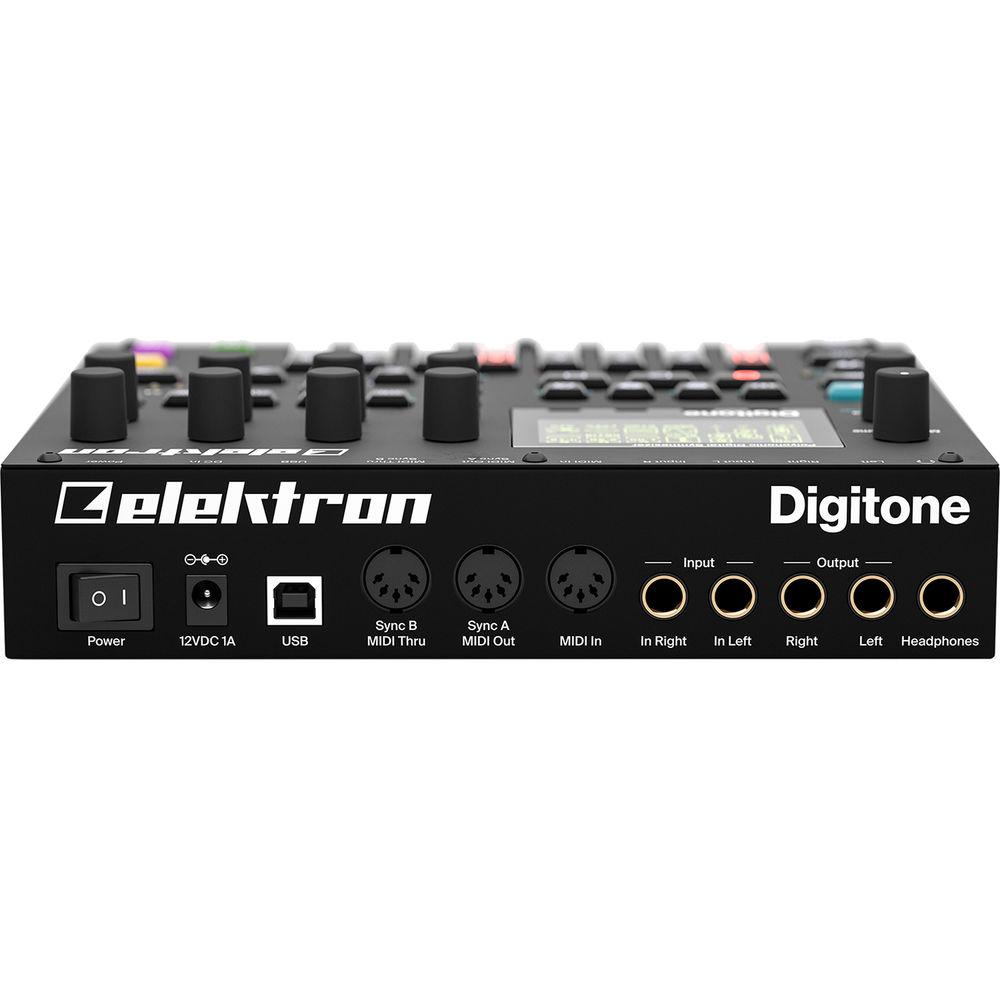

- 2 × 1/4” impedance balanced audio out jacks
- 2 × 1/4” audio in jacks
- 1 × 1/4” stereo headphone jack
- 48 kHz, 24-bit D/A and A/D converters
- Hi-Speed USB 2.0 port
- MIDI In/Out/Thru with DIN Sync out
- Overbridge enabled
- Includes
- Overbridge and Digitone
-
- Preset manager/librarian functionality
- MIDI over USB
- Digitone sequencer/DAW sync
- Computer screen visualization of Digitone parameters
- Audio streaming of all internal tracks, external inputs, and main bus to seperate DAW tracks
- Fully integrate Digitone with DAW environments
- Control Digitone with a dedicated VST/AU plugin interface
- Use Digitone as a 2 in / 2 out sound card (CoreAudio/ASIO/WDM)
- Recall all Digitone settings when loading a DAW project
In the Box Elektron Digitone Eight-Voice Digital FM Synthesizer and Sequencer Power Supply USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elektron Digitone Eight-Voice Digital FM Synthesizer and Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElektron Digitone Specs | | | Polyphony | 8 voice polyphony (multitimbral) | | Voice Algorithms | Multiple FM algorithms | | Voice Control | 1 x multi-mode filter per voice
1 x base-width filter per voice
1 x overdrive per voice
2 x assignable LFO per voice | | | | Tracks | 4 x synth tracks
4 x MIDI tracks | | Arpeggiator | 1 x arpeggiator per track | | Features | Polyphonic sequencing
Individual track lengths
Parameter locks
Micro timing
Trig conditions
Sound per step change | | | | Effects | Panoramic Chorus send effect
Saturator Delay send effect
Supervoid Reverb send effect
Overdrive master effect | | | | Display | 128
