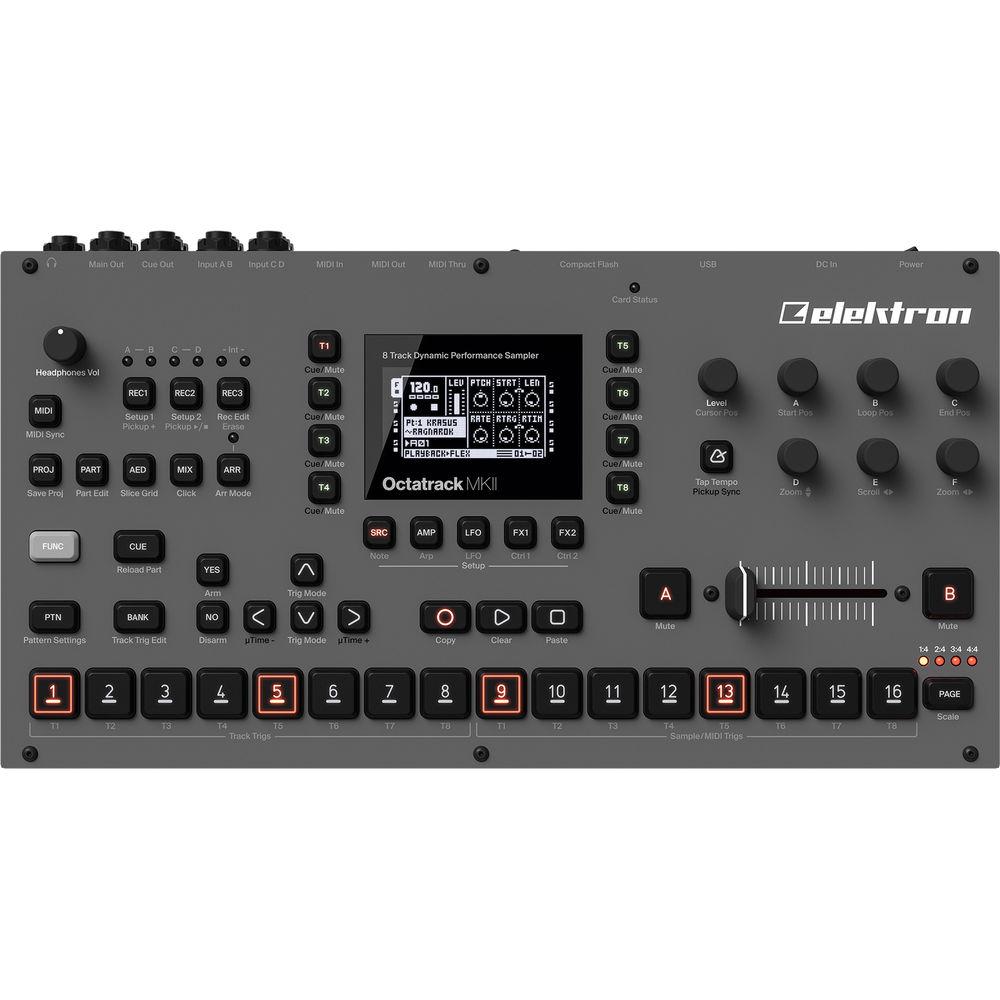

Product description New Products from Elektron for Rhythm and Synth Wizards! Read More Building upon the success of the original, the Elektron Octatrack MKII Dynamic Performance Sampler offers an updated feature set including a crisp OLED screen, durable backlit buttons, contactless crossfader, precision hi-res encoders, an increased number of dedicated buttons, and balanced audio inputs. The OLED display is easier to read in dimly lit environments, while the redesigned backlit buttons are rated for over 50 million presses. The crossfader provides silky-smooth performance, while the increase in dedicated buttons allows for a quicker workflow. The updated balanced audio inputs offer better performance specs with plenty of headroom.
The Ocatrack MKII is intuitive, powerful yet portable hardware designed to deliver flexible sampling, loop manipulation, effects processing, and pattern sequencing for producers, remixers, live performances, DJs, and more. The unit reads samples from a compact flash card or USB 2.0 device, and features up to 80MB of internal RAM. There are 4 audio inputs for sampling from external audio devices and instruments.The Octatrack's powerful engine is devised of 4 software "Machines" (Flex, Static, Thru & Neighbor Machines). Easily sync loops and samples to the sequencer's tempo, create swinging grooves, apply micro-timings, add real-time effects to grooves and more. The Octatrack MKII is well suited for live performances, allowing for lengthy samples to be streamed directly from a compact flash card, while allowing for real-time pitch and tempo control.The Step Sequencer features 8 recording tracks, 16 banks per project, 256 patterns per project, 8 arrangements per project, 4 parts per bank and 16 scenes per part. There are plenty of internal effects that include 12/24dB multi-mode filter, 2-band parametric EQ, 2 - 10 stage phaser, flanger, delay, echo and much more. Audio signals from external devices may be routed through the Octatrack's effects engine. In addition, Elektron includes a 16GB flash card loaded with a 2GB sample library courtesy of Loopmasters. - What's New
-
- Crisp OLED screen providing optimal feedback in dimly lit environments
- Durable backlit buttons. Rated for 50 million presses
- Contactless silky-smooth performance crossfader
- Precise, hi-res encoders
- Increased number of dedicated buttons enabling quicker workflow
- Balanced audio inputs with plenty of headroom
- Highlights
-
- Instant stereo sampling
- Real-time sample time-stretch & pitch-shift
- Live-friendly Elektron sequencer
- Contactless performance crossfader
- Crisp 128 × 64 OLED screen
- Hi-res encoders
- Durable backlit buttons
- 1 × 1/4" headphones output
- 2 × 1/4" impedance balanced main output
- 2 × 1/4" impedance balanced cue output
- 4 × 1/4" balanced external input
- 1 × USB 2.0 high-speed port
- MIDI In/Out/Thru ports
- Fully compatible with Octatrack MKI projects/data
- Feature Set
-
- Audio track features (x8)
- 1 × Specialized machine
- 1 × Track recorder
- 1 × Amplitude envelope
- 3 × LFOs
- 2 × User selectable track effects
- MIDI track features (x8)
- 1 × Arpeggiator
- 3 × LFOs
- 10 × configurable CCs
- Sequencer
- 8 × Audio tracks
- 8 × MIDI tracks
- Up to 64 steps per pattern
- Individual track lengths
- Individual track time signatures
- Chromatic, slice, slot, and delay freeze modes
- Parameter locks
- Sample-per-step change
- Micro timing
- Retrig functionality
- Swing and slide
- Full real-time control
- Storage
- Compact Flash card storage
- Amount of Projects dependent on CF card size
- 80 MB Flex RAM per project
- Static sample streaming from CF card
- 256 patterns per Project
- 256 sample slots per Project
- 8 Arrangements per Project
- Track effects
- 12/24dB multi-mode filter
- 2-band parametric EQ
- DJ-style kill EQ
- 2-10 stage phaser
- Flanger
- 2-5 tap chorus
- Spatializer
- Comb filter
- Compressor
- Lo-Fi (SRR, BRR, Dist, and A.M.)
- Echo freeze delay
- Gatebox plate reverb
- Spring reverb
- Dark reverb
In the Box Elektron Octatrack MKII Dynamic Performance Sampler PSU-2 Power Supply 16GB High-Speed Compact Flash Card with 2GB of Samples from Loopmasters USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elektron Octatrack MKII Dynamic Performance Sampler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

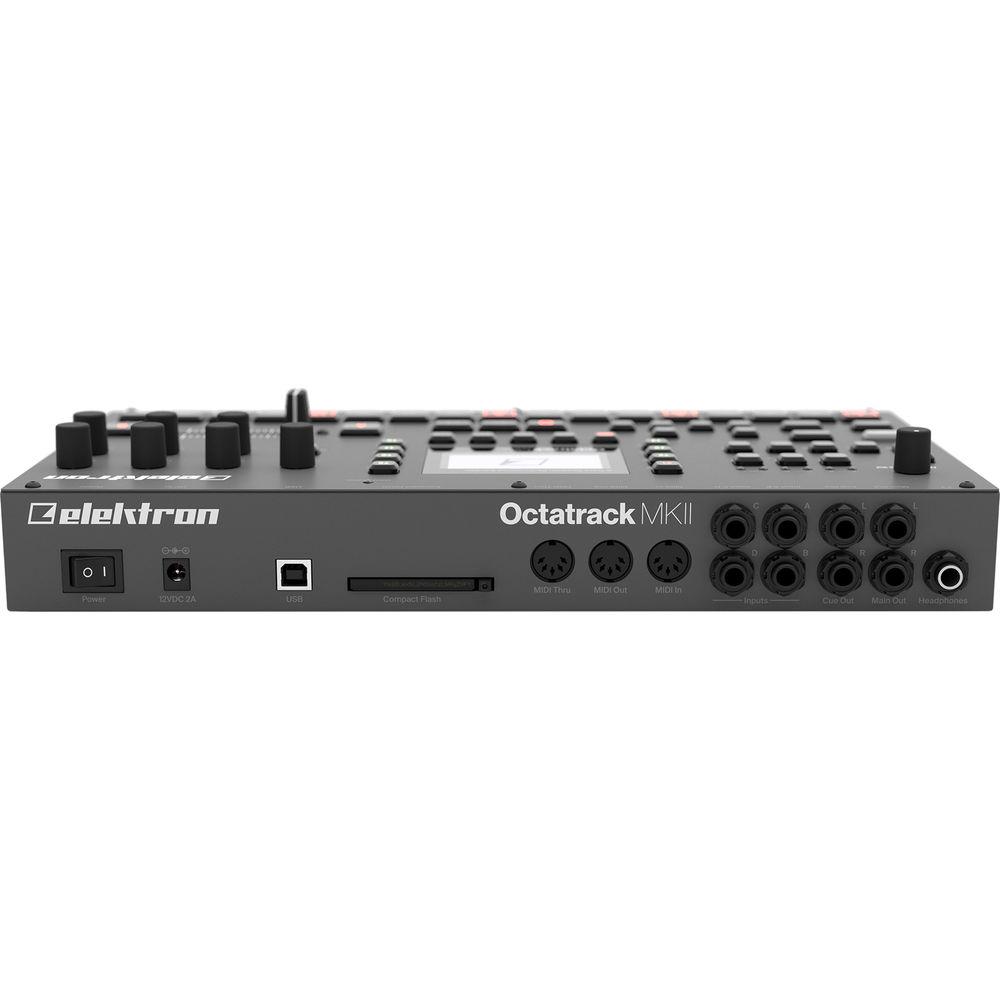

Technical parametersElektron Octatrack MKII Specs | Hardware | 128 × 64 pixel OLED screen
MIDI In/Out/Thru: 3 x 5-pin DIN
2 × 1/4” / 6.35 mm impedance balanced main audio out jacks
2 × 1/4” / 6.35 mm impedance balanced cue audio out jacks
4 × 1/4” / 6.35 mm balanced/unbalanced external input jacks
1 × 1/4” / 6.35 mm stereo headphone jack
44.1 kHz, 24-bit D/A and A/D converters
Hi-speed USB 2.0 port
Power Inlet: 12 VDC, 2 A, (center positive 5.5 × 2.5 mm barrel jack) | | Audio Outputs | Balanced Audio Outputs:
Main Outputs Level: +17 dBu peak
Output Impedance: 440 Ohms unbalanced
Digital S/N Ratio: 104 dB (20 Hz to 20 kHz) | | Headphone Output | Headphones Out Level: +17 dBu peak
Output Impedance: 55 Ohms | | Audio Inputs | Balanced Audio Inputs:
Input Level: +17 dBu peak
Audio Input Impedance: 21 kOhms
Digital S/N Ratio: 106 dB (20 Hz to 20 kHz) | | Power | Unit Power Consumption: 7 W typical
Compatible Elektron Power Supply: PSU-3b | | Enclosure | Steel | | Maximum Operating Temperature | 104°F / 40°C | | Dimensions (W x D x H) | 13.3 x 7.2 x 2.5" / 337.8 x 182.9 x 63.5 mm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 18.2 x 8.9 x 4.5" |
